DEPO Computers DEPO Storm 3350V2 ssj_ops@100% = 1,634,387
ssj_ops@100% per JVM = 81,719
Test Sponsor: DEPO Computers SPEC License #: 4430 Test Method: Single Node
Tested By: DEPO Computers Test Location: Moscow, Russian Federation Test Date: Jul 14, 2014
Hardware Availability: Mar-2014 Software Availability: Jun-2013 Publication: Oct 7, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,625,863
Calibration 2     1,638,224
Calibration 3     1,638,306
ssj_ops@calibrated=1,638,265
100% 99.8% 1,638,265 1,634,387
90% 90.0% 1,474,439 1,475,220
80% 79.9% 1,310,612 1,309,248
70% 70.0% 1,146,786 1,147,277
60% 59.7% 982,959 977,672
50% 50.0% 819,133 819,493
40% 40.1% 655,306 656,656
30% 30.1% 491,480 493,439
20% 20.1% 327,653 329,285
10% 10.0% 163,827 164,218
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: DEPO Computers
Model: DEPO Storm 3350V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10 core, 2.20GHz, 25MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 4GB 1Rx4 PC3-12800R ECC CL11; slots A1, B1, C1, D1, E1, F1, G1, H1 populated
Power Supply Quantity and Rating (W): 2 x 740
Power Supply Details: PWS-741P-1R
Disk Drive: 1 x 1TB Hitachi SATA (HUA722010CLA330)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x quad-port Intel I350 Gigabit Ethernet Controller (onboard)
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: No
Software
Power Management: Disabled
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: 6.3.9600.16384
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_45-b06)
JVM Command-line Options: -Xms1300m -Xmx1300m -Xmn1100m -XX:+AggressiveOpts -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:+UseBiasedLocking -XX:+UseCompressedStrings -XX:+UseLargePages
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C000000, 30000000, C0000000, 300000000, C00000000, 3000000000, C000000000]
JVM Instances: 20
JVM Initial Heap (MB): 1300
JVM Maximum Heap (MB): 1300
JVM Address Bits: 64
Boot Firmware Version: 3.0a
Management Firmware Version: 3.17
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
DEPO-2O28R221KD.001 81,576
DEPO-2O28R221KD.002 80,256
DEPO-2O28R221KD.003 82,183
DEPO-2O28R221KD.004 81,997
DEPO-2O28R221KD.005 83,007
DEPO-2O28R221KD.006 82,357
DEPO-2O28R221KD.007 81,606
DEPO-2O28R221KD.008 82,976
DEPO-2O28R221KD.009 81,170
DEPO-2O28R221KD.010 81,137
DEPO-2O28R221KD.011 82,781
DEPO-2O28R221KD.012 81,232
DEPO-2O28R221KD.013 81,534
DEPO-2O28R221KD.014 80,503
DEPO-2O28R221KD.015 82,012
DEPO-2O28R221KD.016 82,271
DEPO-2O28R221KD.017 82,917
DEPO-2O28R221KD.018 81,305
DEPO-2O28R221KD.019 80,612
DEPO-2O28R221KD.020 80,955
ssj_ops@100% 1,634,387
ssj_ops@100% per JVM 81,719

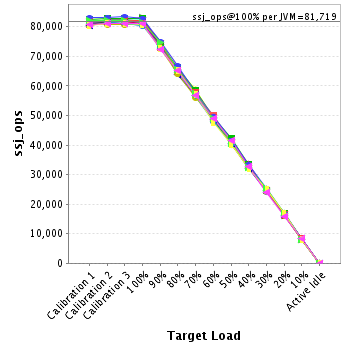

Graph of per-instance results
JVM 'DEPO-2O28R221KD.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,642
Calibration 2     82,047
Calibration 3     81,793
ssj_ops@calibrated=81,920
100% 99.6% 81,920 81,576
90% 88.9% 73,728 72,829
80% 80.2% 65,536 65,659
70% 70.2% 57,344 57,500
60% 60.9% 49,152 49,855
50% 49.9% 40,960 40,875
40% 40.0% 32,768 32,785
30% 30.0% 24,576 24,562
20% 20.3% 16,384 16,637
10% 10.0% 8,192 8,226
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,921
Calibration 2     81,090
Calibration 3     81,267
ssj_ops@calibrated=81,178
100% 98.9% 81,178 80,256
90% 91.2% 73,061 74,000
80% 79.9% 64,943 64,829
70% 69.7% 56,825 56,541
60% 58.9% 48,707 47,840
50% 49.8% 40,589 40,391
40% 40.4% 32,471 32,820
30% 29.9% 24,354 24,252
20% 20.2% 16,236 16,419
10% 9.8% 8,118 7,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

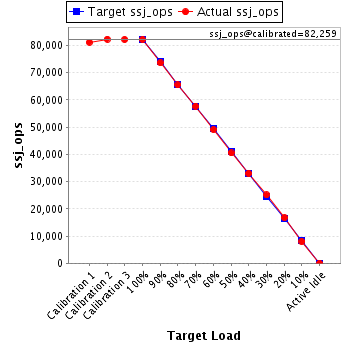

JVM 'DEPO-2O28R221KD.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,232
Calibration 2     82,320
Calibration 3     82,197
ssj_ops@calibrated=82,259
100% 99.9% 82,259 82,183
90% 89.5% 74,033 73,600
80% 79.6% 65,807 65,492
70% 70.2% 57,581 57,766
60% 59.7% 49,355 49,099
50% 49.3% 41,129 40,516
40% 40.1% 32,903 33,013
30% 30.5% 24,678 25,079
20% 20.3% 16,452 16,726
10% 9.7% 8,226 7,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

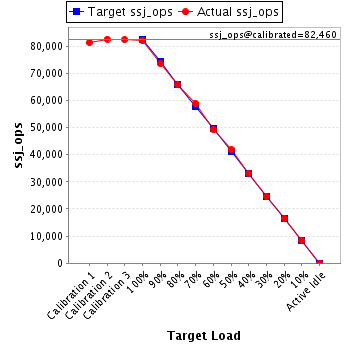

JVM 'DEPO-2O28R221KD.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,336
Calibration 2     82,578
Calibration 3     82,342
ssj_ops@calibrated=82,460
100% 99.4% 82,460 81,997
90% 89.1% 74,214 73,510
80% 79.8% 65,968 65,822
70% 71.4% 57,722 58,849
60% 59.7% 49,476 49,210
50% 50.7% 41,230 41,845
40% 40.3% 32,984 33,197
30% 30.0% 24,738 24,709
20% 20.0% 16,492 16,520
10% 10.3% 8,246 8,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,846
Calibration 2     82,045
Calibration 3     82,444
ssj_ops@calibrated=82,244
100% 100.9% 82,244 83,007
90% 89.5% 74,020 73,643
80% 80.7% 65,796 66,396
70% 69.9% 57,571 57,489
60% 60.1% 49,347 49,444
50% 50.0% 41,122 41,161
40% 39.5% 32,898 32,510
30% 29.2% 24,673 24,039
20% 20.7% 16,449 17,017
10% 9.8% 8,224 8,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

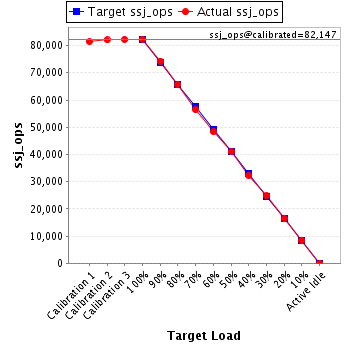

JVM 'DEPO-2O28R221KD.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,444
Calibration 2     82,068
Calibration 3     82,227
ssj_ops@calibrated=82,147
100% 100.3% 82,147 82,357
90% 90.5% 73,933 74,315
80% 80.0% 65,718 65,759
70% 68.7% 57,503 56,399
60% 58.8% 49,288 48,333
50% 49.9% 41,074 41,023
40% 39.4% 32,859 32,349
30% 30.1% 24,644 24,738
20% 20.0% 16,429 16,436
10% 10.2% 8,215 8,392
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

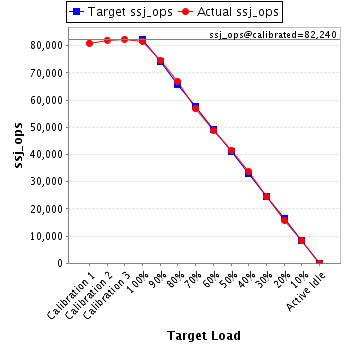

JVM 'DEPO-2O28R221KD.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,957
Calibration 2     82,075
Calibration 3     82,405
ssj_ops@calibrated=82,240
100% 99.2% 82,240 81,606
90% 90.8% 74,016 74,643
80% 81.3% 65,792 66,849
70% 69.0% 57,568 56,736
60% 59.4% 49,344 48,871
50% 50.3% 41,120 41,406
40% 40.9% 32,896 33,642
30% 29.7% 24,672 24,412
20% 19.3% 16,448 15,869
10% 10.0% 8,224 8,215
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,517
Calibration 2     82,321
Calibration 3     82,355
ssj_ops@calibrated=82,338
100% 100.8% 82,338 82,976
90% 90.0% 74,104 74,096
80% 79.7% 65,870 65,595
70% 70.3% 57,637 57,851
60% 59.9% 49,403 49,283
50% 50.8% 41,169 41,859
40% 40.2% 32,935 33,134
30% 30.4% 24,701 25,012
20% 19.7% 16,468 16,205
10% 9.9% 8,234 8,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,105
Calibration 2     81,866
Calibration 3     81,782
ssj_ops@calibrated=81,824
100% 99.2% 81,824 81,170
90% 90.1% 73,641 73,721
80% 79.7% 65,459 65,211
70% 70.6% 57,277 57,729
60% 59.7% 49,094 48,834
50% 48.9% 40,912 40,010
40% 39.5% 32,730 32,310
30% 30.3% 24,547 24,754
20% 19.8% 16,365 16,234
10% 10.0% 8,182 8,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,457
Calibration 2     81,405
Calibration 3     81,108
ssj_ops@calibrated=81,256
100% 99.9% 81,256 81,137
90% 91.3% 73,131 74,162
80% 78.6% 65,005 63,885
70% 69.7% 56,879 56,674
60% 59.7% 48,754 48,507
50% 49.8% 40,628 40,496
40% 39.5% 32,503 32,075
30% 30.1% 24,377 24,450
20% 20.0% 16,251 16,250
10% 10.3% 8,126 8,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,584
Calibration 2     82,878
Calibration 3     82,759
ssj_ops@calibrated=82,818
100% 100.0% 82,818 82,781
90% 88.9% 74,536 73,627
80% 80.0% 66,255 66,214
70% 70.5% 57,973 58,390
60% 59.3% 49,691 49,150
50% 51.1% 41,409 42,331
40% 40.4% 33,127 33,484
30% 29.9% 24,845 24,761
20% 20.3% 16,564 16,796
10% 10.1% 8,282 8,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,005
Calibration 2     80,833
Calibration 3     80,661
ssj_ops@calibrated=80,747
100% 100.6% 80,747 81,232
90% 90.0% 72,672 72,671
80% 79.3% 64,598 64,028
70% 69.5% 56,523 56,079
60% 60.5% 48,448 48,815
50% 50.4% 40,374 40,698
40% 40.8% 32,299 32,962
30% 30.3% 24,224 24,433
20% 20.0% 16,149 16,170
10% 10.0% 8,075 8,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,543
Calibration 2     81,935
Calibration 3     81,760
ssj_ops@calibrated=81,847
100% 99.6% 81,847 81,534
90% 89.5% 73,662 73,222
80% 80.0% 65,478 65,458
70% 70.6% 57,293 57,777
60% 60.1% 49,108 49,161
50% 49.9% 40,924 40,863
40% 40.8% 32,739 33,392
30% 30.3% 24,554 24,812
20% 20.0% 16,369 16,337
10% 10.0% 8,185 8,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,126
Calibration 2     81,295
Calibration 3     81,053
ssj_ops@calibrated=81,174
100% 99.2% 81,174 80,503
90% 89.9% 73,057 72,936
80% 80.2% 64,939 65,090
70% 69.9% 56,822 56,716
60% 59.2% 48,704 48,028
50% 49.7% 40,587 40,323
40% 40.5% 32,470 32,837
30% 30.0% 24,352 24,356
20% 20.2% 16,235 16,434
10% 10.2% 8,117 8,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,877
Calibration 2     81,894
Calibration 3     82,201
ssj_ops@calibrated=82,047
100% 100.0% 82,047 82,012
90% 91.4% 73,843 74,973
80% 79.5% 65,638 65,203
70% 70.2% 57,433 57,630
60% 59.3% 49,228 48,677
50% 50.0% 41,024 41,047
40% 39.9% 32,819 32,749
30% 30.3% 24,614 24,843
20% 20.0% 16,409 16,423
10% 10.1% 8,205 8,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,878
Calibration 2     82,097
Calibration 3     82,026
ssj_ops@calibrated=82,062
100% 100.3% 82,062 82,271
90% 90.8% 73,855 74,471
80% 79.4% 65,649 65,186
70% 70.5% 57,443 57,862
60% 60.3% 49,237 49,463
50% 49.3% 41,031 40,472
40% 39.9% 32,825 32,738
30% 30.0% 24,618 24,633
20% 20.2% 16,412 16,598
10% 10.0% 8,206 8,219
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,174
Calibration 2     83,193
Calibration 3     83,520
ssj_ops@calibrated=83,357
100% 99.5% 83,357 82,917
90% 90.2% 75,021 75,170
80% 80.3% 66,685 66,929
70% 69.2% 58,350 57,715
60% 59.7% 50,014 49,765
50% 50.1% 41,678 41,766
40% 40.2% 33,343 33,529
30% 30.3% 25,007 25,271
20% 20.3% 16,671 16,911
10% 10.1% 8,336 8,421
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,151
Calibration 2     82,073
Calibration 3     81,975
ssj_ops@calibrated=82,024
100% 99.1% 82,024 81,305
90% 90.9% 73,822 74,545
80% 79.7% 65,619 65,402
70% 70.1% 57,417 57,489
60% 59.7% 49,214 48,934
50% 49.9% 41,012 40,923
40% 39.4% 32,810 32,344
30% 30.8% 24,607 25,248
20% 20.4% 16,405 16,714
10% 9.7% 8,202 7,990
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,296
Calibration 2     81,002
Calibration 3     81,254
ssj_ops@calibrated=81,128
100% 99.4% 81,128 80,612
90% 89.6% 73,016 72,726
80% 80.3% 64,903 65,133
70% 70.5% 56,790 57,172
60% 58.5% 48,677 47,466
50% 49.4% 40,564 40,087
40% 39.6% 32,451 32,120
30% 30.8% 24,339 24,985
20% 20.6% 16,226 16,707
10% 10.0% 8,113 8,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DEPO-2O28R221KD.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,772
Calibration 2     81,211
Calibration 3     81,179
ssj_ops@calibrated=81,195
100% 99.7% 81,195 80,955
90% 89.1% 73,075 72,361
80% 80.2% 64,956 65,110
70% 70.1% 56,836 56,913
60% 60.3% 48,717 48,935
50% 51.0% 40,597 41,402
40% 40.2% 32,478 32,666
30% 29.7% 24,358 24,090
20% 19.6% 16,239 15,880
10% 10.1% 8,119 8,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
