Fujitsu FUJITSU Server PRIMERGY TX1320 M1 ssj_ops@100% = 508,794
ssj_ops@100% per JVM = 127,198
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Dec 9, 2014
Hardware Availability: Mar-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     490,880
Calibration 2     507,877
Calibration 3     508,841
ssj_ops@calibrated=508,359
100% 100.1% 508,359 508,794
90% 91.4% 457,523 464,610
80% 78.9% 406,687 401,218
70% 70.3% 355,851 357,316
60% 60.2% 305,015 305,878
50% 50.0% 254,180 253,982
40% 40.1% 203,344 203,829
30% 29.9% 152,508 152,176
20% 20.0% 101,672 101,674
10% 10.1% 50,836 51,444
Active Idle   0 0
Graph of results
System Under Test
Set: 'TX1320 M1'
Set Identifier: TX1320 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1320 M1
Form Factor: Tower
CPU Name: Intel Xeon E3-1275Lv3
CPU Characteristics: 4-Core, 2.70GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
CPU Frequency (MHz): 2700
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 250
Power Supply Details: Fujitsu Technology Solutions S26113-E565-V70-01
Disk Drive: 1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5533-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I210 and 1 x Intel I217LM Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: R2.10.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-3P55R51Q22G.001 126,886
WIN-3P55R51Q22G.002 129,442
WIN-3P55R51Q22G.003 125,832
WIN-3P55R51Q22G.004 126,633
ssj_ops@100% 508,794
ssj_ops@100% per JVM 127,198

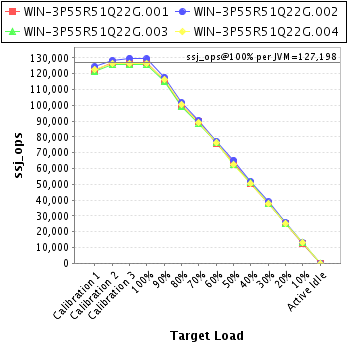

Graph of per-instance results
JVM 'WIN-3P55R51Q22G.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,222
Calibration 2     127,243
Calibration 3     126,573
ssj_ops@calibrated=126,908
100% 100.0% 126,908 126,886
90% 91.0% 114,217 115,525
80% 78.7% 101,526 99,930
70% 70.6% 88,836 89,569
60% 59.9% 76,145 75,977
50% 50.2% 63,454 63,748
40% 39.8% 50,763 50,571
30% 29.8% 38,072 37,863
20% 19.9% 25,382 25,199
10% 10.0% 12,691 12,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3P55R51Q22G.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,488
Calibration 2     128,451
Calibration 3     129,824
ssj_ops@calibrated=129,138
100% 100.2% 129,138 129,442
90% 91.2% 116,224 117,754
80% 78.7% 103,310 101,647
70% 70.0% 90,396 90,441
60% 59.8% 77,483 77,201
50% 50.5% 64,569 65,251
40% 40.1% 51,655 51,769
30% 30.1% 38,741 38,872
20% 20.0% 25,828 25,771
10% 10.0% 12,914 12,893
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3P55R51Q22G.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,277
Calibration 2     125,736
Calibration 3     126,078
ssj_ops@calibrated=125,907
100% 99.9% 125,907 125,832
90% 91.3% 113,316 114,948
80% 78.6% 100,725 98,995
70% 70.1% 88,135 88,211
60% 60.8% 75,544 76,536
50% 49.5% 62,953 62,314
40% 40.4% 50,363 50,878
30% 30.1% 37,772 37,861
20% 20.1% 25,181 25,256
10% 10.2% 12,591 12,886
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-3P55R51Q22G.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,893
Calibration 2     126,448
Calibration 3     126,366
ssj_ops@calibrated=126,407
100% 100.2% 126,407 126,633
90% 92.1% 113,766 116,383
80% 79.6% 101,125 100,648
70% 70.5% 88,485 89,096
60% 60.3% 75,844 76,163
50% 49.6% 63,203 62,670
40% 40.0% 50,563 50,611
30% 29.7% 37,922 37,580
20% 20.1% 25,281 25,448
10% 10.2% 12,641 12,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
