SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2015 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge T630 (Intel Xeon E5-2699 v3 2.30 GHz) | SPECpower_ssj2008 = 10,103 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 17, 2015 |
| Hardware Availability: | Apr-2015 | Software Availability: | Jun-2013 | Publication: | Mar 18, 2015 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

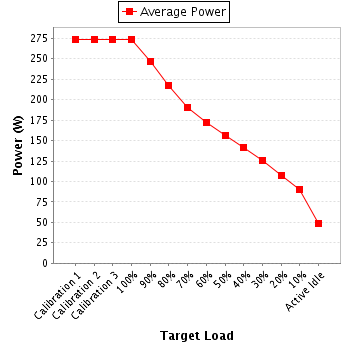

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 273 | 20.0 |
| Calibration 2 | 274 | 20.6 |
| Calibration 3 | 274 | 20.8 |
| 100% | 273 | 21.2 |
| 90% | 247 | 21.1 |
| 80% | 217 | 20.9 |
| 70% | 191 | 20.6 |
| 60% | 172 | 20.7 |
| 50% | 157 | 20.4 |
| 40% | 142 | 20.6 |
| 30% | 126 | 20.4 |
| 20% | 108 | 20.4 |
| 10% | 89.6 | 20.2 |
| Active Idle | 48.1 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91HB22770 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 6632150 |
| Date of Calibration: | 4-Aug-2014 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.7.0-538b1562-20140802 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.33 | 2.0 | 0.988 | 273 | 0.4% |
| Calibration 2 | 208 | 300.0 | 1.33 | 2.0 | 0.988 | 274 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.33 | 2.0 | 0.989 | 274 | 0.4% |
| 100% | 208 | 300.0 | 1.33 | 2.0 | 0.988 | 273 | 0.4% |
| 90% | 208 | 300.0 | 1.20 | 2.0 | 0.986 | 247 | 0.4% |
| 80% | 208 | 300.0 | 1.06 | 2.0 | 0.983 | 217 | 0.5% |
| 70% | 208 | 300.0 | 0.938 | 1.0 | 0.978 | 191 | 0.3% |
| 60% | 208 | 300.0 | 0.847 | 1.0 | 0.973 | 172 | 0.4% |
| 50% | 208 | 300.0 | 0.776 | 1.0 | 0.969 | 157 | 0.4% |
| 40% | 208 | 300.0 | 0.707 | 1.0 | 0.962 | 142 | 0.4% |
| 30% | 208 | 300.0 | 0.634 | 1.0 | 0.952 | 126 | 0.5% |
| 20% | 208 | 300.0 | 0.551 | 1.0 | 0.939 | 108 | 0.5% |
| 10% | 208 | 300.0 | 0.470 | 0.5 | 0.915 | 89.6 | 0.4% |
| Active Idle | 208 | 300.0 | 0.292 | 0.5 | 0.790 | 48.1 | 0.6% |
