SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2015 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge FC630 (Intel Xeon E5-2699 v3 2.30 GHz) | SPECpower_ssj2008 = 9,288 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jul 10, 2015 |
| Hardware Availability: | Jun-2015 | Software Availability: | Jun-2013 | Publication: | Aug 6, 2015 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

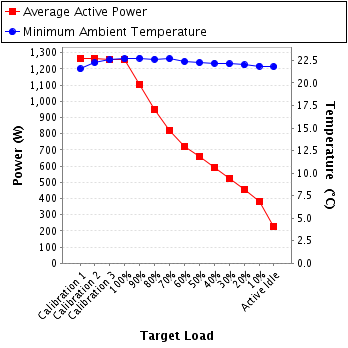

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,267 | 21.6 |
| Calibration 2 | 1,262 | 22.2 |
| Calibration 3 | 1,261 | 22.6 |
| 100% | 1,256 | 22.7 |
| 90% | 1,105 | 22.8 |
| 80% | 948 | 22.6 |
| 70% | 823 | 22.7 |
| 60% | 721 | 22.4 |
| 50% | 658 | 22.2 |
| 40% | 593 | 22.2 |
| 30% | 525 | 22.1 |
| 20% | 455 | 22.0 |
| 10% | 382 | 21.9 |
| Active Idle | 228 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Simco Electronics |
| Calibration Label: | 6930824 |
| Date of Calibration: | 07-May-2015 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.7.1-4db18c59-20150211 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.3.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5MM in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 6.22 | 10.0 | 0.996 | 1,267 | 0.4% |
| Calibration 2 | 205 | 300.0 | 6.19 | 10.0 | 0.996 | 1,262 | 0.4% |
| Calibration 3 | 205 | 300.0 | 6.19 | 10.0 | 0.996 | 1,261 | 0.4% |
| 100% | 205 | 300.0 | 6.16 | 10.0 | 0.996 | 1,256 | 0.4% |
| 90% | 205 | 300.0 | 5.42 | 10.0 | 0.995 | 1,105 | 0.4% |
| 80% | 205 | 300.0 | 4.65 | 5.0 | 0.994 | 948 | 0.3% |
| 70% | 205 | 300.0 | 4.03 | 5.0 | 0.994 | 823 | 0.4% |
| 60% | 206 | 300.0 | 3.53 | 5.0 | 0.993 | 721 | 0.4% |
| 50% | 206 | 300.0 | 3.22 | 5.0 | 0.992 | 658 | 0.4% |
| 40% | 206 | 300.0 | 2.91 | 5.0 | 0.990 | 593 | 0.4% |
| 30% | 206 | 300.0 | 2.58 | 5.0 | 0.987 | 525 | 0.5% |
| 20% | 206 | 300.0 | 2.25 | 5.0 | 0.983 | 455 | 0.5% |
| 10% | 206 | 300.0 | 1.90 | 5.0 | 0.978 | 382 | 0.6% |
| Active Idle | 206 | 300.0 | 1.16 | 2.0 | 0.951 | 228 | 0.5% |
