Fujitsu FUJITSU Server PRIMERGY TX1330 M2 ssj_ops@100% = 484,122
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Dec 12, 2015
Hardware Availability: Feb-2016 Software Availability: Jan-2015 Publication: Jan 7, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     481,704
Calibration 2     485,248
Calibration 3     483,587
ssj_ops@calibrated=484,417
100% 99.9% 484,417 484,122
90% 89.9% 435,976 435,666
80% 79.8% 387,534 386,466
70% 69.9% 339,092 338,638
60% 59.8% 290,650 289,910
50% 50.0% 242,209 242,418
40% 39.5% 193,767 191,117
30% 30.0% 145,325 145,498
20% 20.0% 96,883 96,975
10% 10.0% 48,442 48,224
Active Idle   0 0

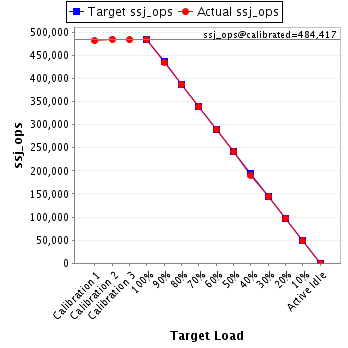

Graph of results
System Under Test
Set: 'TX1330 M2'
Set Identifier: TX1330 M2
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1330 M2
Form Factor: Tower
CPU Name: Intel Xeon E3-1240L v5
CPU Characteristics: 4-Core, 2.10GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.20 GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB DDR4, unbuffered, ECC, 2133 MHz, PC4-2133U, DIMM, 2Rx8; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Standard power supply part of base unit S26361-K1552-V101
Disk Drive: 1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn10g -Xms12g -Xmx12g -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 12000
JVM Maximum Heap (MB): 12000
JVM Address Bits: 64
Boot Firmware Version: R1.6.0
Management Firmware Version: 8.10F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 35,055,205 12,123
Payment 35,055,209
Order Status 3,505,520
Delivery 3,505,522
Stock Level 3,505,520
Customer Report 35,055,199
Calibration 2 New Order 35,301,217 12,123
Payment 35,301,217
Order Status 3,530,124
Delivery 3,530,124
Stock Level 3,530,125
Customer Report 35,301,216
Calibration 3 New Order 35,201,157 12,123
Payment 35,201,169
Order Status 3,520,116
Delivery 3,520,118
Stock Level 3,520,116
Customer Report 35,201,160
100% 99.9% New Order 35,230,967 12,123
Payment 35,230,953
Order Status 3,523,096
Delivery 3,523,097
Stock Level 3,523,098
Customer Report 35,230,958
90% 89.9% New Order 31,692,883 12,123
Payment 31,692,886
Order Status 3,169,290
Delivery 3,169,292
Stock Level 3,169,292
Customer Report 31,692,893
80% 79.8% New Order 28,128,466 12,123
Payment 28,128,452
Order Status 2,812,845
Delivery 2,812,847
Stock Level 2,812,844
Customer Report 28,128,463
70% 69.9% New Order 24,629,649 12,123
Payment 24,629,653
Order Status 2,462,966
Delivery 2,462,965
Stock Level 2,462,966
Customer Report 24,629,654
60% 59.8% New Order 21,089,075 12,123
Payment 21,089,065
Order Status 2,108,911
Delivery 2,108,908
Stock Level 2,108,906
Customer Report 21,089,070
50% 50.0% New Order 17,644,561 12,123
Payment 17,644,573
Order Status 1,764,460
Delivery 1,764,455
Stock Level 1,764,454
Customer Report 17,644,572
40% 39.5% New Order 13,899,753 12,123
Payment 13,899,747
Order Status 1,389,974
Delivery 1,389,975
Stock Level 1,389,976
Customer Report 13,899,737
30% 30.0% New Order 10,584,220 12,123
Payment 10,584,225
Order Status 1,058,418
Delivery 1,058,424
Stock Level 1,058,424
Customer Report 10,584,213
20% 20.0% New Order 7,052,945 12,123
Payment 7,052,945
Order Status 705,293
Delivery 705,296
Stock Level 705,294
Customer Report 7,052,941
10% 10.0% New Order 3,507,629 12,123
Payment 3,507,639
Order Status 350,766
Delivery 350,763
Stock Level 350,764
Customer Report 3,507,637
Active Idle New Order 0 12,123
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
