Fujitsu FUJITSU Server PRIMERGY RX2560 M2 SPECpower_ssj2008 = 12,079 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 9, 2016
Hardware Availability: Apr-2016 Software Availability: Jan-2015 Publication: Apr 15, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 242 20.9
Calibration 2 242 20.8
Calibration 3 242 20.5
100% 243 20.4
90% 218 20.6
80% 192 21.1
70% 167 21.0
60% 152 20.7
50% 139 20.4
40% 127 20.4
30% 113 20.7
20% 96.9 21.0
10% 82.0 20.8
Active Idle 41.7 20.4

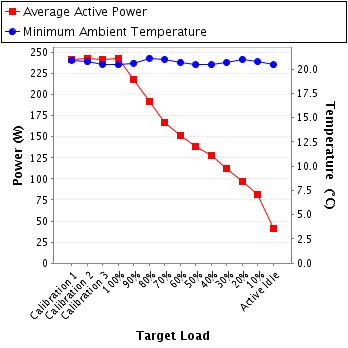

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W15113632
Date of Calibration: 30-Nov-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.06 1.2 0.988 242 0.1%
Calibration 2 230 250.0 1.06 1.2 0.988 242 0.1%
Calibration 3 230 250.0 1.06 1.2 0.988 242 0.1%
100% 230 250.0 1.07 1.2 0.988 243 0.1%
90% 230 250.0 0.961 1.2 0.986 218 0.1%
80% 230 250.0 0.845 1.2 0.986 192 0.1%
70% 230 250.0 0.739 1.2 0.981 167 0.1%
60% 230 250.0 0.673 1.2 0.977 152 0.1%
50% 231 250.0 0.620 1.2 0.973 139 0.1%
40% 231 250.0 0.571 0.6 0.967 127 0.1%
30% 231 250.0 0.510 0.6 0.958 113 0.1%
20% 231 250.0 0.443 0.6 0.948 96.9 0.1%
10% 231 250.0 0.383 0.6 0.929 82.0 0.1%
Active Idle 231 250.0 0.243 0.6 0.745 41.7 0.2%

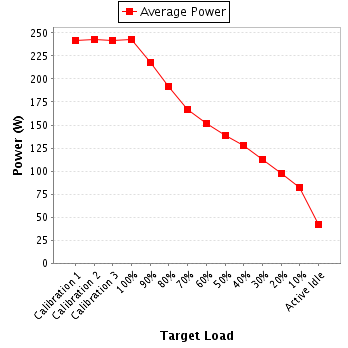

Power details for pwr1
