Quanta Computer Inc. QuantaGrid S31A-1U SPECpower_ssj2008 = 7,908 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: May 10, 2016
Hardware Availability: Feb-2016 Software Availability: Apr-2013 Publication: Jun 1, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 47.4 24.9
Calibration 2 47.8 24.9
Calibration 3 47.9 24.9
100% 47.9 25.0
90% 44.6 25.0
80% 40.4 25.0
70% 36.0 25.0
60% 32.1 25.0
50% 28.9 25.1
40% 26.1 25.1
30% 22.7 25.1
20% 20.4 25.1
10% 18.0 25.1
Active Idle 14.4 25.1

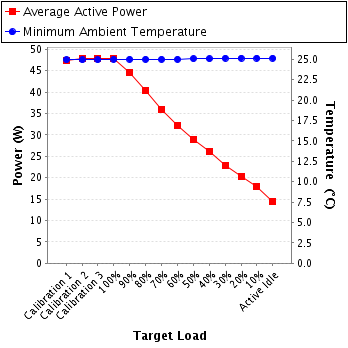

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2QD24017V
Connectivity: USB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Electronics Testing Center,Taiwan
Calibration Label: Q10680081
Date of Calibration: 03-Mar-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 0.276 0.5 0.779 47.4 0.5%
Calibration 2 221 300.0 0.277 0.5 0.783 47.8 0.5%
Calibration 3 221 300.0 0.277 0.5 0.784 47.9 0.5%
100% 220 300.0 0.277 0.5 0.785 47.9 0.5%
90% 220 300.0 0.266 0.5 0.761 44.6 0.5%
80% 220 300.0 0.253 0.5 0.726 40.4 0.6%
70% 220 300.0 0.238 0.5 0.687 36.0 0.6%
60% 220 300.0 0.225 0.5 0.648 32.1 0.6%
50% 220 300.0 0.215 0.5 0.611 28.9 0.7%
40% 220 300.0 0.206 0.2 0.576 26.1 0.5%
30% 220 300.0 0.202 0.2 0.514 22.7 0.6%
20% 219 300.0 0.197 0.2 0.473 20.4 0.6%
10% 219 300.0 0.188 0.2 0.436 18.0 0.7%
Active Idle 219 300.0 0.174 0.2 0.378 14.4 0.8%

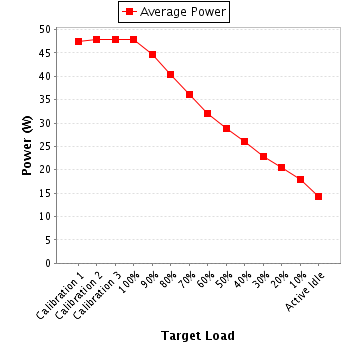

Power details for pwr1
