Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,578,086
ssj_ops@100% per JVM = 894,521
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,573,388
Calibration 2     3,583,780
Calibration 3     3,600,189
ssj_ops@calibrated=3,591,984
100% 99.6% 3,591,984 3,578,086
90% 90.5% 3,232,786 3,252,125
80% 79.9% 2,873,588 2,871,387
70% 69.9% 2,514,389 2,510,758
60% 60.0% 2,155,191 2,156,886
50% 49.9% 1,795,992 1,793,584
40% 40.0% 1,436,794 1,435,980
30% 30.0% 1,077,595 1,076,138
20% 20.0% 718,397 718,860
10% 10.0% 359,198 360,689
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade14.001 894,114
Bobby-Blade14.002 895,010
Bobby-Blade14.003 895,503
Bobby-Blade14.004 893,459
ssj_ops@100% 3,578,086
ssj_ops@100% per JVM 894,521

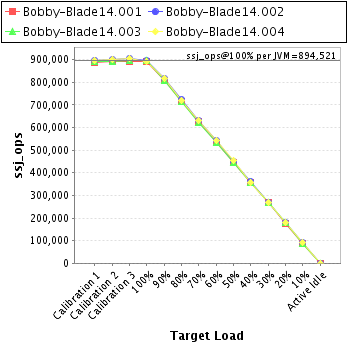

Graph of per-instance results
JVM 'Bobby-Blade14.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     888,734
Calibration 2     891,893
Calibration 3     893,065
ssj_ops@calibrated=892,479
100% 100.2% 892,479 894,114
90% 90.4% 803,231 806,782
80% 80.0% 713,983 713,872
70% 70.1% 624,735 625,375
60% 60.0% 535,487 535,612
50% 49.8% 446,239 444,455
40% 40.0% 356,991 356,551
30% 30.0% 267,744 267,548
20% 19.9% 178,496 177,465
10% 9.9% 89,248 88,691
Active Idle   0 0
Graph of results
JVM 'Bobby-Blade14.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     898,036
Calibration 2     900,435
Calibration 3     906,856
ssj_ops@calibrated=903,646
100% 99.0% 903,646 895,010
90% 90.4% 813,281 817,052
80% 79.9% 722,916 722,325
70% 69.9% 632,552 631,933
60% 60.1% 542,187 542,729
50% 49.9% 451,823 450,836
40% 40.0% 361,458 361,228
30% 29.9% 271,094 270,590
20% 20.0% 180,729 180,994
10% 10.1% 90,365 91,302
Active Idle   0 0
Graph of results
JVM 'Bobby-Blade14.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     891,219
Calibration 2     891,573
Calibration 3     895,186
ssj_ops@calibrated=893,380
100% 100.2% 893,380 895,503
90% 90.6% 804,042 809,595
80% 79.9% 714,704 713,610
70% 69.6% 625,366 622,128
60% 60.0% 536,028 536,012
50% 49.8% 446,690 445,191
40% 40.2% 357,352 359,259
30% 30.0% 268,014 268,168
20% 20.3% 178,676 181,194
10% 10.0% 89,338 89,506
Active Idle   0 0
Graph of results
JVM 'Bobby-Blade14.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     895,399
Calibration 2     899,878
Calibration 3     905,083
ssj_ops@calibrated=902,481
100% 99.0% 902,481 893,459
90% 90.7% 812,233 818,696
80% 80.0% 721,985 721,581
70% 70.0% 631,736 631,322
60% 60.1% 541,488 542,533
50% 50.2% 451,240 453,103
40% 39.8% 360,992 358,942
30% 29.9% 270,744 269,832
20% 19.9% 180,496 179,207
10% 10.1% 90,248 91,191
Active Idle   0 0
Graph of results
