Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,611,467
ssj_ops@100% per JVM = 902,867
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,596,876
Calibration 2     3,610,794
Calibration 3     3,613,881
ssj_ops@calibrated=3,612,337
100% 100.0% 3,612,337 3,611,467
90% 90.6% 3,251,104 3,272,406
80% 79.9% 2,889,870 2,885,344
70% 69.9% 2,528,636 2,523,848
60% 59.9% 2,167,402 2,165,090
50% 50.0% 1,806,169 1,807,164
40% 40.1% 1,444,935 1,448,112
30% 30.0% 1,083,701 1,083,762
20% 20.0% 722,467 721,502
10% 10.0% 361,234 362,483
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade2.001 911,203
Bobby-Blade2.002 909,554
Bobby-Blade2.003 895,245
Bobby-Blade2.004 895,465
ssj_ops@100% 3,611,467
ssj_ops@100% per JVM 902,867

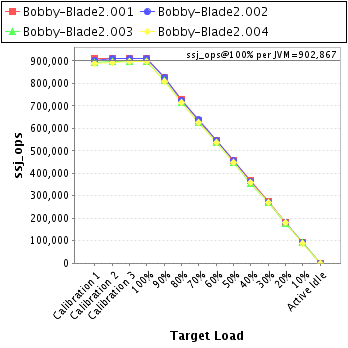

Graph of per-instance results
JVM 'Bobby-Blade2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     909,877
Calibration 2     912,124
Calibration 3     911,085
ssj_ops@calibrated=911,604
100% 100.0% 911,604 911,203
90% 90.5% 820,444 824,565
80% 80.0% 729,284 728,978
70% 69.6% 638,123 634,763
60% 59.8% 546,963 545,224
50% 50.1% 455,802 456,933
40% 40.4% 364,642 368,163
30% 30.0% 273,481 273,520
20% 20.0% 182,321 182,574
10% 10.0% 91,160 91,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     903,399
Calibration 2     909,125
Calibration 3     910,733
ssj_ops@calibrated=909,929
100% 100.0% 909,929 909,554
90% 90.7% 818,936 824,906
80% 79.8% 727,943 725,989
70% 70.0% 636,950 637,266
60% 59.8% 545,957 544,456
50% 50.1% 454,965 455,531
40% 40.1% 363,972 364,980
30% 29.9% 272,979 271,869
20% 19.9% 181,986 181,139
10% 10.0% 90,993 90,973
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     893,485
Calibration 2     896,204
Calibration 3     896,012
ssj_ops@calibrated=896,108
100% 99.9% 896,108 895,245
90% 90.7% 806,497 812,761
80% 80.0% 716,886 716,574
70% 69.8% 627,276 625,764
60% 60.0% 537,665 538,031
50% 50.0% 448,054 447,934
40% 39.8% 358,443 356,679
30% 30.0% 268,832 269,153
20% 19.9% 179,222 178,574
10% 10.1% 89,611 90,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     890,115
Calibration 2     893,341
Calibration 3     896,051
ssj_ops@calibrated=894,696
100% 100.1% 894,696 895,465
90% 90.6% 805,226 810,175
80% 79.8% 715,757 713,802
70% 70.0% 626,287 626,054
60% 60.1% 536,818 537,378
50% 49.9% 447,348 446,765
40% 40.0% 357,878 358,291
30% 30.1% 268,409 269,220
20% 20.0% 178,939 179,216
10% 10.1% 89,470 90,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
