Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,605,068
ssj_ops@100% per JVM = 901,267
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,602,609
Calibration 2     3,605,333
Calibration 3     3,614,221
ssj_ops@calibrated=3,609,777
100% 99.9% 3,609,777 3,605,068
90% 90.4% 3,248,800 3,264,181
80% 79.9% 2,887,822 2,883,506
70% 69.9% 2,526,844 2,522,207
60% 59.9% 2,165,866 2,160,910
50% 50.1% 1,804,889 1,807,266
40% 40.0% 1,443,911 1,445,003
30% 30.0% 1,082,933 1,081,882
20% 20.0% 721,955 721,683
10% 10.0% 360,978 361,250
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade5.001 900,910
Bobby-Blade5.002 904,631
Bobby-Blade5.003 896,810
Bobby-Blade5.004 902,716
ssj_ops@100% 3,605,068
ssj_ops@100% per JVM 901,267

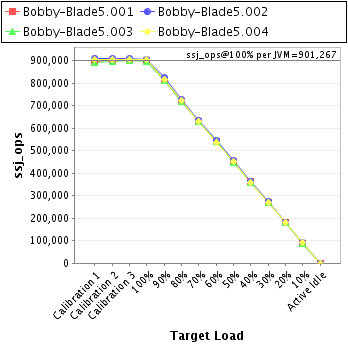

Graph of per-instance results
JVM 'Bobby-Blade5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     897,277
Calibration 2     899,721
Calibration 3     902,108
ssj_ops@calibrated=900,914
100% 100.0% 900,914 900,910
90% 90.3% 810,823 813,301
80% 79.7% 720,731 717,844
70% 69.8% 630,640 628,899
60% 60.2% 540,548 542,454
50% 50.2% 450,457 451,929
40% 40.1% 360,366 361,325
30% 30.1% 270,274 270,905
20% 19.9% 180,183 178,935
10% 10.0% 90,091 89,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     910,329
Calibration 2     908,455
Calibration 3     909,129
ssj_ops@calibrated=908,792
100% 99.5% 908,792 904,631
90% 90.6% 817,913 823,557
80% 79.8% 727,033 725,400
70% 69.8% 636,154 634,768
60% 59.8% 545,275 543,551
50% 50.0% 454,396 454,078
40% 40.0% 363,517 363,804
30% 30.0% 272,638 272,477
20% 20.1% 181,758 182,592
10% 9.9% 90,879 90,328
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade5.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     890,934
Calibration 2     894,478
Calibration 3     898,493
ssj_ops@calibrated=896,486
100% 100.0% 896,486 896,810
90% 90.3% 806,837 809,669
80% 80.1% 717,189 717,650
70% 70.0% 627,540 627,189
60% 60.0% 537,891 538,314
50% 50.1% 448,243 448,993
40% 40.2% 358,594 360,633
30% 29.9% 268,946 268,253
20% 20.0% 179,297 179,418
10% 10.0% 89,649 89,511
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Bobby-Blade5.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     904,069
Calibration 2     902,680
Calibration 3     904,491
ssj_ops@calibrated=903,586
100% 99.9% 903,586 902,716
90% 90.5% 813,227 817,653
80% 80.0% 722,869 722,611
70% 69.9% 632,510 631,350
60% 59.4% 542,151 536,592
50% 50.1% 451,793 452,266
40% 39.8% 361,434 359,241
30% 29.9% 271,076 270,247
20% 20.0% 180,717 180,738
10% 10.1% 90,359 91,590
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
