Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) ssj_ops@100% = 3,562,742
ssj_ops@100% per JVM = 890,685
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,590,198
Calibration 2     3,605,014
Calibration 3     3,574,145
ssj_ops@calibrated=3,589,580
100% 99.3% 3,589,580 3,562,742
90% 91.0% 3,230,622 3,265,442
80% 80.0% 2,871,664 2,872,760
70% 70.0% 2,512,706 2,513,640
60% 59.9% 2,153,748 2,151,512
50% 50.0% 1,794,790 1,796,544
40% 40.1% 1,435,832 1,440,631
30% 30.0% 1,076,874 1,078,026
20% 20.1% 717,916 721,121
10% 10.0% 358,958 358,624
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: M630
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 Core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx4 PC4-2400T ECC, Dell P/N HNDJ7, Slots A1-4, B1-4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SATA SSD, Dell P/N:KX83R
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Broadcom BCM57810 10Gb Dual Port, Dell P/N C0P7J
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts"
JVM Affinity: start /NODE [0,1,2,3] /affinity [3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Bobby-Blade9.001 897,357
Bobby-Blade9.002 900,634
Bobby-Blade9.003 884,986
Bobby-Blade9.004 879,766
ssj_ops@100% 3,562,742
ssj_ops@100% per JVM 890,685

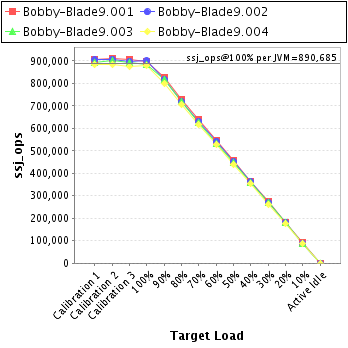

Graph of per-instance results
JVM 'Bobby-Blade9.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     906,625
Calibration 2     912,142
Calibration 3     905,590
ssj_ops@calibrated=908,866
100% 98.7% 908,866 897,357
90% 91.1% 817,979 827,988
80% 80.1% 727,093 728,251
70% 70.1% 636,206 637,483
60% 60.3% 545,320 547,749
50% 50.1% 454,433 454,992
40% 40.1% 363,546 364,134
30% 30.2% 272,660 274,113
20% 20.0% 181,773 181,841
10% 10.0% 90,887 90,664
Active Idle   0 0
Graph of results
JVM 'Bobby-Blade9.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     905,066
Calibration 2     908,396
Calibration 3     898,683
ssj_ops@calibrated=903,539
100% 99.7% 903,539 900,634
90% 90.7% 813,185 819,288
80% 79.7% 722,831 719,708
70% 70.0% 632,478 632,395
60% 60.0% 542,124 542,026
50% 50.2% 451,770 453,478
40% 40.1% 361,416 362,727
30% 30.1% 271,062 272,098
20% 20.1% 180,708 181,893
10% 10.0% 90,354 89,979
Active Idle   0 0
Graph of results
JVM 'Bobby-Blade9.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     895,120
Calibration 2     899,809
Calibration 3     893,082
ssj_ops@calibrated=896,445
100% 98.7% 896,445 884,986
90% 91.3% 806,801 818,317
80% 80.3% 717,156 719,693
70% 70.0% 627,512 627,657
60% 59.5% 537,867 533,208
50% 50.0% 448,223 448,242
40% 40.3% 358,578 360,945
30% 30.0% 268,934 268,523
20% 20.1% 179,289 179,963
10% 10.0% 89,645 90,079
Active Idle   0 0
Graph of results
JVM 'Bobby-Blade9.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     883,387
Calibration 2     884,668
Calibration 3     876,790
ssj_ops@calibrated=880,729
100% 99.9% 880,729 879,766
90% 90.8% 792,656 799,848
80% 80.1% 704,583 705,109
70% 70.0% 616,510 616,104
60% 60.0% 528,437 528,528
50% 49.9% 440,364 439,833
40% 40.1% 352,292 352,825
30% 29.9% 264,219 263,292
20% 20.1% 176,146 177,423
10% 10.0% 88,073 87,901
Active Idle   0 0
Graph of results
