Dell Inc. PowerEdge R730 (Intel Xeon E5-2699 v4 2.20 GHz) ssj_ops@100% = 3,513,207
ssj_ops@100% per JVM = 878,302
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 3, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,543,160
Calibration 2     3,524,113
Calibration 3     3,525,663
ssj_ops@calibrated=3,524,888
100% 99.7% 3,524,888 3,513,207
90% 90.6% 3,172,399 3,193,932
80% 79.9% 2,819,910 2,815,997
70% 70.0% 2,467,422 2,466,992
60% 60.1% 2,114,933 2,117,682
50% 49.9% 1,762,444 1,760,573
40% 40.0% 1,409,955 1,410,312
30% 30.0% 1,057,466 1,056,888
20% 20.0% 704,978 704,701
10% 10.0% 352,489 351,163
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R730
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R730 (Intel Xeon E5-2699 v4 2.20 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2400T ECC; Dell p/n HNDJ7, Slots A1-4,B1-4 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 120 GB SATA SSD, Dell p/n KX83R
Disk Controller: Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed: 1 x quad-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3FFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 2.1.4
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-MPQ8LHUV8BS.001 882,224
WIN-MPQ8LHUV8BS.002 881,399
WIN-MPQ8LHUV8BS.003 881,247
WIN-MPQ8LHUV8BS.004 868,337
ssj_ops@100% 3,513,207
ssj_ops@100% per JVM 878,302

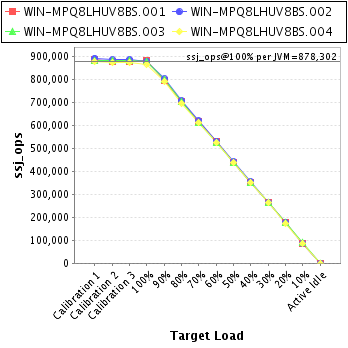

Graph of per-instance results
JVM 'WIN-MPQ8LHUV8BS.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     886,354
Calibration 2     881,270
Calibration 3     880,835
ssj_ops@calibrated=881,052
100% 100.1% 881,052 882,224
90% 90.6% 792,947 798,349
80% 80.2% 704,842 706,348
70% 70.2% 616,737 618,162
60% 60.3% 528,631 531,051
50% 50.0% 440,526 440,947
40% 39.9% 352,421 351,499
30% 30.0% 264,316 264,187
20% 20.0% 176,210 176,101
10% 10.0% 88,105 87,860
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MPQ8LHUV8BS.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     893,942
Calibration 2     886,125
Calibration 3     887,678
ssj_ops@calibrated=886,902
100% 99.4% 886,902 881,399
90% 90.6% 798,211 803,435
80% 79.9% 709,521 708,246
70% 69.9% 620,831 620,279
60% 60.0% 532,141 532,183
50% 49.9% 443,451 442,756
40% 40.1% 354,761 355,219
30% 30.0% 266,070 266,200
20% 20.0% 177,380 177,005
10% 9.9% 88,690 87,840
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MPQ8LHUV8BS.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     884,095
Calibration 2     882,282
Calibration 3     881,890
ssj_ops@calibrated=882,086
100% 99.9% 882,086 881,247
90% 90.6% 793,877 799,569
80% 79.7% 705,669 702,982
70% 69.8% 617,460 615,735
60% 59.9% 529,252 528,511
50% 49.8% 441,043 438,947
40% 39.9% 352,834 351,650
30% 29.9% 264,626 263,389
20% 20.0% 176,417 176,303
10% 10.1% 88,209 88,814
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MPQ8LHUV8BS.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     878,769
Calibration 2     874,436
Calibration 3     875,261
ssj_ops@calibrated=874,848
100% 99.3% 874,848 868,337
90% 90.6% 787,364 792,578
80% 79.8% 699,879 698,421
70% 70.0% 612,394 612,816
60% 60.1% 524,909 525,937
50% 50.1% 437,424 437,924
40% 40.2% 349,939 351,945
30% 30.1% 262,455 263,112
20% 20.0% 174,970 175,293
10% 9.9% 87,485 86,648
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
