Hewlett Packard Enterprise ProLiant DL560 Gen9 ssj_ops@100% = 655,150
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 1, 2016
Hardware Availability: Jun-2016 Software Availability: Jan-2015 Publication: Jun 22, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     661,452
Calibration 2     658,093
Calibration 3     656,067
ssj_ops@calibrated=657,080
100% 99.7% 657,080 655,150
90% 90.3% 591,372 593,357
80% 80.0% 525,664 525,618
70% 70.1% 459,956 460,718
60% 59.8% 394,248 392,834
50% 49.9% 328,540 327,908
40% 40.3% 262,832 264,480
30% 29.9% 197,124 196,587
20% 19.9% 131,416 130,859
10% 10.1% 65,708 66,307
Active Idle   0 0

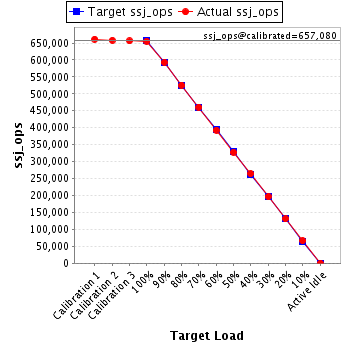

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen9
Form Factor: 2U
CPU Name: Intel Xeon E5-4669 v3 2.10 GHz
CPU Characteristics: 18-Core, 2.10 GHz, 45MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 72 cores, 4 chips, 18 cores/chip
Hardware Threads: 144 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx8 PC4-2133P-R; slots 1, 4, 9 and 12 for each processor
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: HPE 656364-B21
Disk Drive: 1 x HP 120GB Value Endurance Solid State M.2 Enablement Kit for ProLiant ML/DL Servers (788028-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2p 361-T Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx7g -Xms7g -Xmn6g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3FFFF,FFFFC0000]
JVM Instances: 8
JVM Initial Heap (MB): 7000
JVM Maximum Heap (MB): 7000
JVM Address Bits: 64
Boot Firmware Version: P85 v2.20 (05/05/2016)
Management Firmware Version: 2.41 pass 2 Mar 11 2016
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

System Configuration -> BIOS/Platform Configuration (RBSU)
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 48,108,547 7,126
Payment 48,108,551
Order Status 4,810,856
Delivery 4,810,856
Stock Level 4,810,854
Customer Report 48,108,552
Calibration 2 New Order 47,861,605 7,125
Payment 47,861,582
Order Status 4,786,161
Delivery 4,786,156
Stock Level 4,786,156
Customer Report 47,861,593
Calibration 3 New Order 47,714,275 7,125
Payment 47,714,286
Order Status 4,771,428
Delivery 4,771,428
Stock Level 4,771,428
Customer Report 47,714,280
100% 99.7% New Order 47,647,564 7,120
Payment 47,647,574
Order Status 4,764,753
Delivery 4,764,760
Stock Level 4,764,761
Customer Report 47,647,569
90% 90.3% New Order 43,156,081 7,118
Payment 43,156,072
Order Status 4,315,607
Delivery 4,315,609
Stock Level 4,315,607
Customer Report 43,156,078
80% 80.0% New Order 38,229,137 7,120
Payment 38,229,138
Order Status 3,822,915
Delivery 3,822,910
Stock Level 3,822,916
Customer Report 38,229,142
70% 70.1% New Order 33,507,042 7,120
Payment 33,507,040
Order Status 3,350,706
Delivery 3,350,702
Stock Level 3,350,702
Customer Report 33,507,041
60% 59.8% New Order 28,571,577 7,120
Payment 28,571,581
Order Status 2,857,160
Delivery 2,857,158
Stock Level 2,857,162
Customer Report 28,571,591
50% 49.9% New Order 23,849,413 7,120
Payment 23,849,396
Order Status 2,384,939
Delivery 2,384,939
Stock Level 2,384,938
Customer Report 23,849,403
40% 40.3% New Order 19,236,141 7,120
Payment 19,236,135
Order Status 1,923,611
Delivery 1,923,611
Stock Level 1,923,619
Customer Report 19,236,141
30% 29.9% New Order 14,298,161 7,118
Payment 14,298,157
Order Status 1,429,813
Delivery 1,429,813
Stock Level 1,429,817
Customer Report 14,298,155
20% 19.9% New Order 9,517,609 7,120
Payment 9,517,594
Order Status 951,760
Delivery 951,767
Stock Level 951,754
Customer Report 9,517,611
10% 10.1% New Order 4,822,635 7,120
Payment 4,822,622
Order Status 482,266
Delivery 482,260
Stock Level 482,262
Customer Report 4,822,637
Active Idle New Order 0 7,120
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
