Hewlett Packard Enterprise ProLiant DL560 Gen9 ssj_ops@100% = 647,298
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 1, 2016
Hardware Availability: Jun-2016 Software Availability: Jan-2015 Publication: Jun 22, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     658,588
Calibration 2     652,923
Calibration 3     652,795
ssj_ops@calibrated=652,859
100% 99.1% 652,859 647,298
90% 90.0% 587,573 587,830
80% 80.4% 522,287 524,790
70% 70.2% 457,001 458,116
60% 60.4% 391,715 394,092
50% 50.2% 326,429 327,579
40% 40.1% 261,144 261,893
30% 30.0% 195,858 195,822
20% 20.1% 130,572 131,433
10% 10.1% 65,286 65,991
Active Idle   0 0

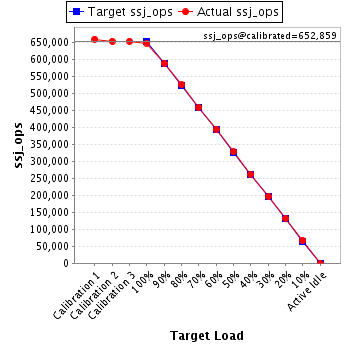

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen9
Form Factor: 2U
CPU Name: Intel Xeon E5-4669 v3 2.10 GHz
CPU Characteristics: 18-Core, 2.10 GHz, 45MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 72 cores, 4 chips, 18 cores/chip
Hardware Threads: 144 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx8 PC4-2133P-R; slots 1, 4, 9 and 12 for each processor
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: HPE 656364-B21
Disk Drive: 1 x HP 120GB Value Endurance Solid State M.2 Enablement Kit for ProLiant ML/DL Servers (788028-B21)
Disk Controller: embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2p 361-T Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx7g -Xms7g -Xmn6g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=22 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3FFFF,FFFFC0000]
JVM Instances: 8
JVM Initial Heap (MB): 7000
JVM Maximum Heap (MB): 7000
JVM Address Bits: 64
Boot Firmware Version: P85 v2.20 (05/05/2016)
Management Firmware Version: 2.41 pass 2 Mar 11 2016
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

System Configuration -> BIOS/Platform Configuration (RBSU)
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 47,900,197 7,126
Payment 47,900,213
Order Status 4,790,025
Delivery 4,790,022
Stock Level 4,790,017
Customer Report 47,900,212
Calibration 2 New Order 47,485,589 7,125
Payment 47,485,572
Order Status 4,748,561
Delivery 4,748,556
Stock Level 4,748,560
Customer Report 47,485,581
Calibration 3 New Order 47,497,973 7,120
Payment 47,497,970
Order Status 4,749,797
Delivery 4,749,800
Stock Level 4,749,800
Customer Report 47,497,960
100% 99.1% New Order 47,076,570 7,120
Payment 47,076,569
Order Status 4,707,655
Delivery 4,707,656
Stock Level 4,707,659
Customer Report 47,076,568
90% 90.0% New Order 42,754,119 7,120
Payment 42,754,098
Order Status 4,275,414
Delivery 4,275,414
Stock Level 4,275,411
Customer Report 42,754,083
80% 80.4% New Order 38,168,954 7,120
Payment 38,168,947
Order Status 3,816,893
Delivery 3,816,894
Stock Level 3,816,897
Customer Report 38,168,947
70% 70.2% New Order 33,319,611 7,120
Payment 33,319,624
Order Status 3,331,959
Delivery 3,331,962
Stock Level 3,331,961
Customer Report 33,319,609
60% 60.4% New Order 28,663,024 7,120
Payment 28,663,013
Order Status 2,866,305
Delivery 2,866,305
Stock Level 2,866,302
Customer Report 28,663,017
50% 50.2% New Order 23,825,453 7,120
Payment 23,825,471
Order Status 2,382,548
Delivery 2,382,547
Stock Level 2,382,550
Customer Report 23,825,454
40% 40.1% New Order 19,047,967 7,120
Payment 19,047,958
Order Status 1,904,793
Delivery 1,904,799
Stock Level 1,904,799
Customer Report 19,047,956
30% 30.0% New Order 14,242,561 7,120
Payment 14,242,547
Order Status 1,424,254
Delivery 1,424,252
Stock Level 1,424,251
Customer Report 14,242,549
20% 20.1% New Order 9,559,405 7,120
Payment 9,559,409
Order Status 955,942
Delivery 955,940
Stock Level 955,939
Customer Report 9,559,412
10% 10.1% New Order 4,799,680 7,120
Payment 4,799,682
Order Status 479,973
Delivery 479,969
Stock Level 479,964
Customer Report 4,799,682
Active Idle New Order 0 7,120
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
