SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2016 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R830 (Intel Xeon E5-4669 v4 2.20 GHz) | SPECpower_ssj2008 = 11,064 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jun 24, 2016 |
| Hardware Availability: | Jun-2016 | Software Availability: | Apr-2015 | Publication: | Jul 20, 2016 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

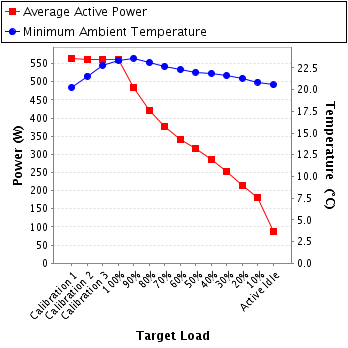

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 565 | 20.2 |
| Calibration 2 | 560 | 21.6 |
| Calibration 3 | 561 | 22.8 |
| 100% | 562 | 23.4 |
| 90% | 483 | 23.6 |
| 80% | 421 | 23.1 |
| 70% | 377 | 22.7 |
| 60% | 340 | 22.3 |
| 50% | 315 | 22.0 |
| 40% | 287 | 21.9 |
| 30% | 253 | 21.6 |
| 20% | 215 | 21.3 |
| 10% | 181 | 20.9 |
| Active Idle | 86.4 | 20.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K308530 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 6995453 |
| Date of Calibration: | 6-Jul-2015 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.0-efc0c004-20160120 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.73 | 5.0 | 0.996 | 565 | 0.4% |
| Calibration 2 | 208 | 300.0 | 2.71 | 5.0 | 0.995 | 560 | 0.4% |
| Calibration 3 | 208 | 300.0 | 2.71 | 5.0 | 0.995 | 561 | 0.4% |
| 100% | 208 | 300.0 | 2.71 | 5.0 | 0.995 | 562 | 0.4% |
| 90% | 208 | 300.0 | 2.33 | 5.0 | 0.994 | 483 | 0.5% |
| 80% | 208 | 300.0 | 2.03 | 5.0 | 0.993 | 421 | 0.5% |
| 70% | 208 | 300.0 | 1.82 | 2.0 | 0.994 | 377 | 0.3% |
| 60% | 208 | 300.0 | 1.64 | 2.0 | 0.993 | 340 | 0.3% |
| 50% | 208 | 300.0 | 1.52 | 2.0 | 0.992 | 315 | 0.4% |
| 40% | 208 | 300.0 | 1.39 | 2.0 | 0.991 | 287 | 0.4% |
| 30% | 208 | 300.0 | 1.23 | 2.0 | 0.988 | 253 | 0.4% |
| 20% | 208 | 300.0 | 1.05 | 2.0 | 0.985 | 215 | 0.5% |
| 10% | 208 | 300.0 | 0.883 | 1.0 | 0.981 | 181 | 0.4% |
| Active Idle | 208 | 300.0 | 0.442 | 1.0 | 0.938 | 86.4 | 0.6% |
