Huawei Technologies Co., Ltd FusionServer CH121 V3 SPECpower_ssj2008 = 5,316 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 18, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,864 21.8
Calibration 2 3,871 21.6
Calibration 3 3,872 21.5
100% 3,868 21.5
90% 3,481 21.5
80% 3,032 21.4
70% 2,611 21.4
60% 2,340 21.4
50% 2,143 21.4
40% 1,971 21.5
30% 1,823 21.8
20% 1,674 21.9
10% 1,531 21.9
Active Idle 1,080 22.1

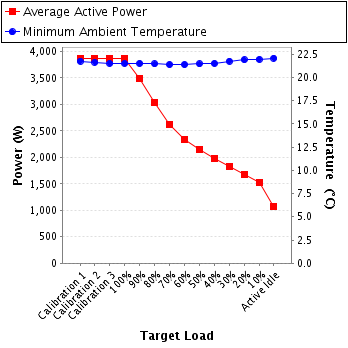

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91MC13547
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: A16002467-0051
Date of Calibration: 21-Mar-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: SUT power supplies 1,2,3,4,5,6
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 17.7 20.0 0.994 3,864 0.3%
Calibration 2 220 300.0 17.7 20.0 0.994 3,871 0.3%
Calibration 3 221 300.0 17.7 20.0 0.994 3,872 0.3%
100% 219 300.0 17.7 20.0 0.994 3,868 0.3%
90% 220 300.0 15.9 20.0 0.993 3,481 0.3%
80% 220 300.0 13.9 20.0 0.992 3,032 0.4%
70% 221 300.0 11.9 20.0 0.990 2,611 0.4%
60% 221 300.0 10.7 20.0 0.989 2,340 0.4%
50% 221 300.0 9.81 20.0 0.988 2,143 0.5%
40% 221 300.0 9.03 20.0 0.986 1,971 0.5%
30% 221 300.0 8.37 10.0 0.984 1,823 0.4%
20% 221 300.0 7.70 10.0 0.983 1,674 0.4%
10% 222 300.0 7.04 10.0 0.980 1,531 0.4%
Active Idle 222 300.0 5.07 10.0 0.960 1,080 0.5%

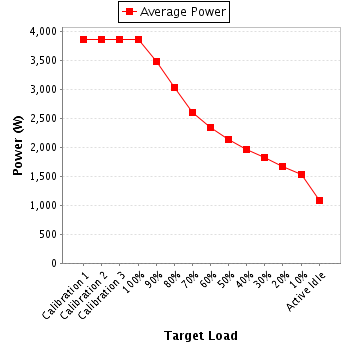

Power details for pwr1
