Huawei Technologies Co., Ltd FusionServer CH121 V3 ssj_ops@100% = 3,067,608
ssj_ops@100% per JVM = 191,725
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 18, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,109,660
Calibration 2     3,067,614
Calibration 3     3,076,530
ssj_ops@calibrated=3,072,072
100% 99.9% 3,072,072 3,067,608
90% 90.2% 2,764,865 2,772,009
80% 79.9% 2,457,658 2,453,952
70% 69.9% 2,150,450 2,148,063
60% 60.0% 1,843,243 1,842,511
50% 50.0% 1,536,036 1,537,114
40% 40.1% 1,228,829 1,230,915
30% 30.0% 921,622 921,230
20% 20.1% 614,414 616,487
10% 10.0% 307,207 306,278
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer CH121 V3
Form Factor: 12U
CPU Name: Intel Xeon E5-2683 V4
CPU Characteristics: 16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Shared
Disk Drive: 2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller: LSI 3008
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.26
Management Firmware Version: 2.08
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-R596DNGV8HH.001 194,490
WIN-R596DNGV8HH.002 196,233
WIN-R596DNGV8HH.003 193,665
WIN-R596DNGV8HH.004 194,771
WIN-R596DNGV8HH.005 194,448
WIN-R596DNGV8HH.006 191,070
WIN-R596DNGV8HH.007 189,042
WIN-R596DNGV8HH.008 191,378
WIN-R596DNGV8HH.009 191,853
WIN-R596DNGV8HH.010 193,451
WIN-R596DNGV8HH.011 186,485
WIN-R596DNGV8HH.012 194,316
WIN-R596DNGV8HH.013 190,496
WIN-R596DNGV8HH.014 189,182
WIN-R596DNGV8HH.015 187,023
WIN-R596DNGV8HH.016 189,705
ssj_ops@100% 3,067,608
ssj_ops@100% per JVM 191,725

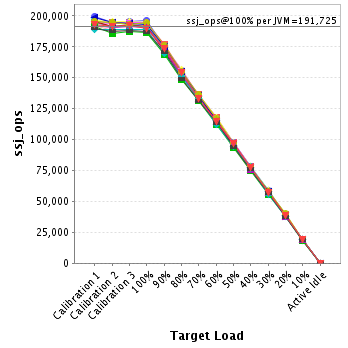

Graph of per-instance results
JVM 'WIN-R596DNGV8HH.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,482
Calibration 2     194,489
Calibration 3     194,708
ssj_ops@calibrated=194,598
100% 99.9% 194,598 194,490
90% 90.8% 175,138 176,665
80% 79.6% 155,678 154,851
70% 70.0% 136,219 136,258
60% 60.5% 116,759 117,748
50% 50.1% 97,299 97,505
40% 40.0% 77,839 77,893
30% 29.5% 58,379 57,434
20% 20.2% 38,920 39,392
10% 9.9% 19,460 19,352
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,668
Calibration 2     195,034
Calibration 3     195,578
ssj_ops@calibrated=195,306
100% 100.5% 195,306 196,233
90% 89.8% 175,775 175,450
80% 80.0% 156,245 156,206
70% 69.3% 136,714 135,373
60% 60.0% 117,184 117,152
50% 50.2% 97,653 98,034
40% 40.0% 78,122 78,147
30% 30.0% 58,592 58,606
20% 20.0% 39,061 39,095
10% 10.0% 19,531 19,486
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,677
Calibration 2     193,851
Calibration 3     195,003
ssj_ops@calibrated=194,427
100% 99.6% 194,427 193,665
90% 90.2% 174,984 175,294
80% 79.7% 155,542 155,010
70% 69.8% 136,099 135,777
60% 60.0% 116,656 116,693
50% 50.0% 97,213 97,155
40% 40.4% 77,771 78,541
30% 30.1% 58,328 58,584
20% 20.0% 38,885 38,825
10% 10.1% 19,443 19,552
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,656
Calibration 2     195,297
Calibration 3     195,401
ssj_ops@calibrated=195,349
100% 99.7% 195,349 194,771
90% 89.9% 175,814 175,662
80% 80.4% 156,279 156,998
70% 69.4% 136,744 135,612
60% 60.2% 117,210 117,633
50% 49.8% 97,675 97,344
40% 39.6% 78,140 77,446
30% 30.2% 58,605 59,071
20% 19.9% 39,070 38,907
10% 10.0% 19,535 19,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,528
Calibration 2     193,704
Calibration 3     195,032
ssj_ops@calibrated=194,368
100% 100.0% 194,368 194,448
90% 90.4% 174,931 175,648
80% 80.5% 155,494 156,381
70% 69.9% 136,057 135,926
60% 59.3% 116,621 115,234
50% 50.3% 97,184 97,786
40% 40.2% 77,747 78,122
30% 30.0% 58,310 58,308
20% 20.1% 38,874 39,028
10% 9.8% 19,437 19,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,251
Calibration 2     190,838
Calibration 3     191,940
ssj_ops@calibrated=191,389
100% 99.8% 191,389 191,070
90% 90.2% 172,250 172,636
80% 80.3% 153,111 153,758
70% 69.7% 133,972 133,420
60% 59.6% 114,833 114,005
50% 49.6% 95,694 94,851
40% 40.3% 76,556 77,169
30% 30.3% 57,417 57,930
20% 20.0% 38,278 38,277
10% 9.8% 19,139 18,761
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,122
Calibration 2     188,192
Calibration 3     189,087
ssj_ops@calibrated=188,640
100% 100.2% 188,640 189,042
90% 89.9% 169,776 169,669
80% 80.0% 150,912 150,974
70% 70.2% 132,048 132,380
60% 60.5% 113,184 114,038
50% 49.8% 94,320 93,996
40% 39.6% 75,456 74,650
30% 30.1% 56,592 56,839
20% 20.3% 37,728 38,227
10% 10.3% 18,864 19,468
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

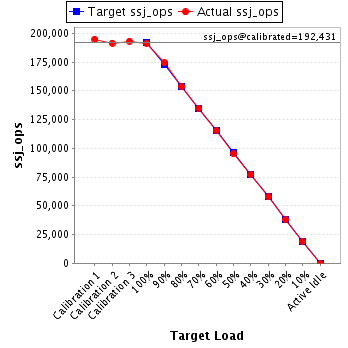

JVM 'WIN-R596DNGV8HH.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,922
Calibration 2     191,576
Calibration 3     193,285
ssj_ops@calibrated=192,431
100% 99.5% 192,431 191,378
90% 90.6% 173,188 174,354
80% 79.9% 153,945 153,804
70% 70.1% 134,702 134,960
60% 59.9% 115,458 115,226
50% 49.5% 96,215 95,180
40% 40.1% 76,972 77,096
30% 30.0% 57,729 57,683
20% 19.7% 38,486 37,857
10% 9.9% 19,243 18,980
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,666
Calibration 2     191,263
Calibration 3     192,113
ssj_ops@calibrated=191,688
100% 100.1% 191,688 191,853
90% 89.4% 172,519 171,364
80% 79.3% 153,350 152,057
70% 69.6% 134,182 133,511
60% 60.1% 115,013 115,111
50% 49.7% 95,844 95,185
40% 39.7% 76,675 76,128
30% 30.1% 57,506 57,762
20% 20.1% 38,338 38,509
10% 10.1% 19,169 19,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

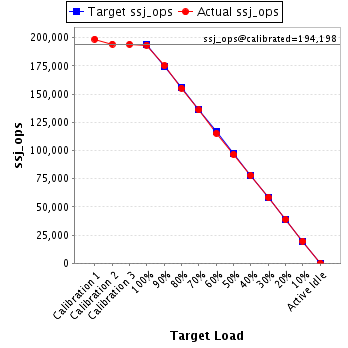

JVM 'WIN-R596DNGV8HH.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,623
Calibration 2     194,302
Calibration 3     194,094
ssj_ops@calibrated=194,198
100% 99.6% 194,198 193,451
90% 90.2% 174,778 175,165
80% 79.9% 155,358 155,220
70% 70.0% 135,939 135,884
60% 59.3% 116,519 115,208
50% 49.7% 97,099 96,509
40% 40.0% 77,679 77,774
30% 30.0% 58,259 58,343
20% 20.0% 38,840 38,875
10% 10.1% 19,420 19,573
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,148
Calibration 2     185,843
Calibration 3     187,145
ssj_ops@calibrated=186,494
100% 100.0% 186,494 186,485
90% 90.3% 167,844 168,431
80% 79.7% 149,195 148,695
70% 70.6% 130,546 131,742
60% 60.2% 111,896 112,220
50% 50.4% 93,247 93,994
40% 40.1% 74,597 74,707
30% 30.0% 55,948 55,934
20% 20.1% 37,299 37,549
10% 9.9% 18,649 18,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,358
Calibration 2     194,856
Calibration 3     192,797
ssj_ops@calibrated=193,827
100% 100.3% 193,827 194,316
90% 90.7% 174,444 175,707
80% 79.8% 155,061 154,675
70% 70.3% 135,679 136,226
60% 60.3% 116,296 116,830
50% 50.0% 96,913 96,925
40% 40.1% 77,531 77,777
30% 29.8% 58,148 57,696
20% 20.6% 38,765 39,917
10% 9.9% 19,383 19,244
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

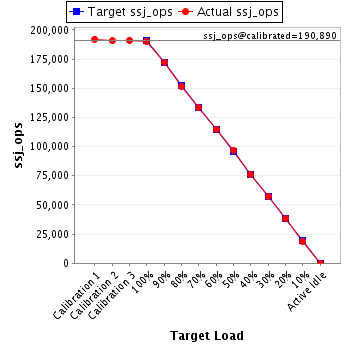

JVM 'WIN-R596DNGV8HH.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,109
Calibration 2     190,552
Calibration 3     191,228
ssj_ops@calibrated=190,890
100% 99.8% 190,890 190,496
90% 90.4% 171,801 172,490
80% 79.4% 152,712 151,613
70% 69.9% 133,623 133,366
60% 60.2% 114,534 114,886
50% 50.7% 95,445 96,783
40% 39.7% 76,356 75,756
30% 30.1% 57,267 57,365
20% 20.0% 38,178 38,145
10% 10.0% 19,089 19,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

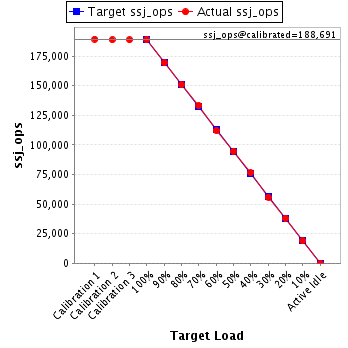

JVM 'WIN-R596DNGV8HH.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,267
Calibration 2     188,681
Calibration 3     188,701
ssj_ops@calibrated=188,691
100% 100.3% 188,691 189,182
90% 89.7% 169,822 169,309
80% 79.8% 150,953 150,646
70% 70.5% 132,084 133,097
60% 59.4% 113,215 112,036
50% 50.2% 94,346 94,739
40% 40.5% 75,477 76,351
30% 29.6% 56,607 55,931
20% 20.2% 37,738 38,153
10% 10.0% 18,869 18,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,161
Calibration 2     187,566
Calibration 3     188,184
ssj_ops@calibrated=187,875
100% 99.5% 187,875 187,023
90% 90.8% 169,087 170,522
80% 79.4% 150,300 149,103
70% 69.9% 131,512 131,323
60% 60.5% 112,725 113,646
50% 50.1% 93,937 94,131
40% 40.4% 75,150 75,888
30% 30.1% 56,362 56,494
20% 19.9% 37,575 37,417
10% 9.8% 18,787 18,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-R596DNGV8HH.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,022
Calibration 2     191,570
Calibration 3     192,234
ssj_ops@calibrated=191,902
100% 98.9% 191,902 189,705
90% 90.5% 172,712 173,641
80% 80.2% 153,521 153,962
70% 69.4% 134,331 133,209
60% 59.8% 115,141 114,845
50% 50.5% 95,951 96,995
40% 40.4% 76,761 77,472
30% 29.8% 57,571 57,252
20% 20.0% 38,380 38,313
10% 10.0% 19,190 19,098
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
