Fujitsu FUJITSU Server PRIMERGY TX1330 M3 SPECpower_ssj2008 = 10,000 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Mar 8, 2017
Hardware Availability: May-2017 Software Availability: Jan-2015 Publication: Apr 12, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 51.2 20.8
Calibration 2 51.2 21.0
Calibration 3 51.2 21.2
100% 51.2 21.3
90% 47.1 21.3
80% 41.0 21.3
70% 34.8 21.2
60% 29.7 21.2
50% 26.1 21.2
40% 23.4 21.2
30% 21.4 21.2
20% 19.4 21.2
10% 16.7 21.2
Active Idle 12.4 21.3

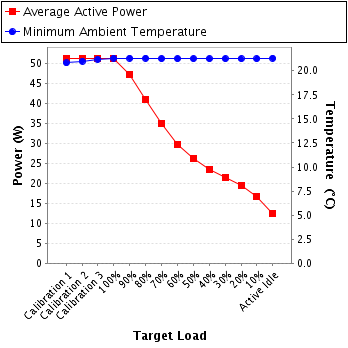

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170121768
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: 2017H010225
Date of Calibration: 20-Jan-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
  • None
    • Power Details for Device pwr1
    Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
    Avg Range Avg Range
    Calibration 1 205 300.0 0.304 0.5 0.820 51.2 0.3%
    Calibration 2 205 300.0 0.304 0.5 0.821 51.2 0.3%
    Calibration 3 205 300.0 0.304 0.5 0.821 51.2 0.3%
    100% 205 300.0 0.304 0.5 0.821 51.2 0.3%
    90% 205 300.0 0.288 0.5 0.798 47.1 0.3%
    80% 205 300.0 0.263 0.5 0.759 41.0 0.4%
    70% 205 300.0 0.238 0.5 0.712 34.8 0.4%
    60% 205 300.0 0.218 0.5 0.664 29.7 0.5%
    50% 205 300.0 0.205 0.5 0.623 26.1 0.5%
    40% 204 300.0 0.200 0.5 0.573 23.4 0.6%
    30% 204 300.0 0.198 0.2 0.528 21.4 0.4%
    20% 204 300.0 0.195 0.2 0.486 19.4 0.4%
    10% 204 300.0 0.187 0.2 0.437 16.7 0.5%
    Active Idle 204 300.0 0.170 0.2 0.355 12.4 0.6%

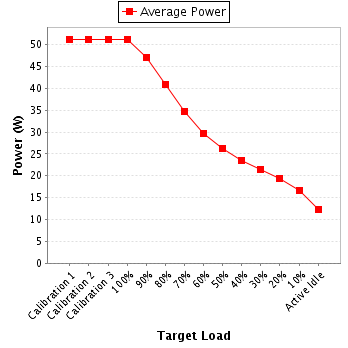

    Power details for pwr1
