Quanta Computer Inc. QuantaGrid D52B-2U SPECpower_ssj2008 = 12,047 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Cloud Technology Test Location: Taoyuan, TW, R.O.C Test Date: Jun 21, 2017
Hardware Availability: Jul-2017 Software Availability: Sep-2016 Publication: Jul 11, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 445 21.4
Calibration 2 455 21.4
Calibration 3 456 21.5
100% 454 21.6
90% 398 21.6
80% 331 21.7
70% 274 21.8
60% 238 21.8
50% 203 21.7
40% 178 21.6
30% 156 21.6
20% 135 21.5
10% 114 21.4
Active Idle 40.3 21.4

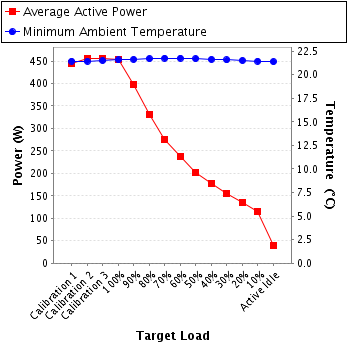

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Electric International Pte. Ltd.
Model: WT210
Serial Number: 91MC16750
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Electronics Testing Center,Taiwan
Calibration Label: Q10680060
Date of Calibration: 16-Oct-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 218 300.0 2.05 2.0 0.995 445 0.3%
Calibration 2 218 300.0 2.10 2.0 0.995 455 0.3%
Calibration 3 218 300.0 2.10 2.0 0.995 456 0.3%
100% 218 300.0 2.09 2.0 0.995 454 0.3%
90% 219 300.0 1.83 2.0 0.994 398 0.3%
80% 219 300.0 1.53 2.0 0.991 331 0.4%
70% 219 300.0 1.27 2.0 0.987 274 0.4%
60% 219 300.0 1.10 2.0 0.984 238 0.4%
50% 219 300.0 0.945 2.0 0.979 203 0.5%
40% 220 300.0 0.831 2.0 0.973 178 0.5%
30% 220 300.0 0.733 1.0 0.965 156 0.4%
20% 220 300.0 0.644 1.0 0.954 135 0.4%
10% 220 300.0 0.553 0.5 0.937 114 0.4%
Active Idle 221 300.0 0.326 0.5 0.560 40.3 0.8%

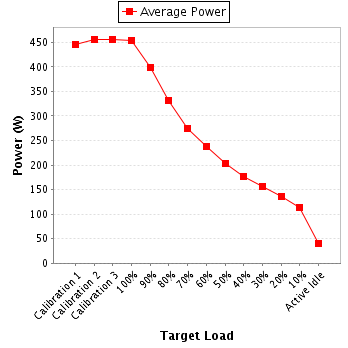

Power details for pwr1
