Sugon Sugon I620-G30(Intel Xeon Platinum 8180 @2.50GHz) ssj_ops@100% = 5,348,398
ssj_ops@100% per JVM = 95,507
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, Beijing, CHN Test Date: Jun 30, 2017
Hardware Availability: Jan-2015 Software Availability: Jan-2015 Publication: Jul 26, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,539,027
Calibration 2     5,494,601
Calibration 3     5,375,357
ssj_ops@calibrated=5,434,979
100% 98.4% 5,434,979 5,348,398
90% 90.0% 4,891,481 4,889,720
80% 79.9% 4,347,983 4,343,528
70% 70.0% 3,804,485 3,803,107
60% 60.0% 3,260,987 3,259,128
50% 50.1% 2,717,489 2,720,491
40% 40.1% 2,173,992 2,177,831
30% 30.0% 1,630,494 1,629,759
20% 20.0% 1,086,996 1,087,821
10% 10.0% 543,498 545,079
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Sugon
Model: Sugon I620-G30(Intel Xeon Platinum 8180 @2.50GHz)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 @2.50 GHz
CPU Characteristics: 28-Core, 2.50GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V; slots A0, B0, C0, D0, E0 and F0 for CPU0 and CPU1 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Sugon 800W PSU(SN:33000132)
Disk Drive: 1 x Intel 530 Series 80GB M.2 SATA SSD (SSDSCKGW080A4)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode, build 1.7.0_80-b15)
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /node [0,2] /affinity [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000]; start /node [1,3] /affinity [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: V0.11
Management Firmware Version: V0.59
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
none
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-EHUIKG843EI.001 96,298
WIN-EHUIKG843EI.002 93,496
WIN-EHUIKG843EI.003 94,465
WIN-EHUIKG843EI.004 92,856
WIN-EHUIKG843EI.005 96,463
WIN-EHUIKG843EI.006 94,114
WIN-EHUIKG843EI.007 95,810
WIN-EHUIKG843EI.008 96,471
WIN-EHUIKG843EI.009 94,410
WIN-EHUIKG843EI.010 93,901
WIN-EHUIKG843EI.011 95,234
WIN-EHUIKG843EI.012 92,982
WIN-EHUIKG843EI.013 97,246
WIN-EHUIKG843EI.014 96,137
WIN-EHUIKG843EI.015 97,060
WIN-EHUIKG843EI.016 95,340
WIN-EHUIKG843EI.017 95,677
WIN-EHUIKG843EI.018 95,854
WIN-EHUIKG843EI.019 95,045
WIN-EHUIKG843EI.020 96,281
WIN-EHUIKG843EI.021 95,361
WIN-EHUIKG843EI.022 95,878
WIN-EHUIKG843EI.023 96,444
WIN-EHUIKG843EI.024 96,610
WIN-EHUIKG843EI.025 94,555
WIN-EHUIKG843EI.026 95,244
WIN-EHUIKG843EI.027 96,608
WIN-EHUIKG843EI.028 94,768
WIN-EHUIKG843EI.029 96,524
WIN-EHUIKG843EI.030 96,500
WIN-EHUIKG843EI.031 94,561
WIN-EHUIKG843EI.032 97,107
WIN-EHUIKG843EI.033 97,034
WIN-EHUIKG843EI.034 96,189
WIN-EHUIKG843EI.035 95,812
WIN-EHUIKG843EI.036 95,129
WIN-EHUIKG843EI.037 96,230
WIN-EHUIKG843EI.038 95,076
WIN-EHUIKG843EI.039 94,862
WIN-EHUIKG843EI.040 94,926
WIN-EHUIKG843EI.041 96,269
WIN-EHUIKG843EI.042 94,276
WIN-EHUIKG843EI.043 96,482
WIN-EHUIKG843EI.044 97,561
WIN-EHUIKG843EI.045 94,337
WIN-EHUIKG843EI.046 94,871
WIN-EHUIKG843EI.047 93,924
WIN-EHUIKG843EI.048 98,451
WIN-EHUIKG843EI.049 96,303
WIN-EHUIKG843EI.050 92,949
WIN-EHUIKG843EI.051 95,120
WIN-EHUIKG843EI.052 96,241
WIN-EHUIKG843EI.053 96,545
WIN-EHUIKG843EI.054 94,326
WIN-EHUIKG843EI.055 94,565
WIN-EHUIKG843EI.056 95,621
ssj_ops@100% 5,348,398
ssj_ops@100% per JVM 95,507
Graph of per-instance results
JVM 'WIN-EHUIKG843EI.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,781
Calibration 2     99,201
Calibration 3     96,509
ssj_ops@calibrated=97,855
100% 98.4% 97,855 96,298
90% 90.3% 88,069 88,368
80% 79.7% 78,284 77,972
70% 69.4% 68,498 67,893
60% 60.5% 58,713 59,176
50% 49.0% 48,927 47,921
40% 40.3% 39,142 39,473
30% 30.4% 29,356 29,709
20% 19.8% 19,571 19,352
10% 10.0% 9,785 9,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,971
Calibration 2     97,355
Calibration 3     95,116
ssj_ops@calibrated=96,236
100% 97.2% 96,236 93,496
90% 89.8% 86,612 86,465
80% 80.0% 76,989 76,946
70% 69.9% 67,365 67,279
60% 59.1% 57,741 56,906
50% 50.6% 48,118 48,650
40% 39.3% 38,494 37,837
30% 29.6% 28,871 28,497
20% 20.1% 19,247 19,348
10% 10.2% 9,624 9,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,216
Calibration 2     97,585
Calibration 3     95,378
ssj_ops@calibrated=96,481
100% 97.9% 96,481 94,465
90% 90.6% 86,833 87,448
80% 80.4% 77,185 77,539
70% 69.6% 67,537 67,193
60% 60.4% 57,889 58,278
50% 49.7% 48,241 47,994
40% 40.0% 38,593 38,629
30% 29.7% 28,944 28,699
20% 20.0% 19,296 19,314
10% 10.2% 9,648 9,824
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,511
Calibration 2     97,286
Calibration 3     95,205
ssj_ops@calibrated=96,246
100% 96.5% 96,246 92,856
90% 90.4% 86,621 87,021
80% 80.0% 76,996 76,957
70% 70.7% 67,372 68,034
60% 59.5% 57,747 57,312
50% 49.6% 48,123 47,773
40% 40.4% 38,498 38,880
30% 30.0% 28,874 28,840
20% 20.1% 19,249 19,332
10% 9.9% 9,625 9,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,766
Calibration 2     98,310
Calibration 3     96,231
ssj_ops@calibrated=97,270
100% 99.2% 97,270 96,463
90% 88.9% 87,543 86,476
80% 79.9% 77,816 77,707
70% 69.6% 68,089 67,715
60% 59.7% 58,362 58,093
50% 51.0% 48,635 49,576
40% 39.8% 38,908 38,758
30% 30.6% 29,181 29,796
20% 20.1% 19,454 19,521
10% 10.2% 9,727 9,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,379
Calibration 2     96,959
Calibration 3     95,160
ssj_ops@calibrated=96,059
100% 98.0% 96,059 94,114
90% 90.2% 86,453 86,645
80% 80.2% 76,847 77,021
70% 71.0% 67,241 68,242
60% 59.6% 57,636 57,272
50% 50.1% 48,030 48,101
40% 39.7% 38,424 38,131
30% 29.3% 28,818 28,111
20% 20.0% 19,212 19,168
10% 9.8% 9,606 9,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,002
Calibration 2     98,144
Calibration 3     96,238
ssj_ops@calibrated=97,191
100% 98.6% 97,191 95,810
90% 89.9% 87,472 87,403
80% 80.3% 77,753 78,020
70% 70.3% 68,034 68,345
60% 59.8% 58,315 58,114
50% 49.9% 48,596 48,517
40% 39.1% 38,876 38,016
30% 29.8% 29,157 28,919
20% 19.8% 19,438 19,240
10% 10.0% 9,719 9,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,866
Calibration 2     98,971
Calibration 3     96,920
ssj_ops@calibrated=97,945
100% 98.5% 97,945 96,471
90% 90.2% 88,151 88,350
80% 80.9% 78,356 79,257
70% 69.9% 68,562 68,422
60% 59.6% 58,767 58,338
50% 50.8% 48,973 49,801
40% 40.2% 39,178 39,380
30% 30.3% 29,384 29,710
20% 20.3% 19,589 19,914
10% 10.2% 9,795 10,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,937
Calibration 2     98,450
Calibration 3     96,810
ssj_ops@calibrated=97,630
100% 96.7% 97,630 94,410
90% 89.0% 87,867 86,860
80% 79.1% 78,104 77,259
70% 70.2% 68,341 68,490
60% 60.5% 58,578 59,090
50% 49.9% 48,815 48,684
40% 39.9% 39,052 38,961
30% 30.2% 29,289 29,470
20% 20.1% 19,526 19,623
10% 10.2% 9,763 9,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,543
Calibration 2     97,658
Calibration 3     95,571
ssj_ops@calibrated=96,614
100% 97.2% 96,614 93,901
90% 88.9% 86,953 85,920
80% 79.4% 77,292 76,736
70% 70.0% 67,630 67,651
60% 59.7% 57,969 57,689
50% 49.5% 48,307 47,817
40% 40.4% 38,646 39,030
30% 29.8% 28,984 28,795
20% 20.1% 19,323 19,432
10% 10.1% 9,661 9,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,152
Calibration 2     97,852
Calibration 3     95,713
ssj_ops@calibrated=96,783
100% 98.4% 96,783 95,234
90% 90.7% 87,104 87,799
80% 80.6% 77,426 77,970
70% 69.4% 67,748 67,150
60% 60.2% 58,070 58,311
50% 50.5% 48,391 48,832
40% 39.6% 38,713 38,347
30% 30.6% 29,035 29,636
20% 20.2% 19,357 19,517
10% 10.3% 9,678 10,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,639
Calibration 2     96,786
Calibration 3     95,102
ssj_ops@calibrated=95,944
100% 96.9% 95,944 92,982
90% 89.6% 86,350 85,934
80% 78.9% 76,755 75,732
70% 69.7% 67,161 66,885
60% 60.6% 57,567 58,127
50% 50.6% 47,972 48,565
40% 39.9% 38,378 38,298
30% 29.6% 28,783 28,393
20% 19.8% 19,189 19,005
10% 10.0% 9,594 9,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,671
Calibration 2     99,126
Calibration 3     96,985
ssj_ops@calibrated=98,056
100% 99.2% 98,056 97,246
90% 90.3% 88,250 88,507
80% 79.2% 78,445 77,637
70% 69.9% 68,639 68,580
60% 60.4% 58,833 59,209
50% 49.9% 49,028 48,932
40% 40.2% 39,222 39,410
30% 29.7% 29,417 29,078
20% 19.5% 19,611 19,165
10% 9.9% 9,806 9,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,884
Calibration 2     98,020
Calibration 3     96,246
ssj_ops@calibrated=97,133
100% 99.0% 97,133 96,137
90% 91.2% 87,420 88,567
80% 79.1% 77,706 76,844
70% 70.0% 67,993 68,018
60% 60.0% 58,280 58,259
50% 49.7% 48,566 48,275
40% 40.1% 38,853 38,941
30% 30.5% 29,140 29,621
20% 19.7% 19,427 19,107
10% 9.9% 9,713 9,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,833
Calibration 2     99,414
Calibration 3     97,005
ssj_ops@calibrated=98,210
100% 98.8% 98,210 97,060
90% 89.3% 88,389 87,745
80% 79.6% 78,568 78,217
70% 70.5% 68,747 69,216
60% 59.5% 58,926 58,467
50% 50.5% 49,105 49,567
40% 39.7% 39,284 38,972
30% 29.4% 29,463 28,852
20% 19.8% 19,642 19,441
10% 9.9% 9,821 9,701
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,322
Calibration 2     97,718
Calibration 3     95,540
ssj_ops@calibrated=96,629
100% 98.7% 96,629 95,340
90% 91.4% 86,966 88,302
80% 80.4% 77,303 77,686
70% 70.1% 67,640 67,776
60% 60.9% 57,977 58,824
50% 49.8% 48,314 48,106
40% 40.3% 38,652 38,905
30% 29.6% 28,989 28,649
20% 20.3% 19,326 19,615
10% 10.3% 9,663 9,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,401
Calibration 2     97,078
Calibration 3     95,645
ssj_ops@calibrated=96,362
100% 99.3% 96,362 95,677
90% 90.6% 86,725 87,301
80% 79.2% 77,089 76,355
70% 70.8% 67,453 68,221
60% 59.9% 57,817 57,742
50% 50.2% 48,181 48,346
40% 40.7% 38,545 39,256
30% 29.7% 28,908 28,644
20% 20.0% 19,272 19,274
10% 10.2% 9,636 9,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,649
Calibration 2     98,408
Calibration 3     96,126
ssj_ops@calibrated=97,267
100% 98.5% 97,267 95,854
90% 90.9% 87,540 88,386
80% 79.1% 77,814 76,977
70% 68.9% 68,087 67,007
60% 60.2% 58,360 58,510
50% 50.4% 48,633 48,977
40% 39.8% 38,907 38,748
30% 30.2% 29,180 29,333
20% 20.6% 19,453 19,994
10% 10.2% 9,727 9,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,297
Calibration 2     97,319
Calibration 3     95,285
ssj_ops@calibrated=96,302
100% 98.7% 96,302 95,045
90% 90.7% 86,672 87,333
80% 80.6% 77,042 77,615
70% 69.3% 67,412 66,751
60% 60.5% 57,781 58,260
50% 49.6% 48,151 47,725
40% 39.7% 38,521 38,217
30% 30.3% 28,891 29,185
20% 19.9% 19,260 19,191
10% 10.2% 9,630 9,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,336
Calibration 2     98,205
Calibration 3     96,637
ssj_ops@calibrated=97,421
100% 98.8% 97,421 96,281
90% 89.6% 87,679 87,310
80% 79.6% 77,937 77,512
70% 70.0% 68,195 68,225
60% 60.0% 58,453 58,475
50% 50.2% 48,711 48,879
40% 40.3% 38,969 39,234
30% 30.4% 29,226 29,643
20% 20.0% 19,484 19,475
10% 10.0% 9,742 9,750
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,737
Calibration 2     97,328
Calibration 3     95,536
ssj_ops@calibrated=96,432
100% 98.9% 96,432 95,361
90% 90.7% 86,789 87,451
80% 80.1% 77,146 77,208
70% 70.0% 67,502 67,544
60% 59.9% 57,859 57,788
50% 50.2% 48,216 48,390
40% 40.4% 38,573 38,931
30% 30.1% 28,930 29,015
20% 20.1% 19,286 19,407
10% 10.2% 9,643 9,846
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,327
Calibration 2     97,632
Calibration 3     95,911
ssj_ops@calibrated=96,772
100% 99.1% 96,772 95,878
90% 90.7% 87,095 87,793
80% 80.3% 77,417 77,734
70% 71.4% 67,740 69,049
60% 60.4% 58,063 58,443
50% 50.7% 48,386 49,067
40% 40.4% 38,709 39,143
30% 30.5% 29,032 29,482
20% 20.0% 19,354 19,387
10% 9.7% 9,677 9,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,977
Calibration 2     98,555
Calibration 3     96,077
ssj_ops@calibrated=97,316
100% 99.1% 97,316 96,444
90% 88.4% 87,584 86,024
80% 79.9% 77,853 77,722
70% 70.4% 68,121 68,551
60% 60.4% 58,390 58,782
50% 50.3% 48,658 48,974
40% 39.6% 38,926 38,511
30% 30.4% 29,195 29,611
20% 19.7% 19,463 19,195
10% 9.8% 9,732 9,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,407
Calibration 2     99,033
Calibration 3     96,360
ssj_ops@calibrated=97,696
100% 98.9% 97,696 96,610
90% 89.5% 87,927 87,455
80% 80.3% 78,157 78,492
70% 69.8% 68,387 68,174
60% 59.4% 58,618 58,028
50% 49.5% 48,848 48,386
40% 40.2% 39,079 39,320
30% 29.5% 29,309 28,864
20% 19.6% 19,539 19,170
10% 9.4% 9,770 9,218
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,369
Calibration 2     98,028
Calibration 3     95,860
ssj_ops@calibrated=96,944
100% 97.5% 96,944 94,555
90% 89.9% 87,250 87,133
80% 80.0% 77,555 77,568
70% 69.8% 67,861 67,696
60% 59.8% 58,167 57,934
50% 49.7% 48,472 48,224
40% 39.7% 38,778 38,500
30% 30.3% 29,083 29,421
20% 19.9% 19,389 19,254
10% 10.0% 9,694 9,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,607
Calibration 2     97,954
Calibration 3     95,970
ssj_ops@calibrated=96,962
100% 98.2% 96,962 95,244
90% 89.4% 87,266 86,719
80% 79.2% 77,569 76,822
70% 69.6% 67,873 67,504
60% 60.5% 58,177 58,695
50% 49.4% 48,481 47,897
40% 39.8% 38,785 38,558
30% 29.7% 29,089 28,773
20% 19.8% 19,392 19,156
10% 10.0% 9,696 9,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,930
Calibration 2     98,454
Calibration 3     96,481
ssj_ops@calibrated=97,467
100% 99.1% 97,467 96,608
90% 90.0% 87,721 87,730
80% 79.2% 77,974 77,208
70% 70.1% 68,227 68,358
60% 60.4% 58,480 58,867
50% 50.0% 48,734 48,745
40% 40.3% 38,987 39,324
30% 29.8% 29,240 29,067
20% 20.1% 19,493 19,550
10% 10.0% 9,747 9,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,850
Calibration 2     96,910
Calibration 3     94,925
ssj_ops@calibrated=95,918
100% 98.8% 95,918 94,768
90% 90.2% 86,326 86,490
80% 79.6% 76,734 76,390
70% 69.3% 67,142 66,437
60% 60.2% 57,551 57,783
50% 50.2% 47,959 48,164
40% 40.6% 38,367 38,970
30% 30.8% 28,775 29,508
20% 20.0% 19,184 19,223
10% 10.3% 9,592 9,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,797
Calibration 2     98,605
Calibration 3     96,361
ssj_ops@calibrated=97,483
100% 99.0% 97,483 96,524
90% 89.4% 87,735 87,170
80% 80.1% 77,987 78,123
70% 69.0% 68,238 67,262
60% 59.4% 58,490 57,878
50% 50.2% 48,742 48,908
40% 40.4% 38,993 39,350
30% 29.9% 29,245 29,186
20% 20.2% 19,497 19,669
10% 10.3% 9,748 10,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,631
Calibration 2     98,912
Calibration 3     96,672
ssj_ops@calibrated=97,792
100% 98.7% 97,792 96,500
90% 89.6% 88,013 87,573
80% 80.2% 78,234 78,382
70% 70.4% 68,455 68,866
60% 59.8% 58,675 58,488
50% 49.9% 48,896 48,806
40% 40.5% 39,117 39,621
30% 29.4% 29,338 28,769
20% 20.0% 19,558 19,565
10% 9.9% 9,779 9,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,272
Calibration 2     97,354
Calibration 3     95,479
ssj_ops@calibrated=96,417
100% 98.1% 96,417 94,561
90% 90.4% 86,775 87,129
80% 80.9% 77,134 78,044
70% 70.7% 67,492 68,123
60% 58.6% 57,850 56,544
50% 49.9% 48,208 48,117
40% 40.4% 38,567 38,978
30% 30.2% 28,925 29,157
20% 20.4% 19,283 19,680
10% 10.0% 9,642 9,639
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,319
Calibration 2     99,063
Calibration 3     97,334
ssj_ops@calibrated=98,198
100% 98.9% 98,198 97,107
90% 89.8% 88,379 88,159
80% 79.4% 78,559 77,962
70% 69.1% 68,739 67,896
60% 59.8% 58,919 58,692
50% 49.6% 49,099 48,722
40% 39.8% 39,279 39,124
30% 30.0% 29,460 29,454
20% 20.1% 19,640 19,775
10% 9.9% 9,820 9,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,022
Calibration 2     99,705
Calibration 3     97,350
ssj_ops@calibrated=98,527
100% 98.5% 98,527 97,034
90% 90.2% 88,675 88,850
80% 80.6% 78,822 79,438
70% 70.7% 68,969 69,708
60% 60.4% 59,116 59,463
50% 50.0% 49,264 49,300
40% 39.6% 39,411 39,046
30% 30.3% 29,558 29,869
20% 19.9% 19,705 19,573
10% 10.2% 9,853 10,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,459
Calibration 2     98,364
Calibration 3     96,258
ssj_ops@calibrated=97,311
100% 98.8% 97,311 96,189
90% 89.8% 87,580 87,371
80% 80.4% 77,849 78,261
70% 70.2% 68,118 68,334
60% 59.6% 58,386 58,012
50% 49.6% 48,655 48,266
40% 39.8% 38,924 38,688
30% 30.4% 29,193 29,542
20% 20.4% 19,462 19,867
10% 10.0% 9,731 9,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,745
Calibration 2     98,362
Calibration 3     95,884
ssj_ops@calibrated=97,123
100% 98.7% 97,123 95,812
90% 90.0% 87,411 87,443
80% 78.8% 77,698 76,568
70% 70.1% 67,986 68,108
60% 60.8% 58,274 59,063
50% 49.7% 48,561 48,237
40% 40.8% 38,849 39,586
30% 30.0% 29,137 29,138
20% 20.2% 19,425 19,645
10% 10.1% 9,712 9,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,592
Calibration 2     97,566
Calibration 3     95,857
ssj_ops@calibrated=96,712
100% 98.4% 96,712 95,129
90% 89.4% 87,040 86,419
80% 80.4% 77,369 77,758
70% 70.0% 67,698 67,744
60% 59.9% 58,027 57,897
50% 49.8% 48,356 48,139
40% 39.9% 38,685 38,578
30% 30.0% 29,013 29,046
20% 20.1% 19,342 19,440
10% 10.0% 9,671 9,716
Active Idle   0 0

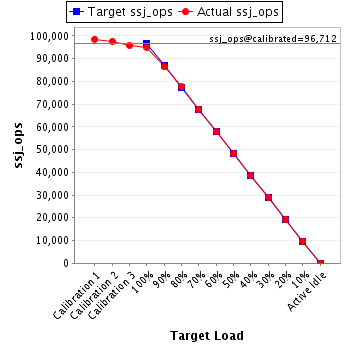

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,157
Calibration 2     98,725
Calibration 3     96,491
ssj_ops@calibrated=97,608
100% 98.6% 97,608 96,230
90% 90.2% 87,847 88,085
80% 80.8% 78,086 78,859
70% 70.3% 68,325 68,649
60% 59.8% 58,565 58,322
50% 49.6% 48,804 48,373
40% 40.2% 39,043 39,189
30% 30.4% 29,282 29,702
20% 19.8% 19,522 19,347
10% 9.9% 9,761 9,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,063
Calibration 2     98,312
Calibration 3     95,900
ssj_ops@calibrated=97,106
100% 97.9% 97,106 95,076
90% 90.7% 87,395 88,067
80% 80.4% 77,685 78,038
70% 69.0% 67,974 66,990
60% 59.7% 58,264 57,969
50% 50.0% 48,553 48,506
40% 39.9% 38,842 38,733
30% 30.8% 29,132 29,923
20% 20.1% 19,421 19,553
10% 9.8% 9,711 9,526
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,757
Calibration 2     97,058
Calibration 3     95,069
ssj_ops@calibrated=96,064
100% 98.7% 96,064 94,862
90% 89.3% 86,457 85,763
80% 80.7% 76,851 77,523
70% 69.1% 67,245 66,373
60% 59.6% 57,638 57,273
50% 50.8% 48,032 48,755
40% 40.1% 38,425 38,534
30% 29.4% 28,819 28,284
20% 19.2% 19,213 18,484
10% 10.0% 9,606 9,631
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,610
Calibration 2     97,590
Calibration 3     95,325
ssj_ops@calibrated=96,458
100% 98.4% 96,458 94,926
90% 89.8% 86,812 86,633
80% 79.9% 77,166 77,061
70% 70.0% 67,520 67,528
60% 59.4% 57,875 57,333
50% 49.9% 48,229 48,181
40% 40.3% 38,583 38,829
30% 29.8% 28,937 28,718
20% 20.1% 19,292 19,406
10% 9.9% 9,646 9,514
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,693
Calibration 2     98,809
Calibration 3     96,451
ssj_ops@calibrated=97,630
100% 98.6% 97,630 96,269
90% 90.4% 87,867 88,284
80% 80.3% 78,104 78,415
70% 68.9% 68,341 67,309
60% 60.9% 58,578 59,456
50% 50.3% 48,815 49,125
40% 40.3% 39,052 39,323
30% 29.7% 29,289 29,015
20% 20.1% 19,526 19,581
10% 9.7% 9,763 9,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,173
Calibration 2     96,341
Calibration 3     94,317
ssj_ops@calibrated=95,329
100% 98.9% 95,329 94,276
90% 90.4% 85,796 86,170
80% 80.6% 76,264 76,798
70% 70.5% 66,731 67,241
60% 59.8% 57,198 56,979
50% 49.4% 47,665 47,138
40% 40.7% 38,132 38,822
30% 30.1% 28,599 28,698
20% 20.3% 19,066 19,327
10% 9.8% 9,533 9,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,038
Calibration 2     98,773
Calibration 3     96,401
ssj_ops@calibrated=97,587
100% 98.9% 97,587 96,482
90% 89.5% 87,828 87,382
80% 80.1% 78,069 78,158
70% 69.9% 68,311 68,238
60% 59.5% 58,552 58,110
50% 50.2% 48,793 48,978
40% 39.7% 39,035 38,752
30% 29.8% 29,276 29,074
20% 20.0% 19,517 19,529
10% 9.9% 9,759 9,692
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,144
Calibration 2     100,266
Calibration 3     97,635
ssj_ops@calibrated=98,951
100% 98.6% 98,951 97,561
90% 90.0% 89,056 89,103
80% 79.3% 79,161 78,493
70% 70.2% 69,266 69,479
60% 60.0% 59,370 59,396
50% 50.4% 49,475 49,896
40% 40.2% 39,580 39,779
30% 29.6% 29,685 29,333
20% 20.0% 19,790 19,770
10% 10.3% 9,895 10,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,960
Calibration 2     97,854
Calibration 3     95,145
ssj_ops@calibrated=96,499
100% 97.8% 96,499 94,337
90% 90.4% 86,849 87,239
80% 80.7% 77,200 77,884
70% 70.1% 67,550 67,618
60% 60.0% 57,900 57,945
50% 49.8% 48,250 48,037
40% 39.6% 38,600 38,249
30% 30.0% 28,950 28,919
20% 20.1% 19,300 19,391
10% 9.9% 9,650 9,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,822
Calibration 2     98,125
Calibration 3     95,656
ssj_ops@calibrated=96,891
100% 97.9% 96,891 94,871
90% 90.3% 87,202 87,470
80% 79.8% 77,512 77,306
70% 70.9% 67,823 68,709
60% 60.2% 58,134 58,347
50% 51.0% 48,445 49,390
40% 39.8% 38,756 38,596
30% 29.8% 29,067 28,887
20% 20.1% 19,378 19,512
10% 10.2% 9,689 9,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,546
Calibration 2     95,938
Calibration 3     93,936
ssj_ops@calibrated=94,937
100% 98.9% 94,937 93,924
90% 90.2% 85,443 85,591
80% 79.9% 75,949 75,877
70% 70.1% 66,456 66,511
60% 59.6% 56,962 56,599
50% 49.4% 47,468 46,939
40% 39.7% 37,975 37,713
30% 29.9% 28,481 28,415
20% 19.8% 18,987 18,754
10% 10.3% 9,494 9,743
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,527
Calibration 2     100,845
Calibration 3     98,733
ssj_ops@calibrated=99,789
100% 98.7% 99,789 98,451
90% 90.1% 89,810 89,938
80% 79.6% 79,831 79,408
70% 69.6% 69,852 69,458
60% 59.9% 59,873 59,786
50% 50.5% 49,894 50,362
40% 39.9% 39,916 39,827
30% 30.2% 29,937 30,133
20% 20.2% 19,958 20,108
10% 10.2% 9,979 10,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,338
Calibration 2     99,140
Calibration 3     96,920
ssj_ops@calibrated=98,030
100% 98.2% 98,030 96,303
90% 90.0% 88,227 88,263
80% 80.2% 78,424 78,649
70% 70.1% 68,621 68,725
60% 60.4% 58,818 59,242
50% 50.6% 49,015 49,649
40% 39.5% 39,212 38,741
30% 30.6% 29,409 30,029
20% 19.9% 19,606 19,545
10% 10.0% 9,803 9,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,282
Calibration 2     95,821
Calibration 3     93,921
ssj_ops@calibrated=94,871
100% 98.0% 94,871 92,949
90% 89.3% 85,384 84,698
80% 80.1% 75,897 75,969
70% 70.4% 66,410 66,794
60% 60.2% 56,923 57,121
50% 49.9% 47,435 47,313
40% 39.8% 37,948 37,742
30% 29.4% 28,461 27,883
20% 20.0% 18,974 18,940
10% 9.6% 9,487 9,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,619
Calibration 2     96,970
Calibration 3     95,074
ssj_ops@calibrated=96,022
100% 99.1% 96,022 95,120
90% 89.6% 86,420 86,054
80% 80.0% 76,818 76,842
70% 69.0% 67,216 66,250
60% 60.6% 57,613 58,207
50% 50.3% 48,011 48,306
40% 40.5% 38,409 38,880
30% 29.8% 28,807 28,641
20% 20.4% 19,204 19,582
10% 10.0% 9,602 9,555
Active Idle   0 0

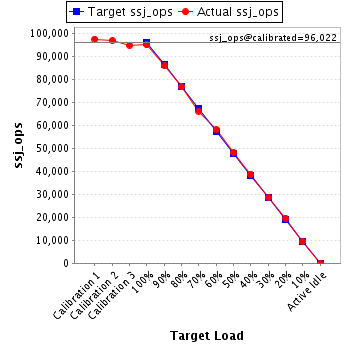

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,614
Calibration 2     99,001
Calibration 3     97,025
ssj_ops@calibrated=98,013
100% 98.2% 98,013 96,241
90% 89.7% 88,212 87,890
80% 79.7% 78,410 78,110
70% 70.4% 68,609 69,009
60% 59.0% 58,808 57,789
50% 50.4% 49,006 49,411
40% 40.3% 39,205 39,468
30% 29.8% 29,404 29,207
20% 19.9% 19,603 19,541
10% 10.1% 9,801 9,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,058
Calibration 2     99,887
Calibration 3     97,052
ssj_ops@calibrated=98,470
100% 98.0% 98,470 96,545
90% 89.6% 88,623 88,191
80% 80.3% 78,776 79,078
70% 70.4% 68,929 69,353
60% 59.0% 59,082 58,085
50% 50.1% 49,235 49,324
40% 40.3% 39,388 39,709
30% 29.7% 29,541 29,220
20% 19.9% 19,694 19,629
10% 9.9% 9,847 9,796
Active Idle   0 0

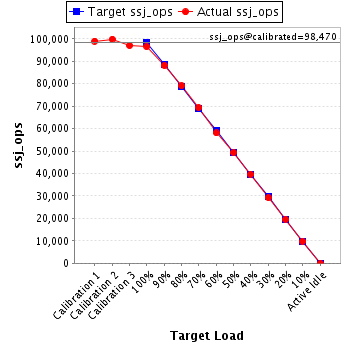

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,445
Calibration 2     98,532
Calibration 3     96,074
ssj_ops@calibrated=97,303
100% 96.9% 97,303 94,326
90% 90.3% 87,573 87,853
80% 79.3% 77,842 77,117
70% 70.4% 68,112 68,492
60% 60.8% 58,382 59,115
50% 49.9% 48,652 48,591
40% 39.9% 38,921 38,787
30% 29.9% 29,191 29,046
20% 19.9% 19,461 19,349
10% 10.0% 9,730 9,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,895
Calibration 2     97,000
Calibration 3     94,757
ssj_ops@calibrated=95,879
100% 98.6% 95,879 94,565
90% 88.9% 86,291 85,196
80% 79.8% 76,703 76,549
70% 69.6% 67,115 66,716
60% 59.8% 57,527 57,359
50% 50.1% 47,939 48,066
40% 40.9% 38,351 39,230
30% 29.9% 28,764 28,704
20% 20.1% 19,176 19,295
10% 10.1% 9,588 9,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-EHUIKG843EI.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,087
Calibration 2     97,942
Calibration 3     95,736
ssj_ops@calibrated=96,839
100% 98.7% 96,839 95,621
90% 89.6% 87,155 86,802
80% 78.2% 77,472 75,753
70% 69.4% 67,788 67,218
60% 59.8% 58,104 57,886
50% 50.4% 48,420 48,768
40% 40.6% 38,736 39,276
30% 29.4% 29,052 28,446
20% 20.2% 19,368 19,595
10% 10.3% 9,684 9,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
