Hewlett Packard Enterprise ProLiant DL360 Gen10 ssj_ops@100% = 1,444,189
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 28, 2017
Hardware Availability: Sep-2017 Software Availability: Jan-2015 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,451,409
Calibration 2     1,451,687
Calibration 3     1,450,588
ssj_ops@calibrated=1,451,138
100% 99.5% 1,451,138 1,444,189
90% 90.0% 1,306,024 1,306,507
80% 79.8% 1,160,910 1,158,287
70% 69.9% 1,015,796 1,015,068
60% 60.2% 870,683 873,736
50% 50.0% 725,569 725,392
40% 40.1% 580,455 581,707
30% 30.0% 435,341 435,695
20% 20.0% 290,228 289,795
10% 10.0% 145,114 144,808
Active Idle   0 0

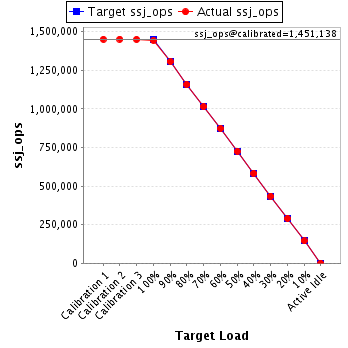

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8182 MB
Memory Details: 12 x 8GB 2Rx8 PC4-2666V-R; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DPS-800AB (865438-B21) 96%
Disk Drive: 1 x HPE 340GB SATA RI UFF M.2 Kit (815606-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn17000m -Xms19000m -Xmx19000m -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=24 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 19000
JVM Maximum Heap (MB): 19000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.00 (05/22/2017)
Management Firmware Version: 1.10 pass 67 May 05 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

System Options

Memory Options

Power and Performance Options

Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 105,563,671 18,934
Payment 105,563,660
Order Status 10,556,369
Delivery 10,556,369
Stock Level 10,556,368
Customer Report 105,563,641
Calibration 2 New Order 105,581,625 18,933
Payment 105,581,622
Order Status 10,558,160
Delivery 10,558,155
Stock Level 10,558,159
Customer Report 105,581,625
Calibration 3 New Order 105,510,349 18,933
Payment 105,510,340
Order Status 10,551,041
Delivery 10,551,035
Stock Level 10,551,036
Customer Report 105,510,357
100% 99.5% New Order 105,038,098 18,933
Payment 105,038,080
Order Status 10,503,809
Delivery 10,503,810
Stock Level 10,503,808
Customer Report 105,038,078
90% 90.0% New Order 95,024,154 18,933
Payment 95,024,162
Order Status 9,502,415
Delivery 9,502,412
Stock Level 9,502,415
Customer Report 95,024,146
80% 79.8% New Order 84,243,974 18,918
Payment 84,243,964
Order Status 8,424,397
Delivery 8,424,397
Stock Level 8,424,395
Customer Report 84,243,956
70% 69.9% New Order 73,827,492 18,918
Payment 73,827,500
Order Status 7,382,746
Delivery 7,382,750
Stock Level 7,382,754
Customer Report 73,827,498
60% 60.2% New Order 63,548,089 18,918
Payment 63,548,102
Order Status 6,354,812
Delivery 6,354,803
Stock Level 6,354,811
Customer Report 63,548,118
50% 50.0% New Order 52,758,728 18,918
Payment 52,758,726
Order Status 5,275,871
Delivery 5,275,871
Stock Level 5,275,868
Customer Report 52,758,730
40% 40.1% New Order 42,308,324 18,918
Payment 42,308,310
Order Status 4,230,826
Delivery 4,230,830
Stock Level 4,230,834
Customer Report 42,308,329
30% 30.0% New Order 31,688,697 18,918
Payment 31,688,717
Order Status 3,168,871
Delivery 3,168,871
Stock Level 3,168,868
Customer Report 31,688,703
20% 20.0% New Order 21,077,192 18,917
Payment 21,077,186
Order Status 2,107,716
Delivery 2,107,716
Stock Level 2,107,722
Customer Report 21,077,177
10% 10.0% New Order 10,532,065 18,916
Payment 10,532,059
Order Status 1,053,201
Delivery 1,053,210
Stock Level 1,053,204
Customer Report 10,532,066
Active Idle New Order 0 18,916
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
