Hewlett Packard Enterprise ProLiant DL560 Gen10 SPECpower_ssj2008 = 11,662 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 30, 2017
Hardware Availability: Sep-2017 Software Availability: Jan-2015 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 925 23.9
Calibration 2 938 23.6
Calibration 3 939 23.5
100% 936 23.9
90% 847 24.4
80% 706 24.6
70% 592 24.8
60% 510 24.6
50% 438 24.6
40% 378 24.9
30% 329 25.2
20% 281 25.3
10% 232 25.5
Active Idle 88.9 25.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-D0562-180-1
Date of Calibration: 18-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 4.38 5.0 0.991 925 0.3%
Calibration 2 213 300.0 4.44 5.0 0.991 938 0.3%
Calibration 3 213 300.0 4.45 5.0 0.992 939 0.3%
100% 213 300.0 4.43 5.0 0.991 936 0.3%
90% 213 300.0 4.01 5.0 0.990 847 0.4%
80% 213 300.0 3.36 5.0 0.986 706 0.4%
70% 213 300.0 2.82 5.0 0.983 592 0.4%
60% 214 300.0 2.43 5.0 0.982 510 0.5%
50% 214 300.0 2.09 5.0 0.980 438 0.5%
40% 214 300.0 1.81 5.0 0.975 378 0.6%
30% 214 300.0 1.59 5.0 0.968 329 0.7%
20% 215 300.0 1.37 2.0 0.957 281 0.4%
10% 215 300.0 1.15 2.0 0.940 232 0.5%
Active Idle 215 300.0 0.568 1.0 0.729 88.9 0.7%

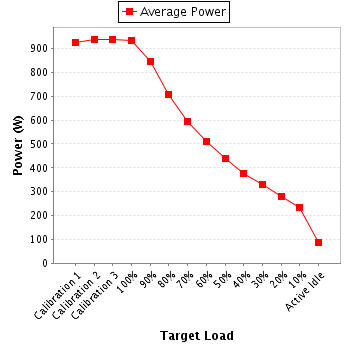

Power details for pwr1
