New H3C Technologies Co., Ltd. UniServer R4900 G3 ssj_ops@100% = 5,691,171
ssj_ops@100% per JVM = 101,628
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Aug 23, 2017
Hardware Availability: Oct-2017 Software Availability: Jan-2015 Publication: Sep 20, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,738,703
Calibration 2     5,705,350
Calibration 3     5,704,189
ssj_ops@calibrated=5,704,770
100% 99.8% 5,704,770 5,691,171
90% 90.0% 5,134,293 5,132,981
80% 80.2% 4,563,816 4,573,059
70% 70.0% 3,993,339 3,992,258
60% 60.0% 3,422,862 3,420,893
50% 49.9% 2,852,385 2,845,276
40% 39.9% 2,281,908 2,276,814
30% 30.0% 1,711,431 1,710,853
20% 20.0% 1,140,954 1,140,997
10% 10.0% 570,477 570,324
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: UniServer R4900 G3
Form Factor: 2U
CPU Name: Intel(R) Xeon(R) Platinum 8180 CPU @2.50GHz
CPU Characteristics: 28-Core, 2.5GHz, 38.5MB L3 Cache (Intel Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8 GB
Memory Details: 8GB 2Rx8 Hynix registered ECC 2400Mhz; slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DELTA DPS-800AB-9 P/N 0202A1DC
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel X722 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: server -Xmn1200m -Xms1300m -Xmx1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000];
JVM Instances: 56
JVM Initial Heap (MB): 1300
JVM Maximum Heap (MB): 1300
JVM Address Bits: 64
Boot Firmware Version: 1.00.14
Management Firmware Version: 1.10.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
430W User Defined Power Capping Policy
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-0RNQQHHRACD.001 102,365
WIN-0RNQQHHRACD.002 102,680
WIN-0RNQQHHRACD.003 100,472
WIN-0RNQQHHRACD.004 102,850
WIN-0RNQQHHRACD.005 102,476
WIN-0RNQQHHRACD.006 101,300
WIN-0RNQQHHRACD.007 102,206
WIN-0RNQQHHRACD.008 104,031
WIN-0RNQQHHRACD.009 102,502
WIN-0RNQQHHRACD.010 101,495
WIN-0RNQQHHRACD.011 100,887
WIN-0RNQQHHRACD.012 99,585
WIN-0RNQQHHRACD.013 101,741
WIN-0RNQQHHRACD.014 101,193
WIN-0RNQQHHRACD.015 102,108
WIN-0RNQQHHRACD.016 102,356
WIN-0RNQQHHRACD.017 103,030
WIN-0RNQQHHRACD.018 99,990
WIN-0RNQQHHRACD.019 100,454
WIN-0RNQQHHRACD.020 101,582
WIN-0RNQQHHRACD.021 102,769
WIN-0RNQQHHRACD.022 102,834
WIN-0RNQQHHRACD.023 101,674
WIN-0RNQQHHRACD.024 103,025
WIN-0RNQQHHRACD.025 101,540
WIN-0RNQQHHRACD.026 101,487
WIN-0RNQQHHRACD.027 101,930
WIN-0RNQQHHRACD.028 100,558
WIN-0RNQQHHRACD.029 101,926
WIN-0RNQQHHRACD.030 101,623
WIN-0RNQQHHRACD.031 99,318
WIN-0RNQQHHRACD.032 101,705
WIN-0RNQQHHRACD.033 101,891
WIN-0RNQQHHRACD.034 100,773
WIN-0RNQQHHRACD.035 100,328
WIN-0RNQQHHRACD.036 101,623
WIN-0RNQQHHRACD.037 103,311
WIN-0RNQQHHRACD.038 101,380
WIN-0RNQQHHRACD.039 100,101
WIN-0RNQQHHRACD.040 102,130
WIN-0RNQQHHRACD.041 102,997
WIN-0RNQQHHRACD.042 101,878
WIN-0RNQQHHRACD.043 101,747
WIN-0RNQQHHRACD.044 102,212
WIN-0RNQQHHRACD.045 102,011
WIN-0RNQQHHRACD.046 100,612
WIN-0RNQQHHRACD.047 99,738
WIN-0RNQQHHRACD.048 101,631
WIN-0RNQQHHRACD.049 103,310
WIN-0RNQQHHRACD.050 100,953
WIN-0RNQQHHRACD.051 102,306
WIN-0RNQQHHRACD.052 101,545
WIN-0RNQQHHRACD.053 101,570
WIN-0RNQQHHRACD.054 102,489
WIN-0RNQQHHRACD.055 100,129
WIN-0RNQQHHRACD.056 98,812
ssj_ops@100% 5,691,171
ssj_ops@100% per JVM 101,628
Graph of per-instance results
JVM 'WIN-0RNQQHHRACD.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,749
Calibration 2     102,226
Calibration 3     102,213
ssj_ops@calibrated=102,219
100% 100.1% 102,219 102,365
90% 89.9% 91,997 91,934
80% 80.2% 81,776 81,971
70% 70.1% 71,554 71,651
60% 60.1% 61,332 61,448
50% 49.1% 51,110 50,235
40% 39.6% 40,888 40,447
30% 29.1% 30,666 29,770
20% 20.2% 20,444 20,633
10% 10.3% 10,222 10,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,547
Calibration 2     102,656
Calibration 3     101,972
ssj_ops@calibrated=102,314
100% 100.4% 102,314 102,680
90% 89.7% 92,082 91,730
80% 80.3% 81,851 82,140
70% 70.2% 71,620 71,783
60% 60.0% 61,388 61,439
50% 51.3% 51,157 52,512
40% 39.2% 40,926 40,150
30% 29.7% 30,694 30,423
20% 19.8% 20,463 20,249
10% 9.7% 10,231 9,952
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,418
Calibration 2     101,700
Calibration 3     101,459
ssj_ops@calibrated=101,579
100% 98.9% 101,579 100,472
90% 89.4% 91,422 90,847
80% 81.1% 81,264 82,351
70% 69.8% 71,106 70,902
60% 60.1% 60,948 61,074
50% 49.8% 50,790 50,542
40% 40.1% 40,632 40,683
30% 29.4% 30,474 29,881
20% 19.9% 20,316 20,199
10% 10.0% 10,158 10,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,172
Calibration 2     102,893
Calibration 3     102,625
ssj_ops@calibrated=102,759
100% 100.1% 102,759 102,850
90% 90.6% 92,483 93,147
80% 80.0% 82,207 82,220
70% 69.5% 71,931 71,450
60% 59.0% 61,655 60,647
50% 50.6% 51,379 51,976
40% 40.6% 41,104 41,751
30% 30.2% 30,828 30,990
20% 20.1% 20,552 20,624
10% 10.3% 10,276 10,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,182
Calibration 2     103,301
Calibration 3     103,004
ssj_ops@calibrated=103,153
100% 99.3% 103,153 102,476
90% 89.4% 92,837 92,183
80% 80.4% 82,522 82,914
70% 69.3% 72,207 71,501
60% 59.9% 61,892 61,738
50% 49.6% 51,576 51,136
40% 40.1% 41,261 41,406
30% 29.6% 30,946 30,529
20% 20.0% 20,631 20,668
10% 10.0% 10,315 10,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,590
Calibration 2     101,772
Calibration 3     101,337
ssj_ops@calibrated=101,555
100% 99.7% 101,555 101,300
90% 89.8% 91,399 91,214
80% 81.6% 81,244 82,847
70% 70.3% 71,088 71,432
60% 60.5% 60,933 61,488
50% 49.1% 50,777 49,817
40% 40.5% 40,622 41,129
30% 30.1% 30,466 30,551
20% 19.7% 20,311 20,015
10% 10.0% 10,155 10,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,992
Calibration 2     101,412
Calibration 3     102,282
ssj_ops@calibrated=101,847
100% 100.4% 101,847 102,206
90% 90.0% 91,662 91,694
80% 80.6% 81,478 82,134
70% 69.4% 71,293 70,708
60% 60.5% 61,108 61,647
50% 50.8% 50,924 51,700
40% 39.8% 40,739 40,536
30% 29.5% 30,554 30,041
20% 19.9% 20,369 20,299
10% 10.1% 10,185 10,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,697
Calibration 2     104,518
Calibration 3     104,505
ssj_ops@calibrated=104,511
100% 99.5% 104,511 104,031
90% 90.8% 94,060 94,883
80% 79.2% 83,609 82,761
70% 70.3% 73,158 73,454
60% 59.3% 62,707 61,969
50% 49.9% 52,256 52,113
40% 39.8% 41,805 41,566
30% 30.1% 31,353 31,485
20% 20.1% 20,902 21,024
10% 10.1% 10,451 10,590
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,105
Calibration 2     103,091
Calibration 3     102,855
ssj_ops@calibrated=102,973
100% 99.5% 102,973 102,502
90% 90.5% 92,676 93,173
80% 79.9% 82,378 82,284
70% 70.8% 72,081 72,919
60% 59.7% 61,784 61,508
50% 49.8% 51,487 51,248
40% 39.2% 41,189 40,373
30% 30.7% 30,892 31,612
20% 19.8% 20,595 20,437
10% 9.8% 10,297 10,078
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,238
Calibration 2     101,807
Calibration 3     101,522
ssj_ops@calibrated=101,665
100% 99.8% 101,665 101,495
90% 91.1% 91,498 92,639
80% 80.8% 81,332 82,141
70% 69.3% 71,165 70,498
60% 60.6% 60,999 61,568
50% 48.6% 50,832 49,426
40% 40.2% 40,666 40,917
30% 30.1% 30,499 30,640
20% 20.0% 20,333 20,336
10% 10.2% 10,166 10,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,845
Calibration 2     101,301
Calibration 3     101,173
ssj_ops@calibrated=101,237
100% 99.7% 101,237 100,887
90% 90.5% 91,114 91,627
80% 79.8% 80,990 80,832
70% 70.0% 70,866 70,830
60% 60.0% 60,742 60,758
50% 49.3% 50,619 49,900
40% 39.8% 40,495 40,310
30% 30.2% 30,371 30,603
20% 20.0% 20,247 20,211
10% 9.8% 10,124 9,964
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

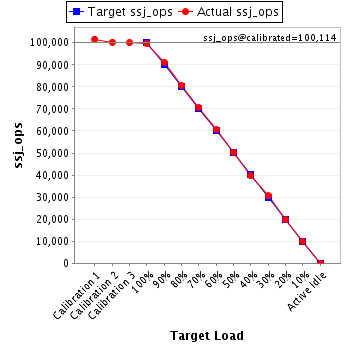

JVM 'WIN-0RNQQHHRACD.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,648
Calibration 2     100,270
Calibration 3     99,957
ssj_ops@calibrated=100,114
100% 99.5% 100,114 99,585
90% 91.1% 90,102 91,208
80% 80.4% 80,091 80,482
70% 70.6% 70,080 70,668
60% 60.5% 60,068 60,559
50% 50.3% 50,057 50,404
40% 39.6% 40,045 39,610
30% 30.5% 30,034 30,522
20% 19.7% 20,023 19,684
10% 10.0% 10,011 10,048
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,164
Calibration 2     102,189
Calibration 3     102,265
ssj_ops@calibrated=102,227
100% 99.5% 102,227 101,741
90% 90.6% 92,004 92,609
80% 79.8% 81,781 81,627
70% 70.1% 71,559 71,656
60% 60.1% 61,336 61,478
50% 49.6% 51,113 50,688
40% 39.6% 40,891 40,473
30% 30.5% 30,668 31,147
20% 19.8% 20,445 20,231
10% 9.6% 10,223 9,778
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,764
Calibration 2     100,670
Calibration 3     101,004
ssj_ops@calibrated=100,837
100% 100.4% 100,837 101,193
90% 89.7% 90,753 90,444
80% 79.4% 80,669 80,104
70% 69.4% 70,586 69,937
60% 60.1% 60,502 60,611
50% 50.8% 50,418 51,209
40% 40.4% 40,335 40,755
30% 30.0% 30,251 30,275
20% 19.7% 20,167 19,903
10% 9.9% 10,084 10,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,076
Calibration 2     101,915
Calibration 3     101,988
ssj_ops@calibrated=101,952
100% 100.2% 101,952 102,108
90% 90.9% 91,757 92,681
80% 80.9% 81,561 82,491
70% 69.5% 71,366 70,898
60% 60.1% 61,171 61,301
50% 49.9% 50,976 50,881
40% 39.9% 40,781 40,631
30% 29.9% 30,586 30,493
20% 19.7% 20,390 20,078
10% 9.8% 10,195 10,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,015
Calibration 2     103,373
Calibration 3     102,790
ssj_ops@calibrated=103,081
100% 99.3% 103,081 102,356
90% 89.2% 92,773 91,999
80% 80.7% 82,465 83,139
70% 70.0% 72,157 72,115
60% 59.3% 61,849 61,106
50% 49.9% 51,541 51,422
40% 40.1% 41,233 41,362
30% 30.0% 30,924 30,879
20% 20.1% 20,616 20,694
10% 9.8% 10,308 10,106
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,446
Calibration 2     102,517
Calibration 3     102,875
ssj_ops@calibrated=102,696
100% 100.3% 102,696 103,030
90% 90.3% 92,426 92,765
80% 80.7% 82,157 82,869
70% 70.0% 71,887 71,889
60% 59.7% 61,618 61,300
50% 49.6% 51,348 50,973
40% 39.4% 41,078 40,508
30% 29.7% 30,809 30,490
20% 20.1% 20,539 20,607
10% 9.8% 10,270 10,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,682
Calibration 2     100,548
Calibration 3     100,490
ssj_ops@calibrated=100,519
100% 99.5% 100,519 99,990
90% 90.5% 90,467 90,963
80% 80.2% 80,415 80,607
70% 70.0% 70,363 70,409
60% 59.6% 60,311 59,923
50% 50.4% 50,260 50,669
40% 39.8% 40,208 40,005
30% 29.8% 30,156 29,908
20% 20.5% 20,104 20,561
10% 10.3% 10,052 10,388
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,049
Calibration 2     100,090
Calibration 3     100,469
ssj_ops@calibrated=100,280
100% 100.2% 100,280 100,454
90% 90.8% 90,252 91,084
80% 79.3% 80,224 79,566
70% 69.3% 70,196 69,460
60% 60.5% 60,168 60,709
50% 49.7% 50,140 49,824
40% 39.6% 40,112 39,704
30% 30.6% 30,084 30,698
20% 20.1% 20,056 20,110
10% 10.1% 10,028 10,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,751
Calibration 2     101,986
Calibration 3     102,036
ssj_ops@calibrated=102,011
100% 99.6% 102,011 101,582
90% 88.5% 91,810 90,311
80% 80.6% 81,609 82,225
70% 69.5% 71,408 70,940
60% 60.5% 61,207 61,720
50% 50.3% 51,006 51,289
40% 40.3% 40,804 41,091
30% 29.7% 30,603 30,303
20% 19.9% 20,402 20,301
10% 9.8% 10,201 9,963
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,936
Calibration 2     102,103
Calibration 3     102,555
ssj_ops@calibrated=102,329
100% 100.4% 102,329 102,769
90% 89.8% 92,096 91,878
80% 79.6% 81,863 81,421
70% 69.0% 71,630 70,641
60% 60.0% 61,398 61,446
50% 50.3% 51,165 51,518
40% 39.8% 40,932 40,751
30% 30.1% 30,699 30,822
20% 19.9% 20,466 20,382
10% 9.8% 10,233 10,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,443
Calibration 2     102,795
Calibration 3     103,035
ssj_ops@calibrated=102,915
100% 99.9% 102,915 102,834
90% 89.5% 92,624 92,087
80% 79.9% 82,332 82,275
70% 70.2% 72,041 72,273
60% 60.3% 61,749 62,096
50% 50.2% 51,458 51,613
40% 39.9% 41,166 41,050
30% 29.7% 30,875 30,560
20% 20.0% 20,583 20,545
10% 10.2% 10,292 10,451
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,821
Calibration 2     101,595
Calibration 3     101,910
ssj_ops@calibrated=101,753
100% 99.9% 101,753 101,674
90% 89.6% 91,577 91,148
80% 79.0% 81,402 80,374
70% 70.5% 71,227 71,727
60% 59.8% 61,052 60,852
50% 50.0% 50,876 50,869
40% 39.6% 40,701 40,323
30% 29.2% 30,526 29,676
20% 20.3% 20,351 20,632
10% 10.0% 10,175 10,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,673
Calibration 2     104,293
Calibration 3     103,979
ssj_ops@calibrated=104,136
100% 98.9% 104,136 103,025
90% 91.0% 93,723 94,719
80% 80.4% 83,309 83,743
70% 69.2% 72,895 72,089
60% 60.0% 62,482 62,530
50% 49.4% 52,068 51,486
40% 39.6% 41,654 41,247
30% 30.0% 31,241 31,249
20% 20.4% 20,827 21,261
10% 9.8% 10,414 10,240
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,421
Calibration 2     102,474
Calibration 3     102,405
ssj_ops@calibrated=102,439
100% 99.1% 102,439 101,540
90% 90.1% 92,195 92,294
80% 80.4% 81,952 82,378
70% 70.7% 71,708 72,473
60% 60.9% 61,464 62,427
50% 49.1% 51,220 50,274
40% 40.1% 40,976 41,036
30% 30.1% 30,732 30,863
20% 20.1% 20,488 20,550
10% 10.1% 10,244 10,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,610
Calibration 2     101,510
Calibration 3     101,776
ssj_ops@calibrated=101,643
100% 99.8% 101,643 101,487
90% 89.7% 91,479 91,201
80% 81.0% 81,314 82,317
70% 70.3% 71,150 71,496
60% 59.7% 60,986 60,673
50% 49.9% 50,821 50,705
40% 39.8% 40,657 40,473
30% 30.0% 30,493 30,474
20% 20.7% 20,329 21,015
10% 10.0% 10,164 10,177
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,630
Calibration 2     101,974
Calibration 3     102,320
ssj_ops@calibrated=102,147
100% 99.8% 102,147 101,930
90% 90.3% 91,932 92,190
80% 79.4% 81,718 81,097
70% 70.2% 71,503 71,744
60% 59.8% 61,288 61,083
50% 49.6% 51,074 50,700
40% 40.2% 40,859 41,014
30% 29.9% 30,644 30,533
20% 19.9% 20,429 20,303
10% 10.4% 10,215 10,591
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

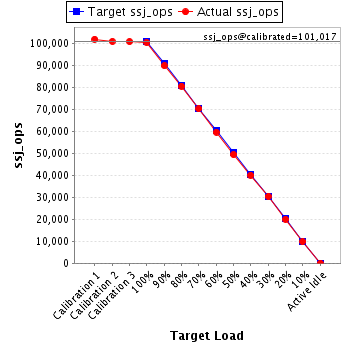

JVM 'WIN-0RNQQHHRACD.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,071
Calibration 2     101,069
Calibration 3     100,964
ssj_ops@calibrated=101,017
100% 99.5% 101,017 100,558
90% 89.0% 90,915 89,937
80% 79.9% 80,813 80,699
70% 69.7% 70,712 70,400
60% 59.1% 60,610 59,734
50% 49.0% 50,508 49,492
40% 39.7% 40,407 40,084
30% 30.2% 30,305 30,459
20% 19.9% 20,203 20,057
10% 9.8% 10,102 9,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,276
Calibration 2     101,937
Calibration 3     102,308
ssj_ops@calibrated=102,123
100% 99.8% 102,123 101,926
90% 90.1% 91,910 91,971
80% 80.1% 81,698 81,798
70% 69.8% 71,486 71,289
60% 59.7% 61,274 60,936
50% 49.6% 51,061 50,603
40% 39.9% 40,849 40,749
30% 30.3% 30,637 30,931
20% 20.0% 20,425 20,470
10% 10.1% 10,212 10,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,233
Calibration 2     102,112
Calibration 3     101,292
ssj_ops@calibrated=101,702
100% 99.9% 101,702 101,623
90% 89.6% 91,532 91,134
80% 80.4% 81,362 81,735
70% 70.3% 71,191 71,484
60% 59.6% 61,021 60,614
50% 50.4% 50,851 51,263
40% 39.7% 40,681 40,392
30% 30.1% 30,511 30,624
20% 19.9% 20,340 20,216
10% 9.8% 10,170 9,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,792
Calibration 2     100,806
Calibration 3     100,767
ssj_ops@calibrated=100,787
100% 98.5% 100,787 99,318
90% 90.3% 90,708 90,971
80% 80.3% 80,629 80,888
70% 70.2% 70,551 70,762
60% 60.0% 60,472 60,437
50% 49.9% 50,393 50,299
40% 39.8% 40,315 40,095
30% 30.4% 30,236 30,635
20% 20.1% 20,157 20,257
10% 10.1% 10,079 10,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,800
Calibration 2     101,486
Calibration 3     101,657
ssj_ops@calibrated=101,571
100% 100.1% 101,571 101,705
90% 89.9% 91,414 91,305
80% 79.8% 81,257 81,060
70% 69.6% 71,100 70,661
60% 59.7% 60,943 60,599
50% 49.9% 50,786 50,710
40% 40.3% 40,629 40,915
30% 29.7% 30,471 30,146
20% 20.3% 20,314 20,619
10% 10.2% 10,157 10,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,045
Calibration 2     102,190
Calibration 3     102,225
ssj_ops@calibrated=102,208
100% 99.7% 102,208 101,891
90% 90.8% 91,987 92,849
80% 79.6% 81,766 81,311
70% 69.9% 71,545 71,475
60% 59.9% 61,325 61,228
50% 49.8% 51,104 50,914
40% 39.5% 40,883 40,386
30% 30.3% 30,662 30,967
20% 20.2% 20,442 20,637
10% 10.1% 10,221 10,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,878
Calibration 2     101,256
Calibration 3     101,080
ssj_ops@calibrated=101,168
100% 99.6% 101,168 100,773
90% 90.0% 91,051 91,102
80% 79.3% 80,935 80,231
70% 70.3% 70,818 71,163
60% 59.3% 60,701 60,008
50% 50.1% 50,584 50,728
40% 41.0% 40,467 41,453
30% 29.2% 30,350 29,584
20% 19.8% 20,234 20,021
10% 9.9% 10,117 9,993
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,534
Calibration 2     101,189
Calibration 3     101,145
ssj_ops@calibrated=101,167
100% 99.2% 101,167 100,328
90% 89.1% 91,050 90,111
80% 80.6% 80,933 81,524
70% 70.7% 70,817 71,502
60% 59.4% 60,700 60,077
50% 49.9% 50,583 50,474
40% 39.9% 40,467 40,327
30% 30.3% 30,350 30,695
20% 19.9% 20,233 20,126
10% 9.9% 10,117 10,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,095
Calibration 2     101,326
Calibration 3     100,946
ssj_ops@calibrated=101,136
100% 100.5% 101,136 101,623
90% 90.4% 91,022 91,410
80% 80.2% 80,909 81,145
70% 69.8% 70,795 70,608
60% 60.1% 60,681 60,775
50% 49.4% 50,568 49,927
40% 39.2% 40,454 39,644
30% 29.5% 30,341 29,878
20% 20.1% 20,227 20,288
10% 10.1% 10,114 10,261
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,614
Calibration 2     102,734
Calibration 3     102,557
ssj_ops@calibrated=102,646
100% 100.6% 102,646 103,311
90% 90.5% 92,381 92,936
80% 78.5% 82,117 80,567
70% 69.2% 71,852 71,015
60% 60.3% 61,587 61,906
50% 50.9% 51,323 52,212
40% 39.7% 41,058 40,732
30% 30.4% 30,794 31,154
20% 20.2% 20,529 20,693
10% 10.1% 10,265 10,369
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,469
Calibration 2     101,176
Calibration 3     101,187
ssj_ops@calibrated=101,181
100% 100.2% 101,181 101,380
90% 89.2% 91,063 90,226
80% 79.8% 80,945 80,726
70% 70.1% 70,827 70,957
60% 60.5% 60,709 61,197
50% 49.5% 50,591 50,108
40% 40.3% 40,473 40,746
30% 30.0% 30,354 30,309
20% 19.7% 20,236 19,914
10% 10.0% 10,118 10,140
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,636
Calibration 2     99,932
Calibration 3     99,904
ssj_ops@calibrated=99,918
100% 100.2% 99,918 100,101
90% 89.9% 89,926 89,781
80% 79.9% 79,935 79,869
70% 70.1% 69,943 70,058
60% 59.6% 59,951 59,560
50% 49.5% 49,959 49,490
40% 39.5% 39,967 39,485
30% 30.6% 29,975 30,532
20% 19.6% 19,984 19,608
10% 10.3% 9,992 10,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,525
Calibration 2     103,197
Calibration 3     103,261
ssj_ops@calibrated=103,229
100% 98.9% 103,229 102,130
90% 89.8% 92,906 92,649
80% 80.2% 82,583 82,827
70% 70.3% 72,260 72,603
60% 60.3% 61,937 62,207
50% 49.6% 51,615 51,162
40% 40.4% 41,292 41,670
30% 30.1% 30,969 31,045
20% 19.8% 20,646 20,433
10% 9.9% 10,323 10,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,665
Calibration 2     102,875
Calibration 3     102,849
ssj_ops@calibrated=102,862
100% 100.1% 102,862 102,997
90% 90.8% 92,576 93,366
80% 80.5% 82,289 82,774
70% 70.6% 72,003 72,609
60% 59.1% 61,717 60,793
50% 49.9% 51,431 51,337
40% 39.7% 41,145 40,859
30% 30.4% 30,859 31,247
20% 20.0% 20,572 20,539
10% 10.2% 10,286 10,519
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,086
Calibration 2     101,749
Calibration 3     101,607
ssj_ops@calibrated=101,678
100% 100.2% 101,678 101,878
90% 90.1% 91,510 91,635
80% 80.4% 81,342 81,755
70% 69.8% 71,175 70,921
60% 60.6% 61,007 61,567
50% 49.7% 50,839 50,489
40% 40.2% 40,671 40,915
30% 29.6% 30,503 30,129
20% 20.0% 20,336 20,325
10% 10.1% 10,168 10,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,888
Calibration 2     102,254
Calibration 3     102,296
ssj_ops@calibrated=102,275
100% 99.5% 102,275 101,747
90% 89.6% 92,048 91,592
80% 80.8% 81,820 82,618
70% 69.9% 71,593 71,510
60% 60.1% 61,365 61,511
50% 50.6% 51,138 51,718
40% 39.5% 40,910 40,439
30% 29.9% 30,683 30,577
20% 20.1% 20,455 20,606
10% 10.1% 10,228 10,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,511
Calibration 2     102,131
Calibration 3     102,141
ssj_ops@calibrated=102,136
100% 100.1% 102,136 102,212
90% 90.1% 91,923 91,978
80% 79.9% 81,709 81,591
70% 70.7% 71,495 72,206
60% 60.4% 61,282 61,718
50% 50.2% 51,068 51,232
40% 40.2% 40,855 41,010
30% 29.7% 30,641 30,304
20% 19.8% 20,427 20,230
10% 9.9% 10,214 10,161
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,808
Calibration 2     101,989
Calibration 3     101,485
ssj_ops@calibrated=101,737
100% 100.3% 101,737 102,011
90% 88.6% 91,563 90,128
80% 79.4% 81,390 80,757
70% 69.6% 71,216 70,858
60% 59.8% 61,042 60,864
50% 49.8% 50,869 50,681
40% 39.7% 40,695 40,430
30% 30.4% 30,521 30,971
20% 20.2% 20,347 20,549
10% 10.0% 10,174 10,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,827
Calibration 2     101,583
Calibration 3     101,066
ssj_ops@calibrated=101,325
100% 99.3% 101,325 100,612
90% 90.1% 91,192 91,328
80% 81.4% 81,060 82,492
70% 70.2% 70,927 71,149
60% 59.3% 60,795 60,068
50% 49.7% 50,662 50,326
40% 40.0% 40,530 40,571
30% 30.1% 30,397 30,511
20% 19.8% 20,265 20,043
10% 9.8% 10,132 9,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,420
Calibration 2     99,812
Calibration 3     100,478
ssj_ops@calibrated=100,145
100% 99.6% 100,145 99,738
90% 89.9% 90,130 90,030
80% 80.2% 80,116 80,304
70% 70.4% 70,101 70,483
60% 59.4% 60,087 59,494
50% 49.8% 50,072 49,862
40% 39.9% 40,058 39,982
30% 30.4% 30,043 30,437
20% 20.0% 20,029 20,004
10% 10.0% 10,014 9,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,268
Calibration 2     101,526
Calibration 3     101,461
ssj_ops@calibrated=101,493
100% 100.1% 101,493 101,631
90% 89.8% 91,344 91,111
80% 80.1% 81,195 81,336
70% 70.2% 71,045 71,224
60% 60.9% 60,896 61,767
50% 49.7% 50,747 50,419
40% 39.9% 40,597 40,462
30% 30.5% 30,448 30,907
20% 19.4% 20,299 19,704
10% 10.0% 10,149 10,156
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,226
Calibration 2     103,973
Calibration 3     103,863
ssj_ops@calibrated=103,918
100% 99.4% 103,918 103,310
90% 89.2% 93,526 92,724
80% 80.6% 83,134 83,768
70% 69.6% 72,743 72,296
60% 60.4% 62,351 62,731
50% 49.6% 51,959 51,567
40% 39.6% 41,567 41,120
30% 30.0% 31,175 31,181
20% 19.9% 20,784 20,682
10% 9.9% 10,392 10,316
Active Idle   0 0

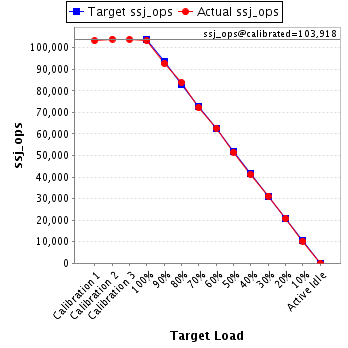

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,188
Calibration 2     101,831
Calibration 3     101,662
ssj_ops@calibrated=101,746
100% 99.2% 101,746 100,953
90% 90.1% 91,571 91,652
80% 79.7% 81,397 81,100
70% 70.6% 71,222 71,796
60% 59.7% 61,048 60,737
50% 50.0% 50,873 50,918
40% 39.9% 40,698 40,622
30% 29.5% 30,524 30,033
20% 20.7% 20,349 21,091
10% 9.9% 10,175 10,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,058
Calibration 2     102,756
Calibration 3     102,454
ssj_ops@calibrated=102,605
100% 99.7% 102,605 102,306
90% 89.8% 92,345 92,127
80% 80.3% 82,084 82,353
70% 69.3% 71,824 71,074
60% 60.1% 61,563 61,710
50% 49.9% 51,303 51,248
40% 39.7% 41,042 40,777
30% 30.3% 30,782 31,081
20% 20.1% 20,521 20,665
10% 9.7% 10,261 9,994
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,669
Calibration 2     100,905
Calibration 3     100,937
ssj_ops@calibrated=100,921
100% 100.6% 100,921 101,545
90% 90.1% 90,829 90,923
80% 80.5% 80,737 81,268
70% 69.8% 70,645 70,418
60% 61.0% 60,553 61,583
50% 49.8% 50,461 50,233
40% 39.7% 40,369 40,049
30% 29.6% 30,276 29,891
20% 20.2% 20,184 20,361
10% 10.2% 10,092 10,319
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,091
Calibration 2     101,986
Calibration 3     102,196
ssj_ops@calibrated=102,091
100% 99.5% 102,091 101,570
90% 89.8% 91,882 91,715
80% 80.6% 81,673 82,267
70% 69.8% 71,464 71,296
60% 59.6% 61,254 60,870
50% 50.2% 51,045 51,254
40% 40.1% 40,836 40,916
30% 30.0% 30,627 30,607
20% 20.0% 20,418 20,428
10% 9.8% 10,209 9,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,744
Calibration 2     101,381
Calibration 3     101,821
ssj_ops@calibrated=101,601
100% 100.9% 101,601 102,489
90% 89.6% 91,441 91,060
80% 80.0% 81,281 81,319
70% 69.8% 71,121 70,912
60% 59.5% 60,961 60,455
50% 49.3% 50,800 50,077
40% 40.3% 40,640 40,976
30% 29.9% 30,480 30,373
20% 20.0% 20,320 20,350
10% 9.7% 10,160 9,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,854
Calibration 2     101,173
Calibration 3     101,507
ssj_ops@calibrated=101,340
100% 98.8% 101,340 100,129
90% 90.0% 91,206 91,211
80% 80.3% 81,072 81,381
70% 70.1% 70,938 71,030
60% 60.0% 60,804 60,780
50% 50.6% 50,670 51,327
40% 40.6% 40,536 41,184
30% 29.8% 30,402 30,227
20% 20.0% 20,268 20,224
10% 10.1% 10,134 10,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-0RNQQHHRACD.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,768
Calibration 2     100,038
Calibration 3     100,269
ssj_ops@calibrated=100,153
100% 98.7% 100,153 98,812
90% 89.2% 90,138 89,367
80% 80.2% 80,122 80,291
70% 70.8% 70,107 70,954
60% 59.8% 60,092 59,867
50% 50.0% 50,077 50,081
40% 40.5% 40,061 40,523
30% 30.0% 30,046 30,002
20% 20.3% 20,031 20,303
10% 10.0% 10,015 10,040
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
