Dell Inc. PowerEdge R740 ssj_ops@100% = 5,727,798
ssj_ops@100% per JVM = 102,282
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 27, 2017
Hardware Availability: Jul-2017 Software Availability: Apr-2015 Publication: Sep 13, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,797,381
Calibration 2     5,719,381
Calibration 3     5,750,312
ssj_ops@calibrated=5,734,847
100% 99.9% 5,734,847 5,727,798
90% 90.0% 5,161,362 5,158,830
80% 80.1% 4,587,877 4,590,909
70% 70.0% 4,014,393 4,014,137
60% 59.9% 3,440,908 3,436,701
50% 50.1% 2,867,423 2,870,902
40% 40.1% 2,293,939 2,297,407
30% 30.0% 1,720,454 1,721,411
20% 19.9% 1,146,969 1,142,864
10% 10.0% 573,485 573,385
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R740
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R740
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50 GHz
CPU Characteristics: 28 core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V; Dell p/n VM51C, Slots A1-6,B1-6 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 120 GB SATA SSD, Dell p/n KX83R
Disk Controller: Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed: 1 x quad-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000]; start /NODE [1,3] /AFFINITY [0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0x30000000000,0xC0000000000,0x300000000000,0xC00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 1.0.7
Management Firmware Version: 3.00.00.00 A00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-D6UROU3FEIN.001 90,552
WIN-D6UROU3FEIN.002 103,493
WIN-D6UROU3FEIN.003 103,336
WIN-D6UROU3FEIN.004 104,819
WIN-D6UROU3FEIN.005 102,578
WIN-D6UROU3FEIN.006 107,078
WIN-D6UROU3FEIN.007 101,909
WIN-D6UROU3FEIN.008 102,378
WIN-D6UROU3FEIN.009 102,914
WIN-D6UROU3FEIN.010 101,800
WIN-D6UROU3FEIN.011 101,133
WIN-D6UROU3FEIN.012 104,399
WIN-D6UROU3FEIN.013 104,545
WIN-D6UROU3FEIN.014 103,608
WIN-D6UROU3FEIN.015 93,053
WIN-D6UROU3FEIN.016 103,081
WIN-D6UROU3FEIN.017 102,955
WIN-D6UROU3FEIN.018 94,878
WIN-D6UROU3FEIN.019 103,734
WIN-D6UROU3FEIN.020 105,156
WIN-D6UROU3FEIN.021 100,695
WIN-D6UROU3FEIN.022 104,065
WIN-D6UROU3FEIN.023 104,231
WIN-D6UROU3FEIN.024 102,540
WIN-D6UROU3FEIN.025 94,424
WIN-D6UROU3FEIN.026 106,047
WIN-D6UROU3FEIN.027 104,049
WIN-D6UROU3FEIN.028 101,838
WIN-D6UROU3FEIN.029 101,998
WIN-D6UROU3FEIN.030 101,935
WIN-D6UROU3FEIN.031 103,430
WIN-D6UROU3FEIN.032 95,017
WIN-D6UROU3FEIN.033 102,912
WIN-D6UROU3FEIN.034 103,825
WIN-D6UROU3FEIN.035 103,538
WIN-D6UROU3FEIN.036 105,676
WIN-D6UROU3FEIN.037 104,155
WIN-D6UROU3FEIN.038 101,798
WIN-D6UROU3FEIN.039 93,873
WIN-D6UROU3FEIN.040 104,064
WIN-D6UROU3FEIN.041 102,694
WIN-D6UROU3FEIN.042 104,643
WIN-D6UROU3FEIN.043 103,497
WIN-D6UROU3FEIN.044 105,910
WIN-D6UROU3FEIN.045 102,381
WIN-D6UROU3FEIN.046 104,228
WIN-D6UROU3FEIN.047 100,663
WIN-D6UROU3FEIN.048 104,357
WIN-D6UROU3FEIN.049 103,677
WIN-D6UROU3FEIN.050 100,214
WIN-D6UROU3FEIN.051 102,355
WIN-D6UROU3FEIN.052 103,334
WIN-D6UROU3FEIN.053 102,979
WIN-D6UROU3FEIN.054 103,562
WIN-D6UROU3FEIN.055 103,436
WIN-D6UROU3FEIN.056 102,353
ssj_ops@100% 5,727,798
ssj_ops@100% per JVM 102,282
Graph of per-instance results
JVM 'WIN-D6UROU3FEIN.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,750
Calibration 2     90,864
Calibration 3     91,529
ssj_ops@calibrated=91,197
100% 99.3% 91,197 90,552
90% 89.6% 82,077 81,710
80% 79.1% 72,957 72,153
70% 68.8% 63,838 62,707
60% 60.8% 54,718 55,447
50% 49.7% 45,598 45,365
40% 40.4% 36,479 36,851
30% 29.6% 27,359 27,007
20% 19.7% 18,239 17,988
10% 10.1% 9,120 9,241
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,340
Calibration 2     103,423
Calibration 3     104,499
ssj_ops@calibrated=103,961
100% 99.6% 103,961 103,493
90% 89.3% 93,565 92,889
80% 80.1% 83,169 83,257
70% 69.4% 72,773 72,170
60% 59.5% 62,377 61,845
50% 50.2% 51,981 52,209
40% 40.4% 41,584 41,975
30% 30.1% 31,188 31,334
20% 20.4% 20,792 21,183
10% 10.2% 10,396 10,604
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,460
Calibration 2     102,942
Calibration 3     104,041
ssj_ops@calibrated=103,492
100% 99.9% 103,492 103,336
90% 89.8% 93,142 92,974
80% 80.2% 82,793 83,034
70% 69.8% 72,444 72,256
60% 59.6% 62,095 61,661
50% 49.5% 51,746 51,248
40% 39.9% 41,397 41,288
30% 29.8% 31,047 30,793
20% 19.5% 20,698 20,183
10% 10.1% 10,349 10,416
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,841
Calibration 2     104,037
Calibration 3     104,037
ssj_ops@calibrated=104,037
100% 100.8% 104,037 104,819
90% 90.6% 93,633 94,289
80% 80.3% 83,229 83,500
70% 70.3% 72,826 73,135
60% 59.7% 62,422 62,116
50% 50.0% 52,018 52,040
40% 39.6% 41,615 41,233
30% 30.2% 31,211 31,368
20% 19.9% 20,807 20,724
10% 9.9% 10,404 10,298
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,139
Calibration 2     102,593
Calibration 3     103,317
ssj_ops@calibrated=102,955
100% 99.6% 102,955 102,578
90% 90.6% 92,660 93,305
80% 80.0% 82,364 82,395
70% 71.1% 72,069 73,186
60% 60.5% 61,773 62,330
50% 50.5% 51,478 52,039
40% 40.7% 41,182 41,907
30% 30.2% 30,887 31,089
20% 20.0% 20,591 20,578
10% 9.8% 10,296 10,092
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,584
Calibration 2     105,757
Calibration 3     106,566
ssj_ops@calibrated=106,162
100% 100.9% 106,162 107,078
90% 90.2% 95,545 95,763
80% 79.8% 84,929 84,706
70% 70.1% 74,313 74,372
60% 60.4% 63,697 64,095
50% 50.1% 53,081 53,200
40% 40.0% 42,465 42,446
30% 30.2% 31,848 32,077
20% 19.8% 21,232 20,970
10% 10.2% 10,616 10,854
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,323
Calibration 2     101,684
Calibration 3     102,633
ssj_ops@calibrated=102,158
100% 99.8% 102,158 101,909
90% 89.8% 91,942 91,778
80% 79.5% 81,727 81,203
70% 70.2% 71,511 71,667
60% 60.3% 61,295 61,553
50% 50.5% 51,079 51,550
40% 40.5% 40,863 41,342
30% 29.9% 30,647 30,545
20% 19.9% 20,432 20,336
10% 10.1% 10,216 10,362
Active Idle   0 0
Graph of results

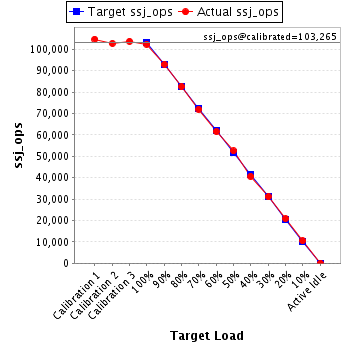

JVM 'WIN-D6UROU3FEIN.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,755
Calibration 2     102,763
Calibration 3     103,766
ssj_ops@calibrated=103,265
100% 99.1% 103,265 102,378
90% 90.0% 92,938 92,972
80% 79.9% 82,612 82,502
70% 69.7% 72,285 72,008
60% 59.6% 61,959 61,546
50% 50.8% 51,632 52,488
40% 39.3% 41,306 40,623
30% 30.1% 30,979 31,115
20% 20.2% 20,653 20,837
10% 10.1% 10,326 10,446
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,707
Calibration 2     103,300
Calibration 3     103,542
ssj_ops@calibrated=103,421
100% 99.5% 103,421 102,914
90% 90.5% 93,079 93,628
80% 79.2% 82,737 81,939
70% 69.4% 72,395 71,761
60% 59.6% 62,053 61,674
50% 50.0% 51,711 51,706
40% 40.9% 41,368 42,332
30% 30.2% 31,026 31,264
20% 20.2% 20,684 20,895
10% 9.9% 10,342 10,233
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,917
Calibration 2     101,445
Calibration 3     102,651
ssj_ops@calibrated=102,048
100% 99.8% 102,048 101,800
90% 89.3% 91,843 91,102
80% 79.1% 81,638 80,744
70% 70.5% 71,433 71,912
60% 59.8% 61,229 61,060
50% 50.3% 51,024 51,344
40% 39.2% 40,819 40,020
30% 30.0% 30,614 30,637
20% 20.0% 20,410 20,431
10% 10.0% 10,205 10,237
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,930
Calibration 2     101,494
Calibration 3     101,842
ssj_ops@calibrated=101,668
100% 99.5% 101,668 101,133
90% 90.4% 91,501 91,904
80% 80.8% 81,334 82,105
70% 69.0% 71,168 70,148
60% 60.6% 61,001 61,653
50% 50.2% 50,834 51,061
40% 40.2% 40,667 40,899
30% 29.9% 30,500 30,428
20% 19.2% 20,334 19,568
10% 10.2% 10,167 10,358
Active Idle   0 0
Graph of results

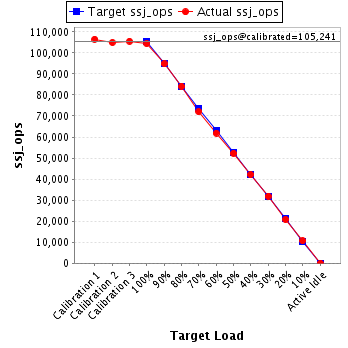

JVM 'WIN-D6UROU3FEIN.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,507
Calibration 2     104,907
Calibration 3     105,576
ssj_ops@calibrated=105,241
100% 99.2% 105,241 104,399
90% 90.1% 94,717 94,784
80% 79.9% 84,193 84,112
70% 68.4% 73,669 72,002
60% 58.8% 63,145 61,891
50% 49.7% 52,621 52,270
40% 40.0% 42,097 42,090
30% 30.3% 31,572 31,891
20% 19.8% 21,048 20,790
10% 10.1% 10,524 10,649
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,260
Calibration 2     104,261
Calibration 3     104,533
ssj_ops@calibrated=104,397
100% 100.1% 104,397 104,545
90% 88.5% 93,957 92,375
80% 80.1% 83,518 83,664
70% 69.2% 73,078 72,224
60% 59.1% 62,638 61,664
50% 50.0% 52,199 52,182
40% 40.8% 41,759 42,564
30% 29.9% 31,319 31,255
20% 19.8% 20,879 20,650
10% 9.8% 10,440 10,192
Active Idle   0 0
Graph of results

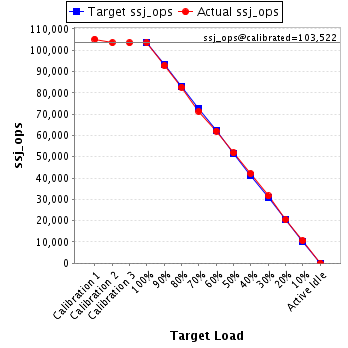

JVM 'WIN-D6UROU3FEIN.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,217
Calibration 2     103,558
Calibration 3     103,485
ssj_ops@calibrated=103,522
100% 100.1% 103,522 103,608
90% 89.6% 93,170 92,715
80% 79.9% 82,818 82,740
70% 68.9% 72,465 71,308
60% 60.0% 62,113 62,068
50% 50.0% 51,761 51,776
40% 40.7% 41,409 42,111
30% 30.5% 31,057 31,583
20% 19.8% 20,704 20,490
10% 10.2% 10,352 10,587
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,122
Calibration 2     92,316
Calibration 3     91,597
ssj_ops@calibrated=91,956
100% 101.2% 91,956 93,053
90% 90.5% 82,761 83,226
80% 79.8% 73,565 73,376
70% 70.4% 64,370 64,729
60% 59.5% 55,174 54,710
50% 50.0% 45,978 45,994
40% 40.0% 36,783 36,763
30% 30.8% 27,587 28,285
20% 19.8% 18,391 18,243
10% 10.0% 9,196 9,183
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,687
Calibration 2     103,732
Calibration 3     103,350
ssj_ops@calibrated=103,541
100% 99.6% 103,541 103,081
90% 90.6% 93,187 93,775
80% 79.3% 82,833 82,114
70% 71.0% 72,479 73,481
60% 60.4% 62,125 62,543
50% 50.0% 51,770 51,783
40% 39.6% 41,416 40,967
30% 30.0% 31,062 31,035
20% 19.4% 20,708 20,120
10% 10.0% 10,354 10,383
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,079
Calibration 2     103,854
Calibration 3     104,544
ssj_ops@calibrated=104,199
100% 98.8% 104,199 102,955
90% 90.1% 93,779 93,902
80% 80.3% 83,359 83,680
70% 69.6% 72,939 72,537
60% 59.2% 62,519 61,697
50% 51.1% 52,099 53,220
40% 40.2% 41,679 41,940
30% 30.2% 31,260 31,480
20% 19.8% 20,840 20,646
10% 9.8% 10,420 10,245
Active Idle   0 0
Graph of results

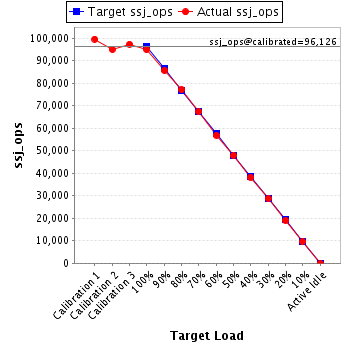

JVM 'WIN-D6UROU3FEIN.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,515
Calibration 2     94,969
Calibration 3     97,284
ssj_ops@calibrated=96,126
100% 98.7% 96,126 94,878
90% 89.1% 86,514 85,619
80% 80.2% 76,901 77,114
70% 70.1% 67,288 67,375
60% 59.1% 57,676 56,777
50% 49.9% 48,063 47,977
40% 39.8% 38,450 38,229
30% 29.9% 28,838 28,762
20% 19.8% 19,225 19,024
10% 10.0% 9,613 9,600
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,653
Calibration 2     103,286
Calibration 3     104,184
ssj_ops@calibrated=103,735
100% 100.0% 103,735 103,734
90% 88.9% 93,361 92,226
80% 80.2% 82,988 83,242
70% 70.0% 72,614 72,632
60% 60.1% 62,241 62,295
50% 50.2% 51,867 52,082
40% 39.7% 41,494 41,187
30% 29.8% 31,120 30,886
20% 20.3% 20,747 21,007
10% 9.6% 10,373 9,920
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,744
Calibration 2     104,697
Calibration 3     105,878
ssj_ops@calibrated=105,287
100% 99.9% 105,287 105,156
90% 90.2% 94,758 95,000
80% 80.1% 84,230 84,359
70% 70.2% 73,701 73,903
60% 60.5% 63,172 63,667
50% 49.5% 52,644 52,141
40% 40.3% 42,115 42,391
30% 30.0% 31,586 31,634
20% 19.8% 21,057 20,816
10% 10.0% 10,529 10,558
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,776
Calibration 2     100,367
Calibration 3     101,597
ssj_ops@calibrated=100,982
100% 99.7% 100,982 100,695
90% 91.0% 90,884 91,933
80% 80.3% 80,786 81,101
70% 70.2% 70,688 70,860
60% 60.2% 60,589 60,788
50% 50.0% 50,491 50,444
40% 40.2% 40,393 40,592
30% 30.1% 30,295 30,370
20% 20.2% 20,196 20,348
10% 9.6% 10,098 9,715
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,818
Calibration 2     104,233
Calibration 3     103,626
ssj_ops@calibrated=103,929
100% 100.1% 103,929 104,065
90% 89.9% 93,537 93,406
80% 80.0% 83,144 83,092
70% 69.3% 72,751 71,972
60% 60.4% 62,358 62,778
50% 50.0% 51,965 51,954
40% 40.7% 41,572 42,316
30% 29.8% 31,179 30,977
20% 20.2% 20,786 20,958
10% 10.2% 10,393 10,583
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,350
Calibration 2     105,337
Calibration 3     104,486
ssj_ops@calibrated=104,911
100% 99.4% 104,911 104,231
90% 90.5% 94,420 94,894
80% 80.4% 83,929 84,329
70% 69.3% 73,438 72,679
60% 60.0% 62,947 62,965
50% 50.0% 52,456 52,458
40% 40.2% 41,964 42,220
30% 30.1% 31,473 31,623
20% 20.4% 20,982 21,365
10% 9.9% 10,491 10,429
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,348
Calibration 2     102,199
Calibration 3     103,202
ssj_ops@calibrated=102,700
100% 99.8% 102,700 102,540
90% 90.6% 92,430 93,015
80% 78.9% 82,160 80,980
70% 70.1% 71,890 71,967
60% 59.6% 61,620 61,181
50% 50.0% 51,350 51,347
40% 39.8% 41,080 40,898
30% 30.0% 30,810 30,829
20% 19.8% 20,540 20,318
10% 10.2% 10,270 10,425
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,177
Calibration 2     93,170
Calibration 3     95,597
ssj_ops@calibrated=94,384
100% 100.0% 94,384 94,424
90% 90.7% 84,945 85,582
80% 80.6% 75,507 76,115
70% 70.7% 66,068 66,729
60% 59.1% 56,630 55,748
50% 50.3% 47,192 47,511
40% 40.0% 37,753 37,720
30% 30.0% 28,315 28,272
20% 19.4% 18,877 18,345
10% 9.6% 9,438 9,042
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,716
Calibration 2     105,917
Calibration 3     106,030
ssj_ops@calibrated=105,974
100% 100.1% 105,974 106,047
90% 90.1% 95,376 95,450
80% 80.6% 84,779 85,449
70% 68.8% 74,182 72,934
60% 60.5% 63,584 64,138
50% 50.3% 52,987 53,303
40% 39.6% 42,390 41,965
30% 29.8% 31,792 31,619
20% 20.1% 21,195 21,307
10% 9.9% 10,597 10,490
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,942
Calibration 2     103,690
Calibration 3     105,227
ssj_ops@calibrated=104,459
100% 99.6% 104,459 104,049
90% 89.7% 94,013 93,726
80% 79.6% 83,567 83,123
70% 70.5% 73,121 73,666
60% 59.7% 62,675 62,336
50% 49.4% 52,229 51,616
40% 40.1% 41,783 41,836
30% 29.8% 31,338 31,150
20% 20.3% 20,892 21,218
10% 9.9% 10,446 10,321
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,510
Calibration 2     100,925
Calibration 3     102,935
ssj_ops@calibrated=101,930
100% 99.9% 101,930 101,838
90% 90.6% 91,737 92,306
80% 80.0% 81,544 81,496
70% 70.8% 71,351 72,170
60% 60.1% 61,158 61,230
50% 50.4% 50,965 51,328
40% 40.1% 40,772 40,902
30% 30.0% 30,579 30,543
20% 19.4% 20,386 19,786
10% 10.1% 10,193 10,287
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,888
Calibration 2     102,178
Calibration 3     101,596
ssj_ops@calibrated=101,887
100% 100.1% 101,887 101,998
90% 90.5% 91,698 92,245
80% 80.4% 81,510 81,927
70% 69.5% 71,321 70,804
60% 59.5% 61,132 60,631
50% 51.0% 50,943 51,940
40% 39.3% 40,755 40,002
30% 30.0% 30,566 30,543
20% 19.5% 20,377 19,895
10% 10.0% 10,189 10,233
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,609
Calibration 2     103,099
Calibration 3     101,871
ssj_ops@calibrated=102,485
100% 99.5% 102,485 101,935
90% 90.0% 92,237 92,233
80% 80.2% 81,988 82,230
70% 70.4% 71,740 72,102
60% 59.2% 61,491 60,698
50% 50.0% 51,243 51,214
40% 40.5% 40,994 41,504
30% 30.4% 30,746 31,130
20% 20.2% 20,497 20,724
10% 9.9% 10,249 10,149
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,570
Calibration 2     103,211
Calibration 3     103,776
ssj_ops@calibrated=103,494
100% 99.9% 103,494 103,430
90% 89.7% 93,145 92,840
80% 79.4% 82,795 82,150
70% 70.0% 72,446 72,463
60% 59.9% 62,096 62,007
50% 50.0% 51,747 51,699
40% 40.6% 41,398 42,046
30% 30.2% 31,048 31,260
20% 19.8% 20,699 20,514
10% 9.8% 10,349 10,130
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,349
Calibration 2     96,392
Calibration 3     93,844
ssj_ops@calibrated=95,118
100% 99.9% 95,118 95,017
90% 89.2% 85,606 84,848
80% 80.7% 76,094 76,768
70% 70.9% 66,583 67,448
60% 59.5% 57,071 56,627
50% 49.1% 47,559 46,685
40% 40.6% 38,047 38,574
30% 30.5% 28,535 28,984
20% 20.2% 19,024 19,253
10% 10.0% 9,512 9,465
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,282
Calibration 2     102,766
Calibration 3     103,207
ssj_ops@calibrated=102,986
100% 99.9% 102,986 102,912
90% 90.4% 92,688 93,055
80% 79.7% 82,389 82,040
70% 71.3% 72,090 73,437
60% 59.9% 61,792 61,725
50% 49.7% 51,493 51,148
40% 39.9% 41,195 41,083
30% 30.0% 30,896 30,947
20% 20.1% 20,597 20,748
10% 9.6% 10,299 9,919
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,566
Calibration 2     103,765
Calibration 3     104,838
ssj_ops@calibrated=104,302
100% 99.5% 104,302 103,825
90% 89.9% 93,872 93,806
80% 80.8% 83,441 84,244
70% 70.2% 73,011 73,258
60% 60.3% 62,581 62,916
50% 49.7% 52,151 51,858
40% 40.9% 41,721 42,653
30% 29.9% 31,291 31,157
20% 20.0% 20,860 20,819
10% 10.2% 10,430 10,654
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,750
Calibration 2     101,603
Calibration 3     103,248
ssj_ops@calibrated=102,426
100% 101.1% 102,426 103,538
90% 90.4% 92,183 92,571
80% 80.0% 81,940 81,949
70% 70.0% 71,698 71,688
60% 61.3% 61,455 62,787
50% 50.1% 51,213 51,350
40% 39.7% 40,970 40,657
30% 30.1% 30,728 30,873
20% 19.7% 20,485 20,143
10% 10.1% 10,243 10,370
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,720
Calibration 2     105,264
Calibration 3     104,462
ssj_ops@calibrated=104,863
100% 100.8% 104,863 105,676
90% 90.0% 94,377 94,406
80% 80.4% 83,890 84,259
70% 69.5% 73,404 72,853
60% 60.9% 62,918 63,877
50% 49.8% 52,431 52,223
40% 39.7% 41,945 41,622
30% 30.3% 31,459 31,758
20% 20.4% 20,973 21,383
10% 9.9% 10,486 10,341
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,152
Calibration 2     103,746
Calibration 3     103,605
ssj_ops@calibrated=103,675
100% 100.5% 103,675 104,155
90% 90.0% 93,308 93,268
80% 79.9% 82,940 82,835
70% 70.1% 72,573 72,627
60% 60.2% 62,205 62,368
50% 50.8% 51,838 52,669
40% 40.0% 41,470 41,469
30% 29.9% 31,103 30,949
20% 20.0% 20,735 20,745
10% 9.8% 10,368 10,187
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,158
Calibration 2     102,001
Calibration 3     102,711
ssj_ops@calibrated=102,356
100% 99.5% 102,356 101,798
90% 90.6% 92,121 92,686
80% 80.6% 81,885 82,461
70% 69.8% 71,649 71,441
60% 60.2% 61,414 61,611
50% 50.4% 51,178 51,570
40% 40.4% 40,942 41,370
30% 30.0% 30,707 30,682
20% 20.0% 20,471 20,508
10% 10.3% 10,236 10,579
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,698
Calibration 2     95,592
Calibration 3     92,996
ssj_ops@calibrated=94,294
100% 99.6% 94,294 93,873
90% 89.6% 84,865 84,475
80% 80.7% 75,435 76,091
70% 70.8% 66,006 66,761
60% 60.1% 56,576 56,655
50% 50.0% 47,147 47,107
40% 40.7% 37,718 38,357
30% 29.8% 28,288 28,068
20% 19.9% 18,859 18,743
10% 10.0% 9,429 9,453
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,965
Calibration 2     104,926
Calibration 3     104,896
ssj_ops@calibrated=104,911
100% 99.2% 104,911 104,064
90% 88.4% 94,420 92,721
80% 80.1% 83,929 84,039
70% 69.1% 73,438 72,452
60% 60.3% 62,947 63,264
50% 50.3% 52,456 52,812
40% 39.8% 41,964 41,703
30% 29.6% 31,473 31,062
20% 20.4% 20,982 21,419
10% 10.2% 10,491 10,727
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,370
Calibration 2     101,641
Calibration 3     104,118
ssj_ops@calibrated=102,880
100% 99.8% 102,880 102,694
90% 90.0% 92,592 92,631
80% 79.2% 82,304 81,507
70% 69.7% 72,016 71,704
60% 60.7% 61,728 62,438
50% 50.4% 51,440 51,883
40% 40.2% 41,152 41,366
30% 30.4% 30,864 31,273
20% 20.0% 20,576 20,591
10% 10.2% 10,288 10,451
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,306
Calibration 2     104,212
Calibration 3     105,201
ssj_ops@calibrated=104,706
100% 99.9% 104,706 104,643
90% 89.8% 94,236 94,017
80% 80.5% 83,765 84,327
70% 71.1% 73,294 74,398
60% 59.4% 62,824 62,144
50% 49.6% 52,353 51,936
40% 40.9% 41,883 42,813
30% 30.0% 31,412 31,400
20% 19.7% 20,941 20,663
10% 9.8% 10,471 10,232
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,426
Calibration 2     102,141
Calibration 3     103,594
ssj_ops@calibrated=102,867
100% 100.6% 102,867 103,497
90% 89.9% 92,580 92,438
80% 80.4% 82,294 82,697
70% 70.9% 72,007 72,888
60% 60.1% 61,720 61,772
50% 50.1% 51,434 51,497
40% 39.6% 41,147 40,769
30% 29.5% 30,860 30,374
20% 19.5% 20,573 20,082
10% 10.6% 10,287 10,880
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,986
Calibration 2     104,236
Calibration 3     105,294
ssj_ops@calibrated=104,765
100% 101.1% 104,765 105,910
90% 89.6% 94,289 93,828
80% 80.2% 83,812 84,046
70% 69.1% 73,336 72,416
60% 60.6% 62,859 63,477
50% 49.5% 52,383 51,909
40% 39.4% 41,906 41,316
30% 30.1% 31,430 31,497
20% 19.9% 20,953 20,865
10% 9.9% 10,477 10,337
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,493
Calibration 2     104,094
Calibration 3     103,465
ssj_ops@calibrated=103,779
100% 98.7% 103,779 102,381
90% 89.7% 93,401 93,039
80% 79.8% 83,024 82,860
70% 70.9% 72,646 73,529
60% 59.1% 62,268 61,325
50% 50.1% 51,890 51,972
40% 39.5% 41,512 40,959
30% 29.7% 31,134 30,791
20% 20.1% 20,756 20,883
10% 10.0% 10,378 10,329
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,842
Calibration 2     103,904
Calibration 3     105,023
ssj_ops@calibrated=104,464
100% 99.8% 104,464 104,228
90% 90.0% 94,017 94,027
80% 79.8% 83,571 83,407
70% 70.1% 73,125 73,277
60% 60.0% 62,678 62,634
50% 49.7% 52,232 51,883
40% 39.8% 41,786 41,622
30% 30.3% 31,339 31,641
20% 19.7% 20,893 20,536
10% 9.7% 10,446 10,137
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,197
Calibration 2     100,718
Calibration 3     101,438
ssj_ops@calibrated=101,078
100% 99.6% 101,078 100,663
90% 89.5% 90,970 90,466
80% 80.6% 80,862 81,467
70% 71.9% 70,754 72,651
60% 60.0% 60,647 60,617
50% 49.3% 50,539 49,868
40% 39.8% 40,431 40,230
30% 30.4% 30,323 30,680
20% 20.0% 20,216 20,261
10% 9.7% 10,108 9,812
Active Idle   0 0
Graph of results

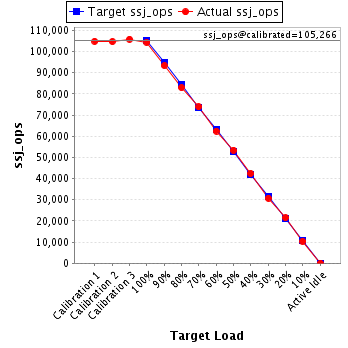

JVM 'WIN-D6UROU3FEIN.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,850
Calibration 2     104,683
Calibration 3     105,850
ssj_ops@calibrated=105,266
100% 99.1% 105,266 104,357
90% 88.7% 94,740 93,340
80% 78.8% 84,213 82,931
70% 70.2% 73,686 73,897
60% 59.3% 63,160 62,452
50% 50.8% 52,633 53,465
40% 40.3% 42,107 42,434
30% 29.2% 31,580 30,773
20% 20.4% 21,053 21,465
10% 9.9% 10,527 10,421
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,702
Calibration 2     103,014
Calibration 3     103,748
ssj_ops@calibrated=103,381
100% 100.3% 103,381 103,677
90% 90.7% 93,043 93,782
80% 80.4% 82,705 83,126
70% 70.8% 72,367 73,185
60% 60.2% 62,029 62,270
50% 50.2% 51,691 51,872
40% 40.1% 41,352 41,456
30% 30.1% 31,014 31,115
20% 20.6% 20,676 21,249
10% 10.1% 10,338 10,421
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,752
Calibration 2     100,794
Calibration 3     101,608
ssj_ops@calibrated=101,201
100% 99.0% 101,201 100,214
90% 90.6% 91,081 91,646
80% 80.3% 80,961 81,269
70% 70.0% 70,841 70,831
60% 60.0% 60,721 60,722
50% 50.4% 50,601 51,030
40% 39.9% 40,480 40,395
30% 30.1% 30,360 30,495
20% 19.9% 20,240 20,117
10% 9.8% 10,120 9,919
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,697
Calibration 2     102,695
Calibration 3     103,813
ssj_ops@calibrated=103,254
100% 99.1% 103,254 102,355
90% 89.4% 92,928 92,280
80% 79.8% 82,603 82,378
70% 70.6% 72,278 72,906
60% 60.2% 61,952 62,185
50% 49.5% 51,627 51,066
40% 40.0% 41,301 41,323
30% 30.3% 30,976 31,240
20% 19.9% 20,651 20,549
10% 10.3% 10,325 10,660
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,715
Calibration 2     103,003
Calibration 3     103,750
ssj_ops@calibrated=103,377
100% 100.0% 103,377 103,334
90% 89.5% 93,039 92,537
80% 81.1% 82,701 83,829
70% 69.9% 72,364 72,294
60% 59.6% 62,026 61,571
50% 50.3% 51,688 52,019
40% 39.5% 41,351 40,839
30% 29.6% 31,013 30,625
20% 20.0% 20,675 20,707
10% 10.3% 10,338 10,625
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,251
Calibration 2     102,591
Calibration 3     102,815
ssj_ops@calibrated=102,703
100% 100.3% 102,703 102,979
90% 90.8% 92,433 93,265
80% 80.1% 82,162 82,292
70% 70.1% 71,892 71,948
60% 59.2% 61,622 60,771
50% 49.8% 51,351 51,114
40% 40.1% 41,081 41,193
30% 30.2% 30,811 31,031
20% 19.8% 20,541 20,302
10% 10.0% 10,270 10,250
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,809
Calibration 2     102,267
Calibration 3     102,720
ssj_ops@calibrated=102,494
100% 101.0% 102,494 103,562
90% 90.6% 92,244 92,877
80% 80.2% 81,995 82,177
70% 69.3% 71,746 70,996
60% 59.1% 61,496 60,534
50% 49.7% 51,247 50,987
40% 39.7% 40,997 40,649
30% 29.6% 30,748 30,355
20% 19.6% 20,499 20,078
10% 10.1% 10,249 10,346
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,934
Calibration 2     101,957
Calibration 3     102,765
ssj_ops@calibrated=102,361
100% 101.1% 102,361 103,436
90% 89.7% 92,125 91,821
80% 80.6% 81,889 82,487
70% 70.1% 71,653 71,778
60% 60.2% 61,417 61,575
50% 50.0% 51,181 51,206
40% 39.6% 40,944 40,527
30% 30.0% 30,708 30,673
20% 19.8% 20,472 20,232
10% 9.7% 10,236 9,940
Active Idle   0 0
Graph of results
JVM 'WIN-D6UROU3FEIN.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,181
Calibration 2     101,171
Calibration 3     102,505
ssj_ops@calibrated=101,838
100% 100.5% 101,838 102,353
90% 89.8% 91,654 91,434
80% 80.0% 81,470 81,489
70% 68.4% 71,286 69,614
60% 60.5% 61,103 61,593
50% 50.4% 50,919 51,283
40% 40.1% 40,735 40,870
30% 29.6% 30,551 30,186
20% 19.9% 20,368 20,266
10% 10.5% 10,184 10,667
Active Idle   0 0
Graph of results
