SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R640 | SPECpower_ssj2008 = 11,542 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Aug 27, 2017 |
| Hardware Availability: | Jul-2017 | Software Availability: | Apr-2015 | Publication: | Sep 13, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

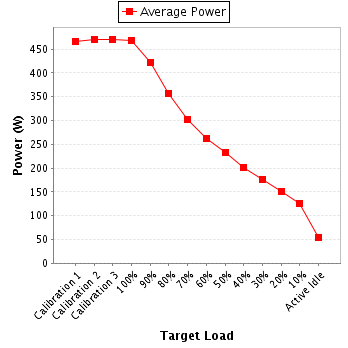

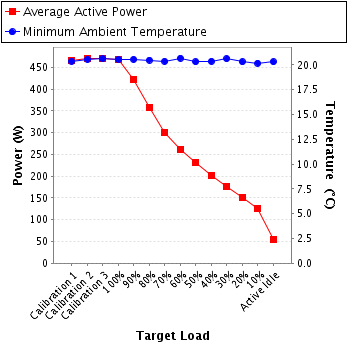

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 466 | 20.4 |
| Calibration 2 | 470 | 20.6 |
| Calibration 3 | 471 | 20.6 |
| 100% | 469 | 20.6 |
| 90% | 421 | 20.6 |
| 80% | 357 | 20.5 |
| 70% | 301 | 20.4 |
| 60% | 261 | 20.7 |
| 50% | 232 | 20.3 |
| 40% | 202 | 20.4 |
| 30% | 176 | 20.6 |
| 20% | 151 | 20.3 |
| 10% | 125 | 20.2 |
| Active Idle | 55.0 | 20.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB09484 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 7736998 |
| Date of Calibration: | 4-Apr-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.24 | 5.0 | 0.997 | 466 | 0.5% |
| Calibration 2 | 208 | 300.0 | 2.26 | 5.0 | 0.997 | 470 | 0.5% |
| Calibration 3 | 208 | 300.0 | 2.27 | 5.0 | 0.997 | 471 | 0.5% |
| 100% | 208 | 300.0 | 2.26 | 5.0 | 0.997 | 469 | 0.5% |
| 90% | 208 | 300.0 | 2.03 | 5.0 | 0.997 | 421 | 0.5% |
| 80% | 208 | 300.0 | 1.72 | 2.0 | 0.995 | 357 | 0.3% |
| 70% | 208 | 300.0 | 1.45 | 2.0 | 0.995 | 301 | 0.4% |
| 60% | 208 | 300.0 | 1.26 | 2.0 | 0.994 | 261 | 0.4% |
| 50% | 208 | 300.0 | 1.12 | 2.0 | 0.993 | 232 | 0.4% |
| 40% | 208 | 300.0 | 0.977 | 1.0 | 0.993 | 202 | 0.3% |
| 30% | 208 | 300.0 | 0.853 | 1.0 | 0.991 | 176 | 0.3% |
| 20% | 208 | 300.0 | 0.732 | 1.0 | 0.989 | 151 | 0.4% |
| 10% | 208 | 300.0 | 0.609 | 1.0 | 0.986 | 125 | 0.4% |
| Active Idle | 208 | 300.0 | 0.271 | 0.5 | 0.975 | 55.0 | 0.5% |
