SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Quanta Computer Inc. QuantaGrid D52BQ-2U | SPECpower_ssj2008 = 12,438 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Jul 1, 2017 |
| Hardware Availability: | Jun-2017 | Software Availability: | Jun-2017 | Publication: | Oct 25, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

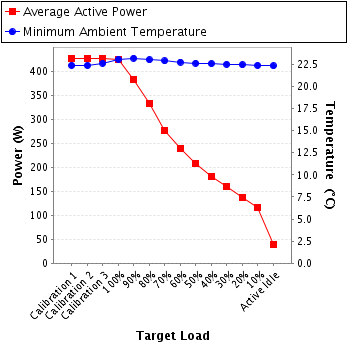

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 428 | 22.4 |
| Calibration 2 | 427 | 22.4 |
| Calibration 3 | 427 | 22.6 |
| 100% | 426 | 23.1 |
| 90% | 383 | 23.2 |
| 80% | 334 | 23.0 |
| 70% | 278 | 22.9 |
| 60% | 240 | 22.8 |
| 50% | 208 | 22.6 |
| 40% | 182 | 22.6 |
| 30% | 160 | 22.5 |
| 20% | 138 | 22.4 |
| 10% | 116 | 22.4 |
| Active Idle | 39.5 | 22.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2QD24017V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Electronics Testing Center,Taiwan |
| Calibration Label: | Q10680081 |
| Date of Calibration: | 24-Mar-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 218 | 300.0 | 1.98 | 5.0 | 0.995 | 428 | 0.5% |
| Calibration 2 | 218 | 300.0 | 1.97 | 2.0 | 0.994 | 427 | 0.3% |
| Calibration 3 | 218 | 300.0 | 1.97 | 2.0 | 0.994 | 427 | 0.3% |
| 100% | 218 | 300.0 | 1.96 | 2.0 | 0.994 | 426 | 0.3% |
| 90% | 218 | 300.0 | 1.80 | 2.0 | 0.991 | 383 | 0.3% |
| 80% | 218 | 300.0 | 1.55 | 2.0 | 0.990 | 334 | 0.3% |
| 70% | 218 | 300.0 | 1.29 | 2.0 | 0.987 | 278 | 0.4% |
| 60% | 219 | 300.0 | 1.12 | 2.0 | 0.984 | 240 | 0.4% |
| 50% | 219 | 300.0 | 0.970 | 2.0 | 0.979 | 208 | 0.4% |
| 40% | 219 | 300.0 | 0.854 | 2.0 | 0.973 | 182 | 0.5% |
| 30% | 219 | 300.0 | 0.756 | 2.0 | 0.966 | 160 | 0.5% |
| 20% | 219 | 300.0 | 0.661 | 1.0 | 0.955 | 138 | 0.4% |
| 10% | 220 | 300.0 | 0.563 | 1.0 | 0.937 | 116 | 0.4% |
| Active Idle | 220 | 300.0 | 0.327 | 0.5 | 0.549 | 39.5 | 0.6% |
