Quanta Computer Inc. QuantaGrid D52BQ-2U ssj_ops@100% = 5,651,522
ssj_ops@100% per JVM = 1,412,880
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Jul 1, 2017
Hardware Availability: Jun-2017 Software Availability: Jun-2017 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,745,616
Calibration 2     5,677,425
Calibration 3     5,659,165
ssj_ops@calibrated=5,668,295
100% 99.7% 5,668,295 5,651,522
90% 89.9% 5,101,466 5,093,821
80% 80.0% 4,534,636 4,537,349
70% 69.8% 3,967,807 3,957,821
60% 60.1% 3,400,977 3,405,047
50% 50.0% 2,834,148 2,833,052
40% 40.0% 2,267,318 2,268,587
30% 30.0% 1,700,489 1,697,826
20% 20.0% 1,133,659 1,133,821
10% 10.0% 566,830 566,437
Active Idle   0 0
Graph of results
System Under Test
Set: 'D52B-2U'
Set Identifier: D52B-2U
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid D52BQ-2U
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: 28 core, 2.5GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx4 PC4-2666V-RE1-12-PA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: ARTESYN MC800B6-3-4R-02
Disk Drive: 1 x 120G SATA SSD Quanta P/N:ABS120HC007
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel I357 Gigabit Ethernet controllerQuanta P/N 3GS5BMA00D0
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xfffffff]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3A03.E5
Management Firmware Version: 3.13
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Specpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this java version
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-8S1Q51DGKIG.001 1,414,984
WIN-8S1Q51DGKIG.002 1,408,520
WIN-8S1Q51DGKIG.003 1,411,574
WIN-8S1Q51DGKIG.004 1,416,444
ssj_ops@100% 5,651,522
ssj_ops@100% per JVM 1,412,880
Graph of per-instance results
JVM 'WIN-8S1Q51DGKIG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,496,859
Calibration 2     1,413,672
Calibration 3     1,427,635
ssj_ops@calibrated=1,420,653
100% 99.6% 1,420,653 1,414,984
90% 90.2% 1,278,588 1,281,227
80% 80.1% 1,136,523 1,138,107
70% 69.8% 994,457 991,134
60% 60.0% 852,392 852,678
50% 49.9% 710,327 709,468
40% 39.9% 568,261 566,357
30% 29.9% 426,196 424,148
20% 20.1% 284,131 285,877
10% 10.0% 142,065 141,702
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,480,151
Calibration 2     1,403,580
Calibration 3     1,416,450
ssj_ops@calibrated=1,410,015
100% 99.9% 1,410,015 1,408,520
90% 90.3% 1,269,014 1,273,365
80% 80.2% 1,128,012 1,130,698
70% 69.9% 987,011 986,114
60% 60.2% 846,009 848,422
50% 50.1% 705,008 706,351
40% 40.0% 564,006 563,325
30% 29.9% 423,005 421,522
20% 19.9% 282,003 280,507
10% 10.0% 141,002 140,689
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,384,700
Calibration 2     1,433,596
Calibration 3     1,407,003
ssj_ops@calibrated=1,420,299
100% 99.4% 1,420,299 1,411,574
90% 89.3% 1,278,270 1,269,020
80% 80.0% 1,136,240 1,135,556
70% 69.9% 994,210 992,483
60% 60.1% 852,180 853,381
50% 49.9% 710,150 709,232
40% 40.1% 568,120 569,928
30% 30.1% 426,090 426,999
20% 20.0% 284,060 283,748
10% 10.1% 142,030 142,750
Active Idle   0 0

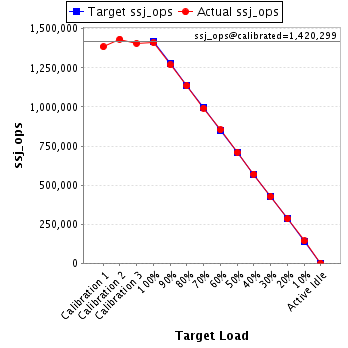

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-8S1Q51DGKIG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,383,906
Calibration 2     1,426,577
Calibration 3     1,408,077
ssj_ops@calibrated=1,417,327
100% 99.9% 1,417,327 1,416,444
90% 89.6% 1,275,594 1,270,209
80% 79.9% 1,133,862 1,132,988
70% 69.7% 992,129 988,089
60% 60.0% 850,396 850,566
50% 50.0% 708,664 708,001
40% 40.1% 566,931 568,978
30% 30.0% 425,198 425,157
20% 20.0% 283,465 283,688
10% 10.0% 141,733 141,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
