Hewlett Packard Enterprise ProLiant ML350 Gen10 SPECpower_ssj2008 = 11,845 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 6, 2017
Hardware Availability: Oct-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 5,800,646 459 12,625
90% 90.1% 5,238,825 415 12,622
80% 80.2% 4,662,988 347 13,432
70% 70.1% 4,075,249 298 13,656
60% 59.9% 3,487,278 258 13,496
50% 50.1% 2,915,712 224 13,031
40% 40.0% 2,327,735 196 11,875
30% 30.0% 1,745,784 172 10,165
20% 20.0% 1,163,044 149 7,825
10% 10.0% 583,190 125 4,674
Active Idle 0 58.1 0
∑ssj_ops / ∑power = 11,845

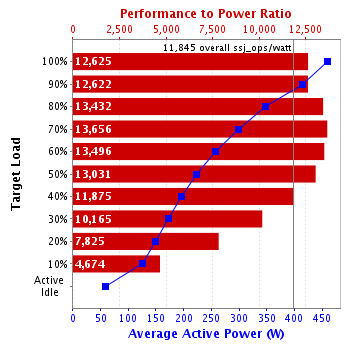

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant ML350 Gen10
Form Factor: Tower
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V-REB-11; slots 1, 3, 5, 8, 10, and 12, populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DPS-800AB (865438-B21) 96%
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: 1 x HPE Embedded 14-port S100i SATA
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 369i Adapter
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: 1 x Optional redundant fans cage kit (874572-B21); 1 x HPE Universal SATA HHHL M.2 Kit (8788783-B21)
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn23000m -Xms26000m -Xmx26000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 26000
JVM Maximum Heap (MB): 26000
JVM Address Bits: 64
Boot Firmware Version: U41 v1.22 (09/29/2017)
Management Firmware Version: 1.15 Aug 03 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14002V
Connectivity: Yokogawa USB
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat
Calibration Label: 5-D537U-20-1
Date of Calibration: 28-Jul-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 459 21.4
90% 415 21.4
80% 347 21.3
70% 298 21.3
60% 258 21.4
50% 224 21.4
40% 196 21.4
30% 172 21.4
20% 149 21.2
10% 125 21.2
Active Idle 58.1 21.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.2 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,812,982
Calibration 2     5,813,737
Calibration 3     5,820,612
ssj_ops@calibrated=5,817,174
100% 99.7% 5,817,174 5,800,646
90% 90.1% 5,235,457 5,238,825
80% 80.2% 4,653,740 4,662,988
70% 70.1% 4,072,022 4,075,249
60% 59.9% 3,490,305 3,487,278
50% 50.1% 2,908,587 2,915,712
40% 40.0% 2,326,870 2,327,735
30% 30.0% 1,745,152 1,745,784
20% 20.0% 1,163,435 1,163,044
10% 10.0% 581,717 583,190
Active Idle   0 0
Graph of results
