SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL560 Gen10 | SPECpower_ssj2008 = 12,120 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 10, 2017 |
| Hardware Availability: | Oct-2017 | Software Availability: | Apr-2015 | Publication: | Oct 25, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

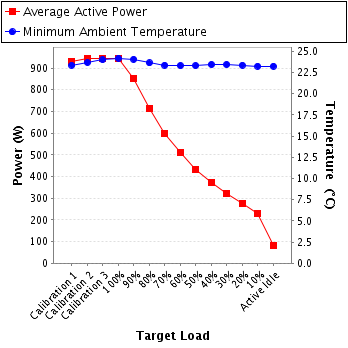

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 932 | 23.4 |
| Calibration 2 | 945 | 23.7 |
| Calibration 3 | 946 | 24.0 |
| 100% | 944 | 24.2 |
| 90% | 851 | 24.1 |
| 80% | 716 | 23.6 |
| 70% | 598 | 23.4 |
| 60% | 510 | 23.3 |
| 50% | 431 | 23.3 |
| 40% | 373 | 23.4 |
| 30% | 324 | 23.4 |
| 20% | 277 | 23.4 |
| 10% | 228 | 23.2 |
| Active Idle | 82.9 | 23.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GB45372 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-D0562-180-1 |
| Date of Calibration: | 18-Apr-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to SUT Power Supply 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |

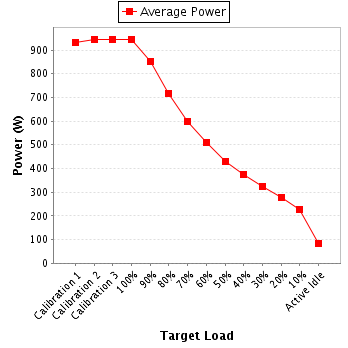

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 214 | 300.0 | 4.39 | 5.0 | 0.995 | 932 | 0.3% |
| Calibration 2 | 214 | 300.0 | 4.44 | 5.0 | 0.995 | 945 | 0.3% |
| Calibration 3 | 214 | 300.0 | 4.45 | 5.0 | 0.995 | 946 | 0.3% |
| 100% | 213 | 300.0 | 4.46 | 5.0 | 0.995 | 944 | 0.3% |
| 90% | 213 | 300.0 | 4.02 | 5.0 | 0.995 | 851 | 0.3% |
| 80% | 213 | 300.0 | 3.39 | 5.0 | 0.992 | 716 | 0.4% |
| 70% | 213 | 300.0 | 2.84 | 5.0 | 0.989 | 598 | 0.4% |
| 60% | 213 | 300.0 | 2.43 | 5.0 | 0.987 | 510 | 0.5% |
| 50% | 214 | 300.0 | 2.05 | 5.0 | 0.984 | 431 | 0.5% |
| 40% | 214 | 300.0 | 1.77 | 2.0 | 0.981 | 373 | 0.3% |
| 30% | 214 | 300.0 | 1.55 | 2.0 | 0.976 | 324 | 0.4% |
| 20% | 214 | 300.0 | 1.33 | 2.0 | 0.971 | 277 | 0.4% |
| 10% | 214 | 300.0 | 1.09 | 2.0 | 0.972 | 228 | 0.5% |
| Active Idle | 215 | 300.0 | 0.464 | 1.0 | 0.835 | 82.9 | 0.6% |
