Lenovo Global Technology ThinkSystem SR850 SPECpower_ssj2008 = 13,010 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Sep 26, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 762 22.9
Calibration 2 718 22.9
Calibration 3 733 22.9
100% 688 22.9
90% 614 22.9
80% 532 22.9
70% 467 23.0
60% 416 23.0
50% 374 23.0
40% 337 23.0
30% 301 22.9
20% 266 22.9
10% 228 22.9
Active Idle 95.8 22.8

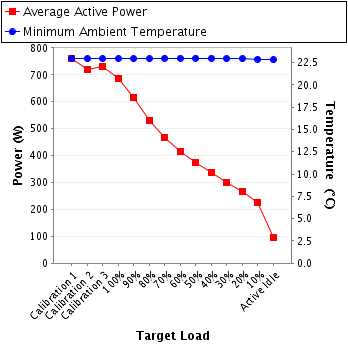

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa, Inc.
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 17-07-BAC-121-03
Date of Calibration: 9-Jul-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 3.62 5.0 0.999 762 0.4%
Calibration 2 211 300.0 3.41 5.0 0.999 718 0.4%
Calibration 3 211 300.0 3.48 5.0 0.999 733 0.4%
100% 211 300.0 3.27 5.0 0.999 688 0.4%
90% 211 300.0 2.92 5.0 0.998 614 0.4%
80% 211 300.0 2.53 5.0 0.997 532 0.4%
70% 211 300.0 2.22 5.0 0.997 467 0.5%
60% 211 300.0 1.98 2.0 0.996 416 0.3%
50% 211 300.0 1.78 2.0 0.995 374 0.3%
40% 212 300.0 1.60 2.0 0.994 337 0.3%
30% 212 300.0 1.43 2.0 0.993 301 0.4%
20% 212 300.0 1.27 2.0 0.990 266 0.4%
10% 212 300.0 1.09 2.0 0.987 228 0.4%
Active Idle 212 300.0 0.484 1.0 0.936 95.8 0.5%
Power details for pwr1
