Lenovo Global Technology ThinkSystem SN550 SPECpower_ssj2008 = 10,738 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,659 20.3
Calibration 2 5,424 20.2
Calibration 3 5,291 21.0
100% 5,288 21.8
90% 5,008 21.9
80% 4,612 21.4
70% 3,879 21.4
60% 3,357 21.4
50% 3,036 21.7
40% 2,743 21.9
30% 2,458 21.5
20% 2,184 21.2
10% 1,885 21.4
Active Idle 1,446 21.2

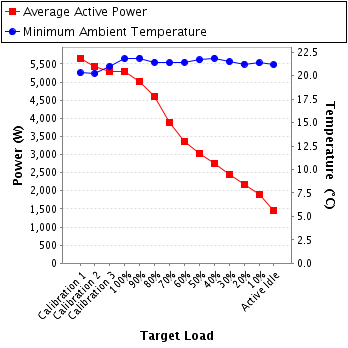

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2RA21002V
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA17001629-0002
Date of Calibration: 24-Feb-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1,PSU 2,PSU 3
Power Analyzer pwr2
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2RA21003V
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA17001629-0001
Date of Calibration: 24-Feb-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 4,PSU 5,PSU 6
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 13.3 20.0 0.993 2,897 0.4%
Calibration 2 220 300.0 12.7 20.0 0.992 2,754 0.4%
Calibration 3 220 300.0 12.3 20.0 0.992 2,680 0.4%
100% 220 300.0 12.3 20.0 0.992 2,678 0.4%
90% 220 300.0 12.2 20.0 0.991 2,664 0.4%
80% 220 300.0 11.8 20.0 0.990 2,557 0.4%
70% 220 300.0 9.51 10.0 0.988 2,065 0.3%
60% 220 300.0 7.92 10.0 0.985 1,713 0.3%
50% 220 300.0 7.18 10.0 0.982 1,548 0.3%
40% 220 300.0 6.54 10.0 0.978 1,404 0.4%
30% 220 300.0 5.88 10.0 0.974 1,258 0.4%
20% 220 300.0 5.28 10.0 0.967 1,123 0.4%
10% 220 300.0 4.61 10.0 0.956 971 0.5%
Active Idle 220 300.0 4.63 10.0 0.891 974 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 12.7 20.0 0.992 2,762 0.4%
Calibration 2 219 300.0 12.3 20.0 0.992 2,671 0.4%
Calibration 3 219 300.0 12.0 20.0 0.992 2,612 0.4%
100% 219 300.0 12.0 20.0 0.992 2,610 0.4%
90% 219 300.0 10.8 20.0 0.991 2,344 0.4%
80% 219 300.0 9.46 20.0 0.989 2,054 0.4%
70% 220 300.0 8.37 10.0 0.987 1,814 0.3%
60% 220 300.0 7.61 10.0 0.984 1,644 0.3%
50% 220 300.0 6.91 10.0 0.981 1,488 0.3%
40% 220 300.0 6.24 10.0 0.977 1,339 0.4%
30% 220 300.0 5.62 10.0 0.972 1,200 0.4%
20% 220 300.0 5.01 10.0 0.964 1,061 0.4%
10% 220 300.0 4.37 10.0 0.953 914 0.5%
Active Idle 220 300.0 2.48 10.0 0.865 472 0.8%

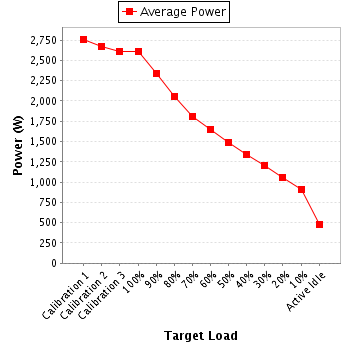

Power details for pwr2
