Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,919,972
ssj_ops@100% per JVM = 87,857
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,139,623
Calibration 2     4,986,557
Calibration 3     4,959,050
ssj_ops@calibrated=4,972,803
100% 98.9% 4,972,803 4,919,972
90% 90.5% 4,475,523 4,499,368
80% 79.9% 3,978,243 3,972,202
70% 69.9% 3,480,962 3,476,162
60% 60.0% 2,983,682 2,983,488
50% 50.0% 2,486,402 2,486,952
40% 40.0% 1,989,121 1,989,008
30% 30.0% 1,491,841 1,491,000
20% 20.0% 994,561 994,811
10% 9.9% 497,280 494,424
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
L2-181.001 88,653
L2-181.002 87,767
L2-181.003 89,109
L2-181.004 89,983
L2-181.005 88,685
L2-181.006 88,684
L2-181.007 88,186
L2-181.008 89,233
L2-181.009 89,638
L2-181.010 88,229
L2-181.011 87,978
L2-181.012 88,043
L2-181.013 88,604
L2-181.014 88,189
L2-181.015 88,977
L2-181.016 90,296
L2-181.017 87,985
L2-181.018 86,757
L2-181.019 86,948
L2-181.020 89,829
L2-181.021 87,597
L2-181.022 87,596
L2-181.023 88,238
L2-181.024 89,030
L2-181.025 88,157
L2-181.026 88,019
L2-181.027 89,617
L2-181.028 87,965
L2-181.029 86,778
L2-181.030 87,549
L2-181.031 87,542
L2-181.032 88,155
L2-181.033 88,289
L2-181.034 87,871
L2-181.035 87,924
L2-181.036 87,374
L2-181.037 87,948
L2-181.038 86,918
L2-181.039 86,284
L2-181.040 87,719
L2-181.041 87,287
L2-181.042 86,945
L2-181.043 85,193
L2-181.044 87,982
L2-181.045 87,062
L2-181.046 86,112
L2-181.047 86,533
L2-181.048 86,912
L2-181.049 86,415
L2-181.050 86,477
L2-181.051 87,146
L2-181.052 87,447
L2-181.053 89,023
L2-181.054 86,851
L2-181.055 87,873
L2-181.056 86,374
ssj_ops@100% 4,919,972
ssj_ops@100% per JVM 87,857

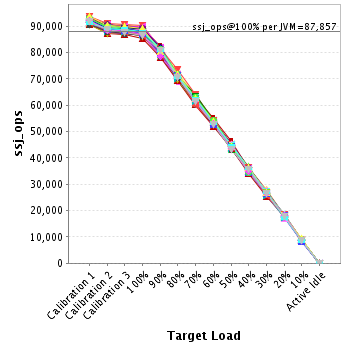

Graph of per-instance results
JVM 'L2-181.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,973
Calibration 2     89,661
Calibration 3     89,051
ssj_ops@calibrated=89,356
100% 99.2% 89,356 88,653
90% 91.8% 80,420 82,007
80% 80.1% 71,485 71,600
70% 69.5% 62,549 62,140
60% 59.4% 53,613 53,101
50% 50.2% 44,678 44,837
40% 40.4% 35,742 36,080
30% 29.8% 26,807 26,584
20% 20.2% 17,871 18,023
10% 10.0% 8,936 8,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,138
Calibration 2     89,174
Calibration 3     88,524
ssj_ops@calibrated=88,849
100% 98.8% 88,849 87,767
90% 91.6% 79,964 81,390
80% 80.1% 71,079 71,183
70% 70.0% 62,194 62,156
60% 60.1% 53,309 53,428
50% 50.4% 44,424 44,746
40% 39.7% 35,540 35,315
30% 30.0% 26,655 26,659
20% 19.8% 17,770 17,570
10% 9.8% 8,885 8,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,181
Calibration 2     89,712
Calibration 3     88,971
ssj_ops@calibrated=89,342
100% 99.7% 89,342 89,109
90% 90.9% 80,408 81,185
80% 80.0% 71,473 71,462
70% 69.3% 62,539 61,944
60% 60.2% 53,605 53,822
50% 50.6% 44,671 45,192
40% 41.0% 35,737 36,587
30% 29.7% 26,803 26,494
20% 20.0% 17,868 17,827
10% 9.9% 8,934 8,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,700
Calibration 2     90,807
Calibration 3     90,418
ssj_ops@calibrated=90,612
100% 99.3% 90,612 89,983
90% 90.4% 81,551 81,948
80% 80.0% 72,490 72,466
70% 70.4% 63,429 63,809
60% 59.9% 54,367 54,294
50% 49.8% 45,306 45,137
40% 40.1% 36,245 36,350
30% 30.9% 27,184 27,994
20% 19.9% 18,122 17,993
10% 9.9% 9,061 8,931
Active Idle   0 0

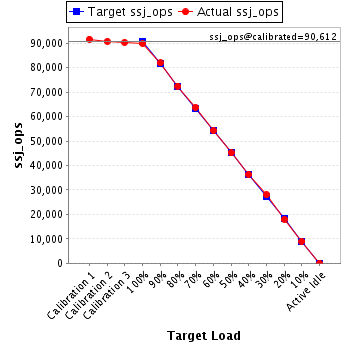

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,908
Calibration 2     89,831
Calibration 3     89,214
ssj_ops@calibrated=89,523
100% 99.1% 89,523 88,685
90% 90.8% 80,570 81,285
80% 80.3% 71,618 71,871
70% 69.1% 62,666 61,823
60% 59.4% 53,714 53,183
50% 49.9% 44,761 44,697
40% 40.2% 35,809 35,979
30% 30.2% 26,857 27,023
20% 20.3% 17,905 18,188
10% 10.0% 8,952 8,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,532
Calibration 2     89,617
Calibration 3     89,101
ssj_ops@calibrated=89,359
100% 99.2% 89,359 88,684
90% 90.0% 80,423 80,444
80% 79.7% 71,487 71,211
70% 70.0% 62,552 62,574
60% 59.9% 53,616 53,537
50% 50.0% 44,680 44,693
40% 40.2% 35,744 35,923
30% 29.7% 26,808 26,513
20% 20.1% 17,872 17,953
10% 9.9% 8,936 8,885
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,333
Calibration 2     89,127
Calibration 3     88,656
ssj_ops@calibrated=88,892
100% 99.2% 88,892 88,186
90% 91.2% 80,003 81,031
80% 80.3% 71,113 71,357
70% 70.4% 62,224 62,597
60% 60.1% 53,335 53,395
50% 50.0% 44,446 44,439
40% 40.7% 35,557 36,159
30% 29.3% 26,668 26,089
20% 19.5% 17,778 17,312
10% 10.3% 8,889 9,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,861
Calibration 2     90,579
Calibration 3     89,651
ssj_ops@calibrated=90,115
100% 99.0% 90,115 89,233
90% 90.8% 81,103 81,811
80% 79.3% 72,092 71,443
70% 69.9% 63,080 62,997
60% 59.8% 54,069 53,930
50% 50.2% 45,057 45,245
40% 40.4% 36,046 36,435
30% 29.6% 27,034 26,663
20% 20.0% 18,023 18,044
10% 10.2% 9,011 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,191
Calibration 2     90,271
Calibration 3     90,198
ssj_ops@calibrated=90,235
100% 99.3% 90,235 89,638
90% 91.0% 81,211 82,097
80% 78.8% 72,188 71,120
70% 70.3% 63,164 63,391
60% 60.9% 54,141 54,977
50% 51.2% 45,117 46,243
40% 40.0% 36,094 36,132
30% 30.2% 27,070 27,210
20% 19.5% 18,047 17,578
10% 9.9% 9,023 8,946
Active Idle   0 0

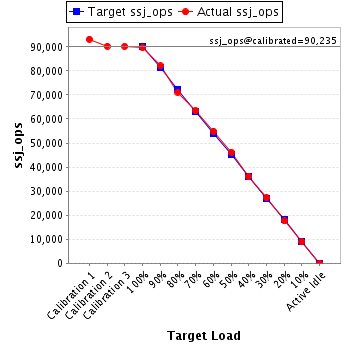

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,373
Calibration 2     89,197
Calibration 3     88,332
ssj_ops@calibrated=88,765
100% 99.4% 88,765 88,229
90% 90.2% 79,888 80,110
80% 80.8% 71,012 71,765
70% 70.2% 62,135 62,281
60% 60.9% 53,259 54,014
50% 50.8% 44,382 45,112
40% 40.3% 35,506 35,753
30% 30.1% 26,629 26,705
20% 19.5% 17,753 17,321
10% 9.9% 8,876 8,763
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,050
Calibration 2     88,457
Calibration 3     88,342
ssj_ops@calibrated=88,400
100% 99.5% 88,400 87,978
90% 91.7% 79,560 81,059
80% 80.3% 70,720 70,974
70% 70.8% 61,880 62,619
60% 60.8% 53,040 53,791
50% 48.8% 44,200 43,147
40% 40.3% 35,360 35,600
30% 29.7% 26,520 26,257
20% 20.0% 17,680 17,721
10% 9.7% 8,840 8,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,884
Calibration 2     88,941
Calibration 3     88,825
ssj_ops@calibrated=88,883
100% 99.1% 88,883 88,043
90% 90.5% 79,995 80,414
80% 79.5% 71,106 70,700
70% 70.8% 62,218 62,898
60% 59.6% 53,330 52,964
50% 50.7% 44,441 45,039
40% 39.5% 35,553 35,151
30% 29.8% 26,665 26,479
20% 19.6% 17,777 17,450
10% 9.8% 8,888 8,727
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,276
Calibration 2     89,177
Calibration 3     88,974
ssj_ops@calibrated=89,075
100% 99.5% 89,075 88,604
90% 90.5% 80,168 80,582
80% 79.7% 71,260 70,964
70% 70.6% 62,353 62,918
60% 60.2% 53,445 53,614
50% 50.2% 44,538 44,741
40% 40.2% 35,630 35,809
30% 29.9% 26,723 26,619
20% 20.5% 17,815 18,259
10% 10.2% 8,908 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,518
Calibration 2     89,467
Calibration 3     88,492
ssj_ops@calibrated=88,979
100% 99.1% 88,979 88,189
90% 90.3% 80,081 80,393
80% 79.4% 71,184 70,681
70% 69.5% 62,286 61,880
60% 60.5% 53,388 53,838
50% 49.9% 44,490 44,425
40% 40.2% 35,592 35,752
30% 30.1% 26,694 26,786
20% 20.6% 17,796 18,324
10% 9.8% 8,898 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

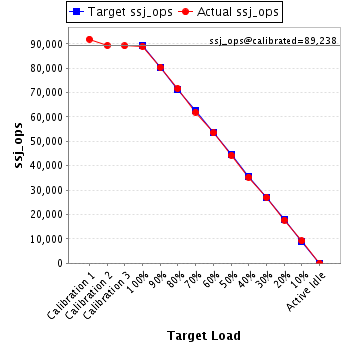

JVM 'L2-181.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,909
Calibration 2     89,296
Calibration 3     89,181
ssj_ops@calibrated=89,238
100% 99.7% 89,238 88,977
90% 90.1% 80,315 80,392
80% 80.2% 71,391 71,609
70% 69.5% 62,467 61,980
60% 59.9% 53,543 53,445
50% 49.5% 44,619 44,202
40% 39.6% 35,695 35,348
30% 30.2% 26,772 26,948
20% 19.9% 17,848 17,741
10% 10.3% 8,924 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

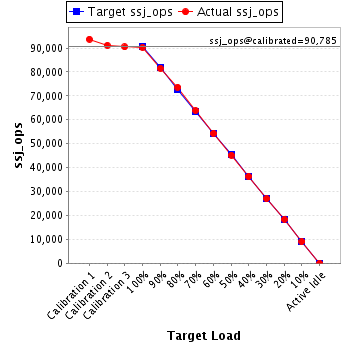

JVM 'L2-181.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,712
Calibration 2     91,126
Calibration 3     90,444
ssj_ops@calibrated=90,785
100% 99.5% 90,785 90,296
90% 89.8% 81,706 81,523
80% 81.1% 72,628 73,612
70% 70.4% 63,549 63,898
60% 59.8% 54,471 54,275
50% 49.8% 45,392 45,183
40% 40.0% 36,314 36,303
30% 29.7% 27,235 26,979
20% 20.3% 18,157 18,417
10% 10.0% 9,078 9,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,049
Calibration 2     88,338
Calibration 3     88,291
ssj_ops@calibrated=88,314
100% 99.6% 88,314 87,985
90% 89.6% 79,483 79,168
80% 79.0% 70,651 69,772
70% 69.6% 61,820 61,496
60% 60.2% 52,989 53,130
50% 49.6% 44,157 43,823
40% 39.7% 35,326 35,091
30% 30.4% 26,494 26,835
20% 20.2% 17,663 17,821
10% 9.9% 8,831 8,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,584
Calibration 2     87,745
Calibration 3     87,013
ssj_ops@calibrated=87,379
100% 99.3% 87,379 86,757
90% 90.4% 78,641 78,974
80% 79.5% 69,903 69,432
70% 69.4% 61,165 60,657
60% 60.1% 52,427 52,517
50% 49.5% 43,690 43,236
40% 40.0% 34,952 34,932
30% 30.1% 26,214 26,261
20% 20.0% 17,476 17,503
10% 9.8% 8,738 8,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,159
Calibration 2     88,493
Calibration 3     87,564
ssj_ops@calibrated=88,029
100% 98.8% 88,029 86,948
90% 90.6% 79,226 79,796
80% 79.8% 70,423 70,289
70% 70.2% 61,620 61,785
60% 59.5% 52,817 52,375
50% 50.8% 44,014 44,760
40% 39.7% 35,211 34,956
30% 30.0% 26,409 26,418
20% 20.1% 17,606 17,710
10% 10.3% 8,803 9,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,365
Calibration 2     90,593
Calibration 3     89,905
ssj_ops@calibrated=90,249
100% 99.5% 90,249 89,829
90% 90.8% 81,224 81,930
80% 79.6% 72,199 71,813
70% 69.8% 63,174 62,953
60% 59.3% 54,149 53,559
50% 50.0% 45,124 45,096
40% 40.0% 36,100 36,064
30% 29.4% 27,075 26,562
20% 20.0% 18,050 18,015
10% 9.8% 9,025 8,805
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,333
Calibration 2     88,417
Calibration 3     87,977
ssj_ops@calibrated=88,197
100% 99.3% 88,197 87,597
90% 90.9% 79,377 80,135
80% 79.0% 70,558 69,673
70% 70.1% 61,738 61,831
60% 58.7% 52,918 51,791
50% 49.8% 44,098 43,918
40% 40.0% 35,279 35,266
30% 30.7% 26,459 27,101
20% 19.7% 17,639 17,341
10% 10.1% 8,820 8,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,473
Calibration 2     88,449
Calibration 3     87,712
ssj_ops@calibrated=88,080
100% 99.4% 88,080 87,596
90% 90.6% 79,272 79,791
80% 80.7% 70,464 71,051
70% 69.5% 61,656 61,199
60% 59.8% 52,848 52,691
50% 49.9% 44,040 43,945
40% 40.2% 35,232 35,396
30% 29.9% 26,424 26,379
20% 19.7% 17,616 17,348
10% 10.1% 8,808 8,894
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,507
Calibration 2     88,887
Calibration 3     88,498
ssj_ops@calibrated=88,693
100% 99.5% 88,693 88,238
90% 90.6% 79,823 80,395
80% 80.3% 70,954 71,213
70% 70.1% 62,085 62,138
60% 60.3% 53,216 53,502
50% 49.6% 44,346 44,000
40% 39.1% 35,477 34,661
30% 29.8% 26,608 26,453
20% 19.5% 17,739 17,271
10% 9.8% 8,869 8,668
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,172
Calibration 2     90,504
Calibration 3     89,676
ssj_ops@calibrated=90,090
100% 98.8% 90,090 89,030
90% 90.8% 81,081 81,820
80% 79.2% 72,072 71,367
70% 69.6% 63,063 62,742
60% 60.3% 54,054 54,323
50% 49.8% 45,045 44,841
40% 40.4% 36,036 36,397
30% 30.2% 27,027 27,240
20% 20.3% 18,018 18,300
10% 10.0% 9,009 8,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

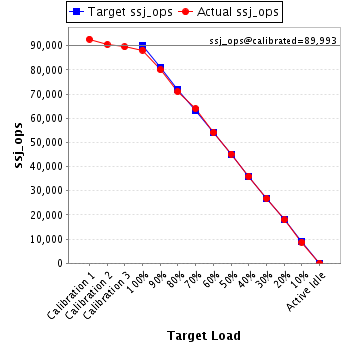

JVM 'L2-181.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,705
Calibration 2     90,491
Calibration 3     89,494
ssj_ops@calibrated=89,993
100% 98.0% 89,993 88,157
90% 88.9% 80,993 80,034
80% 78.9% 71,994 70,984
70% 71.1% 62,995 63,974
60% 60.1% 53,996 54,104
50% 50.2% 44,996 45,182
40% 39.9% 35,997 35,945
30% 29.8% 26,998 26,840
20% 19.9% 17,999 17,923
10% 9.7% 8,999 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,654
Calibration 2     88,702
Calibration 3     88,493
ssj_ops@calibrated=88,598
100% 99.3% 88,598 88,019
90% 89.7% 79,738 79,480
80% 80.3% 70,878 71,127
70% 69.9% 62,018 61,928
60% 59.8% 53,159 52,964
50% 49.3% 44,299 43,695
40% 39.9% 35,439 35,334
30% 29.1% 26,579 25,771
20% 20.3% 17,720 18,025
10% 10.1% 8,860 8,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,947
Calibration 2     90,712
Calibration 3     89,761
ssj_ops@calibrated=90,237
100% 99.3% 90,237 89,617
90% 89.8% 81,213 81,014
80% 78.7% 72,189 71,037
70% 69.1% 63,166 62,375
60% 59.8% 54,142 53,983
50% 50.2% 45,118 45,272
40% 40.2% 36,095 36,280
30% 30.5% 27,071 27,539
20% 19.9% 18,047 17,958
10% 9.4% 9,024 8,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,149
Calibration 2     88,341
Calibration 3     88,143
ssj_ops@calibrated=88,242
100% 99.7% 88,242 87,965
90% 89.9% 79,418 79,318
80% 79.9% 70,593 70,509
70% 69.1% 61,769 60,987
60% 60.2% 52,945 53,123
50% 50.9% 44,121 44,886
40% 39.4% 35,297 34,748
30% 30.1% 26,473 26,564
20% 20.2% 17,648 17,837
10% 9.7% 8,824 8,555
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,612
Calibration 2     88,738
Calibration 3     87,843
ssj_ops@calibrated=88,291
100% 98.3% 88,291 86,778
90% 90.9% 79,462 80,247
80% 79.5% 70,632 70,200
70% 69.6% 61,803 61,428
60% 60.1% 52,974 53,091
50% 50.5% 44,145 44,621
40% 40.3% 35,316 35,579
30% 30.0% 26,487 26,461
20% 19.6% 17,658 17,311
10% 9.9% 8,829 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,061
Calibration 2     88,882
Calibration 3     88,789
ssj_ops@calibrated=88,836
100% 98.6% 88,836 87,549
90% 90.3% 79,952 80,216
80% 79.5% 71,068 70,583
70% 69.4% 62,185 61,684
60% 60.0% 53,301 53,344
50% 50.0% 44,418 44,427
40% 40.0% 35,534 35,573
30% 30.0% 26,651 26,627
20% 20.0% 17,767 17,739
10% 9.7% 8,884 8,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,818
Calibration 2     88,965
Calibration 3     88,236
ssj_ops@calibrated=88,601
100% 98.8% 88,601 87,542
90% 89.8% 79,741 79,598
80% 79.9% 70,881 70,785
70% 69.3% 62,021 61,428
60% 59.2% 53,160 52,475
50% 50.1% 44,300 44,387
40% 39.1% 35,440 34,668
30% 30.1% 26,580 26,685
20% 20.1% 17,720 17,831
10% 9.6% 8,860 8,501
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,727
Calibration 2     89,111
Calibration 3     88,787
ssj_ops@calibrated=88,949
100% 99.1% 88,949 88,155
90% 90.5% 80,054 80,536
80% 79.6% 71,160 70,781
70% 69.4% 62,265 61,722
60% 59.5% 53,370 52,891
50% 50.4% 44,475 44,872
40% 39.6% 35,580 35,181
30% 29.6% 26,685 26,354
20% 20.2% 17,790 17,996
10% 10.3% 8,895 9,177
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

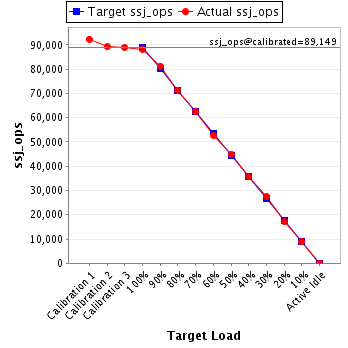

JVM 'L2-181.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,399
Calibration 2     89,281
Calibration 3     89,018
ssj_ops@calibrated=89,149
100% 99.0% 89,149 88,289
90% 91.2% 80,235 81,285
80% 80.1% 71,320 71,428
70% 70.1% 62,405 62,450
60% 59.2% 53,490 52,765
50% 50.4% 44,575 44,948
40% 39.9% 35,660 35,602
30% 30.8% 26,745 27,440
20% 19.3% 17,830 17,162
10% 9.8% 8,915 8,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,926
Calibration 2     89,162
Calibration 3     88,690
ssj_ops@calibrated=88,926
100% 98.8% 88,926 87,871
90% 91.4% 80,033 81,277
80% 79.9% 71,141 71,072
70% 70.2% 62,248 62,462
60% 59.4% 53,356 52,797
50% 49.8% 44,463 44,296
40% 40.4% 35,570 35,910
30% 30.0% 26,678 26,684
20% 20.8% 17,785 18,504
10% 9.8% 8,893 8,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,762
Calibration 2     89,412
Calibration 3     88,671
ssj_ops@calibrated=89,041
100% 98.7% 89,041 87,924
90% 89.9% 80,137 80,047
80% 79.8% 71,233 71,080
70% 69.7% 62,329 62,077
60% 60.9% 53,425 54,234
50% 50.2% 44,521 44,673
40% 40.4% 35,617 35,931
30% 30.4% 26,712 27,040
20% 19.8% 17,808 17,661
10% 10.2% 8,904 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,751
Calibration 2     88,711
Calibration 3     88,174
ssj_ops@calibrated=88,442
100% 98.8% 88,442 87,374
90% 91.0% 79,598 80,502
80% 80.5% 70,754 71,218
70% 70.9% 61,910 62,716
60% 60.5% 53,065 53,496
50% 50.1% 44,221 44,350
40% 39.9% 35,377 35,289
30% 29.8% 26,533 26,319
20% 20.6% 17,688 18,240
10% 9.9% 8,844 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,824
Calibration 2     90,076
Calibration 3     88,929
ssj_ops@calibrated=89,503
100% 98.3% 89,503 87,948
90% 91.1% 80,553 81,571
80% 80.6% 71,602 72,148
70% 69.5% 62,652 62,205
60% 60.5% 53,702 54,152
50% 50.1% 44,751 44,837
40% 40.5% 35,801 36,269
30% 30.1% 26,851 26,943
20% 20.2% 17,901 18,122
10% 10.2% 8,950 9,089
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,879
Calibration 2     88,092
Calibration 3     87,978
ssj_ops@calibrated=88,035
100% 98.7% 88,035 86,918
90% 89.7% 79,231 78,955
80% 79.3% 70,428 69,844
70% 70.8% 61,624 62,346
60% 60.4% 52,821 53,144
50% 50.1% 44,017 44,125
40% 39.7% 35,214 34,962
30% 30.2% 26,410 26,586
20% 20.5% 17,607 18,036
10% 10.0% 8,803 8,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,776
Calibration 2     87,862
Calibration 3     87,501
ssj_ops@calibrated=87,681
100% 98.4% 87,681 86,284
90% 90.6% 78,913 79,397
80% 78.9% 70,145 69,173
70% 70.7% 61,377 61,989
60% 59.7% 52,609 52,379
50% 49.9% 43,841 43,711
40% 40.0% 35,073 35,041
30% 30.3% 26,304 26,526
20% 19.9% 17,536 17,429
10% 9.6% 8,768 8,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,652
Calibration 2     89,106
Calibration 3     88,418
ssj_ops@calibrated=88,762
100% 98.8% 88,762 87,719
90% 90.9% 79,886 80,718
80% 80.2% 71,010 71,221
70% 70.9% 62,134 62,971
60% 59.8% 53,257 53,096
50% 50.9% 44,381 45,144
40% 40.0% 35,505 35,545
30% 30.5% 26,629 27,069
20% 19.8% 17,752 17,550
10% 9.7% 8,876 8,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,265
Calibration 2     88,211
Calibration 3     88,271
ssj_ops@calibrated=88,241
100% 98.9% 88,241 87,287
90% 90.7% 79,417 80,066
80% 80.6% 70,593 71,115
70% 69.7% 61,769 61,527
60% 60.7% 52,945 53,519
50% 49.8% 44,121 43,971
40% 39.9% 35,296 35,169
30% 29.8% 26,472 26,286
20% 20.0% 17,648 17,683
10% 10.2% 8,824 8,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,331
Calibration 2     88,137
Calibration 3     87,321
ssj_ops@calibrated=87,729
100% 99.1% 87,729 86,945
90% 90.0% 78,956 78,929
80% 80.3% 70,183 70,475
70% 70.6% 61,410 61,928
60% 59.7% 52,638 52,361
50% 50.2% 43,865 44,029
40% 40.3% 35,092 35,352
30% 29.7% 26,319 26,048
20% 20.2% 17,546 17,708
10% 10.2% 8,773 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,440
Calibration 2     87,098
Calibration 3     86,704
ssj_ops@calibrated=86,901
100% 98.0% 86,901 85,193
90% 89.7% 78,211 77,979
80% 79.9% 69,521 69,443
70% 69.1% 60,830 60,073
60% 59.6% 52,140 51,802
50% 50.1% 43,450 43,537
40% 39.2% 34,760 34,063
30% 29.4% 26,070 25,510
20% 20.2% 17,380 17,589
10% 10.0% 8,690 8,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,494
Calibration 2     89,253
Calibration 3     89,299
ssj_ops@calibrated=89,276
100% 98.6% 89,276 87,982
90% 89.5% 80,349 79,920
80% 79.3% 71,421 70,800
70% 70.1% 62,493 62,574
60% 59.8% 53,566 53,362
50% 49.7% 44,638 44,387
40% 40.4% 35,711 36,092
30% 30.3% 26,783 27,016
20% 20.0% 17,855 17,841
10% 10.2% 8,928 9,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,733
Calibration 2     88,262
Calibration 3     88,093
ssj_ops@calibrated=88,177
100% 98.7% 88,177 87,062
90% 90.2% 79,360 79,518
80% 79.8% 70,542 70,393
70% 70.1% 61,724 61,827
60% 59.6% 52,906 52,565
50% 49.8% 44,089 43,894
40% 39.3% 35,271 34,666
30% 30.4% 26,453 26,820
20% 20.0% 17,635 17,598
10% 9.9% 8,818 8,749
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,477
Calibration 2     87,397
Calibration 3     87,455
ssj_ops@calibrated=87,426
100% 98.5% 87,426 86,112
90% 91.4% 78,683 79,924
80% 79.7% 69,941 69,638
70% 69.5% 61,198 60,785
60% 60.2% 52,455 52,590
50% 49.6% 43,713 43,397
40% 40.3% 34,970 35,271
30% 30.8% 26,228 26,927
20% 20.3% 17,485 17,729
10% 10.1% 8,743 8,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,265
Calibration 2     87,738
Calibration 3     87,399
ssj_ops@calibrated=87,569
100% 98.8% 87,569 86,533
90% 91.6% 78,812 80,192
80% 80.1% 70,055 70,165
70% 69.7% 61,298 61,043
60% 59.7% 52,541 52,237
50% 50.4% 43,784 44,178
40% 40.8% 35,027 35,736
30% 29.2% 26,271 25,590
20% 19.9% 17,514 17,409
10% 10.1% 8,757 8,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,585
Calibration 2     88,044
Calibration 3     87,822
ssj_ops@calibrated=87,933
100% 98.8% 87,933 86,912
90% 90.3% 79,140 79,394
80% 79.9% 70,347 70,218
70% 69.2% 61,553 60,865
60% 60.6% 52,760 53,281
50% 49.5% 43,967 43,494
40% 40.1% 35,173 35,300
30% 29.3% 26,380 25,805
20% 19.7% 17,587 17,283
10% 10.0% 8,793 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,815
Calibration 2     87,797
Calibration 3     87,344
ssj_ops@calibrated=87,570
100% 98.7% 87,570 86,415
90% 89.6% 78,813 78,490
80% 80.4% 70,056 70,397
70% 68.8% 61,299 60,268
60% 60.2% 52,542 52,750
50% 49.3% 43,785 43,173
40% 40.1% 35,028 35,133
30% 30.3% 26,271 26,561
20% 20.5% 17,514 17,916
10% 9.9% 8,757 8,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,457
Calibration 2     88,449
Calibration 3     87,799
ssj_ops@calibrated=88,124
100% 98.1% 88,124 86,477
90% 90.1% 79,312 79,398
80% 80.7% 70,499 71,087
70% 68.2% 61,687 60,062
60% 60.7% 52,874 53,531
50% 50.4% 44,062 44,436
40% 39.8% 35,250 35,111
30% 29.0% 26,437 25,581
20% 20.1% 17,625 17,702
10% 9.9% 8,812 8,738
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,218
Calibration 2     88,656
Calibration 3     88,230
ssj_ops@calibrated=88,443
100% 98.5% 88,443 87,146
90% 90.2% 79,599 79,797
80% 80.6% 70,755 71,280
70% 70.6% 61,910 62,477
60% 59.7% 53,066 52,777
50% 50.0% 44,222 44,241
40% 39.1% 35,377 34,561
30% 30.0% 26,533 26,520
20% 19.9% 17,689 17,612
10% 9.4% 8,844 8,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,925
Calibration 2     89,530
Calibration 3     88,676
ssj_ops@calibrated=89,103
100% 98.1% 89,103 87,447
90% 91.0% 80,193 81,057
80% 80.0% 71,282 71,325
70% 70.8% 62,372 63,074
60% 60.6% 53,462 54,035
50% 49.9% 44,551 44,503
40% 38.7% 35,641 34,519
30% 30.0% 26,731 26,694
20% 19.7% 17,821 17,582
10% 10.0% 8,910 8,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,724
Calibration 2     90,242
Calibration 3     90,048
ssj_ops@calibrated=90,145
100% 98.8% 90,145 89,023
90% 89.2% 81,130 80,448
80% 79.6% 72,116 71,736
70% 69.4% 63,101 62,582
60% 59.8% 54,087 53,929
50% 49.2% 45,072 44,348
40% 40.1% 36,058 36,167
30% 30.0% 27,043 27,031
20% 19.6% 18,029 17,661
10% 10.5% 9,014 9,448
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

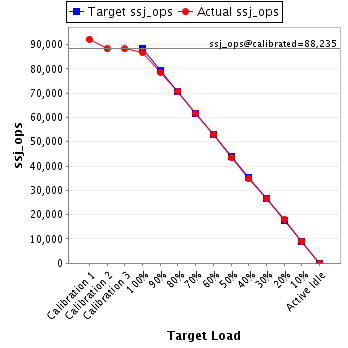

JVM 'L2-181.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,251
Calibration 2     88,260
Calibration 3     88,210
ssj_ops@calibrated=88,235
100% 98.4% 88,235 86,851
90% 89.1% 79,412 78,626
80% 80.3% 70,588 70,896
70% 69.8% 61,765 61,594
60% 60.2% 52,941 53,143
50% 49.2% 44,118 43,430
40% 39.5% 35,294 34,885
30% 30.2% 26,471 26,633
20% 20.5% 17,647 18,091
10% 10.0% 8,824 8,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,122
Calibration 2     89,298
Calibration 3     88,843
ssj_ops@calibrated=89,070
100% 98.7% 89,070 87,873
90% 91.1% 80,163 81,120
80% 79.4% 71,256 70,742
70% 70.1% 62,349 62,481
60% 59.9% 53,442 53,319
50% 50.2% 44,535 44,680
40% 40.5% 35,628 36,097
30% 30.2% 26,721 26,928
20% 19.4% 17,814 17,262
10% 9.6% 8,907 8,513
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L2-181.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,694
Calibration 2     88,673
Calibration 3     87,599
ssj_ops@calibrated=88,136
100% 98.0% 88,136 86,374
90% 91.5% 79,323 80,633
80% 80.2% 70,509 70,675
70% 69.8% 61,695 61,555
60% 59.9% 52,882 52,756
50% 48.9% 44,068 43,130
40% 40.4% 35,255 35,594
30% 29.9% 26,441 26,348
20% 20.2% 17,627 17,791
10% 9.9% 8,814 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
