Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 5,022,685
ssj_ops@100% per JVM = 89,691
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,206,462
Calibration 2     5,108,603
Calibration 3     5,027,575
ssj_ops@calibrated=5,068,089
100% 99.1% 5,068,089 5,022,685
90% 90.3% 4,561,280 4,577,772
80% 79.9% 4,054,471 4,049,158
70% 69.9% 3,547,662 3,544,138
60% 60.1% 3,040,853 3,046,077
50% 50.0% 2,534,045 2,535,079
40% 39.9% 2,027,236 2,022,432
30% 30.1% 1,520,427 1,523,625
20% 20.0% 1,013,618 1,011,325
10% 10.0% 506,809 506,622
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
L3-183.001 89,587
L3-183.002 90,331
L3-183.003 89,321
L3-183.004 90,269
L3-183.005 90,681
L3-183.006 90,220
L3-183.007 90,554
L3-183.008 93,300
L3-183.009 91,434
L3-183.010 89,717
L3-183.011 90,126
L3-183.012 89,169
L3-183.013 91,728
L3-183.014 90,304
L3-183.015 90,288
L3-183.016 91,099
L3-183.017 90,299
L3-183.018 89,383
L3-183.019 88,012
L3-183.020 90,186
L3-183.021 91,907
L3-183.022 89,597
L3-183.023 90,444
L3-183.024 89,894
L3-183.025 89,087
L3-183.026 89,993
L3-183.027 90,202
L3-183.028 89,317
L3-183.029 88,340
L3-183.030 90,361
L3-183.031 88,866
L3-183.032 89,094
L3-183.033 89,658
L3-183.034 89,614
L3-183.035 89,411
L3-183.036 89,395
L3-183.037 91,632
L3-183.038 88,342
L3-183.039 86,993
L3-183.040 90,120
L3-183.041 89,019
L3-183.042 88,195
L3-183.043 88,373
L3-183.044 90,081
L3-183.045 88,934
L3-183.046 89,291
L3-183.047 88,194
L3-183.048 88,430
L3-183.049 90,424
L3-183.050 88,329
L3-183.051 89,832
L3-183.052 90,652
L3-183.053 89,442
L3-183.054 88,071
L3-183.055 88,960
L3-183.056 88,182
ssj_ops@100% 5,022,685
ssj_ops@100% per JVM 89,691
Graph of per-instance results
JVM 'L3-183.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,399
Calibration 2     90,585
Calibration 3     89,295
ssj_ops@calibrated=89,940
100% 99.6% 89,940 89,587
90% 89.1% 80,946 80,101
80% 79.7% 71,952 71,663
70% 70.2% 62,958 63,169
60% 60.5% 53,964 54,382
50% 50.6% 44,970 45,515
40% 39.6% 35,976 35,603
30% 29.6% 26,982 26,591
20% 19.9% 17,988 17,871
10% 10.0% 8,994 9,000
Active Idle   0 0
Graph of results
JVM 'L3-183.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,897
Calibration 2     91,712
Calibration 3     90,120
ssj_ops@calibrated=90,916
100% 99.4% 90,916 90,331
90% 89.5% 81,825 81,389
80% 78.8% 72,733 71,623
70% 71.2% 63,641 64,695
60% 60.5% 54,550 55,007
50% 49.7% 45,458 45,210
40% 40.2% 36,366 36,530
30% 29.6% 27,275 26,932
20% 19.9% 18,183 18,094
10% 10.2% 9,092 9,229
Active Idle   0 0
Graph of results
JVM 'L3-183.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,070
Calibration 2     89,821
Calibration 3     89,436
ssj_ops@calibrated=89,629
100% 99.7% 89,629 89,321
90% 89.1% 80,666 79,869
80% 79.3% 71,703 71,070
70% 69.5% 62,740 62,304
60% 60.4% 53,777 54,101
50% 50.0% 44,814 44,848
40% 39.9% 35,851 35,778
30% 29.9% 26,889 26,802
20% 20.0% 17,926 17,889
10% 10.1% 8,963 9,025
Active Idle   0 0
Graph of results
JVM 'L3-183.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,068
Calibration 2     91,507
Calibration 3     89,957
ssj_ops@calibrated=90,732
100% 99.5% 90,732 90,269
90% 89.9% 81,659 81,565
80% 80.7% 72,586 73,260
70% 69.8% 63,512 63,326
60% 59.7% 54,439 54,155
50% 50.2% 45,366 45,558
40% 40.2% 36,293 36,511
30% 30.0% 27,220 27,213
20% 19.5% 18,146 17,733
10% 9.7% 9,073 8,783
Active Idle   0 0
Graph of results
JVM 'L3-183.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,002
Calibration 2     91,722
Calibration 3     90,739
ssj_ops@calibrated=91,231
100% 99.4% 91,231 90,681
90% 90.5% 82,108 82,558
80% 80.0% 72,984 72,993
70% 69.9% 63,861 63,725
60% 60.5% 54,738 55,205
50% 49.5% 45,615 45,148
40% 40.8% 36,492 37,228
30% 29.9% 27,369 27,241
20% 20.4% 18,246 18,599
10% 10.0% 9,123 9,137
Active Idle   0 0
Graph of results
JVM 'L3-183.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,470
Calibration 2     91,570
Calibration 3     89,725
ssj_ops@calibrated=90,647
100% 99.5% 90,647 90,220
90% 90.3% 81,582 81,888
80% 79.5% 72,518 72,026
70% 70.0% 63,453 63,431
60% 59.4% 54,388 53,830
50% 50.8% 45,324 46,062
40% 40.1% 36,259 36,313
30% 30.1% 27,194 27,248
20% 19.8% 18,129 17,910
10% 9.6% 9,065 8,696
Active Idle   0 0
Graph of results
JVM 'L3-183.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,699
Calibration 2     91,617
Calibration 3     90,796
ssj_ops@calibrated=91,206
100% 99.3% 91,206 90,554
90% 89.9% 82,086 81,961
80% 79.4% 72,965 72,379
70% 69.5% 63,844 63,355
60% 58.8% 54,724 53,656
50% 49.9% 45,603 45,535
40% 40.0% 36,482 36,456
30% 29.7% 27,362 27,078
20% 20.1% 18,241 18,316
10% 9.8% 9,121 8,912
Active Idle   0 0
Graph of results
JVM 'L3-183.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,462
Calibration 2     94,474
Calibration 3     93,029
ssj_ops@calibrated=93,751
100% 99.5% 93,751 93,300
90% 89.0% 84,376 83,442
80% 79.9% 75,001 74,906
70% 70.0% 65,626 65,669
60% 60.1% 56,251 56,345
50% 50.2% 46,876 47,075
40% 40.0% 37,501 37,530
30% 30.0% 28,125 28,155
20% 20.0% 18,750 18,797
10% 10.5% 9,375 9,871
Active Idle   0 0
Graph of results
JVM 'L3-183.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,074
Calibration 2     92,604
Calibration 3     91,402
ssj_ops@calibrated=92,003
100% 99.4% 92,003 91,434
90% 90.5% 82,803 83,223
80% 80.0% 73,602 73,616
70% 69.8% 64,402 64,195
60% 60.1% 55,202 55,311
50% 49.9% 46,001 45,884
40% 40.4% 36,801 37,148
30% 30.4% 27,601 27,937
20% 20.0% 18,401 18,395
10% 10.1% 9,200 9,315
Active Idle   0 0
Graph of results
JVM 'L3-183.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,473
Calibration 2     90,750
Calibration 3     89,975
ssj_ops@calibrated=90,362
100% 99.3% 90,362 89,717
90% 90.9% 81,326 82,171
80% 79.9% 72,290 72,220
70% 69.5% 63,254 62,767
60% 60.6% 54,217 54,775
50% 49.8% 45,181 44,999
40% 39.6% 36,145 35,761
30% 30.5% 27,109 27,551
20% 20.1% 18,072 18,129
10% 9.7% 9,036 8,804
Active Idle   0 0
Graph of results

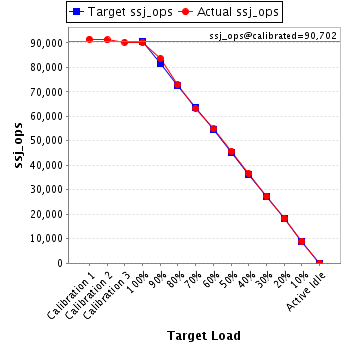

JVM 'L3-183.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,496
Calibration 2     91,167
Calibration 3     90,237
ssj_ops@calibrated=90,702
100% 99.4% 90,702 90,126
90% 92.2% 81,632 83,613
80% 80.4% 72,562 72,894
70% 69.6% 63,491 63,153
60% 60.4% 54,421 54,827
50% 50.4% 45,351 45,707
40% 40.3% 36,281 36,588
30% 30.2% 27,211 27,407
20% 20.3% 18,140 18,377
10% 10.0% 9,070 9,057
Active Idle   0 0
Graph of results
JVM 'L3-183.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,312
Calibration 2     91,075
Calibration 3     89,524
ssj_ops@calibrated=90,300
100% 98.7% 90,300 89,169
90% 91.1% 81,270 82,226
80% 79.4% 72,240 71,678
70% 69.6% 63,210 62,827
60% 59.5% 54,180 53,701
50% 49.3% 45,150 44,533
40% 39.4% 36,120 35,563
30% 30.2% 27,090 27,237
20% 20.3% 18,060 18,373
10% 10.5% 9,030 9,479
Active Idle   0 0
Graph of results
JVM 'L3-183.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,186
Calibration 2     92,838
Calibration 3     92,150
ssj_ops@calibrated=92,494
100% 99.2% 92,494 91,728
90% 90.0% 83,245 83,204
80% 79.4% 73,995 73,417
70% 69.8% 64,746 64,598
60% 60.0% 55,496 55,453
50% 49.5% 46,247 45,766
40% 39.5% 36,998 36,564
30% 29.9% 27,748 27,678
20% 20.0% 18,499 18,483
10% 9.9% 9,249 9,170
Active Idle   0 0
Graph of results
JVM 'L3-183.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,478
Calibration 2     91,021
Calibration 3     89,752
ssj_ops@calibrated=90,386
100% 99.9% 90,386 90,304
90% 89.4% 81,348 80,836
80% 78.8% 72,309 71,219
70% 70.1% 63,270 63,357
60% 61.6% 54,232 55,651
50% 49.1% 45,193 44,357
40% 40.1% 36,155 36,200
30% 29.5% 27,116 26,701
20% 19.7% 18,077 17,845
10% 10.2% 9,039 9,250
Active Idle   0 0
Graph of results
JVM 'L3-183.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,807
Calibration 2     91,082
Calibration 3     90,597
ssj_ops@calibrated=90,839
100% 99.4% 90,839 90,288
90% 91.0% 81,755 82,676
80% 80.5% 72,671 73,096
70% 70.4% 63,588 63,970
60% 60.3% 54,504 54,755
50% 49.9% 45,420 45,368
40% 39.3% 36,336 35,734
30% 29.8% 27,252 27,055
20% 20.4% 18,168 18,534
10% 10.0% 9,084 9,058
Active Idle   0 0
Graph of results
JVM 'L3-183.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,870
Calibration 2     92,107
Calibration 3     91,323
ssj_ops@calibrated=91,715
100% 99.3% 91,715 91,099
90% 91.2% 82,543 83,675
80% 79.2% 73,372 72,619
70% 69.6% 64,200 63,805
60% 60.6% 55,029 55,598
50% 50.7% 45,857 46,495
40% 40.1% 36,686 36,737
30% 30.3% 27,514 27,780
20% 19.7% 18,343 18,065
10% 10.0% 9,171 9,175
Active Idle   0 0
Graph of results
JVM 'L3-183.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,573
Calibration 2     90,805
Calibration 3     90,299
ssj_ops@calibrated=90,552
100% 99.7% 90,552 90,299
90% 89.5% 81,497 81,083
80% 80.0% 72,442 72,415
70% 69.6% 63,387 63,047
60% 60.6% 54,331 54,898
50% 50.5% 45,276 45,755
40% 39.9% 36,221 36,137
30% 30.1% 27,166 27,215
20% 19.9% 18,110 18,046
10% 10.0% 9,055 9,066
Active Idle   0 0
Graph of results
JVM 'L3-183.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,406
Calibration 2     90,682
Calibration 3     89,500
ssj_ops@calibrated=90,091
100% 99.2% 90,091 89,383
90% 90.6% 81,082 81,627
80% 79.7% 72,073 71,758
70% 69.9% 63,064 63,005
60% 60.9% 54,054 54,831
50% 50.1% 45,045 45,105
40% 40.3% 36,036 36,278
30% 30.5% 27,027 27,439
20% 20.2% 18,018 18,165
10% 10.1% 9,009 9,080
Active Idle   0 0

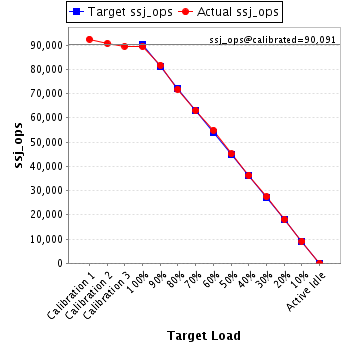

Graph of results
JVM 'L3-183.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,603
Calibration 2     88,737
Calibration 3     88,286
ssj_ops@calibrated=88,511
100% 99.4% 88,511 88,012
90% 90.4% 79,660 80,002
80% 80.3% 70,809 71,067
70% 70.2% 61,958 62,121
60% 60.9% 53,107 53,865
50% 49.0% 44,256 43,404
40% 40.2% 35,405 35,564
30% 30.4% 26,553 26,896
20% 19.7% 17,702 17,441
10% 10.3% 8,851 9,083
Active Idle   0 0
Graph of results
JVM 'L3-183.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,645
Calibration 2     91,524
Calibration 3     90,355
ssj_ops@calibrated=90,939
100% 99.2% 90,939 90,186
90% 90.2% 81,846 81,999
80% 80.6% 72,752 73,340
70% 70.4% 63,658 64,050
60% 60.5% 54,564 55,063
50% 49.1% 45,470 44,644
40% 39.7% 36,376 36,111
30% 29.9% 27,282 27,232
20% 18.9% 18,188 17,195
10% 10.0% 9,094 9,102
Active Idle   0 0

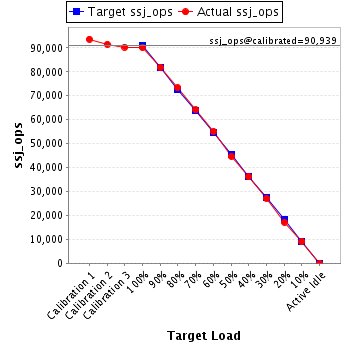

Graph of results
JVM 'L3-183.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,665
Calibration 2     92,928
Calibration 3     91,955
ssj_ops@calibrated=92,442
100% 99.4% 92,442 91,907
90% 89.3% 83,198 82,524
80% 80.5% 73,953 74,452
70% 69.5% 64,709 64,282
60% 60.2% 55,465 55,640
50% 49.6% 46,221 45,848
40% 39.4% 36,977 36,409
30% 30.1% 27,733 27,823
20% 20.1% 18,488 18,608
10% 10.0% 9,244 9,287
Active Idle   0 0
Graph of results
JVM 'L3-183.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,952
Calibration 2     91,037
Calibration 3     90,000
ssj_ops@calibrated=90,519
100% 99.0% 90,519 89,597
90% 90.1% 81,467 81,524
80% 80.7% 72,415 73,062
70% 71.0% 63,363 64,250
60% 60.3% 54,311 54,541
50% 50.6% 45,259 45,819
40% 40.3% 36,208 36,511
30% 30.3% 27,156 27,437
20% 19.7% 18,104 17,849
10% 10.0% 9,052 9,041
Active Idle   0 0
Graph of results
JVM 'L3-183.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,243
Calibration 2     91,762
Calibration 3     90,758
ssj_ops@calibrated=91,260
100% 99.1% 91,260 90,444
90% 91.4% 82,134 83,402
80% 80.3% 73,008 73,287
70% 69.8% 63,882 63,733
60% 60.4% 54,756 55,147
50% 49.3% 45,630 45,005
40% 39.7% 36,504 36,187
30% 31.0% 27,378 28,258
20% 19.9% 18,252 18,165
10% 10.1% 9,126 9,191
Active Idle   0 0
Graph of results
JVM 'L3-183.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,861
Calibration 2     90,720
Calibration 3     90,171
ssj_ops@calibrated=90,446
100% 99.4% 90,446 89,894
90% 91.3% 81,401 82,612
80% 79.1% 72,356 71,528
70% 70.2% 63,312 63,523
60% 60.1% 54,267 54,379
50% 49.4% 45,223 44,708
40% 39.9% 36,178 36,069
30% 30.2% 27,134 27,320
20% 19.8% 18,089 17,883
10% 9.9% 9,045 8,954
Active Idle   0 0
Graph of results
JVM 'L3-183.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,521
Calibration 2     89,935
Calibration 3     89,470
ssj_ops@calibrated=89,702
100% 99.3% 89,702 89,087
90% 89.9% 80,732 80,674
80% 80.2% 71,762 71,934
70% 71.0% 62,792 63,652
60% 61.5% 53,821 55,132
50% 49.8% 44,851 44,657
40% 39.6% 35,881 35,509
30% 30.3% 26,911 27,136
20% 19.9% 17,940 17,853
10% 10.1% 8,970 9,026
Active Idle   0 0
Graph of results
JVM 'L3-183.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,475
Calibration 2     90,834
Calibration 3     90,061
ssj_ops@calibrated=90,448
100% 99.5% 90,448 89,993
90% 89.9% 81,403 81,314
80% 80.0% 72,358 72,334
70% 70.3% 63,313 63,586
60% 59.6% 54,269 53,945
50% 50.2% 45,224 45,361
40% 40.1% 36,179 36,294
30% 29.7% 27,134 26,875
20% 19.7% 18,090 17,778
10% 9.9% 9,045 8,998
Active Idle   0 0
Graph of results
JVM 'L3-183.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,583
Calibration 2     91,210
Calibration 3     90,267
ssj_ops@calibrated=90,738
100% 99.4% 90,738 90,202
90% 89.5% 81,665 81,216
80% 80.1% 72,591 72,727
70% 69.5% 63,517 63,076
60% 59.5% 54,443 54,032
50% 50.4% 45,369 45,771
40% 40.0% 36,295 36,277
30% 30.3% 27,222 27,497
20% 19.9% 18,148 18,096
10% 9.8% 9,074 8,933
Active Idle   0 0
Graph of results
JVM 'L3-183.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,675
Calibration 2     90,732
Calibration 3     89,591
ssj_ops@calibrated=90,161
100% 99.1% 90,161 89,317
90% 90.8% 81,145 81,901
80% 81.2% 72,129 73,181
70% 70.1% 63,113 63,224
60% 59.8% 54,097 53,915
50% 49.6% 45,081 44,711
40% 39.8% 36,065 35,911
30% 29.3% 27,048 26,462
20% 20.2% 18,032 18,175
10% 9.8% 9,016 8,839
Active Idle   0 0
Graph of results
JVM 'L3-183.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,462
Calibration 2     90,317
Calibration 3     88,411
ssj_ops@calibrated=89,364
100% 98.9% 89,364 88,340
90% 90.1% 80,428 80,474
80% 80.5% 71,491 71,895
70% 70.0% 62,555 62,511
60% 60.5% 53,618 54,083
50% 49.6% 44,682 44,299
40% 39.6% 35,746 35,382
30% 30.2% 26,809 26,974
20% 20.3% 17,873 18,136
10% 10.1% 8,936 9,039
Active Idle   0 0
Graph of results
JVM 'L3-183.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,170
Calibration 2     92,902
Calibration 3     90,176
ssj_ops@calibrated=91,539
100% 98.7% 91,539 90,361
90% 90.7% 82,385 82,987
80% 80.7% 73,231 73,915
70% 70.8% 64,077 64,836
60% 60.0% 54,923 54,949
50% 50.3% 45,769 46,011
40% 39.8% 36,616 36,415
30% 30.1% 27,462 27,557
20% 20.0% 18,308 18,266
10% 9.9% 9,154 9,021
Active Idle   0 0
Graph of results
JVM 'L3-183.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,543
Calibration 2     91,019
Calibration 3     88,738
ssj_ops@calibrated=89,878
100% 98.9% 89,878 88,866
90% 90.5% 80,891 81,317
80% 80.1% 71,903 71,976
70% 69.6% 62,915 62,547
60% 59.2% 53,927 53,189
50% 50.8% 44,939 45,620
40% 39.7% 35,951 35,707
30% 30.1% 26,964 27,094
20% 20.1% 17,976 18,071
10% 9.7% 8,988 8,716
Active Idle   0 0
Graph of results
JVM 'L3-183.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,274
Calibration 2     91,099
Calibration 3     89,243
ssj_ops@calibrated=90,171
100% 98.8% 90,171 89,094
90% 89.0% 81,154 80,259
80% 80.4% 72,137 72,463
70% 70.9% 63,120 63,918
60% 59.5% 54,103 53,669
50% 50.2% 45,086 45,232
40% 39.7% 36,069 35,791
30% 29.3% 27,051 26,397
20% 20.1% 18,034 18,098
10% 9.9% 9,017 8,887
Active Idle   0 0
Graph of results
JVM 'L3-183.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,734
Calibration 2     91,637
Calibration 3     89,803
ssj_ops@calibrated=90,720
100% 98.8% 90,720 89,658
90% 90.3% 81,648 81,939
80% 79.5% 72,576 72,123
70% 69.8% 63,504 63,365
60% 59.5% 54,432 53,991
50% 49.8% 45,360 45,153
40% 39.1% 36,288 35,501
30% 30.4% 27,216 27,579
20% 20.6% 18,144 18,700
10% 10.0% 9,072 9,057
Active Idle   0 0
Graph of results
JVM 'L3-183.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,841
Calibration 2     92,682
Calibration 3     89,587
ssj_ops@calibrated=91,135
100% 98.3% 91,135 89,614
90% 90.1% 82,021 82,089
80% 80.0% 72,908 72,898
70% 69.1% 63,794 62,968
60% 58.6% 54,681 53,401
50% 50.6% 45,567 46,136
40% 40.2% 36,454 36,670
30% 30.4% 27,340 27,739
20% 19.6% 18,227 17,887
10% 10.2% 9,113 9,274
Active Idle   0 0
Graph of results
JVM 'L3-183.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,097
Calibration 2     91,353
Calibration 3     88,782
ssj_ops@calibrated=90,068
100% 99.3% 90,068 89,411
90% 89.9% 81,061 80,932
80% 80.8% 72,054 72,801
70% 68.8% 63,047 61,990
60% 60.6% 54,041 54,550
50% 49.5% 45,034 44,606
40% 39.7% 36,027 35,755
30% 29.8% 27,020 26,830
20% 20.4% 18,014 18,335
10% 9.8% 9,007 8,816
Active Idle   0 0
Graph of results
JVM 'L3-183.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,601
Calibration 2     91,357
Calibration 3     89,576
ssj_ops@calibrated=90,467
100% 98.8% 90,467 89,395
90% 89.3% 81,420 80,822
80% 79.9% 72,373 72,246
70% 69.5% 63,327 62,866
60% 59.9% 54,280 54,161
50% 50.1% 45,233 45,315
40% 39.9% 36,187 36,124
30% 30.3% 27,140 27,444
20% 20.1% 18,093 18,154
10% 10.0% 9,047 9,008
Active Idle   0 0
Graph of results
JVM 'L3-183.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,282
Calibration 2     93,483
Calibration 3     91,494
ssj_ops@calibrated=92,488
100% 99.1% 92,488 91,632
90% 91.1% 83,239 84,212
80% 79.4% 73,991 73,481
70% 69.0% 64,742 63,856
60% 59.8% 55,493 55,338
50% 51.0% 46,244 47,200
40% 40.1% 36,995 37,058
30% 29.6% 27,746 27,411
20% 19.4% 18,498 17,953
10% 10.1% 9,249 9,308
Active Idle   0 0
Graph of results
JVM 'L3-183.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,267
Calibration 2     90,683
Calibration 3     88,323
ssj_ops@calibrated=89,503
100% 98.7% 89,503 88,342
90% 90.7% 80,553 81,178
80% 80.8% 71,602 72,304
70% 70.4% 62,652 63,003
60% 59.3% 53,702 53,086
50% 49.8% 44,752 44,590
40% 39.5% 35,801 35,394
30% 29.9% 26,851 26,800
20% 19.3% 17,901 17,239
10% 9.9% 8,950 8,904
Active Idle   0 0
Graph of results
JVM 'L3-183.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,632
Calibration 2     89,130
Calibration 3     87,174
ssj_ops@calibrated=88,152
100% 98.7% 88,152 86,993
90% 91.2% 79,337 80,400
80% 79.9% 70,522 70,434
70% 68.9% 61,706 60,746
60% 60.0% 52,891 52,924
50% 50.2% 44,076 44,291
40% 39.3% 35,261 34,638
30% 29.9% 26,446 26,340
20% 19.4% 17,630 17,128
10% 9.5% 8,815 8,416
Active Idle   0 0
Graph of results
JVM 'L3-183.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,443
Calibration 2     91,920
Calibration 3     89,779
ssj_ops@calibrated=90,849
100% 99.2% 90,849 90,120
90% 91.0% 81,765 82,631
80% 78.9% 72,680 71,689
70% 70.8% 63,595 64,315
60% 60.1% 54,510 54,610
50% 50.1% 45,425 45,560
40% 40.0% 36,340 36,300
30% 29.4% 27,255 26,673
20% 20.1% 18,170 18,241
10% 10.3% 9,085 9,400
Active Idle   0 0
Graph of results
JVM 'L3-183.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,213
Calibration 2     91,530
Calibration 3     89,313
ssj_ops@calibrated=90,421
100% 98.4% 90,421 89,019
90% 89.7% 81,379 81,138
80% 79.1% 72,337 71,530
70% 69.9% 63,295 63,221
60% 59.2% 54,253 53,547
50% 49.4% 45,211 44,627
40% 39.7% 36,169 35,861
30% 30.8% 27,126 27,820
20% 20.2% 18,084 18,302
10% 9.9% 9,042 8,969
Active Idle   0 0
Graph of results
JVM 'L3-183.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,682
Calibration 2     90,712
Calibration 3     88,528
ssj_ops@calibrated=89,620
100% 98.4% 89,620 88,195
90% 91.3% 80,658 81,852
80% 79.3% 71,696 71,105
70% 69.9% 62,734 62,664
60% 59.9% 53,772 53,675
50% 49.4% 44,810 44,233
40% 39.9% 35,848 35,715
30% 30.4% 26,886 27,261
20% 20.4% 17,924 18,238
10% 10.1% 8,962 9,058
Active Idle   0 0
Graph of results
JVM 'L3-183.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,336
Calibration 2     90,443
Calibration 3     88,827
ssj_ops@calibrated=89,635
100% 98.6% 89,635 88,373
90% 90.0% 80,671 80,686
80% 80.5% 71,708 72,191
70% 69.1% 62,744 61,972
60% 60.1% 53,781 53,859
50% 49.4% 44,817 44,267
40% 39.8% 35,854 35,659
30% 30.1% 26,890 27,013
20% 19.9% 17,927 17,833
10% 9.7% 8,963 8,716
Active Idle   0 0
Graph of results
JVM 'L3-183.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,239
Calibration 2     91,473
Calibration 3     90,393
ssj_ops@calibrated=90,933
100% 99.1% 90,933 90,081
90% 90.3% 81,840 82,073
80% 80.0% 72,746 72,737
70% 70.4% 63,653 64,031
60% 59.9% 54,560 54,461
50% 49.9% 45,466 45,340
40% 40.1% 36,373 36,473
30% 30.6% 27,280 27,781
20% 19.6% 18,187 17,854
10% 10.0% 9,093 9,050
Active Idle   0 0
Graph of results
JVM 'L3-183.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,922
Calibration 2     90,655
Calibration 3     89,291
ssj_ops@calibrated=89,973
100% 98.8% 89,973 88,934
90% 90.6% 80,976 81,520
80% 79.3% 71,979 71,335
70% 69.4% 62,981 62,477
60% 59.6% 53,984 53,596
50% 50.1% 44,987 45,041
40% 40.6% 35,989 36,549
30% 30.1% 26,992 27,097
20% 20.2% 17,995 18,208
10% 9.7% 8,997 8,753
Active Idle   0 0

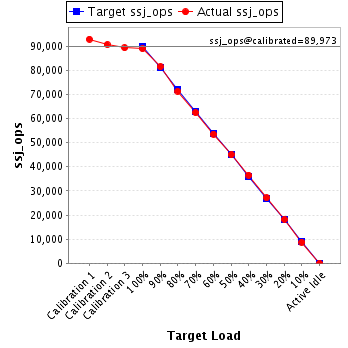

Graph of results
JVM 'L3-183.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,903
Calibration 2     90,958
Calibration 3     89,480
ssj_ops@calibrated=90,219
100% 99.0% 90,219 89,291
90% 89.9% 81,197 81,142
80% 80.3% 72,175 72,430
70% 69.3% 63,153 62,536
60% 59.4% 54,131 53,620
50% 49.8% 45,109 44,964
40% 39.8% 36,088 35,951
30% 30.3% 27,066 27,340
20% 19.7% 18,044 17,741
10% 10.0% 9,022 9,008
Active Idle   0 0
Graph of results
JVM 'L3-183.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,374
Calibration 2     89,838
Calibration 3     88,567
ssj_ops@calibrated=89,203
100% 98.9% 89,203 88,194
90% 90.1% 80,282 80,348
80% 79.4% 71,362 70,822
70% 69.8% 62,442 62,226
60% 59.9% 53,522 53,452
50% 50.2% 44,601 44,763
40% 40.3% 35,681 35,940
30% 30.6% 26,761 27,255
20% 20.0% 17,841 17,820
10% 9.5% 8,920 8,515
Active Idle   0 0
Graph of results
JVM 'L3-183.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,652
Calibration 2     90,209
Calibration 3     88,436
ssj_ops@calibrated=89,323
100% 99.0% 89,323 88,430
90% 91.3% 80,391 81,574
80% 80.1% 71,458 71,511
70% 70.4% 62,526 62,871
60% 60.8% 53,594 54,329
50% 51.0% 44,661 45,520
40% 40.1% 35,729 35,816
30% 29.7% 26,797 26,564
20% 19.8% 17,865 17,678
10% 10.0% 8,932 8,896
Active Idle   0 0
Graph of results
JVM 'L3-183.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,443
Calibration 2     92,149
Calibration 3     90,209
ssj_ops@calibrated=91,179
100% 99.2% 91,179 90,424
90% 89.9% 82,061 81,969
80% 80.0% 72,943 72,959
70% 70.2% 63,825 64,046
60% 60.5% 54,707 55,172
50% 50.3% 45,589 45,852
40% 39.9% 36,472 36,338
30% 30.3% 27,354 27,610
20% 19.9% 18,236 18,116
10% 9.9% 9,118 9,037
Active Idle   0 0
Graph of results
JVM 'L3-183.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,788
Calibration 2     90,360
Calibration 3     88,222
ssj_ops@calibrated=89,291
100% 98.9% 89,291 88,329
90% 90.8% 80,362 81,112
80% 80.0% 71,433 71,457
70% 69.4% 62,504 61,980
60% 60.0% 53,574 53,573
50% 49.8% 44,645 44,445
40% 40.5% 35,716 36,195
30% 30.5% 26,787 27,246
20% 19.9% 17,858 17,800
10% 10.4% 8,929 9,321
Active Idle   0 0
Graph of results
JVM 'L3-183.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,279
Calibration 2     92,132
Calibration 3     90,053
ssj_ops@calibrated=91,092
100% 98.6% 91,092 89,832
90% 90.9% 81,983 82,816
80% 79.5% 72,874 72,386
70% 69.4% 63,764 63,222
60% 60.8% 54,655 55,398
50% 50.4% 45,546 45,907
40% 39.7% 36,437 36,196
30% 30.2% 27,328 27,483
20% 19.7% 18,218 17,953
10% 10.0% 9,109 9,154
Active Idle   0 0
Graph of results
JVM 'L3-183.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,593
Calibration 2     92,751
Calibration 3     91,347
ssj_ops@calibrated=92,049
100% 98.5% 92,049 90,652
90% 91.0% 82,844 83,763
80% 79.7% 73,639 73,377
70% 70.4% 64,434 64,789
60% 60.2% 55,229 55,389
50% 50.7% 46,025 46,635
40% 39.4% 36,820 36,302
30% 30.2% 27,615 27,800
20% 20.3% 18,410 18,670
10% 10.3% 9,205 9,508
Active Idle   0 0
Graph of results
JVM 'L3-183.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,443
Calibration 2     91,150
Calibration 3     89,358
ssj_ops@calibrated=90,254
100% 99.1% 90,254 89,442
90% 90.6% 81,229 81,800
80% 80.3% 72,203 72,503
70% 71.2% 63,178 64,226
60% 59.8% 54,153 53,932
50% 50.3% 45,127 45,416
40% 40.0% 36,102 36,069
30% 29.9% 27,076 26,968
20% 20.7% 18,051 18,721
10% 10.4% 9,025 9,412
Active Idle   0 0
Graph of results
JVM 'L3-183.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,509
Calibration 2     89,036
Calibration 3     88,209
ssj_ops@calibrated=88,623
100% 99.4% 88,623 88,071
90% 90.0% 79,760 79,740
80% 79.2% 70,898 70,202
70% 69.5% 62,036 61,636
60% 60.9% 53,174 54,002
50% 50.3% 44,311 44,557
40% 40.2% 35,449 35,631
30% 29.4% 26,587 26,053
20% 20.1% 17,725 17,803
10% 10.2% 8,862 9,016
Active Idle   0 0
Graph of results
JVM 'L3-183.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,418
Calibration 2     90,914
Calibration 3     89,184
ssj_ops@calibrated=90,049
100% 98.8% 90,049 88,960
90% 91.0% 81,044 81,925
80% 79.7% 72,039 71,766
70% 70.3% 63,034 63,284
60% 61.0% 54,029 54,892
50% 50.1% 45,024 45,089
40% 40.0% 36,020 36,005
30% 29.4% 27,015 26,461
20% 20.3% 18,010 18,280
10% 9.9% 9,005 8,957
Active Idle   0 0
Graph of results
JVM 'L3-183.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,357
Calibration 2     90,152
Calibration 3     88,302
ssj_ops@calibrated=89,227
100% 98.8% 89,227 88,182
90% 90.6% 80,304 80,800
80% 79.4% 71,382 70,857
70% 69.6% 62,459 62,137
60% 59.5% 53,536 53,088
50% 51.1% 44,614 45,563
40% 39.8% 35,691 35,495
30% 30.1% 26,768 26,840
20% 19.5% 17,845 17,434
10% 9.9% 8,923 8,846
Active Idle   0 0
Graph of results
