Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,926,381
ssj_ops@100% per JVM = 87,971
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,148,756
Calibration 2     5,028,088
Calibration 3     4,950,759
ssj_ops@calibrated=4,989,424
100% 98.7% 4,989,424 4,926,381
90% 90.5% 4,490,481 4,514,296
80% 80.0% 3,991,539 3,993,555
70% 70.0% 3,492,597 3,493,453
60% 60.0% 2,993,654 2,995,816
50% 50.0% 2,494,712 2,494,574
40% 40.0% 1,995,770 1,993,406
30% 30.0% 1,496,827 1,497,748
20% 20.0% 997,885 996,974
10% 10.0% 498,942 498,166
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
L7-191.001 88,373
L7-191.002 88,805
L7-191.003 88,553
L7-191.004 88,463
L7-191.005 91,400
L7-191.006 89,108
L7-191.007 89,571
L7-191.008 89,311
L7-191.009 89,802
L7-191.010 88,055
L7-191.011 86,568
L7-191.012 90,768
L7-191.013 89,377
L7-191.014 87,780
L7-191.015 88,748
L7-191.016 88,422
L7-191.017 89,003
L7-191.018 88,094
L7-191.019 87,949
L7-191.020 88,573
L7-191.021 89,280
L7-191.022 88,028
L7-191.023 87,364
L7-191.024 89,213
L7-191.025 87,940
L7-191.026 87,703
L7-191.027 88,840
L7-191.028 89,291
L7-191.029 87,743
L7-191.030 86,668
L7-191.031 88,271
L7-191.032 86,601
L7-191.033 87,730
L7-191.034 87,292
L7-191.035 88,356
L7-191.036 87,045
L7-191.037 88,726
L7-191.038 90,266
L7-191.039 86,778
L7-191.040 87,093
L7-191.041 88,127
L7-191.042 86,291
L7-191.043 86,285
L7-191.044 87,930
L7-191.045 86,960
L7-191.046 87,074
L7-191.047 87,776
L7-191.048 85,572
L7-191.049 86,700
L7-191.050 85,645
L7-191.051 87,159
L7-191.052 86,969
L7-191.053 87,205
L7-191.054 87,292
L7-191.055 86,937
L7-191.056 85,510
ssj_ops@100% 4,926,381
ssj_ops@100% per JVM 87,971

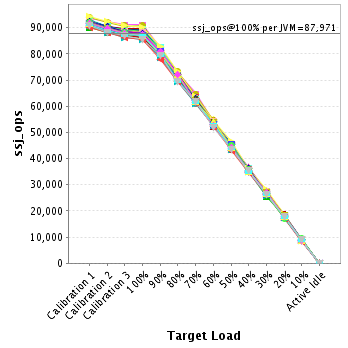

Graph of per-instance results
JVM 'L7-191.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,341
Calibration 2     89,967
Calibration 3     88,680
ssj_ops@calibrated=89,324
100% 98.9% 89,324 88,373
90% 91.5% 80,391 81,688
80% 80.1% 71,459 71,562
70% 69.7% 62,527 62,246
60% 59.9% 53,594 53,532
50% 50.1% 44,662 44,719
40% 39.1% 35,729 34,919
30% 30.0% 26,797 26,768
20% 19.8% 17,865 17,654
10% 9.6% 8,932 8,558
Active Idle   0 0
Graph of results
JVM 'L7-191.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,312
Calibration 2     90,238
Calibration 3     89,289
ssj_ops@calibrated=89,764
100% 98.9% 89,764 88,805
90% 89.4% 80,787 80,218
80% 80.6% 71,811 72,361
70% 70.1% 62,835 62,925
60% 59.6% 53,858 53,465
50% 50.4% 44,882 45,249
40% 40.4% 35,905 36,285
30% 30.1% 26,929 26,997
20% 20.0% 17,953 17,965
10% 10.3% 8,976 9,271
Active Idle   0 0
Graph of results
JVM 'L7-191.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,211
Calibration 2     90,113
Calibration 3     88,593
ssj_ops@calibrated=89,353
100% 99.1% 89,353 88,553
90% 90.5% 80,418 80,827
80% 80.2% 71,482 71,642
70% 70.9% 62,547 63,368
60% 59.9% 53,612 53,543
50% 49.9% 44,676 44,621
40% 40.0% 35,741 35,705
30% 29.4% 26,806 26,297
20% 19.7% 17,871 17,608
10% 9.8% 8,935 8,769
Active Idle   0 0
Graph of results
JVM 'L7-191.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,354
Calibration 2     89,536
Calibration 3     88,460
ssj_ops@calibrated=88,998
100% 99.4% 88,998 88,463
90% 90.0% 80,098 80,083
80% 80.5% 71,199 71,677
70% 70.2% 62,299 62,433
60% 61.6% 53,399 54,779
50% 48.8% 44,499 43,417
40% 41.0% 35,599 36,510
30% 30.9% 26,699 27,492
20% 19.9% 17,800 17,674
10% 10.2% 8,900 9,037
Active Idle   0 0
Graph of results
JVM 'L7-191.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,418
Calibration 2     92,289
Calibration 3     91,399
ssj_ops@calibrated=91,844
100% 99.5% 91,844 91,400
90% 89.6% 82,659 82,307
80% 79.3% 73,475 72,845
70% 70.9% 64,291 65,123
60% 59.1% 55,106 54,239
50% 49.8% 45,922 45,769
40% 39.7% 36,737 36,418
30% 30.5% 27,553 27,990
20% 20.0% 18,369 18,353
10% 10.2% 9,184 9,325
Active Idle   0 0
Graph of results
JVM 'L7-191.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,985
Calibration 2     90,551
Calibration 3     89,354
ssj_ops@calibrated=89,952
100% 99.1% 89,952 89,108
90% 91.6% 80,957 82,414
80% 79.9% 71,962 71,891
70% 69.7% 62,967 62,671
60% 59.9% 53,971 53,872
50% 49.8% 44,976 44,794
40% 40.3% 35,981 36,285
30% 29.7% 26,986 26,730
20% 20.2% 17,990 18,176
10% 10.0% 8,995 8,966
Active Idle   0 0
Graph of results

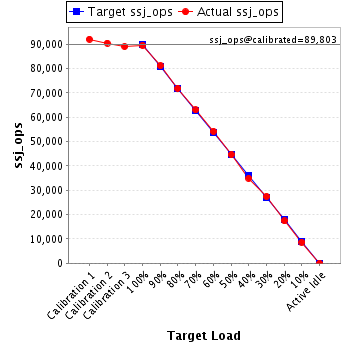

JVM 'L7-191.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,093
Calibration 2     90,506
Calibration 3     89,101
ssj_ops@calibrated=89,803
100% 99.7% 89,803 89,571
90% 90.4% 80,823 81,189
80% 80.0% 71,843 71,870
70% 70.1% 62,862 62,996
60% 60.4% 53,882 54,245
50% 49.7% 44,902 44,637
40% 38.9% 35,921 34,954
30% 30.6% 26,941 27,486
20% 19.4% 17,961 17,383
10% 9.7% 8,980 8,704
Active Idle   0 0
Graph of results
JVM 'L7-191.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,574
Calibration 2     90,437
Calibration 3     89,369
ssj_ops@calibrated=89,903
100% 99.3% 89,903 89,311
90% 90.6% 80,913 81,488
80% 80.1% 71,922 72,005
70% 69.1% 62,932 62,128
60% 60.1% 53,942 54,009
50% 50.7% 44,951 45,595
40% 39.6% 35,961 35,616
30% 30.0% 26,971 26,930
20% 19.3% 17,981 17,361
10% 9.9% 8,990 8,904
Active Idle   0 0
Graph of results
JVM 'L7-191.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,281
Calibration 2     90,532
Calibration 3     89,543
ssj_ops@calibrated=90,037
100% 99.7% 90,037 89,802
90% 90.6% 81,033 81,611
80% 79.9% 72,030 71,928
70% 70.3% 63,026 63,337
60% 60.4% 54,022 54,398
50% 49.7% 45,019 44,782
40% 40.0% 36,015 36,015
30% 30.2% 27,011 27,194
20% 20.7% 18,007 18,662
10% 10.1% 9,004 9,060
Active Idle   0 0
Graph of results

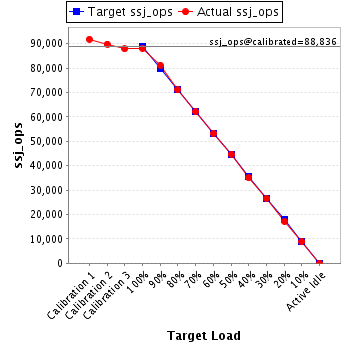

JVM 'L7-191.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,833
Calibration 2     89,843
Calibration 3     87,829
ssj_ops@calibrated=88,836
100% 99.1% 88,836 88,055
90% 91.5% 79,952 81,246
80% 80.0% 71,069 71,031
70% 69.9% 62,185 62,068
60% 59.8% 53,301 53,126
50% 50.4% 44,418 44,731
40% 39.5% 35,534 35,056
30% 30.0% 26,651 26,623
20% 19.3% 17,767 17,183
10% 9.9% 8,884 8,812
Active Idle   0 0
Graph of results
JVM 'L7-191.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,273
Calibration 2     88,337
Calibration 3     86,701
ssj_ops@calibrated=87,519
100% 98.9% 87,519 86,568
90% 91.4% 78,767 79,952
80% 80.7% 70,015 70,661
70% 70.7% 61,263 61,862
60% 59.8% 52,511 52,294
50% 50.3% 43,759 43,992
40% 40.0% 35,008 34,994
30% 29.4% 26,256 25,695
20% 20.4% 17,504 17,891
10% 10.2% 8,752 8,937
Active Idle   0 0
Graph of results
JVM 'L7-191.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,757
Calibration 2     92,045
Calibration 3     90,687
ssj_ops@calibrated=91,366
100% 99.3% 91,366 90,768
90% 89.9% 82,230 82,183
80% 80.1% 73,093 73,228
70% 70.8% 63,956 64,695
60% 59.5% 54,820 54,394
50% 49.0% 45,683 44,730
40% 39.6% 36,546 36,148
30% 29.9% 27,410 27,361
20% 19.9% 18,273 18,171
10% 9.9% 9,137 9,054
Active Idle   0 0
Graph of results
JVM 'L7-191.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,595
Calibration 2     90,371
Calibration 3     89,391
ssj_ops@calibrated=89,881
100% 99.4% 89,881 89,377
90% 90.3% 80,893 81,175
80% 80.4% 71,905 72,240
70% 70.5% 62,917 63,384
60% 60.5% 53,929 54,364
50% 49.1% 44,941 44,167
40% 40.7% 35,952 36,591
30% 30.4% 26,964 27,362
20% 19.8% 17,976 17,754
10% 10.0% 8,988 8,945
Active Idle   0 0
Graph of results
JVM 'L7-191.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,999
Calibration 2     89,104
Calibration 3     87,690
ssj_ops@calibrated=88,397
100% 99.3% 88,397 87,780
90% 90.3% 79,557 79,798
80% 80.1% 70,717 70,766
70% 69.6% 61,878 61,554
60% 60.0% 53,038 53,012
50% 49.5% 44,198 43,780
40% 39.7% 35,359 35,126
30% 29.9% 26,519 26,416
20% 19.6% 17,679 17,323
10% 9.8% 8,840 8,641
Active Idle   0 0
Graph of results
JVM 'L7-191.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,580
Calibration 2     89,821
Calibration 3     88,699
ssj_ops@calibrated=89,260
100% 99.4% 89,260 88,748
90% 91.0% 80,334 81,223
80% 80.1% 71,408 71,510
70% 70.2% 62,482 62,675
60% 59.8% 53,556 53,351
50% 49.7% 44,630 44,396
40% 39.8% 35,704 35,516
30% 29.2% 26,778 26,102
20% 20.3% 17,852 18,078
10% 10.2% 8,926 9,100
Active Idle   0 0
Graph of results
JVM 'L7-191.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,739
Calibration 2     90,041
Calibration 3     88,276
ssj_ops@calibrated=89,158
100% 99.2% 89,158 88,422
90% 91.1% 80,243 81,232
80% 80.3% 71,327 71,556
70% 71.2% 62,411 63,525
60% 59.7% 53,495 53,252
50% 50.5% 44,579 45,053
40% 39.9% 35,663 35,586
30% 30.1% 26,748 26,807
20% 19.7% 17,832 17,558
10% 10.1% 8,916 8,990
Active Idle   0 0
Graph of results
JVM 'L7-191.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,147
Calibration 2     90,332
Calibration 3     89,003
ssj_ops@calibrated=89,667
100% 99.3% 89,667 89,003
90% 90.9% 80,701 81,531
80% 80.6% 71,734 72,241
70% 69.5% 62,767 62,275
60% 60.1% 53,800 53,889
50% 49.7% 44,834 44,572
40% 40.1% 35,867 35,925
30% 30.2% 26,900 27,042
20% 20.5% 17,933 18,382
10% 10.1% 8,967 9,079
Active Idle   0 0
Graph of results
JVM 'L7-191.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,440
Calibration 2     89,203
Calibration 3     88,026
ssj_ops@calibrated=88,614
100% 99.4% 88,614 88,094
90% 90.3% 79,753 80,048
80% 79.8% 70,892 70,749
70% 69.4% 62,030 61,526
60% 59.8% 53,169 53,027
50% 49.4% 44,307 43,734
40% 39.7% 35,446 35,192
30% 30.1% 26,584 26,708
20% 20.3% 17,723 17,991
10% 10.2% 8,861 9,054
Active Idle   0 0
Graph of results
JVM 'L7-191.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,914
Calibration 2     89,242
Calibration 3     87,899
ssj_ops@calibrated=88,570
100% 99.3% 88,570 87,949
90% 90.2% 79,713 79,863
80% 79.7% 70,856 70,550
70% 70.3% 61,999 62,249
60% 60.3% 53,142 53,431
50% 50.6% 44,285 44,790
40% 39.9% 35,428 35,320
30% 29.5% 26,571 26,151
20% 19.8% 17,714 17,494
10% 9.9% 8,857 8,731
Active Idle   0 0
Graph of results
JVM 'L7-191.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,780
Calibration 2     89,158
Calibration 3     88,200
ssj_ops@calibrated=88,679
100% 99.9% 88,679 88,573
90% 91.0% 79,811 80,696
80% 79.9% 70,943 70,828
70% 70.0% 62,075 62,091
60% 60.2% 53,207 53,347
50% 50.4% 44,339 44,669
40% 38.9% 35,472 34,517
30% 29.6% 26,604 26,287
20% 19.9% 17,736 17,652
10% 9.8% 8,868 8,675
Active Idle   0 0
Graph of results
JVM 'L7-191.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,900
Calibration 2     90,616
Calibration 3     89,109
ssj_ops@calibrated=89,863
100% 99.4% 89,863 89,280
90% 91.4% 80,876 82,129
80% 80.3% 71,890 72,141
70% 70.0% 62,904 62,934
60% 59.9% 53,918 53,828
50% 50.6% 44,931 45,473
40% 40.0% 35,945 35,910
30% 30.1% 26,959 27,026
20% 20.2% 17,973 18,131
10% 10.2% 8,986 9,208
Active Idle   0 0

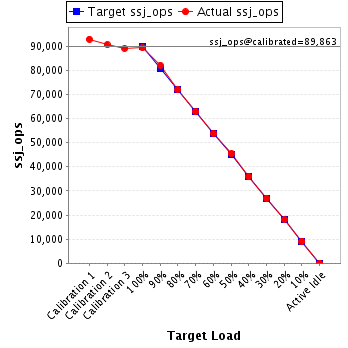

Graph of results
JVM 'L7-191.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,003
Calibration 2     89,770
Calibration 3     88,198
ssj_ops@calibrated=88,984
100% 98.9% 88,984 88,028
90% 90.4% 80,085 80,477
80% 80.0% 71,187 71,171
70% 69.2% 62,288 61,539
60% 61.0% 53,390 54,245
50% 50.1% 44,492 44,537
40% 39.6% 35,593 35,260
30% 29.9% 26,695 26,611
20% 20.0% 17,797 17,769
10% 9.6% 8,898 8,572
Active Idle   0 0
Graph of results
JVM 'L7-191.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,812
Calibration 2     89,769
Calibration 3     88,530
ssj_ops@calibrated=89,150
100% 98.0% 89,150 87,364
90% 90.0% 80,235 80,202
80% 80.0% 71,320 71,341
70% 69.5% 62,405 61,977
60% 60.3% 53,490 53,747
50% 49.5% 44,575 44,097
40% 40.3% 35,660 35,943
30% 30.2% 26,745 26,885
20% 19.6% 17,830 17,476
10% 10.4% 8,915 9,244
Active Idle   0 0
Graph of results
JVM 'L7-191.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,904
Calibration 2     90,408
Calibration 3     89,189
ssj_ops@calibrated=89,799
100% 99.3% 89,799 89,213
90% 90.8% 80,819 81,511
80% 78.9% 71,839 70,807
70% 70.1% 62,859 62,941
60% 60.0% 53,879 53,841
50% 50.5% 44,899 45,311
40% 39.6% 35,919 35,587
30% 30.4% 26,940 27,277
20% 20.1% 17,960 18,013
10% 10.0% 8,980 8,985
Active Idle   0 0
Graph of results
JVM 'L7-191.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,402
Calibration 2     89,620
Calibration 3     88,286
ssj_ops@calibrated=88,953
100% 98.9% 88,953 87,940
90% 89.4% 80,058 79,490
80% 80.6% 71,163 71,662
70% 70.0% 62,267 62,276
60% 60.9% 53,372 54,130
50% 50.1% 44,477 44,555
40% 41.1% 35,581 36,596
30% 30.1% 26,686 26,794
20% 19.6% 17,791 17,416
10% 9.8% 8,895 8,673
Active Idle   0 0
Graph of results
JVM 'L7-191.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,002
Calibration 2     89,203
Calibration 3     88,121
ssj_ops@calibrated=88,662
100% 98.9% 88,662 87,703
90% 90.8% 79,796 80,527
80% 80.1% 70,930 70,983
70% 69.4% 62,063 61,542
60% 60.7% 53,197 53,802
50% 50.6% 44,331 44,858
40% 39.4% 35,465 34,961
30% 29.5% 26,599 26,120
20% 20.2% 17,732 17,922
10% 10.5% 8,866 9,271
Active Idle   0 0

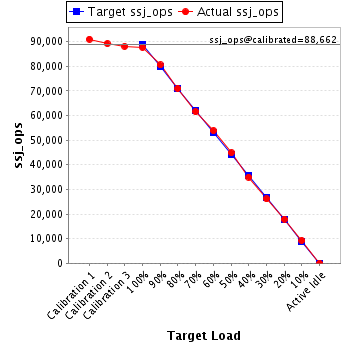

Graph of results
JVM 'L7-191.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,102
Calibration 2     90,661
Calibration 3     89,130
ssj_ops@calibrated=89,895
100% 98.8% 89,895 88,840
90% 90.2% 80,906 81,118
80% 80.7% 71,916 72,588
70% 71.1% 62,927 63,871
60% 60.5% 53,937 54,357
50% 50.0% 44,948 44,970
40% 40.1% 35,958 36,047
30% 30.5% 26,969 27,388
20% 20.2% 17,979 18,176
10% 10.0% 8,990 8,950
Active Idle   0 0
Graph of results
JVM 'L7-191.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,686
Calibration 2     90,467
Calibration 3     89,090
ssj_ops@calibrated=89,778
100% 99.5% 89,778 89,291
90% 89.9% 80,801 80,728
80% 80.3% 71,823 72,087
70% 70.3% 62,845 63,081
60% 60.4% 53,867 54,238
50% 50.4% 44,889 45,266
40% 40.4% 35,911 36,238
30% 29.5% 26,934 26,514
20% 20.2% 17,956 18,100
10% 10.0% 8,978 8,996
Active Idle   0 0
Graph of results
JVM 'L7-191.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,343
Calibration 2     90,112
Calibration 3     88,908
ssj_ops@calibrated=89,510
100% 98.0% 89,510 87,743
90% 90.7% 80,559 81,151
80% 79.0% 71,608 70,705
70% 70.1% 62,657 62,721
60% 59.4% 53,706 53,185
50% 50.5% 44,755 45,159
40% 40.1% 35,804 35,918
30% 30.3% 26,853 27,139
20% 19.6% 17,902 17,540
10% 10.1% 8,951 9,025
Active Idle   0 0
Graph of results
JVM 'L7-191.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,931
Calibration 2     88,603
Calibration 3     87,665
ssj_ops@calibrated=88,134
100% 98.3% 88,134 86,668
90% 89.6% 79,320 78,970
80% 80.1% 70,507 70,566
70% 70.9% 61,694 62,513
60% 60.3% 52,880 53,175
50% 49.9% 44,067 44,020
40% 40.2% 35,254 35,466
30% 29.8% 26,440 26,243
20% 20.2% 17,627 17,791
10% 9.8% 8,813 8,671
Active Idle   0 0
Graph of results
JVM 'L7-191.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,745
Calibration 2     90,213
Calibration 3     88,963
ssj_ops@calibrated=89,588
100% 98.5% 89,588 88,271
90% 90.1% 80,629 80,682
80% 79.4% 71,670 71,114
70% 69.8% 62,711 62,537
60% 59.8% 53,753 53,582
50% 49.0% 44,794 43,916
40% 40.1% 35,835 35,896
30% 29.9% 26,876 26,751
20% 20.3% 17,918 18,208
10% 9.9% 8,959 8,868
Active Idle   0 0
Graph of results
JVM 'L7-191.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,103
Calibration 2     89,078
Calibration 3     87,836
ssj_ops@calibrated=88,457
100% 97.9% 88,457 86,601
90% 91.2% 79,611 80,662
80% 80.7% 70,766 71,341
70% 69.1% 61,920 61,156
60% 60.6% 53,074 53,561
50% 49.7% 44,228 43,945
40% 39.9% 35,383 35,285
30% 29.9% 26,537 26,455
20% 20.1% 17,691 17,791
10% 9.9% 8,846 8,800
Active Idle   0 0
Graph of results
JVM 'L7-191.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,241
Calibration 2     89,843
Calibration 3     88,512
ssj_ops@calibrated=89,177
100% 98.4% 89,177 87,730
90% 91.2% 80,260 81,315
80% 80.4% 71,342 71,701
70% 70.8% 62,424 63,095
60% 59.8% 53,506 53,316
50% 50.5% 44,589 45,003
40% 40.3% 35,671 35,925
30% 30.0% 26,753 26,716
20% 20.0% 17,835 17,858
10% 9.7% 8,918 8,654
Active Idle   0 0
Graph of results
JVM 'L7-191.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,720
Calibration 2     89,946
Calibration 3     88,445
ssj_ops@calibrated=89,195
100% 97.9% 89,195 87,292
90% 89.6% 80,276 79,912
80% 80.2% 71,356 71,561
70% 69.6% 62,437 62,065
60% 59.8% 53,517 53,381
50% 50.1% 44,598 44,683
40% 39.6% 35,678 35,282
30% 29.7% 26,759 26,466
20% 20.2% 17,839 18,020
10% 10.2% 8,920 9,077
Active Idle   0 0
Graph of results
JVM 'L7-191.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,204
Calibration 2     89,853
Calibration 3     88,958
ssj_ops@calibrated=89,405
100% 98.8% 89,405 88,356
90% 89.9% 80,465 80,374
80% 80.6% 71,524 72,075
70% 69.5% 62,584 62,176
60% 60.7% 53,643 54,302
50% 50.1% 44,703 44,772
40% 40.6% 35,762 36,265
30% 30.6% 26,822 27,374
20% 19.8% 17,881 17,664
10% 10.2% 8,941 9,100
Active Idle   0 0
Graph of results
JVM 'L7-191.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,313
Calibration 2     89,092
Calibration 3     88,038
ssj_ops@calibrated=88,565
100% 98.3% 88,565 87,045
90% 90.6% 79,708 80,246
80% 80.1% 70,852 70,947
70% 69.6% 61,995 61,672
60% 59.4% 53,139 52,636
50% 50.0% 44,282 44,309
40% 39.7% 35,426 35,167
30% 29.8% 26,569 26,410
20% 19.8% 17,713 17,494
10% 9.7% 8,856 8,600
Active Idle   0 0
Graph of results
JVM 'L7-191.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,584
Calibration 2     90,197
Calibration 3     89,394
ssj_ops@calibrated=89,796
100% 98.8% 89,796 88,726
90% 91.0% 80,816 81,737
80% 79.0% 71,837 70,940
70% 70.4% 62,857 63,239
60% 59.2% 53,878 53,158
50% 50.0% 44,898 44,900
40% 40.2% 35,918 36,064
30% 30.0% 26,939 26,959
20% 19.7% 17,959 17,683
10% 10.2% 8,980 9,196
Active Idle   0 0
Graph of results
JVM 'L7-191.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,377
Calibration 2     92,307
Calibration 3     90,937
ssj_ops@calibrated=91,622
100% 98.5% 91,622 90,266
90% 90.3% 82,460 82,756
80% 79.8% 73,298 73,111
70% 69.7% 64,135 63,863
60% 59.6% 54,973 54,613
50% 50.9% 45,811 46,635
40% 39.5% 36,649 36,226
30% 30.6% 27,487 28,025
20% 20.5% 18,324 18,789
10% 9.7% 9,162 8,879
Active Idle   0 0
Graph of results
JVM 'L7-191.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,280
Calibration 2     89,418
Calibration 3     87,852
ssj_ops@calibrated=88,635
100% 97.9% 88,635 86,778
90% 90.9% 79,771 80,570
80% 79.9% 70,908 70,857
70% 69.2% 62,044 61,343
60% 59.7% 53,181 52,872
50% 50.6% 44,317 44,828
40% 39.4% 35,454 34,931
30% 29.6% 26,590 26,202
20% 19.6% 17,727 17,372
10% 9.7% 8,863 8,557
Active Idle   0 0
Graph of results
JVM 'L7-191.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,995
Calibration 2     89,616
Calibration 3     88,249
ssj_ops@calibrated=88,933
100% 97.9% 88,933 87,093
90% 89.8% 80,039 79,854
80% 80.4% 71,146 71,493
70% 70.3% 62,253 62,494
60% 60.6% 53,360 53,853
50% 49.6% 44,466 44,087
40% 39.9% 35,573 35,454
30% 30.4% 26,680 27,006
20% 20.1% 17,787 17,846
10% 10.2% 8,893 9,104
Active Idle   0 0
Graph of results
JVM 'L7-191.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,171
Calibration 2     89,500
Calibration 3     88,614
ssj_ops@calibrated=89,057
100% 99.0% 89,057 88,127
90% 90.4% 80,151 80,476
80% 80.4% 71,246 71,575
70% 70.0% 62,340 62,335
60% 61.0% 53,434 54,336
50% 50.5% 44,529 44,946
40% 40.0% 35,623 35,646
30% 30.5% 26,717 27,176
20% 20.2% 17,811 17,961
10% 9.8% 8,906 8,717
Active Idle   0 0
Graph of results
JVM 'L7-191.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,797
Calibration 2     88,322
Calibration 3     86,972
ssj_ops@calibrated=87,647
100% 98.5% 87,647 86,291
90% 91.2% 78,882 79,890
80% 79.6% 70,118 69,767
70% 69.5% 61,353 60,907
60% 60.0% 52,588 52,575
50% 49.6% 43,824 43,444
40% 40.5% 35,059 35,534
30% 29.8% 26,294 26,133
20% 20.1% 17,529 17,579
10% 9.7% 8,765 8,533
Active Idle   0 0
Graph of results
JVM 'L7-191.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,762
Calibration 2     88,866
Calibration 3     87,178
ssj_ops@calibrated=88,022
100% 98.0% 88,022 86,285
90% 89.7% 79,219 78,959
80% 80.4% 70,417 70,757
70% 70.3% 61,615 61,915
60% 59.5% 52,813 52,407
50% 49.4% 44,011 43,440
40% 40.4% 35,209 35,528
30% 30.2% 26,406 26,560
20% 19.9% 17,604 17,549
10% 9.7% 8,802 8,556
Active Idle   0 0
Graph of results
JVM 'L7-191.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,323
Calibration 2     90,430
Calibration 3     88,684
ssj_ops@calibrated=89,557
100% 98.2% 89,557 87,930
90% 89.8% 80,602 80,453
80% 79.5% 71,646 71,195
70% 70.5% 62,690 63,131
60% 59.2% 53,734 52,995
50% 49.9% 44,779 44,729
40% 40.5% 35,823 36,305
30% 29.7% 26,867 26,594
20% 20.5% 17,911 18,323
10% 10.1% 8,956 9,070
Active Idle   0 0
Graph of results
JVM 'L7-191.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,949
Calibration 2     89,257
Calibration 3     87,600
ssj_ops@calibrated=88,428
100% 98.3% 88,428 86,960
90% 90.4% 79,586 79,983
80% 81.2% 70,743 71,800
70% 69.7% 61,900 61,632
60% 60.4% 53,057 53,420
50% 49.6% 44,214 43,864
40% 40.0% 35,371 35,380
30% 30.2% 26,529 26,745
20% 19.8% 17,686 17,541
10% 10.4% 8,843 9,171
Active Idle   0 0
Graph of results
JVM 'L7-191.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,482
Calibration 2     89,786
Calibration 3     87,764
ssj_ops@calibrated=88,775
100% 98.1% 88,775 87,074
90% 90.2% 79,898 80,093
80% 79.9% 71,020 70,900
70% 70.0% 62,143 62,161
60% 60.4% 53,265 53,643
50% 50.7% 44,388 44,997
40% 39.7% 35,510 35,254
30% 30.3% 26,633 26,916
20% 20.6% 17,755 18,256
10% 9.7% 8,878 8,628
Active Idle   0 0

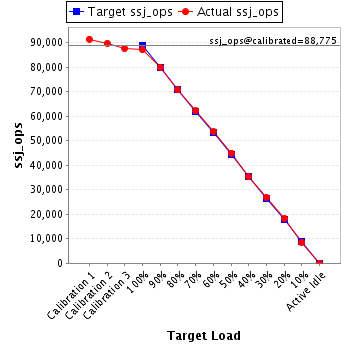

Graph of results
JVM 'L7-191.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,313
Calibration 2     89,684
Calibration 3     88,569
ssj_ops@calibrated=89,126
100% 98.5% 89,126 87,776
90% 90.9% 80,214 81,002
80% 79.6% 71,301 70,900
70% 68.9% 62,388 61,407
60% 59.6% 53,476 53,086
50% 50.2% 44,563 44,731
40% 39.9% 35,651 35,548
30% 29.9% 26,738 26,677
20% 20.1% 17,825 17,955
10% 9.9% 8,913 8,804
Active Idle   0 0
Graph of results
JVM 'L7-191.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,728
Calibration 2     88,360
Calibration 3     86,102
ssj_ops@calibrated=87,231
100% 98.1% 87,231 85,572
90% 90.0% 78,508 78,530
80% 79.7% 69,785 69,498
70% 70.0% 61,062 61,040
60% 60.3% 52,339 52,579
50% 49.7% 43,616 43,374
40% 40.2% 34,892 35,027
30% 29.8% 26,169 26,007
20% 20.3% 17,446 17,715
10% 10.1% 8,723 8,837
Active Idle   0 0
Graph of results
JVM 'L7-191.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,866
Calibration 2     89,441
Calibration 3     87,787
ssj_ops@calibrated=88,614
100% 97.8% 88,614 86,700
90% 90.4% 79,752 80,083
80% 79.6% 70,891 70,563
70% 70.6% 62,030 62,543
60% 60.6% 53,168 53,685
50% 50.2% 44,307 44,528
40% 39.7% 35,445 35,213
30% 29.9% 26,584 26,490
20% 20.1% 17,723 17,791
10% 10.0% 8,861 8,883
Active Idle   0 0
Graph of results
JVM 'L7-191.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,267
Calibration 2     88,049
Calibration 3     86,394
ssj_ops@calibrated=87,222
100% 98.2% 87,222 85,645
90% 89.2% 78,500 77,818
80% 79.5% 69,777 69,344
70% 70.3% 61,055 61,284
60% 59.7% 52,333 52,098
50% 49.2% 43,611 42,923
40% 39.9% 34,889 34,780
30% 30.2% 26,167 26,346
20% 19.6% 17,444 17,117
10% 9.6% 8,722 8,400
Active Idle   0 0

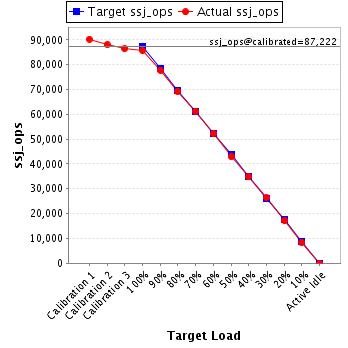

Graph of results
JVM 'L7-191.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,521
Calibration 2     89,470
Calibration 3     87,668
ssj_ops@calibrated=88,569
100% 98.4% 88,569 87,159
90% 91.6% 79,712 81,116
80% 79.2% 70,855 70,189
70% 69.8% 61,998 61,797
60% 59.8% 53,141 52,953
50% 51.1% 44,284 45,297
40% 40.0% 35,427 35,397
30% 29.8% 26,571 26,394
20% 19.6% 17,714 17,341
10% 10.1% 8,857 8,942
Active Idle   0 0
Graph of results
JVM 'L7-191.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,881
Calibration 2     89,735
Calibration 3     88,186
ssj_ops@calibrated=88,960
100% 97.8% 88,960 86,969
90% 90.3% 80,064 80,328
80% 80.2% 71,168 71,373
70% 69.4% 62,272 61,737
60% 59.5% 53,376 52,901
50% 50.5% 44,480 44,943
40% 40.3% 35,584 35,820
30% 29.5% 26,688 26,287
20% 19.4% 17,792 17,261
10% 10.6% 8,896 9,445
Active Idle   0 0
Graph of results
JVM 'L7-191.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,600
Calibration 2     89,878
Calibration 3     87,703
ssj_ops@calibrated=88,791
100% 98.2% 88,791 87,205
90% 90.2% 79,911 80,095
80% 81.4% 71,032 72,234
70% 69.7% 62,153 61,861
60% 60.9% 53,274 54,040
50% 49.8% 44,395 44,261
40% 39.6% 35,516 35,205
30% 30.2% 26,637 26,797
20% 20.1% 17,758 17,885
10% 9.9% 8,879 8,821
Active Idle   0 0
Graph of results
JVM 'L7-191.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,516
Calibration 2     89,731
Calibration 3     87,768
ssj_ops@calibrated=88,749
100% 98.4% 88,749 87,292
90% 91.3% 79,874 81,001
80% 81.2% 70,999 72,045
70% 69.7% 62,125 61,850
60% 59.5% 53,250 52,766
50% 49.7% 44,375 44,109
40% 39.8% 35,500 35,361
30% 30.3% 26,625 26,878
20% 20.3% 17,750 17,987
10% 9.8% 8,875 8,683
Active Idle   0 0

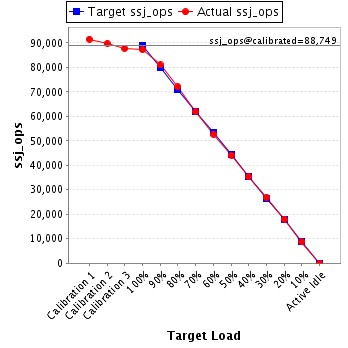

Graph of results
JVM 'L7-191.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,399
Calibration 2     88,791
Calibration 3     87,251
ssj_ops@calibrated=88,021
100% 98.8% 88,021 86,937
90% 90.6% 79,219 79,750
80% 79.2% 70,417 69,691
70% 70.2% 61,615 61,770
60% 60.2% 52,813 52,951
50% 49.9% 44,010 43,896
40% 39.8% 35,208 35,027
30% 30.3% 26,406 26,633
20% 20.0% 17,604 17,621
10% 9.9% 8,802 8,734
Active Idle   0 0
Graph of results
JVM 'L7-191.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,907
Calibration 2     88,335
Calibration 3     86,922
ssj_ops@calibrated=87,628
100% 97.6% 87,628 85,510
90% 90.8% 78,865 79,533
80% 79.2% 70,103 69,391
70% 70.7% 61,340 61,919
60% 59.3% 52,577 51,988
50% 49.7% 43,814 43,569
40% 40.3% 35,051 35,281
30% 30.0% 26,288 26,315
20% 20.2% 17,526 17,719
10% 10.2% 8,763 8,903
Active Idle   0 0
Graph of results
