Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,987,903
ssj_ops@100% per JVM = 89,070
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,144,141
Calibration 2     5,098,823
Calibration 3     5,000,739
ssj_ops@calibrated=5,049,781
100% 98.8% 5,049,781 4,987,903
90% 90.4% 4,544,803 4,565,778
80% 80.2% 4,039,825 4,050,160
70% 70.0% 3,534,847 3,534,362
60% 59.9% 3,029,869 3,024,155
50% 50.0% 2,524,890 2,523,447
40% 39.9% 2,019,912 2,017,287
30% 30.0% 1,514,934 1,515,449
20% 20.0% 1,009,956 1,009,054
10% 10.0% 504,978 503,447
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
R2-182.001 88,633
R2-182.002 89,250
R2-182.003 90,776
R2-182.004 88,685
R2-182.005 90,505
R2-182.006 88,093
R2-182.007 90,352
R2-182.008 90,334
R2-182.009 89,477
R2-182.010 88,279
R2-182.011 89,028
R2-182.012 90,891
R2-182.013 91,948
R2-182.014 88,887
R2-182.015 88,980
R2-182.016 89,887
R2-182.017 88,910
R2-182.018 88,740
R2-182.019 88,291
R2-182.020 90,237
R2-182.021 89,747
R2-182.022 88,812
R2-182.023 91,125
R2-182.024 90,405
R2-182.025 89,946
R2-182.026 88,802
R2-182.027 89,399
R2-182.028 88,362
R2-182.029 87,746
R2-182.030 89,994
R2-182.031 87,150
R2-182.032 88,779
R2-182.033 90,242
R2-182.034 90,462
R2-182.035 86,901
R2-182.036 88,285
R2-182.037 90,492
R2-182.038 88,916
R2-182.039 89,497
R2-182.040 87,677
R2-182.041 87,880
R2-182.042 88,354
R2-182.043 87,265
R2-182.044 88,723
R2-182.045 87,735
R2-182.046 87,650
R2-182.047 87,089
R2-182.048 89,420
R2-182.049 88,010
R2-182.050 87,660
R2-182.051 89,004
R2-182.052 89,253
R2-182.053 89,062
R2-182.054 90,135
R2-182.055 88,027
R2-182.056 89,713
ssj_ops@100% 4,987,903
ssj_ops@100% per JVM 89,070

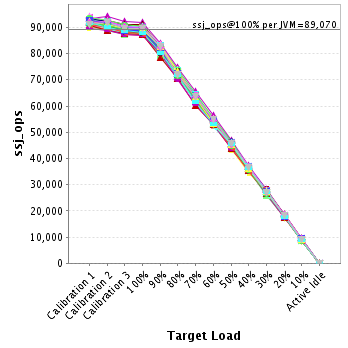

Graph of per-instance results
JVM 'R2-182.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,006
Calibration 2     91,070
Calibration 3     89,633
ssj_ops@calibrated=90,352
100% 98.1% 90,352 88,633
90% 90.2% 81,317 81,489
80% 80.0% 72,281 72,266
70% 70.3% 63,246 63,529
60% 60.4% 54,211 54,536
50% 50.1% 45,176 45,269
40% 40.1% 36,141 36,191
30% 30.0% 27,106 27,066
20% 19.8% 18,070 17,853
10% 10.0% 9,035 9,067
Active Idle   0 0
Graph of results
JVM 'R2-182.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,029
Calibration 2     91,687
Calibration 3     90,171
ssj_ops@calibrated=90,929
100% 98.2% 90,929 89,250
90% 89.6% 81,836 81,482
80% 80.5% 72,743 73,175
70% 69.3% 63,650 63,009
60% 60.1% 54,558 54,638
50% 49.9% 45,465 45,338
40% 40.2% 36,372 36,586
30% 30.8% 27,279 28,011
20% 19.8% 18,186 18,000
10% 9.4% 9,093 8,519
Active Idle   0 0
Graph of results
JVM 'R2-182.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,908
Calibration 2     92,317
Calibration 3     91,085
ssj_ops@calibrated=91,701
100% 99.0% 91,701 90,776
90% 91.2% 82,531 83,597
80% 79.7% 73,361 73,095
70% 69.9% 64,191 64,071
60% 59.7% 55,020 54,708
50% 49.4% 45,850 45,313
40% 39.5% 36,680 36,190
30% 30.0% 27,510 27,511
20% 20.2% 18,340 18,511
10% 10.2% 9,170 9,354
Active Idle   0 0
Graph of results
JVM 'R2-182.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,126
Calibration 2     90,265
Calibration 3     88,026
ssj_ops@calibrated=89,145
100% 99.5% 89,145 88,685
90% 90.1% 80,231 80,361
80% 80.9% 71,316 72,085
70% 69.3% 62,402 61,776
60% 59.4% 53,487 52,970
50% 49.5% 44,573 44,131
40% 40.0% 35,658 35,674
30% 29.9% 26,744 26,665
20% 19.9% 17,829 17,774
10% 9.6% 8,915 8,545
Active Idle   0 0
Graph of results
JVM 'R2-182.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,837
Calibration 2     91,540
Calibration 3     90,269
ssj_ops@calibrated=90,904
100% 99.6% 90,904 90,505
90% 89.8% 81,814 81,644
80% 79.6% 72,723 72,394
70% 69.8% 63,633 63,406
60% 60.1% 54,543 54,607
50% 49.9% 45,452 45,378
40% 40.0% 36,362 36,371
30% 30.5% 27,271 27,751
20% 20.7% 18,181 18,784
10% 9.6% 9,090 8,771
Active Idle   0 0
Graph of results
JVM 'R2-182.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,698
Calibration 2     89,910
Calibration 3     88,655
ssj_ops@calibrated=89,283
100% 98.7% 89,283 88,093
90% 89.9% 80,354 80,287
80% 81.2% 71,426 72,493
70% 70.6% 62,498 63,063
60% 59.6% 53,570 53,203
50% 49.7% 44,641 44,385
40% 39.5% 35,713 35,256
30% 29.9% 26,785 26,678
20% 20.2% 17,857 18,048
10% 10.2% 8,928 9,121
Active Idle   0 0
Graph of results
JVM 'R2-182.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,986
Calibration 2     92,551
Calibration 3     91,090
ssj_ops@calibrated=91,821
100% 98.4% 91,821 90,352
90% 90.6% 82,639 83,226
80% 80.4% 73,456 73,816
70% 69.2% 64,274 63,553
60% 60.7% 55,092 55,738
50% 50.7% 45,910 46,528
40% 39.7% 36,728 36,418
30% 29.5% 27,546 27,058
20% 19.7% 18,364 18,089
10% 9.9% 9,182 9,045
Active Idle   0 0
Graph of results
JVM 'R2-182.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,552
Calibration 2     92,158
Calibration 3     90,321
ssj_ops@calibrated=91,239
100% 99.0% 91,239 90,334
90% 89.6% 82,115 81,710
80% 80.5% 72,992 73,450
70% 69.6% 63,868 63,541
60% 59.5% 54,744 54,255
50% 50.3% 45,620 45,936
40% 39.5% 36,496 36,028
30% 29.0% 27,372 26,497
20% 20.3% 18,248 18,526
10% 10.1% 9,124 9,220
Active Idle   0 0
Graph of results
JVM 'R2-182.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,789
Calibration 2     91,360
Calibration 3     90,468
ssj_ops@calibrated=90,914
100% 98.4% 90,914 89,477
90% 90.9% 81,823 82,610
80% 79.4% 72,731 72,180
70% 70.0% 63,640 63,611
60% 59.8% 54,548 54,397
50% 50.3% 45,457 45,764
40% 40.0% 36,366 36,350
30% 30.9% 27,274 28,048
20% 20.1% 18,183 18,242
10% 10.2% 9,091 9,286
Active Idle   0 0
Graph of results
JVM 'R2-182.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,751
Calibration 2     90,468
Calibration 3     88,479
ssj_ops@calibrated=89,473
100% 98.7% 89,473 88,279
90% 90.2% 80,526 80,732
80% 79.8% 71,579 71,430
70% 70.7% 62,631 63,243
60% 60.2% 53,684 53,891
50% 49.8% 44,737 44,534
40% 39.9% 35,789 35,674
30% 30.6% 26,842 27,340
20% 19.7% 17,895 17,663
10% 9.8% 8,947 8,804
Active Idle   0 0
Graph of results
JVM 'R2-182.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,619
Calibration 2     90,718
Calibration 3     89,194
ssj_ops@calibrated=89,956
100% 99.0% 89,956 89,028
90% 90.7% 80,960 81,593
80% 79.8% 71,965 71,754
70% 70.4% 62,969 63,289
60% 60.1% 53,974 54,101
50% 49.5% 44,978 44,568
40% 39.6% 35,982 35,606
30% 29.2% 26,987 26,282
20% 19.8% 17,991 17,779
10% 10.0% 8,996 9,029
Active Idle   0 0
Graph of results
JVM 'R2-182.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,284
Calibration 2     92,305
Calibration 3     90,776
ssj_ops@calibrated=91,541
100% 99.3% 91,541 90,891
90% 90.7% 82,387 83,040
80% 80.9% 73,233 74,054
70% 69.3% 64,079 63,403
60% 59.6% 54,924 54,587
50% 49.8% 45,770 45,584
40% 40.4% 36,616 36,959
30% 30.1% 27,462 27,557
20% 20.1% 18,308 18,366
10% 9.9% 9,154 9,061
Active Idle   0 0
Graph of results

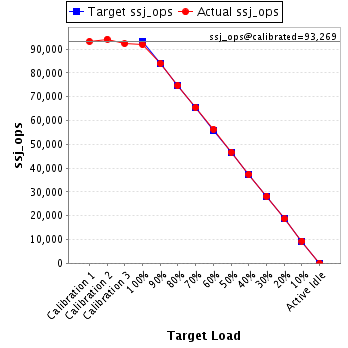

JVM 'R2-182.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,291
Calibration 2     94,216
Calibration 3     92,321
ssj_ops@calibrated=93,269
100% 98.6% 93,269 91,948
90% 90.0% 83,942 83,972
80% 80.1% 74,615 74,700
70% 70.3% 65,288 65,550
60% 60.4% 55,961 56,350
50% 50.1% 46,634 46,725
40% 40.1% 37,307 37,417
30% 30.3% 27,981 28,224
20% 20.0% 18,654 18,641
10% 10.0% 9,327 9,345
Active Idle   0 0
Graph of results
JVM 'R2-182.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,587
Calibration 2     90,731
Calibration 3     88,851
ssj_ops@calibrated=89,791
100% 99.0% 89,791 88,887
90% 90.8% 80,812 81,567
80% 80.0% 71,833 71,797
70% 70.5% 62,854 63,332
60% 60.5% 53,875 54,349
50% 49.4% 44,895 44,312
40% 40.1% 35,916 36,030
30% 29.9% 26,937 26,835
20% 20.1% 17,958 18,071
10% 10.0% 8,979 9,016
Active Idle   0 0
Graph of results
JVM 'R2-182.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,817
Calibration 2     90,806
Calibration 3     89,132
ssj_ops@calibrated=89,969
100% 98.9% 89,969 88,980
90% 91.3% 80,972 82,132
80% 79.7% 71,975 71,663
70% 69.7% 62,978 62,688
60% 59.4% 53,982 53,408
50% 49.9% 44,985 44,875
40% 39.8% 35,988 35,828
30% 29.7% 26,991 26,689
20% 20.3% 17,994 18,258
10% 10.0% 8,997 9,031
Active Idle   0 0
Graph of results
JVM 'R2-182.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,588
Calibration 2     91,430
Calibration 3     89,945
ssj_ops@calibrated=90,687
100% 99.1% 90,687 89,887
90% 89.4% 81,619 81,065
80% 80.1% 72,550 72,666
70% 70.6% 63,481 64,068
60% 59.1% 54,412 53,602
50% 49.5% 45,344 44,930
40% 39.8% 36,275 36,102
30% 30.5% 27,206 27,696
20% 20.3% 18,137 18,379
10% 9.6% 9,069 8,671
Active Idle   0 0
Graph of results
JVM 'R2-182.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,149
Calibration 2     90,860
Calibration 3     89,235
ssj_ops@calibrated=90,047
100% 98.7% 90,047 88,910
90% 91.0% 81,042 81,967
80% 80.8% 72,038 72,754
70% 70.7% 63,033 63,674
60% 58.3% 54,028 52,466
50% 49.7% 45,024 44,745
40% 39.8% 36,019 35,806
30% 30.6% 27,014 27,563
20% 19.6% 18,009 17,656
10% 9.7% 9,005 8,737
Active Idle   0 0
Graph of results
JVM 'R2-182.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,978
Calibration 2     90,117
Calibration 3     88,794
ssj_ops@calibrated=89,456
100% 99.2% 89,456 88,740
90% 90.7% 80,510 81,148
80% 79.8% 71,565 71,347
70% 70.0% 62,619 62,642
60% 60.7% 53,674 54,291
50% 48.9% 44,728 43,753
40% 39.9% 35,782 35,694
30% 29.2% 26,837 26,147
20% 19.5% 17,891 17,410
10% 10.1% 8,946 9,070
Active Idle   0 0
Graph of results
JVM 'R2-182.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,864
Calibration 2     89,703
Calibration 3     88,209
ssj_ops@calibrated=88,956
100% 99.3% 88,956 88,291
90% 89.8% 80,060 79,886
80% 80.5% 71,165 71,600
70% 70.1% 62,269 62,382
60% 59.8% 53,374 53,217
50% 48.9% 44,478 43,492
40% 38.8% 35,582 34,522
30% 30.6% 26,687 27,236
20% 20.3% 17,791 18,027
10% 10.2% 8,896 9,045
Active Idle   0 0
Graph of results
JVM 'R2-182.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,683
Calibration 2     92,076
Calibration 3     90,184
ssj_ops@calibrated=91,130
100% 99.0% 91,130 90,237
90% 90.8% 82,017 82,791
80% 80.5% 72,904 73,344
70% 69.6% 63,791 63,423
60% 59.8% 54,678 54,468
50% 49.6% 45,565 45,184
40% 40.1% 36,452 36,515
30% 29.8% 27,339 27,111
20% 20.0% 18,226 18,206
10% 10.2% 9,113 9,283
Active Idle   0 0
Graph of results
JVM 'R2-182.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,830
Calibration 2     92,114
Calibration 3     89,849
ssj_ops@calibrated=90,981
100% 98.6% 90,981 89,747
90% 91.2% 81,883 82,954
80% 80.7% 72,785 73,409
70% 70.6% 63,687 64,273
60% 60.1% 54,589 54,713
50% 48.9% 45,491 44,505
40% 40.5% 36,393 36,863
30% 29.7% 27,294 26,991
20% 20.2% 18,196 18,358
10% 9.9% 9,098 8,992
Active Idle   0 0
Graph of results
JVM 'R2-182.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,255
Calibration 2     90,434
Calibration 3     89,007
ssj_ops@calibrated=89,720
100% 99.0% 89,720 88,812
90% 90.7% 80,748 81,407
80% 79.4% 71,776 71,274
70% 71.1% 62,804 63,827
60% 60.7% 53,832 54,449
50% 50.1% 44,860 44,905
40% 39.3% 35,888 35,277
30% 29.3% 26,916 26,319
20% 19.7% 17,944 17,683
10% 9.7% 8,972 8,666
Active Idle   0 0
Graph of results
JVM 'R2-182.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,109
Calibration 2     92,819
Calibration 3     91,097
ssj_ops@calibrated=91,958
100% 99.1% 91,958 91,125
90% 89.4% 82,762 82,209
80% 80.0% 73,566 73,557
70% 69.2% 64,370 63,624
60% 60.2% 55,175 55,335
50% 49.7% 45,979 45,677
40% 39.9% 36,783 36,732
30% 29.8% 27,587 27,437
20% 20.3% 18,392 18,702
10% 10.2% 9,196 9,353
Active Idle   0 0
Graph of results
JVM 'R2-182.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,366
Calibration 2     92,394
Calibration 3     90,583
ssj_ops@calibrated=91,488
100% 98.8% 91,488 90,405
90% 90.3% 82,340 82,650
80% 78.9% 73,191 72,182
70% 69.9% 64,042 63,929
60% 60.1% 54,893 54,951
50% 50.7% 45,744 46,400
40% 39.6% 36,595 36,206
30% 30.0% 27,447 27,413
20% 20.1% 18,298 18,366
10% 10.1% 9,149 9,236
Active Idle   0 0
Graph of results
JVM 'R2-182.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,382
Calibration 2     91,613
Calibration 3     90,079
ssj_ops@calibrated=90,846
100% 99.0% 90,846 89,946
90% 89.5% 81,761 81,317
80% 80.0% 72,677 72,645
70% 70.4% 63,592 63,977
60% 60.8% 54,507 55,277
50% 50.5% 45,423 45,852
40% 40.0% 36,338 36,296
30% 30.1% 27,254 27,370
20% 19.7% 18,169 17,906
10% 9.5% 9,085 8,675
Active Idle   0 0
Graph of results
JVM 'R2-182.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,371
Calibration 2     91,110
Calibration 3     89,072
ssj_ops@calibrated=90,091
100% 98.6% 90,091 88,802
90% 90.5% 81,082 81,548
80% 81.1% 72,073 73,088
70% 69.6% 63,064 62,741
60% 59.1% 54,055 53,229
50% 50.2% 45,045 45,223
40% 39.9% 36,036 35,912
30% 30.2% 27,027 27,178
20% 20.0% 18,018 17,997
10% 9.9% 9,009 8,920
Active Idle   0 0
Graph of results
JVM 'R2-182.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,479
Calibration 2     91,108
Calibration 3     89,261
ssj_ops@calibrated=90,185
100% 99.1% 90,185 89,399
90% 89.6% 81,166 80,810
80% 80.9% 72,148 72,978
70% 69.8% 63,129 62,950
60% 60.1% 54,111 54,202
50% 49.4% 45,092 44,585
40% 39.9% 36,074 35,976
30% 30.1% 27,055 27,110
20% 19.4% 18,037 17,524
10% 9.9% 9,018 8,959
Active Idle   0 0
Graph of results
JVM 'R2-182.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,203
Calibration 2     90,083
Calibration 3     88,987
ssj_ops@calibrated=89,535
100% 98.7% 89,535 88,362
90% 90.7% 80,582 81,232
80% 79.2% 71,628 70,934
70% 70.2% 62,675 62,829
60% 60.1% 53,721 53,839
50% 50.3% 44,768 45,054
40% 39.7% 35,814 35,577
30% 30.6% 26,861 27,409
20% 20.1% 17,907 17,983
10% 9.8% 8,954 8,784
Active Idle   0 0
Graph of results
JVM 'R2-182.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,339
Calibration 2     89,368
Calibration 3     88,028
ssj_ops@calibrated=88,698
100% 98.9% 88,698 87,746
90% 89.9% 79,828 79,701
80% 79.8% 70,958 70,751
70% 69.5% 62,088 61,683
60% 59.4% 53,219 52,724
50% 49.2% 44,349 43,675
40% 40.0% 35,479 35,510
30% 30.5% 26,609 27,065
20% 20.1% 17,740 17,798
10% 9.8% 8,870 8,700
Active Idle   0 0
Graph of results

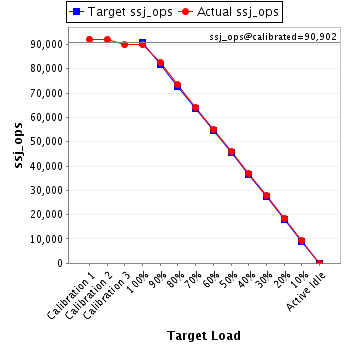

JVM 'R2-182.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,174
Calibration 2     92,021
Calibration 3     89,783
ssj_ops@calibrated=90,902
100% 99.0% 90,902 89,994
90% 90.8% 81,812 82,576
80% 80.7% 72,721 73,328
70% 70.3% 63,631 63,865
60% 60.4% 54,541 54,931
50% 50.6% 45,451 45,973
40% 40.5% 36,361 36,815
30% 30.7% 27,271 27,907
20% 20.2% 18,180 18,365
10% 10.3% 9,090 9,366
Active Idle   0 0
Graph of results
JVM 'R2-182.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,401
Calibration 2     88,953
Calibration 3     87,409
ssj_ops@calibrated=88,181
100% 98.8% 88,181 87,150
90% 89.8% 79,363 79,183
80% 79.8% 70,545 70,393
70% 71.5% 61,727 63,027
60% 59.9% 52,909 52,833
50% 50.2% 44,091 44,308
40% 40.3% 35,273 35,508
30% 29.3% 26,454 25,808
20% 19.7% 17,636 17,395
10% 9.8% 8,818 8,626
Active Idle   0 0
Graph of results
JVM 'R2-182.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,980
Calibration 2     90,599
Calibration 3     88,882
ssj_ops@calibrated=89,741
100% 98.9% 89,741 88,779
90% 90.4% 80,767 81,096
80% 79.5% 71,793 71,306
70% 69.6% 62,818 62,460
60% 58.9% 53,844 52,857
50% 50.5% 44,870 45,319
40% 39.9% 35,896 35,788
30% 30.0% 26,922 26,886
20% 19.9% 17,948 17,894
10% 9.9% 8,974 8,874
Active Idle   0 0
Graph of results

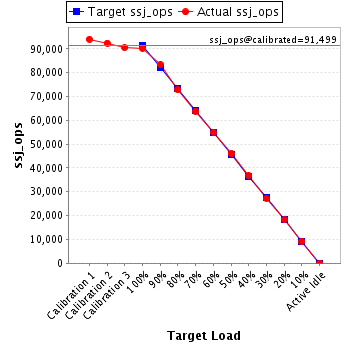

JVM 'R2-182.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,092
Calibration 2     92,477
Calibration 3     90,522
ssj_ops@calibrated=91,499
100% 98.6% 91,499 90,242
90% 91.3% 82,350 83,516
80% 79.6% 73,200 72,854
70% 69.8% 64,050 63,905
60% 60.2% 54,900 55,079
50% 50.3% 45,750 46,028
40% 40.3% 36,600 36,911
30% 29.8% 27,450 27,266
20% 19.9% 18,300 18,208
10% 10.1% 9,150 9,200
Active Idle   0 0
Graph of results

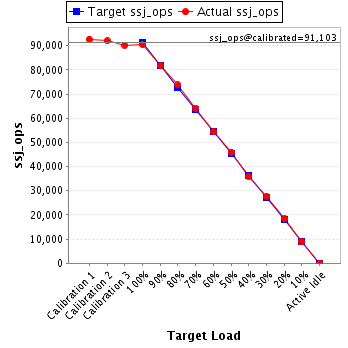

JVM 'R2-182.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,682
Calibration 2     91,998
Calibration 3     90,209
ssj_ops@calibrated=91,103
100% 99.3% 91,103 90,462
90% 89.8% 81,993 81,796
80% 80.9% 72,883 73,744
70% 70.4% 63,772 64,165
60% 59.7% 54,662 54,380
50% 50.5% 45,552 45,981
40% 39.6% 36,441 36,078
30% 30.4% 27,331 27,732
20% 20.1% 18,221 18,328
10% 9.9% 9,110 9,050
Active Idle   0 0
Graph of results
JVM 'R2-182.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,851
Calibration 2     89,313
Calibration 3     87,277
ssj_ops@calibrated=88,295
100% 98.4% 88,295 86,901
90% 90.7% 79,465 80,048
80% 80.7% 70,636 71,284
70% 70.1% 61,806 61,881
60% 59.8% 52,977 52,835
50% 49.8% 44,147 43,939
40% 40.4% 35,318 35,652
30% 29.6% 26,488 26,137
20% 19.9% 17,659 17,546
10% 9.8% 8,829 8,637
Active Idle   0 0
Graph of results
JVM 'R2-182.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,188
Calibration 2     90,652
Calibration 3     88,462
ssj_ops@calibrated=89,557
100% 98.6% 89,557 88,285
90% 91.2% 80,601 81,716
80% 81.0% 71,646 72,530
70% 69.1% 62,690 61,897
60% 60.1% 53,734 53,849
50% 50.1% 44,779 44,891
40% 40.5% 35,823 36,238
30% 30.3% 26,867 27,169
20% 19.8% 17,911 17,774
10% 10.0% 8,956 8,924
Active Idle   0 0
Graph of results

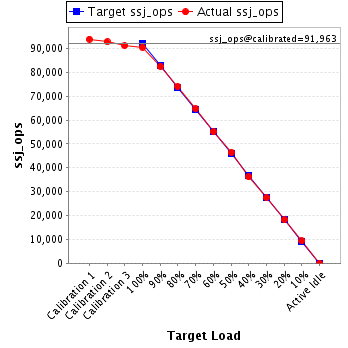

JVM 'R2-182.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,864
Calibration 2     92,773
Calibration 3     91,153
ssj_ops@calibrated=91,963
100% 98.4% 91,963 90,492
90% 89.7% 82,767 82,512
80% 80.5% 73,570 74,035
70% 70.3% 64,374 64,655
60% 59.9% 55,178 55,106
50% 50.5% 45,981 46,416
40% 39.3% 36,785 36,171
30% 29.9% 27,589 27,476
20% 19.8% 18,393 18,216
10% 10.2% 9,196 9,345
Active Idle   0 0
Graph of results

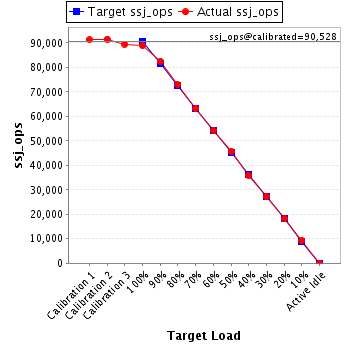

JVM 'R2-182.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,229
Calibration 2     91,537
Calibration 3     89,520
ssj_ops@calibrated=90,528
100% 98.2% 90,528 88,916
90% 91.2% 81,475 82,585
80% 80.7% 72,423 73,018
70% 69.9% 63,370 63,323
60% 59.8% 54,317 54,098
50% 50.4% 45,264 45,593
40% 39.7% 36,211 35,967
30% 30.1% 27,158 27,268
20% 20.0% 18,106 18,083
10% 10.3% 9,053 9,367
Active Idle   0 0
Graph of results

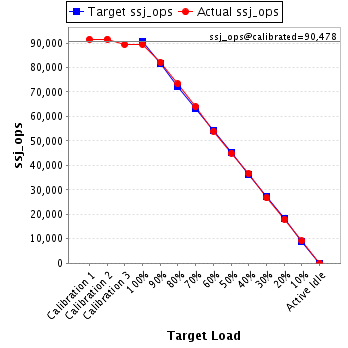

JVM 'R2-182.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,516
Calibration 2     91,575
Calibration 3     89,381
ssj_ops@calibrated=90,478
100% 98.9% 90,478 89,497
90% 90.8% 81,430 82,165
80% 81.1% 72,382 73,356
70% 70.7% 63,335 63,986
60% 59.6% 54,287 53,905
50% 49.7% 45,239 44,938
40% 40.4% 36,191 36,586
30% 29.6% 27,143 26,742
20% 19.9% 18,096 17,982
10% 10.1% 9,048 9,158
Active Idle   0 0
Graph of results
JVM 'R2-182.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,469
Calibration 2     89,699
Calibration 3     87,765
ssj_ops@calibrated=88,732
100% 98.8% 88,732 87,677
90% 90.5% 79,859 80,281
80% 79.5% 70,986 70,560
70% 70.5% 62,112 62,565
60% 59.0% 53,239 52,334
50% 50.2% 44,366 44,519
40% 40.2% 35,493 35,650
30% 29.6% 26,620 26,226
20% 20.0% 17,746 17,772
10% 9.6% 8,873 8,546
Active Idle   0 0
Graph of results
JVM 'R2-182.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,927
Calibration 2     89,862
Calibration 3     88,350
ssj_ops@calibrated=89,106
100% 98.6% 89,106 87,880
90% 90.2% 80,196 80,344
80% 80.9% 71,285 72,115
70% 71.4% 62,374 63,597
60% 60.2% 53,464 53,645
50% 50.2% 44,553 44,734
40% 39.9% 35,642 35,585
30% 30.2% 26,732 26,897
20% 19.6% 17,821 17,462
10% 10.1% 8,911 9,032
Active Idle   0 0
Graph of results
JVM 'R2-182.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,422
Calibration 2     90,384
Calibration 3     88,798
ssj_ops@calibrated=89,591
100% 98.6% 89,591 88,354
90% 90.4% 80,632 81,020
80% 81.1% 71,673 72,658
70% 70.0% 62,714 62,738
60% 59.3% 53,755 53,143
50% 49.5% 44,796 44,305
40% 39.8% 35,836 35,640
30% 29.9% 26,877 26,759
20% 19.4% 17,918 17,411
10% 9.9% 8,959 8,900
Active Idle   0 0
Graph of results
JVM 'R2-182.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,534
Calibration 2     88,838
Calibration 3     87,481
ssj_ops@calibrated=88,159
100% 99.0% 88,159 87,265
90% 89.0% 79,343 78,433
80% 80.1% 70,527 70,589
70% 68.4% 61,712 60,313
60% 60.1% 52,896 53,020
50% 49.7% 44,080 43,779
40% 40.2% 35,264 35,472
30% 30.1% 26,448 26,561
20% 20.0% 17,632 17,616
10% 10.1% 8,816 8,879
Active Idle   0 0
Graph of results
JVM 'R2-182.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,548
Calibration 2     91,333
Calibration 3     89,426
ssj_ops@calibrated=90,380
100% 98.2% 90,380 88,723
90% 90.5% 81,342 81,818
80% 79.7% 72,304 72,064
70% 69.7% 63,266 62,981
60% 60.2% 54,228 54,394
50% 50.5% 45,190 45,653
40% 39.6% 36,152 35,799
30% 29.9% 27,114 27,036
20% 19.5% 18,076 17,661
10% 9.7% 9,038 8,794
Active Idle   0 0
Graph of results
JVM 'R2-182.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,457
Calibration 2     90,199
Calibration 3     88,385
ssj_ops@calibrated=89,292
100% 98.3% 89,292 87,735
90% 90.0% 80,363 80,327
80% 80.0% 71,434 71,459
70% 70.7% 62,504 63,114
60% 59.8% 53,575 53,364
50% 50.2% 44,646 44,845
40% 40.1% 35,717 35,792
30% 30.0% 26,788 26,798
20% 20.6% 17,858 18,351
10% 10.2% 8,929 9,129
Active Idle   0 0
Graph of results
JVM 'R2-182.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,240
Calibration 2     90,272
Calibration 3     88,084
ssj_ops@calibrated=89,178
100% 98.3% 89,178 87,650
90% 91.0% 80,260 81,182
80% 79.7% 71,342 71,095
70% 69.8% 62,425 62,228
60% 59.2% 53,507 52,774
50% 50.5% 44,589 44,999
40% 40.2% 35,671 35,858
30% 30.3% 26,753 27,042
20% 19.7% 17,836 17,589
10% 9.9% 8,918 8,789
Active Idle   0 0
Graph of results

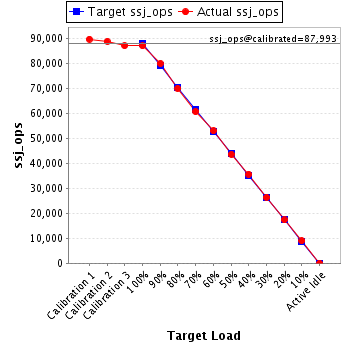

JVM 'R2-182.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,756
Calibration 2     88,847
Calibration 3     87,139
ssj_ops@calibrated=87,993
100% 99.0% 87,993 87,089
90% 90.9% 79,194 79,989
80% 79.6% 70,394 70,057
70% 69.0% 61,595 60,745
60% 60.2% 52,796 53,002
50% 49.6% 43,997 43,615
40% 40.6% 35,197 35,700
30% 30.0% 26,398 26,400
20% 19.7% 17,599 17,337
10% 10.3% 8,799 9,021
Active Idle   0 0
Graph of results
JVM 'R2-182.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,768
Calibration 2     91,546
Calibration 3     89,475
ssj_ops@calibrated=90,511
100% 98.8% 90,511 89,420
90% 90.1% 81,460 81,575
80% 80.0% 72,409 72,378
70% 70.6% 63,357 63,918
60% 60.0% 54,306 54,279
50% 50.3% 45,255 45,522
40% 40.2% 36,204 36,421
30% 30.0% 27,153 27,160
20% 20.2% 18,102 18,277
10% 9.9% 9,051 8,987
Active Idle   0 0
Graph of results
JVM 'R2-182.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,926
Calibration 2     91,033
Calibration 3     88,357
ssj_ops@calibrated=89,695
100% 98.1% 89,695 88,010
90% 89.6% 80,725 80,348
80% 81.4% 71,756 73,030
70% 70.0% 62,786 62,798
60% 60.2% 53,817 53,963
50% 50.7% 44,847 45,454
40% 39.7% 35,878 35,578
30% 29.6% 26,908 26,545
20% 20.3% 17,939 18,223
10% 10.2% 8,969 9,117
Active Idle   0 0
Graph of results
JVM 'R2-182.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,019
Calibration 2     90,091
Calibration 3     87,947
ssj_ops@calibrated=89,019
100% 98.5% 89,019 87,660
90% 91.4% 80,117 81,361
80% 81.2% 71,215 72,312
70% 70.1% 62,313 62,442
60% 59.9% 53,411 53,339
50% 49.6% 44,509 44,185
40% 39.4% 35,608 35,040
30% 30.1% 26,706 26,837
20% 20.1% 17,804 17,930
10% 9.9% 8,902 8,817
Active Idle   0 0
Graph of results
JVM 'R2-182.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,621
Calibration 2     91,422
Calibration 3     88,785
ssj_ops@calibrated=90,104
100% 98.8% 90,104 89,004
90% 90.1% 81,093 81,195
80% 80.5% 72,083 72,537
70% 68.8% 63,073 62,015
60% 60.6% 54,062 54,622
50% 50.3% 45,052 45,360
40% 40.2% 36,041 36,236
30% 30.2% 27,031 27,251
20% 20.0% 18,021 18,018
10% 10.3% 9,010 9,315
Active Idle   0 0
Graph of results
JVM 'R2-182.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,570
Calibration 2     90,710
Calibration 3     89,243
ssj_ops@calibrated=89,977
100% 99.2% 89,977 89,253
90% 91.6% 80,979 82,397
80% 79.5% 71,981 71,558
70% 69.4% 62,984 62,460
60% 59.8% 53,986 53,833
50% 50.0% 44,988 44,967
40% 39.7% 35,991 35,743
30% 29.6% 26,993 26,661
20% 20.4% 17,995 18,358
10% 9.8% 8,998 8,854
Active Idle   0 0
Graph of results

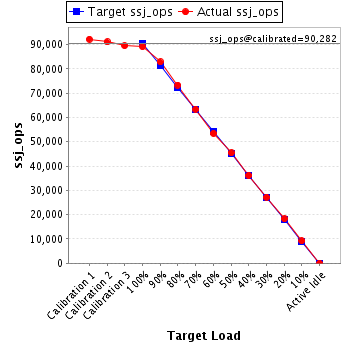

JVM 'R2-182.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,201
Calibration 2     91,053
Calibration 3     89,511
ssj_ops@calibrated=90,282
100% 98.6% 90,282 89,062
90% 91.7% 81,254 82,828
80% 81.2% 72,225 73,336
70% 70.2% 63,197 63,400
60% 59.2% 54,169 53,417
50% 50.3% 45,141 45,412
40% 40.1% 36,113 36,160
30% 30.1% 27,085 27,199
20% 20.2% 18,056 18,262
10% 10.2% 9,028 9,223
Active Idle   0 0
Graph of results
JVM 'R2-182.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,799
Calibration 2     92,232
Calibration 3     90,304
ssj_ops@calibrated=91,268
100% 98.8% 91,268 90,135
90% 90.4% 82,141 82,481
80% 78.8% 73,014 71,932
70% 69.7% 63,888 63,659
60% 59.8% 54,761 54,575
50% 49.5% 45,634 45,207
40% 40.3% 36,507 36,762
30% 29.6% 27,380 26,989
20% 20.2% 18,254 18,454
10% 10.2% 9,127 9,354
Active Idle   0 0
Graph of results
JVM 'R2-182.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,765
Calibration 2     90,108
Calibration 3     88,630
ssj_ops@calibrated=89,369
100% 98.5% 89,369 88,027
90% 89.8% 80,432 80,284
80% 80.2% 71,495 71,655
70% 68.8% 62,558 61,452
60% 59.5% 53,621 53,136
50% 50.7% 44,685 45,341
40% 40.5% 35,748 36,181
30% 30.6% 26,811 27,339
20% 19.8% 17,874 17,711
10% 9.8% 8,937 8,792
Active Idle   0 0
Graph of results
JVM 'R2-182.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,265
Calibration 2     91,965
Calibration 3     89,661
ssj_ops@calibrated=90,813
100% 98.8% 90,813 89,713
90% 91.0% 81,732 82,595
80% 79.4% 72,651 72,096
70% 70.1% 63,569 63,689
60% 60.5% 54,488 54,941
50% 50.2% 45,407 45,543
40% 40.1% 36,325 36,388
30% 29.8% 27,244 27,103
20% 20.1% 18,163 18,229
10% 10.0% 9,081 9,046
Active Idle   0 0
Graph of results
