Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,923,150
ssj_ops@100% per JVM = 87,913
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,102,357
Calibration 2     5,053,678
Calibration 3     4,976,496
ssj_ops@calibrated=5,015,087
100% 98.2% 5,015,087 4,923,150
90% 90.2% 4,513,578 4,525,768
80% 79.9% 4,012,069 4,007,687
70% 70.1% 3,510,561 3,515,351
60% 59.9% 3,009,052 3,004,541
50% 50.0% 2,507,543 2,509,424
40% 40.0% 2,006,035 2,004,551
30% 30.0% 1,504,526 1,502,241
20% 20.1% 1,003,017 1,006,162
10% 10.0% 501,509 501,561
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
R3-184.001 88,434
R3-184.002 88,963
R3-184.003 88,002
R3-184.004 88,057
R3-184.005 88,681
R3-184.006 88,250
R3-184.007 87,687
R3-184.008 87,591
R3-184.009 89,447
R3-184.010 87,830
R3-184.011 86,131
R3-184.012 88,848
R3-184.013 88,593
R3-184.014 91,534
R3-184.015 88,539
R3-184.016 89,289
R3-184.017 88,119
R3-184.018 88,001
R3-184.019 87,753
R3-184.020 88,801
R3-184.021 88,224
R3-184.022 89,819
R3-184.023 91,208
R3-184.024 87,728
R3-184.025 89,094
R3-184.026 88,914
R3-184.027 88,686
R3-184.028 87,898
R3-184.029 87,815
R3-184.030 86,772
R3-184.031 87,215
R3-184.032 85,885
R3-184.033 88,180
R3-184.034 87,895
R3-184.035 87,858
R3-184.036 87,996
R3-184.037 87,609
R3-184.038 86,084
R3-184.039 85,970
R3-184.040 87,154
R3-184.041 88,607
R3-184.042 86,414
R3-184.043 87,077
R3-184.044 87,078
R3-184.045 87,944
R3-184.046 86,070
R3-184.047 85,441
R3-184.048 87,878
R3-184.049 88,407
R3-184.050 87,334
R3-184.051 88,212
R3-184.052 87,787
R3-184.053 89,000
R3-184.054 87,710
R3-184.055 86,933
R3-184.056 84,702
ssj_ops@100% 4,923,150
ssj_ops@100% per JVM 87,913

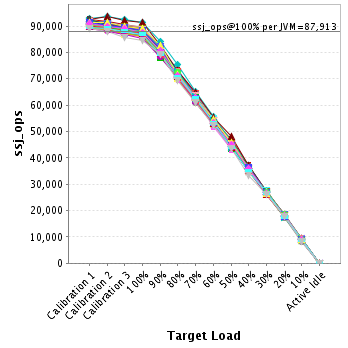

Graph of per-instance results
JVM 'R3-184.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,436
Calibration 2     90,939
Calibration 3     88,695
ssj_ops@calibrated=89,817
100% 98.5% 89,817 88,434
90% 90.1% 80,835 80,930
80% 79.8% 71,853 71,677
70% 69.6% 62,872 62,547
60% 59.8% 53,890 53,743
50% 50.6% 44,908 45,428
40% 40.6% 35,927 36,447
30% 30.1% 26,945 27,057
20% 20.2% 17,963 18,183
10% 9.8% 8,982 8,761
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,950
Calibration 2     91,633
Calibration 3     90,177
ssj_ops@calibrated=90,905
100% 97.9% 90,905 88,963
90% 90.1% 81,815 81,886
80% 80.3% 72,724 72,989
70% 70.3% 63,634 63,861
60% 60.2% 54,543 54,694
50% 50.3% 45,453 45,727
40% 39.4% 36,362 35,821
30% 30.1% 27,272 27,319
20% 19.8% 18,181 18,032
10% 9.8% 9,091 8,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,469
Calibration 2     90,109
Calibration 3     88,270
ssj_ops@calibrated=89,189
100% 98.7% 89,189 88,002
90% 90.9% 80,270 81,035
80% 79.8% 71,351 71,200
70% 71.2% 62,432 63,500
60% 59.5% 53,514 53,059
50% 50.8% 44,595 45,306
40% 40.3% 35,676 35,968
30% 30.2% 26,757 26,932
20% 20.0% 17,838 17,863
10% 10.1% 8,919 9,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,742
Calibration 2     90,933
Calibration 3     90,048
ssj_ops@calibrated=90,490
100% 97.3% 90,490 88,057
90% 90.1% 81,441 81,550
80% 79.8% 72,392 72,216
70% 70.4% 63,343 63,731
60% 60.1% 54,294 54,360
50% 50.1% 45,245 45,323
40% 39.0% 36,196 35,295
30% 29.7% 27,147 26,831
20% 20.0% 18,098 18,107
10% 10.0% 9,049 9,039
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

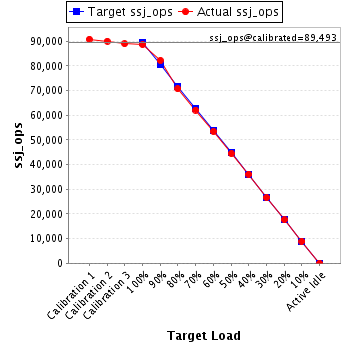

JVM 'R3-184.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,837
Calibration 2     90,047
Calibration 3     88,938
ssj_ops@calibrated=89,493
100% 99.1% 89,493 88,681
90% 91.9% 80,543 82,260
80% 79.0% 71,594 70,735
70% 69.4% 62,645 62,124
60% 59.7% 53,696 53,429
50% 49.6% 44,746 44,431
40% 40.4% 35,797 36,110
30% 29.7% 26,848 26,578
20% 19.6% 17,899 17,580
10% 9.9% 8,949 8,869
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,171
Calibration 2     90,433
Calibration 3     89,636
ssj_ops@calibrated=90,034
100% 98.0% 90,034 88,250
90% 89.8% 81,031 80,813
80% 79.3% 72,027 71,371
70% 69.3% 63,024 62,425
60% 60.1% 54,021 54,102
50% 49.3% 45,017 44,376
40% 39.8% 36,014 35,821
30% 29.6% 27,010 26,637
20% 20.0% 18,007 18,008
10% 9.8% 9,003 8,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

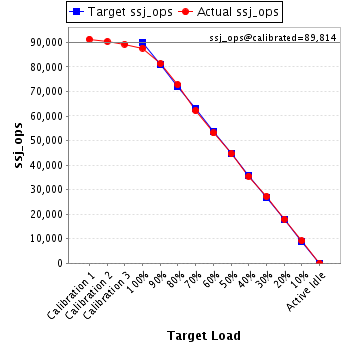

JVM 'R3-184.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,304
Calibration 2     90,367
Calibration 3     89,261
ssj_ops@calibrated=89,814
100% 97.6% 89,814 87,687
90% 90.5% 80,832 81,268
80% 81.0% 71,851 72,765
70% 69.3% 62,870 62,197
60% 59.1% 53,888 53,097
50% 49.7% 44,907 44,601
40% 39.5% 35,925 35,439
30% 30.3% 26,944 27,229
20% 20.0% 17,963 17,995
10% 10.2% 8,981 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,775
Calibration 2     90,030
Calibration 3     89,124
ssj_ops@calibrated=89,577
100% 97.8% 89,577 87,591
90% 90.2% 80,619 80,757
80% 80.1% 71,661 71,765
70% 69.8% 62,704 62,543
60% 59.1% 53,746 52,900
50% 49.6% 44,788 44,412
40% 40.0% 35,831 35,873
30% 30.0% 26,873 26,829
20% 20.0% 17,915 17,901
10% 10.1% 8,958 9,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,516
Calibration 2     91,546
Calibration 3     90,628
ssj_ops@calibrated=91,087
100% 98.2% 91,087 89,447
90% 89.1% 81,978 81,133
80% 80.4% 72,870 73,204
70% 70.1% 63,761 63,839
60% 59.5% 54,652 54,186
50% 51.4% 45,543 46,799
40% 40.5% 36,435 36,910
30% 29.8% 27,326 27,123
20% 19.9% 18,217 18,135
10% 10.1% 9,109 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,983
Calibration 2     90,031
Calibration 3     88,369
ssj_ops@calibrated=89,200
100% 98.5% 89,200 87,830
90% 91.0% 80,280 81,139
80% 79.6% 71,360 71,020
70% 69.6% 62,440 62,105
60% 61.2% 53,520 54,607
50% 49.7% 44,600 44,372
40% 40.3% 35,680 35,974
30% 30.2% 26,760 26,915
20% 19.9% 17,840 17,786
10% 10.2% 8,920 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,201
Calibration 2     89,293
Calibration 3     87,470
ssj_ops@calibrated=88,381
100% 97.5% 88,381 86,131
90% 88.4% 79,543 78,169
80% 80.4% 70,705 71,051
70% 69.9% 61,867 61,755
60% 59.7% 53,029 52,790
50% 49.4% 44,191 43,700
40% 40.2% 35,353 35,500
30% 29.3% 26,514 25,939
20% 20.2% 17,676 17,828
10% 9.9% 8,838 8,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,751
Calibration 2     90,866
Calibration 3     89,348
ssj_ops@calibrated=90,107
100% 98.6% 90,107 88,848
90% 90.9% 81,096 81,899
80% 80.6% 72,086 72,650
70% 69.5% 63,075 62,611
60% 60.2% 54,064 54,214
50% 49.1% 45,053 44,278
40% 40.1% 36,043 36,103
30% 30.7% 27,032 27,639
20% 20.2% 18,021 18,206
10% 10.1% 9,011 9,127
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,532
Calibration 2     90,784
Calibration 3     89,201
ssj_ops@calibrated=89,993
100% 98.4% 89,993 88,593
90% 90.0% 80,993 80,949
80% 80.9% 71,994 72,824
70% 70.0% 62,995 63,020
60% 60.4% 53,996 54,344
50% 49.6% 44,996 44,673
40% 40.1% 35,997 36,104
30% 30.1% 26,998 27,098
20% 20.1% 17,999 18,073
10% 10.2% 8,999 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,942
Calibration 2     93,688
Calibration 3     92,565
ssj_ops@calibrated=93,126
100% 98.3% 93,126 91,534
90% 90.4% 83,814 84,223
80% 81.0% 74,501 75,388
70% 70.0% 65,189 65,192
60% 59.7% 55,876 55,641
50% 49.8% 46,563 46,365
40% 39.7% 37,251 37,006
30% 29.3% 27,938 27,293
20% 19.6% 18,625 18,286
10% 10.0% 9,313 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,409
Calibration 2     90,650
Calibration 3     89,371
ssj_ops@calibrated=90,010
100% 98.4% 90,010 88,539
90% 89.9% 81,009 80,908
80% 80.7% 72,008 72,646
70% 69.8% 63,007 62,846
60% 60.2% 54,006 54,182
50% 49.7% 45,005 44,749
40% 39.7% 36,004 35,695
30% 30.0% 27,003 27,035
20% 20.2% 18,002 18,172
10% 9.6% 9,001 8,677
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,223
Calibration 2     91,144
Calibration 3     90,268
ssj_ops@calibrated=90,706
100% 98.4% 90,706 89,289
90% 90.0% 81,635 81,640
80% 80.1% 72,565 72,634
70% 71.2% 63,494 64,563
60% 59.5% 54,424 53,999
50% 49.9% 45,353 45,265
40% 39.9% 36,282 36,220
30% 29.9% 27,212 27,080
20% 19.8% 18,141 17,982
10% 9.8% 9,071 8,901
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,689
Calibration 2     91,198
Calibration 3     89,724
ssj_ops@calibrated=90,461
100% 97.4% 90,461 88,119
90% 90.3% 81,415 81,665
80% 79.6% 72,369 72,030
70% 71.3% 63,323 64,491
60% 59.5% 54,277 53,864
50% 50.0% 45,230 45,212
40% 39.9% 36,184 36,111
30% 30.2% 27,138 27,315
20% 19.9% 18,092 18,020
10% 10.3% 9,046 9,298
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,369
Calibration 2     90,000
Calibration 3     88,956
ssj_ops@calibrated=89,478
100% 98.3% 89,478 88,001
90% 89.2% 80,530 79,787
80% 79.4% 71,582 71,033
70% 69.4% 62,635 62,082
60% 60.1% 53,687 53,734
50% 50.5% 44,739 45,192
40% 40.0% 35,791 35,791
30% 30.7% 26,843 27,445
20% 20.0% 17,896 17,924
10% 10.3% 8,948 9,246
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,222
Calibration 2     90,069
Calibration 3     89,025
ssj_ops@calibrated=89,547
100% 98.0% 89,547 87,753
90% 89.6% 80,592 80,222
80% 79.3% 71,638 70,987
70% 70.1% 62,683 62,790
60% 60.0% 53,728 53,720
50% 49.6% 44,774 44,386
40% 39.8% 35,819 35,617
30% 30.2% 26,864 27,015
20% 20.4% 17,909 18,287
10% 10.0% 8,955 8,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,585
Calibration 2     90,573
Calibration 3     89,538
ssj_ops@calibrated=90,056
100% 98.6% 90,056 88,801
90% 89.1% 81,050 80,232
80% 78.4% 72,044 70,601
70% 69.5% 63,039 62,558
60% 60.2% 54,033 54,173
50% 50.4% 45,028 45,418
40% 39.6% 36,022 35,688
30% 29.9% 27,017 26,899
20% 20.1% 18,011 18,140
10% 9.6% 9,006 8,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,203
Calibration 2     90,361
Calibration 3     89,409
ssj_ops@calibrated=89,885
100% 98.2% 89,885 88,224
90% 91.4% 80,897 82,198
80% 80.0% 71,908 71,930
70% 69.5% 62,920 62,492
60% 61.3% 53,931 55,085
50% 49.2% 44,943 44,266
40% 39.7% 35,954 35,650
30% 30.6% 26,966 27,526
20% 19.8% 17,977 17,825
10% 9.7% 8,989 8,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,033
Calibration 2     91,484
Calibration 3     90,108
ssj_ops@calibrated=90,796
100% 98.9% 90,796 89,819
90% 90.7% 81,716 82,340
80% 78.9% 72,637 71,602
70% 69.2% 63,557 62,788
60% 60.1% 54,478 54,547
50% 49.9% 45,398 45,329
40% 40.5% 36,318 36,727
30% 29.8% 27,239 27,097
20% 20.3% 18,159 18,461
10% 10.1% 9,080 9,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,381
Calibration 2     93,503
Calibration 3     92,185
ssj_ops@calibrated=92,844
100% 98.2% 92,844 91,208
90% 89.2% 83,560 82,780
80% 78.9% 74,275 73,282
70% 69.9% 64,991 64,906
60% 59.7% 55,707 55,460
50% 51.8% 46,422 48,110
40% 40.0% 37,138 37,128
30% 29.4% 27,853 27,289
20% 19.9% 18,569 18,453
10% 10.2% 9,284 9,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,692
Calibration 2     91,190
Calibration 3     88,657
ssj_ops@calibrated=89,923
100% 97.6% 89,923 87,728
90% 90.6% 80,931 81,514
80% 80.8% 71,939 72,684
70% 70.4% 62,946 63,337
60% 59.9% 53,954 53,831
50% 50.3% 44,962 45,245
40% 39.6% 35,969 35,590
30% 30.4% 26,977 27,304
20% 19.9% 17,985 17,923
10% 10.3% 8,992 9,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,892
Calibration 2     90,962
Calibration 3     89,700
ssj_ops@calibrated=90,331
100% 98.6% 90,331 89,094
90% 90.2% 81,298 81,478
80% 80.2% 72,265 72,455
70% 70.6% 63,232 63,732
60% 60.3% 54,199 54,496
50% 49.6% 45,166 44,763
40% 41.0% 36,132 37,038
30% 29.6% 27,099 26,715
20% 19.6% 18,066 17,712
10% 10.0% 9,033 9,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,448
Calibration 2     90,945
Calibration 3     89,912
ssj_ops@calibrated=90,428
100% 98.3% 90,428 88,914
90% 90.0% 81,386 81,396
80% 79.2% 72,343 71,577
70% 70.3% 63,300 63,560
60% 60.0% 54,257 54,256
50% 50.4% 45,214 45,610
40% 39.9% 36,171 36,050
30% 30.2% 27,129 27,283
20% 20.3% 18,086 18,382
10% 9.7% 9,043 8,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,698
Calibration 2     91,149
Calibration 3     89,965
ssj_ops@calibrated=90,557
100% 97.9% 90,557 88,686
90% 90.5% 81,501 81,937
80% 79.4% 72,446 71,883
70% 70.1% 63,390 63,505
60% 59.5% 54,334 53,859
50% 49.4% 45,279 44,763
40% 40.4% 36,223 36,604
30% 30.2% 27,167 27,311
20% 19.6% 18,111 17,708
10% 9.9% 9,056 8,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,870
Calibration 2     89,505
Calibration 3     88,554
ssj_ops@calibrated=89,030
100% 98.7% 89,030 87,898
90% 90.3% 80,127 80,427
80% 79.9% 71,224 71,145
70% 70.1% 62,321 62,445
60% 59.1% 53,418 52,612
50% 49.8% 44,515 44,314
40% 39.3% 35,612 34,959
30% 30.4% 26,709 27,053
20% 20.3% 17,806 18,107
10% 9.8% 8,903 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,574
Calibration 2     90,155
Calibration 3     88,753
ssj_ops@calibrated=89,454
100% 98.2% 89,454 87,815
90% 89.8% 80,509 80,359
80% 81.3% 71,563 72,728
70% 69.2% 62,618 61,941
60% 60.4% 53,672 53,991
50% 50.3% 44,727 45,032
40% 40.3% 35,782 36,081
30% 30.2% 26,836 26,988
20% 20.1% 17,891 17,998
10% 10.6% 8,945 9,445
Active Idle   0 0

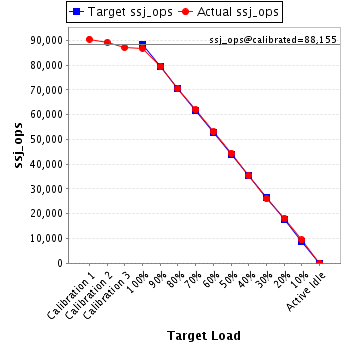

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,482
Calibration 2     89,197
Calibration 3     87,113
ssj_ops@calibrated=88,155
100% 98.4% 88,155 86,772
90% 90.1% 79,339 79,439
80% 80.0% 70,524 70,551
70% 70.4% 61,708 62,049
60% 60.2% 52,893 53,068
50% 50.4% 44,077 44,439
40% 40.2% 35,262 35,468
30% 29.6% 26,446 26,098
20% 20.6% 17,631 18,137
10% 10.7% 8,815 9,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,229
Calibration 2     90,413
Calibration 3     88,523
ssj_ops@calibrated=89,468
100% 97.5% 89,468 87,215
90% 90.2% 80,521 80,721
80% 79.2% 71,574 70,878
70% 70.4% 62,627 62,994
60% 59.4% 53,681 53,149
50% 50.5% 44,734 45,147
40% 40.4% 35,787 36,173
30% 29.4% 26,840 26,306
20% 20.5% 17,894 18,345
10% 9.8% 8,947 8,790
Active Idle   0 0

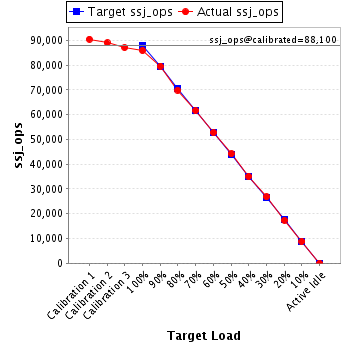

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,522
Calibration 2     89,029
Calibration 3     87,172
ssj_ops@calibrated=88,100
100% 97.5% 88,100 85,885
90% 90.4% 79,290 79,646
80% 79.3% 70,480 69,875
70% 70.0% 61,670 61,654
60% 59.9% 52,860 52,815
50% 50.2% 44,050 44,247
40% 39.8% 35,240 35,094
30% 30.5% 26,430 26,836
20% 19.7% 17,620 17,365
10% 10.0% 8,810 8,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,512
Calibration 2     90,309
Calibration 3     88,764
ssj_ops@calibrated=89,537
100% 98.5% 89,537 88,180
90% 89.9% 80,583 80,455
80% 80.5% 71,629 72,084
70% 71.0% 62,676 63,609
60% 60.9% 53,722 54,566
50% 50.5% 44,768 45,197
40% 40.1% 35,815 35,936
30% 29.9% 26,861 26,813
20% 20.2% 17,907 18,116
10% 10.2% 8,954 9,090
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,814
Calibration 2     89,779
Calibration 3     88,581
ssj_ops@calibrated=89,180
100% 98.6% 89,180 87,895
90% 90.0% 80,262 80,303
80% 80.0% 71,344 71,375
70% 71.6% 62,426 63,839
60% 59.3% 53,508 52,927
50% 49.9% 44,590 44,523
40% 40.0% 35,672 35,686
30% 30.5% 26,754 27,221
20% 20.2% 17,836 17,970
10% 9.9% 8,918 8,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,839
Calibration 2     89,757
Calibration 3     88,670
ssj_ops@calibrated=89,213
100% 98.5% 89,213 87,858
90% 90.1% 80,292 80,402
80% 80.1% 71,371 71,416
70% 70.1% 62,449 62,580
60% 59.2% 53,528 52,779
50% 50.4% 44,607 44,968
40% 40.4% 35,685 36,031
30% 30.2% 26,764 26,914
20% 19.7% 17,843 17,611
10% 9.7% 8,921 8,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,891
Calibration 2     91,019
Calibration 3     89,175
ssj_ops@calibrated=90,097
100% 97.7% 90,097 87,996
90% 91.2% 81,087 82,202
80% 80.0% 72,078 72,040
70% 70.0% 63,068 63,105
60% 59.4% 54,058 53,517
50% 50.0% 45,049 45,029
40% 39.6% 36,039 35,723
30% 29.8% 27,029 26,861
20% 20.6% 18,019 18,582
10% 10.0% 9,010 9,012
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,517
Calibration 2     90,514
Calibration 3     88,002
ssj_ops@calibrated=89,258
100% 98.2% 89,258 87,609
90% 91.9% 80,332 82,066
80% 80.2% 71,406 71,628
70% 69.8% 62,481 62,339
60% 60.2% 53,555 53,711
50% 50.3% 44,629 44,925
40% 40.1% 35,703 35,815
30% 30.0% 26,777 26,803
20% 20.5% 17,852 18,257
10% 10.4% 8,926 9,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,976
Calibration 2     88,666
Calibration 3     86,837
ssj_ops@calibrated=87,752
100% 98.1% 87,752 86,084
90% 90.2% 78,976 79,189
80% 80.1% 70,201 70,264
70% 70.2% 61,426 61,599
60% 60.0% 52,651 52,646
50% 51.6% 43,876 45,287
40% 39.7% 35,101 34,836
30% 29.6% 26,325 25,994
20% 19.9% 17,550 17,502
10% 9.9% 8,775 8,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,986
Calibration 2     88,163
Calibration 3     86,763
ssj_ops@calibrated=87,463
100% 98.3% 87,463 85,970
90% 91.1% 78,717 79,694
80% 79.6% 69,970 69,582
70% 70.9% 61,224 62,012
60% 59.4% 52,478 51,913
50% 49.2% 43,732 42,993
40% 40.6% 34,985 35,526
30% 29.8% 26,239 26,036
20% 20.4% 17,493 17,801
10% 9.9% 8,746 8,683
Active Idle   0 0

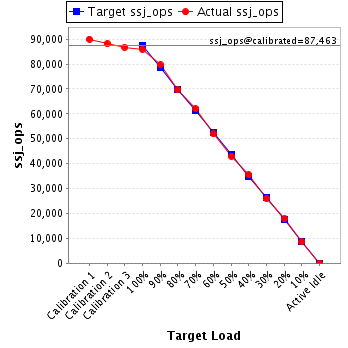

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,470
Calibration 2     89,327
Calibration 3     87,736
ssj_ops@calibrated=88,532
100% 98.4% 88,532 87,154
90% 90.2% 79,678 79,861
80% 79.8% 70,825 70,654
70% 71.7% 61,972 63,513
60% 59.7% 53,119 52,820
50% 49.6% 44,266 43,909
40% 40.3% 35,413 35,677
30% 30.1% 26,559 26,681
20% 20.1% 17,706 17,758
10% 10.0% 8,853 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,569
Calibration 2     90,228
Calibration 3     89,436
ssj_ops@calibrated=89,832
100% 98.6% 89,832 88,607
90% 90.2% 80,849 81,046
80% 79.6% 71,866 71,479
70% 70.8% 62,882 63,562
60% 60.3% 53,899 54,146
50% 50.1% 44,916 44,981
40% 38.8% 35,933 34,865
30% 29.7% 26,950 26,694
20% 19.5% 17,966 17,561
10% 10.0% 8,983 9,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,792
Calibration 2     88,856
Calibration 3     87,251
ssj_ops@calibrated=88,054
100% 98.1% 88,054 86,414
90% 90.2% 79,248 79,399
80% 80.8% 70,443 71,125
70% 69.3% 61,638 61,032
60% 59.8% 52,832 52,659
50% 50.0% 44,027 44,026
40% 40.4% 35,221 35,599
30% 29.8% 26,416 26,207
20% 19.9% 17,611 17,482
10% 9.6% 8,805 8,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,962
Calibration 2     89,295
Calibration 3     88,015
ssj_ops@calibrated=88,655
100% 98.2% 88,655 87,077
90% 89.7% 79,789 79,487
80% 79.9% 70,924 70,825
70% 70.9% 62,058 62,847
60% 59.8% 53,193 53,024
50% 49.6% 44,327 43,985
40% 39.7% 35,462 35,168
30% 29.6% 26,596 26,248
20% 20.1% 17,731 17,853
10% 10.1% 8,865 8,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,614
Calibration 2     90,386
Calibration 3     88,574
ssj_ops@calibrated=89,480
100% 97.3% 89,480 87,078
90% 90.5% 80,532 81,023
80% 79.7% 71,584 71,285
70% 70.3% 62,636 62,888
60% 59.8% 53,688 53,510
50% 50.1% 44,740 44,822
40% 39.7% 35,792 35,565
30% 29.8% 26,844 26,665
20% 20.2% 17,896 18,108
10% 10.1% 8,948 9,046
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,968
Calibration 2     89,999
Calibration 3     88,506
ssj_ops@calibrated=89,252
100% 98.5% 89,252 87,944
90% 90.7% 80,327 80,931
80% 79.0% 71,402 70,536
70% 71.2% 62,477 63,522
60% 59.6% 53,551 53,225
50% 49.9% 44,626 44,533
40% 40.4% 35,701 36,072
30% 30.0% 26,776 26,766
20% 19.8% 17,850 17,663
10% 10.1% 8,925 8,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,486
Calibration 2     88,478
Calibration 3     87,136
ssj_ops@calibrated=87,807
100% 98.0% 87,807 86,070
90% 91.2% 79,026 80,113
80% 79.6% 70,245 69,873
70% 69.3% 61,465 60,847
60% 59.9% 52,684 52,574
50% 50.1% 43,903 43,950
40% 40.2% 35,123 35,305
30% 30.7% 26,342 26,937
20% 20.5% 17,561 18,032
10% 10.1% 8,781 8,858
Active Idle   0 0

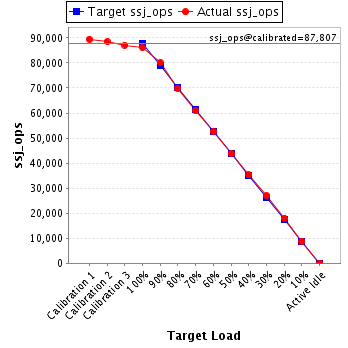

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,088
Calibration 2     88,099
Calibration 3     86,723
ssj_ops@calibrated=87,411
100% 97.7% 87,411 85,441
90% 89.3% 78,670 78,066
80% 80.6% 69,928 70,489
70% 69.6% 61,187 60,839
60% 60.5% 52,446 52,879
50% 49.9% 43,705 43,633
40% 40.2% 34,964 35,097
30% 29.8% 26,223 26,057
20% 20.7% 17,482 18,070
10% 10.0% 8,741 8,756
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,100
Calibration 2     90,524
Calibration 3     88,949
ssj_ops@calibrated=89,736
100% 97.9% 89,736 87,878
90% 90.3% 80,762 81,053
80% 81.2% 71,789 72,875
70% 70.4% 62,815 63,183
60% 60.5% 53,842 54,274
50% 49.2% 44,868 44,111
40% 40.3% 35,894 36,121
30% 29.9% 26,921 26,832
20% 19.3% 17,947 17,283
10% 10.0% 8,974 8,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,341
Calibration 2     90,421
Calibration 3     89,402
ssj_ops@calibrated=89,911
100% 98.3% 89,911 88,407
90% 90.2% 80,920 81,108
80% 79.3% 71,929 71,282
70% 69.3% 62,938 62,352
60% 60.4% 53,947 54,283
50% 49.5% 44,956 44,505
40% 39.6% 35,964 35,611
30% 29.7% 26,973 26,680
20% 20.2% 17,982 18,121
10% 9.9% 8,991 8,915
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,451
Calibration 2     89,219
Calibration 3     88,325
ssj_ops@calibrated=88,772
100% 98.4% 88,772 87,334
90% 89.4% 79,895 79,327
80% 79.3% 71,017 70,356
70% 69.6% 62,140 61,782
60% 59.5% 53,263 52,844
50% 50.6% 44,386 44,898
40% 40.3% 35,509 35,816
30% 29.4% 26,632 26,077
20% 20.0% 17,754 17,788
10% 10.0% 8,877 8,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,429
Calibration 2     90,160
Calibration 3     89,504
ssj_ops@calibrated=89,832
100% 98.2% 89,832 88,212
90% 90.7% 80,849 81,469
80% 79.7% 71,866 71,606
70% 69.8% 62,883 62,702
60% 59.5% 53,899 53,433
50% 49.9% 44,916 44,863
40% 40.3% 35,933 36,171
30% 29.7% 26,950 26,706
20% 19.7% 17,966 17,676
10% 9.9% 8,983 8,886
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,764
Calibration 2     89,825
Calibration 3     88,741
ssj_ops@calibrated=89,283
100% 98.3% 89,283 87,787
90% 89.6% 80,355 79,955
80% 81.3% 71,426 72,553
70% 69.4% 62,498 61,986
60% 60.3% 53,570 53,814
50% 50.1% 44,642 44,695
40% 39.9% 35,713 35,584
30% 30.1% 26,785 26,867
20% 20.5% 17,857 18,312
10% 10.1% 8,928 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,278
Calibration 2     91,449
Calibration 3     89,912
ssj_ops@calibrated=90,681
100% 98.1% 90,681 89,000
90% 91.2% 81,613 82,731
80% 78.8% 72,545 71,468
70% 69.2% 63,477 62,733
60% 59.9% 54,408 54,359
50% 50.4% 45,340 45,720
40% 39.6% 36,272 35,952
30% 29.4% 27,204 26,638
20% 20.2% 18,136 18,289
10% 10.0% 9,068 9,025
Active Idle   0 0

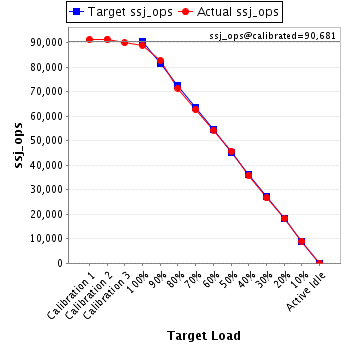

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,833
Calibration 2     89,907
Calibration 3     89,012
ssj_ops@calibrated=89,460
100% 98.0% 89,460 87,710
90% 90.0% 80,514 80,544
80% 79.6% 71,568 71,195
70% 70.3% 62,622 62,847
60% 59.6% 53,676 53,305
50% 50.5% 44,730 45,140
40% 40.2% 35,784 35,999
30% 29.8% 26,838 26,636
20% 20.2% 17,892 18,102
10% 10.0% 8,946 8,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,542
Calibration 2     89,257
Calibration 3     88,101
ssj_ops@calibrated=88,679
100% 98.0% 88,679 86,933
90% 89.5% 79,811 79,337
80% 79.9% 70,943 70,833
70% 70.6% 62,075 62,583
60% 60.0% 53,207 53,236
50% 49.5% 44,339 43,938
40% 39.3% 35,472 34,863
30% 30.2% 26,604 26,756
20% 19.9% 17,736 17,690
10% 10.0% 8,868 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R3-184.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,006
Calibration 2     87,819
Calibration 3     85,719
ssj_ops@calibrated=86,769
100% 97.6% 86,769 84,702
90% 91.4% 78,092 79,306
80% 80.1% 69,415 69,487
70% 70.1% 60,738 60,868
60% 60.0% 52,061 52,090
50% 50.2% 43,384 43,515
40% 38.6% 34,708 33,481
30% 30.1% 26,031 26,137
20% 20.3% 17,354 17,607
10% 9.7% 8,677 8,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
