Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,938,091
ssj_ops@100% per JVM = 88,180
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,146,745
Calibration 2     5,082,220
Calibration 3     4,938,875
ssj_ops@calibrated=5,010,547
100% 98.6% 5,010,547 4,938,091
90% 90.3% 4,509,493 4,526,498
80% 79.9% 4,008,438 4,002,029
70% 70.0% 3,507,383 3,507,152
60% 60.0% 3,006,328 3,006,201
50% 50.0% 2,505,274 2,505,705
40% 40.1% 2,004,219 2,010,029
30% 30.1% 1,503,164 1,506,857
20% 20.0% 1,002,109 1,000,301
10% 10.0% 501,055 500,614
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
R6-190.001 88,175
R6-190.002 88,334
R6-190.003 88,355
R6-190.004 89,061
R6-190.005 87,978
R6-190.006 89,302
R6-190.007 92,698
R6-190.008 88,382
R6-190.009 90,536
R6-190.010 87,264
R6-190.011 89,339
R6-190.012 88,145
R6-190.013 88,647
R6-190.014 88,249
R6-190.015 90,328
R6-190.016 90,750
R6-190.017 87,954
R6-190.018 89,638
R6-190.019 86,623
R6-190.020 89,414
R6-190.021 89,884
R6-190.022 86,748
R6-190.023 89,182
R6-190.024 89,014
R6-190.025 89,186
R6-190.026 88,472
R6-190.027 87,469
R6-190.028 88,139
R6-190.029 86,903
R6-190.030 87,867
R6-190.031 86,721
R6-190.032 87,103
R6-190.033 88,765
R6-190.034 88,178
R6-190.035 88,007
R6-190.036 88,580
R6-190.037 88,644
R6-190.038 87,441
R6-190.039 86,194
R6-190.040 86,375
R6-190.041 86,681
R6-190.042 86,984
R6-190.043 86,994
R6-190.044 88,718
R6-190.045 87,015
R6-190.046 86,925
R6-190.047 86,436
R6-190.048 87,970
R6-190.049 88,118
R6-190.050 86,956
R6-190.051 88,723
R6-190.052 89,978
R6-190.053 86,365
R6-190.054 87,487
R6-190.055 87,246
R6-190.056 87,456
ssj_ops@100% 4,938,091
ssj_ops@100% per JVM 88,180
Graph of per-instance results
JVM 'R6-190.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,611
Calibration 2     90,275
Calibration 3     87,826
ssj_ops@calibrated=89,050
100% 99.0% 89,050 88,175
90% 90.6% 80,145 80,678
80% 78.3% 71,240 69,713
70% 70.0% 62,335 62,352
60% 60.1% 53,430 53,515
50% 50.3% 44,525 44,803
40% 40.3% 35,620 35,866
30% 30.5% 26,715 27,187
20% 19.9% 17,810 17,728
10% 9.8% 8,905 8,771
Active Idle   0 0
Graph of results
JVM 'R6-190.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,574
Calibration 2     89,841
Calibration 3     87,706
ssj_ops@calibrated=88,774
100% 99.5% 88,774 88,334
90% 90.8% 79,896 80,643
80% 80.4% 71,019 71,406
70% 70.2% 62,141 62,328
60% 60.7% 53,264 53,865
50% 50.2% 44,387 44,582
40% 39.6% 35,509 35,194
30% 30.7% 26,632 27,239
20% 20.4% 17,755 18,123
10% 10.0% 8,877 8,908
Active Idle   0 0
Graph of results

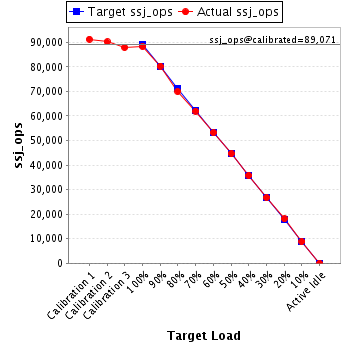

JVM 'R6-190.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,300
Calibration 2     90,212
Calibration 3     87,930
ssj_ops@calibrated=89,071
100% 99.2% 89,071 88,355
90% 90.2% 80,164 80,348
80% 78.6% 71,257 69,996
70% 69.6% 62,350 62,016
60% 59.8% 53,443 53,248
50% 50.1% 44,536 44,662
40% 40.2% 35,628 35,818
30% 30.0% 26,721 26,707
20% 20.3% 17,814 18,104
10% 9.9% 8,907 8,837
Active Idle   0 0
Graph of results
JVM 'R6-190.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,799
Calibration 2     90,842
Calibration 3     88,823
ssj_ops@calibrated=89,833
100% 99.1% 89,833 89,061
90% 91.1% 80,849 81,865
80% 80.7% 71,866 72,455
70% 69.4% 62,883 62,320
60% 59.5% 53,900 53,430
50% 50.6% 44,916 45,440
40% 39.7% 35,933 35,620
30% 30.0% 26,950 26,906
20% 19.9% 17,967 17,835
10% 10.3% 8,983 9,236
Active Idle   0 0
Graph of results
JVM 'R6-190.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,482
Calibration 2     90,347
Calibration 3     88,050
ssj_ops@calibrated=89,198
100% 98.6% 89,198 87,978
90% 88.7% 80,279 79,144
80% 80.5% 71,359 71,793
70% 69.5% 62,439 61,977
60% 59.9% 53,519 53,467
50% 49.3% 44,599 43,998
40% 40.3% 35,679 35,939
30% 30.2% 26,760 26,937
20% 19.6% 17,840 17,487
10% 10.3% 8,920 9,153
Active Idle   0 0
Graph of results
JVM 'R6-190.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,982
Calibration 2     91,079
Calibration 3     89,027
ssj_ops@calibrated=90,053
100% 99.2% 90,053 89,302
90% 91.2% 81,048 82,089
80% 79.8% 72,042 71,844
70% 71.1% 63,037 64,025
60% 60.0% 54,032 54,049
50% 50.7% 45,026 45,662
40% 40.0% 36,021 35,989
30% 29.9% 27,016 26,891
20% 19.8% 18,011 17,871
10% 9.9% 9,005 8,908
Active Idle   0 0
Graph of results
JVM 'R6-190.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,953
Calibration 2     94,245
Calibration 3     92,254
ssj_ops@calibrated=93,249
100% 99.4% 93,249 92,698
90% 89.7% 83,924 83,628
80% 79.0% 74,599 73,689
70% 69.9% 65,274 65,219
60% 60.9% 55,950 56,766
50% 49.9% 46,625 46,511
40% 40.6% 37,300 37,842
30% 29.6% 27,975 27,619
20% 19.6% 18,650 18,242
10% 10.4% 9,325 9,683
Active Idle   0 0
Graph of results

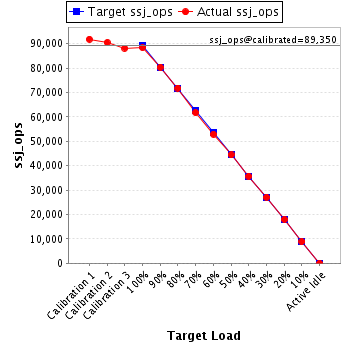

JVM 'R6-190.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,849
Calibration 2     90,494
Calibration 3     88,206
ssj_ops@calibrated=89,350
100% 98.9% 89,350 88,382
90% 89.9% 80,415 80,369
80% 80.4% 71,480 71,828
70% 69.1% 62,545 61,726
60% 59.3% 53,610 52,947
50% 49.7% 44,675 44,417
40% 39.9% 35,740 35,689
30% 30.3% 26,805 27,111
20% 20.1% 17,870 17,976
10% 9.9% 8,935 8,854
Active Idle   0 0
Graph of results
JVM 'R6-190.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,556
Calibration 2     92,361
Calibration 3     90,129
ssj_ops@calibrated=91,245
100% 99.2% 91,245 90,536
90% 90.4% 82,121 82,447
80% 79.3% 72,996 72,382
70% 70.4% 63,872 64,253
60% 60.7% 54,747 55,363
50% 49.9% 45,623 45,551
40% 40.8% 36,498 37,200
30% 30.6% 27,374 27,909
20% 19.8% 18,249 18,066
10% 9.9% 9,125 9,068
Active Idle   0 0
Graph of results
JVM 'R6-190.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,729
Calibration 2     89,613
Calibration 3     87,452
ssj_ops@calibrated=88,533
100% 98.6% 88,533 87,264
90% 90.2% 79,680 79,826
80% 79.5% 70,826 70,383
70% 69.8% 61,973 61,827
60% 58.8% 53,120 52,089
50% 49.9% 44,266 44,166
40% 40.1% 35,413 35,528
30% 29.7% 26,560 26,307
20% 20.8% 17,707 18,420
10% 10.5% 8,853 9,296
Active Idle   0 0
Graph of results
JVM 'R6-190.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,861
Calibration 2     91,599
Calibration 3     88,954
ssj_ops@calibrated=90,276
100% 99.0% 90,276 89,339
90% 90.6% 81,249 81,824
80% 80.4% 72,221 72,562
70% 70.0% 63,194 63,159
60% 59.3% 54,166 53,503
50% 49.8% 45,138 44,996
40% 40.0% 36,111 36,074
30% 30.6% 27,083 27,661
20% 19.9% 18,055 17,967
10% 10.1% 9,028 9,127
Active Idle   0 0
Graph of results
JVM 'R6-190.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,935
Calibration 2     90,278
Calibration 3     87,752
ssj_ops@calibrated=89,015
100% 99.0% 89,015 88,145
90% 89.4% 80,113 79,591
80% 79.8% 71,212 71,010
70% 70.0% 62,310 62,330
60% 60.7% 53,409 54,007
50% 50.1% 44,507 44,562
40% 40.1% 35,606 35,718
30% 29.6% 26,704 26,374
20% 19.8% 17,803 17,663
10% 10.1% 8,901 9,012
Active Idle   0 0
Graph of results
JVM 'R6-190.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,978
Calibration 2     90,447
Calibration 3     88,396
ssj_ops@calibrated=89,421
100% 99.1% 89,421 88,647
90% 90.7% 80,479 81,099
80% 79.7% 71,537 71,278
70% 69.4% 62,595 62,036
60% 60.2% 53,653 53,838
50% 50.2% 44,711 44,849
40% 40.4% 35,769 36,160
30% 30.4% 26,826 27,223
20% 20.4% 17,884 18,216
10% 10.5% 8,942 9,349
Active Idle   0 0
Graph of results
JVM 'R6-190.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,275
Calibration 2     90,133
Calibration 3     88,061
ssj_ops@calibrated=89,097
100% 99.0% 89,097 88,249
90% 90.5% 80,187 80,643
80% 79.8% 71,278 71,084
70% 70.5% 62,368 62,834
60% 60.0% 53,458 53,421
50% 49.8% 44,548 44,362
40% 40.2% 35,639 35,835
30% 30.0% 26,729 26,757
20% 20.0% 17,819 17,823
10% 10.0% 8,910 8,936
Active Idle   0 0
Graph of results

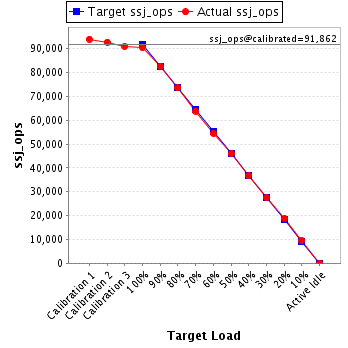

JVM 'R6-190.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,957
Calibration 2     92,727
Calibration 3     90,997
ssj_ops@calibrated=91,862
100% 98.3% 91,862 90,328
90% 90.0% 82,676 82,647
80% 80.0% 73,490 73,489
70% 69.5% 64,303 63,835
60% 59.3% 55,117 54,460
50% 50.0% 45,931 45,976
40% 40.0% 36,745 36,704
30% 30.0% 27,559 27,518
20% 20.4% 18,372 18,780
10% 10.4% 9,186 9,599
Active Idle   0 0
Graph of results

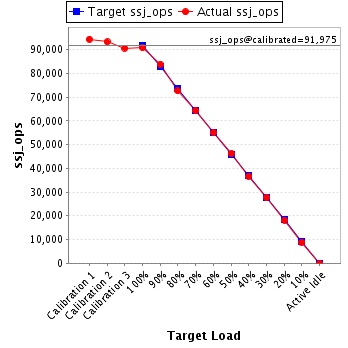

JVM 'R6-190.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,438
Calibration 2     93,258
Calibration 3     90,692
ssj_ops@calibrated=91,975
100% 98.7% 91,975 90,750
90% 91.3% 82,778 83,931
80% 79.0% 73,580 72,673
70% 69.8% 64,383 64,192
60% 59.8% 55,185 55,046
50% 50.3% 45,988 46,226
40% 40.0% 36,790 36,774
30% 30.1% 27,593 27,715
20% 19.8% 18,395 18,226
10% 9.7% 9,198 8,877
Active Idle   0 0
Graph of results
JVM 'R6-190.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,171
Calibration 2     89,932
Calibration 3     87,628
ssj_ops@calibrated=88,780
100% 99.1% 88,780 87,954
90% 90.6% 79,902 80,436
80% 80.1% 71,024 71,081
70% 69.6% 62,146 61,763
60% 59.8% 53,268 53,119
50% 49.5% 44,390 43,988
40% 39.9% 35,512 35,419
30% 30.0% 26,634 26,591
20% 20.3% 17,756 17,978
10% 9.8% 8,878 8,698
Active Idle   0 0
Graph of results
JVM 'R6-190.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,149
Calibration 2     92,055
Calibration 3     89,432
ssj_ops@calibrated=90,743
100% 98.8% 90,743 89,638
90% 91.7% 81,669 83,210
80% 80.5% 72,595 73,078
70% 70.3% 63,520 63,755
60% 59.1% 54,446 53,588
50% 49.8% 45,372 45,178
40% 40.3% 36,297 36,559
30% 30.0% 27,223 27,213
20% 20.2% 18,149 18,367
10% 10.1% 9,074 9,195
Active Idle   0 0
Graph of results
JVM 'R6-190.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,678
Calibration 2     89,020
Calibration 3     86,991
ssj_ops@calibrated=88,005
100% 98.4% 88,005 86,623
90% 91.0% 79,205 80,114
80% 80.3% 70,404 70,691
70% 69.6% 61,604 61,256
60% 59.4% 52,803 52,314
50% 50.3% 44,003 44,263
40% 39.7% 35,202 34,899
30% 29.7% 26,402 26,117
20% 19.5% 17,601 17,192
10% 9.7% 8,801 8,533
Active Idle   0 0
Graph of results
JVM 'R6-190.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,471
Calibration 2     91,863
Calibration 3     89,759
ssj_ops@calibrated=90,811
100% 98.5% 90,811 89,414
90% 90.6% 81,730 82,231
80% 80.4% 72,649 72,979
70% 70.0% 63,568 63,585
60% 60.2% 54,487 54,638
50% 49.8% 45,405 45,256
40% 40.4% 36,324 36,685
30% 29.9% 27,243 27,152
20% 19.6% 18,162 17,790
10% 10.0% 9,081 9,100
Active Idle   0 0
Graph of results

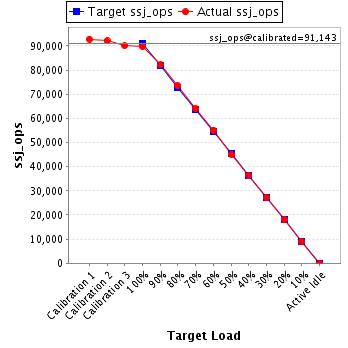

JVM 'R6-190.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,822
Calibration 2     92,095
Calibration 3     90,191
ssj_ops@calibrated=91,143
100% 98.6% 91,143 89,884
90% 90.1% 82,029 82,127
80% 80.6% 72,915 73,504
70% 70.2% 63,800 64,009
60% 60.5% 54,686 55,154
50% 49.5% 45,572 45,092
40% 40.1% 36,457 36,558
30% 29.8% 27,343 27,140
20% 19.8% 18,229 18,033
10% 9.9% 9,114 9,066
Active Idle   0 0
Graph of results

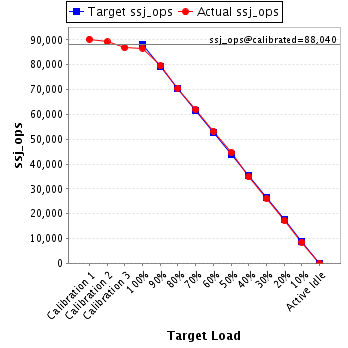

JVM 'R6-190.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,319
Calibration 2     89,221
Calibration 3     86,859
ssj_ops@calibrated=88,040
100% 98.5% 88,040 86,748
90% 90.4% 79,236 79,566
80% 80.1% 70,432 70,527
70% 70.5% 61,628 62,084
60% 60.4% 52,824 53,163
50% 50.7% 44,020 44,604
40% 39.6% 35,216 34,840
30% 29.8% 26,412 26,217
20% 19.6% 17,608 17,242
10% 9.7% 8,804 8,504
Active Idle   0 0
Graph of results
JVM 'R6-190.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,712
Calibration 2     90,821
Calibration 3     89,165
ssj_ops@calibrated=89,993
100% 99.1% 89,993 89,182
90% 89.3% 80,994 80,380
80% 79.6% 71,994 71,600
70% 70.3% 62,995 63,241
60% 59.9% 53,996 53,942
50% 49.6% 44,996 44,635
40% 40.2% 35,997 36,159
30% 29.5% 26,998 26,570
20% 19.7% 17,999 17,687
10% 10.3% 8,999 9,233
Active Idle   0 0
Graph of results
JVM 'R6-190.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,964
Calibration 2     91,356
Calibration 3     89,156
ssj_ops@calibrated=90,256
100% 98.6% 90,256 89,014
90% 89.6% 81,230 80,845
80% 79.8% 72,205 71,980
70% 70.0% 63,179 63,145
60% 60.1% 54,153 54,216
50% 49.4% 45,128 44,554
40% 39.0% 36,102 35,234
30% 29.7% 27,077 26,804
20% 20.3% 18,051 18,279
10% 10.0% 9,026 9,050
Active Idle   0 0
Graph of results
JVM 'R6-190.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,873
Calibration 2     91,214
Calibration 3     88,688
ssj_ops@calibrated=89,951
100% 99.1% 89,951 89,186
90% 89.9% 80,956 80,823
80% 80.1% 71,961 72,034
70% 70.5% 62,966 63,432
60% 59.7% 53,970 53,691
50% 50.3% 44,975 45,258
40% 39.9% 35,980 35,849
30% 30.2% 26,985 27,150
20% 20.4% 17,990 18,372
10% 9.8% 8,995 8,787
Active Idle   0 0
Graph of results
JVM 'R6-190.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,483
Calibration 2     90,279
Calibration 3     88,866
ssj_ops@calibrated=89,573
100% 98.8% 89,573 88,472
90% 91.5% 80,615 81,965
80% 80.4% 71,658 72,057
70% 70.8% 62,701 63,380
60% 60.3% 53,744 54,040
50% 50.0% 44,786 44,828
40% 40.0% 35,829 35,866
30% 30.2% 26,872 27,040
20% 19.9% 17,915 17,845
10% 10.1% 8,957 9,042
Active Idle   0 0
Graph of results
JVM 'R6-190.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,959
Calibration 2     89,810
Calibration 3     87,639
ssj_ops@calibrated=88,724
100% 98.6% 88,724 87,469
90% 91.5% 79,852 81,169
80% 80.1% 70,980 71,104
70% 69.1% 62,107 61,318
60% 60.0% 53,235 53,214
50% 50.0% 44,362 44,344
40% 40.3% 35,490 35,737
30% 30.3% 26,617 26,849
20% 19.8% 17,745 17,582
10% 9.7% 8,872 8,597
Active Idle   0 0
Graph of results
JVM 'R6-190.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,762
Calibration 2     89,506
Calibration 3     88,064
ssj_ops@calibrated=88,785
100% 99.3% 88,785 88,139
90% 91.2% 79,906 80,946
80% 79.3% 71,028 70,439
70% 69.6% 62,149 61,776
60% 60.5% 53,271 53,716
50% 49.7% 44,392 44,100
40% 40.6% 35,514 36,017
30% 29.4% 26,635 26,141
20% 20.3% 17,757 17,994
10% 9.8% 8,878 8,724
Active Idle   0 0
Graph of results
JVM 'R6-190.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,588
Calibration 2     90,583
Calibration 3     87,327
ssj_ops@calibrated=88,955
100% 97.7% 88,955 86,903
90% 89.9% 80,059 80,011
80% 80.1% 71,164 71,244
70% 70.3% 62,268 62,539
60% 60.0% 53,373 53,416
50% 50.4% 44,477 44,822
40% 40.3% 35,582 35,834
30% 30.1% 26,686 26,760
20% 19.9% 17,791 17,708
10% 10.1% 8,895 8,969
Active Idle   0 0
Graph of results
JVM 'R6-190.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,748
Calibration 2     91,167
Calibration 3     88,024
ssj_ops@calibrated=89,596
100% 98.1% 89,596 87,867
90% 89.8% 80,636 80,467
80% 79.1% 71,677 70,883
70% 71.4% 62,717 63,975
60% 60.4% 53,757 54,074
50% 50.5% 44,798 45,228
40% 40.2% 35,838 36,016
30% 29.8% 26,879 26,702
20% 19.8% 17,919 17,706
10% 9.5% 8,960 8,539
Active Idle   0 0
Graph of results
JVM 'R6-190.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,882
Calibration 2     89,653
Calibration 3     86,662
ssj_ops@calibrated=88,157
100% 98.4% 88,157 86,721
90% 89.9% 79,342 79,292
80% 79.5% 70,526 70,114
70% 70.4% 61,710 62,098
60% 60.7% 52,894 53,524
50% 50.4% 44,079 44,417
40% 40.1% 35,263 35,328
30% 30.1% 26,447 26,553
20% 19.8% 17,631 17,454
10% 9.6% 8,816 8,458
Active Idle   0 0
Graph of results
JVM 'R6-190.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,200
Calibration 2     90,371
Calibration 3     87,272
ssj_ops@calibrated=88,821
100% 98.1% 88,821 87,103
90% 90.3% 79,939 80,234
80% 80.8% 71,057 71,724
70% 70.1% 62,175 62,225
60% 60.0% 53,293 53,292
50% 50.4% 44,411 44,779
40% 39.8% 35,529 35,347
30% 30.3% 26,646 26,889
20% 20.0% 17,764 17,767
10% 10.1% 8,882 8,945
Active Idle   0 0
Graph of results
JVM 'R6-190.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,893
Calibration 2     91,578
Calibration 3     88,609
ssj_ops@calibrated=90,093
100% 98.5% 90,093 88,765
90% 91.4% 81,084 82,356
80% 80.0% 72,075 72,056
70% 69.9% 63,065 62,986
60% 59.9% 54,056 54,009
50% 50.3% 45,047 45,349
40% 40.0% 36,037 36,068
30% 29.8% 27,028 26,843
20% 20.0% 18,019 18,017
10% 9.9% 9,009 8,878
Active Idle   0 0
Graph of results
JVM 'R6-190.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,034
Calibration 2     91,414
Calibration 3     88,352
ssj_ops@calibrated=89,883
100% 98.1% 89,883 88,178
90% 89.7% 80,895 80,621
80% 79.5% 71,907 71,470
70% 69.2% 62,918 62,227
60% 60.3% 53,930 54,195
50% 49.6% 44,942 44,588
40% 40.1% 35,953 36,023
30% 30.2% 26,965 27,103
20% 20.0% 17,977 17,972
10% 9.9% 8,988 8,943
Active Idle   0 0
Graph of results
JVM 'R6-190.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,103
Calibration 2     90,558
Calibration 3     87,883
ssj_ops@calibrated=89,220
100% 98.6% 89,220 88,007
90% 91.1% 80,298 81,287
80% 80.6% 71,376 71,873
70% 71.1% 62,454 63,480
60% 59.7% 53,532 53,271
50% 49.8% 44,610 44,465
40% 40.3% 35,688 35,917
30% 30.2% 26,766 26,966
20% 19.6% 17,844 17,462
10% 10.0% 8,922 8,924
Active Idle   0 0
Graph of results
JVM 'R6-190.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,034
Calibration 2     90,864
Calibration 3     88,499
ssj_ops@calibrated=89,681
100% 98.8% 89,681 88,580
90% 89.3% 80,713 80,057
80% 78.9% 71,745 70,803
70% 69.1% 62,777 61,949
60% 60.8% 53,809 54,529
50% 50.4% 44,841 45,197
40% 39.3% 35,873 35,289
30% 30.2% 26,904 27,084
20% 20.4% 17,936 18,285
10% 10.6% 8,968 9,471
Active Idle   0 0
Graph of results
JVM 'R6-190.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,675
Calibration 2     91,609
Calibration 3     88,888
ssj_ops@calibrated=90,248
100% 98.2% 90,248 88,644
90% 89.7% 81,224 80,926
80% 80.5% 72,199 72,660
70% 69.9% 63,174 63,081
60% 59.8% 54,149 53,942
50% 49.9% 45,124 45,076
40% 39.6% 36,099 35,700
30% 30.4% 27,075 27,413
20% 20.3% 18,050 18,295
10% 9.7% 9,025 8,791
Active Idle   0 0
Graph of results
JVM 'R6-190.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,947
Calibration 2     90,580
Calibration 3     87,634
ssj_ops@calibrated=89,107
100% 98.1% 89,107 87,441
90% 90.5% 80,196 80,658
80% 80.1% 71,286 71,338
70% 70.6% 62,375 62,897
60% 61.0% 53,464 54,320
50% 49.3% 44,554 43,945
40% 40.8% 35,643 36,327
30% 30.1% 26,732 26,823
20% 19.6% 17,821 17,479
10% 10.2% 8,911 9,070
Active Idle   0 0
Graph of results
JVM 'R6-190.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,262
Calibration 2     89,890
Calibration 3     86,634
ssj_ops@calibrated=88,262
100% 97.7% 88,262 86,194
90% 89.4% 79,436 78,935
80% 79.3% 70,610 70,001
70% 70.2% 61,784 61,943
60% 60.0% 52,957 52,993
50% 50.0% 44,131 44,145
40% 40.0% 35,305 35,293
30% 29.8% 26,479 26,332
20% 20.3% 17,652 17,898
10% 9.8% 8,826 8,692
Active Idle   0 0
Graph of results
JVM 'R6-190.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,182
Calibration 2     89,532
Calibration 3     87,045
ssj_ops@calibrated=88,288
100% 97.8% 88,288 86,375
90% 88.7% 79,459 78,335
80% 80.5% 70,631 71,098
70% 69.5% 61,802 61,353
60% 60.4% 52,973 53,346
50% 50.4% 44,144 44,537
40% 39.9% 35,315 35,233
30% 30.0% 26,486 26,469
20% 20.0% 17,658 17,694
10% 9.8% 8,829 8,620
Active Idle   0 0
Graph of results
JVM 'R6-190.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,155
Calibration 2     90,207
Calibration 3     86,953
ssj_ops@calibrated=88,580
100% 97.9% 88,580 86,681
90% 89.9% 79,722 79,649
80% 80.3% 70,864 71,143
70% 68.7% 62,006 60,812
60% 60.0% 53,148 53,161
50% 49.6% 44,290 43,952
40% 40.0% 35,432 35,452
30% 30.3% 26,574 26,874
20% 19.9% 17,716 17,653
10% 9.7% 8,858 8,603
Active Idle   0 0
Graph of results
JVM 'R6-190.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,580
Calibration 2     90,128
Calibration 3     87,005
ssj_ops@calibrated=88,566
100% 98.2% 88,566 86,984
90% 91.0% 79,710 80,627
80% 79.0% 70,853 69,927
70% 69.7% 61,996 61,696
60% 59.2% 53,140 52,398
50% 50.7% 44,283 44,881
40% 40.1% 35,426 35,548
30% 30.3% 26,570 26,865
20% 20.1% 17,713 17,809
10% 9.8% 8,857 8,700
Active Idle   0 0
Graph of results
JVM 'R6-190.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,937
Calibration 2     90,554
Calibration 3     87,158
ssj_ops@calibrated=88,856
100% 97.9% 88,856 86,994
90% 89.4% 79,970 79,413
80% 80.2% 71,084 71,305
70% 71.0% 62,199 63,121
60% 60.3% 53,313 53,620
50% 49.6% 44,428 44,079
40% 40.4% 35,542 35,894
30% 29.7% 26,657 26,349
20% 19.7% 17,771 17,518
10% 10.1% 8,886 8,979
Active Idle   0 0
Graph of results
JVM 'R6-190.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,031
Calibration 2     91,412
Calibration 3     88,890
ssj_ops@calibrated=90,151
100% 98.4% 90,151 88,718
90% 89.9% 81,136 81,066
80% 79.4% 72,121 71,594
70% 69.9% 63,106 63,058
60% 60.1% 54,091 54,225
50% 49.7% 45,076 44,792
40% 39.7% 36,060 35,757
30% 30.3% 27,045 27,357
20% 20.3% 18,030 18,268
10% 10.1% 9,015 9,062
Active Idle   0 0
Graph of results
JVM 'R6-190.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,693
Calibration 2     90,151
Calibration 3     87,212
ssj_ops@calibrated=88,682
100% 98.1% 88,682 87,015
90% 90.6% 79,813 80,390
80% 80.2% 70,945 71,155
70% 68.4% 62,077 60,631
60% 60.1% 53,209 53,319
50% 49.0% 44,341 43,455
40% 39.8% 35,473 35,307
30% 29.6% 26,604 26,230
20% 19.8% 17,736 17,542
10% 9.9% 8,868 8,791
Active Idle   0 0
Graph of results
JVM 'R6-190.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,987
Calibration 2     89,803
Calibration 3     86,789
ssj_ops@calibrated=88,296
100% 98.4% 88,296 86,925
90% 89.6% 79,467 79,070
80% 79.6% 70,637 70,322
70% 69.2% 61,808 61,065
60% 60.2% 52,978 53,176
50% 50.3% 44,148 44,379
40% 40.1% 35,319 35,421
30% 29.6% 26,489 26,093
20% 19.8% 17,659 17,443
10% 9.6% 8,830 8,477
Active Idle   0 0
Graph of results
JVM 'R6-190.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,898
Calibration 2     89,640
Calibration 3     86,663
ssj_ops@calibrated=88,152
100% 98.1% 88,152 86,436
90% 91.2% 79,337 80,398
80% 79.0% 70,521 69,666
70% 71.4% 61,706 62,966
60% 60.6% 52,891 53,438
50% 49.8% 44,076 43,857
40% 39.7% 35,261 34,960
30% 30.2% 26,446 26,607
20% 19.8% 17,630 17,421
10% 10.2% 8,815 8,992
Active Idle   0 0
Graph of results
JVM 'R6-190.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,906
Calibration 2     90,919
Calibration 3     88,343
ssj_ops@calibrated=89,631
100% 98.1% 89,631 87,970
90% 89.3% 80,668 79,996
80% 79.6% 71,705 71,373
70% 70.8% 62,742 63,432
60% 59.9% 53,779 53,733
50% 49.8% 44,816 44,653
40% 40.9% 35,852 36,641
30% 30.1% 26,889 27,013
20% 19.7% 17,926 17,639
10% 10.1% 8,963 9,017
Active Idle   0 0
Graph of results
JVM 'R6-190.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,742
Calibration 2     91,435
Calibration 3     88,285
ssj_ops@calibrated=89,860
100% 98.1% 89,860 88,118
90% 90.2% 80,874 81,063
80% 80.6% 71,888 72,454
70% 69.8% 62,902 62,717
60% 59.6% 53,916 53,590
50% 49.9% 44,930 44,866
40% 40.5% 35,944 36,382
30% 30.1% 26,958 27,074
20% 19.5% 17,972 17,567
10% 10.1% 8,986 9,111
Active Idle   0 0
Graph of results
JVM 'R6-190.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,010
Calibration 2     89,254
Calibration 3     87,002
ssj_ops@calibrated=88,128
100% 98.7% 88,128 86,956
90% 89.9% 79,315 79,237
80% 79.4% 70,502 69,976
70% 69.5% 61,690 61,247
60% 59.9% 52,877 52,825
50% 50.5% 44,064 44,517
40% 41.2% 35,251 36,306
30% 30.5% 26,438 26,881
20% 19.9% 17,626 17,564
10% 10.2% 8,813 8,958
Active Idle   0 0
Graph of results
JVM 'R6-190.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,353
Calibration 2     91,670
Calibration 3     88,477
ssj_ops@calibrated=90,073
100% 98.5% 90,073 88,723
90% 90.9% 81,066 81,919
80% 80.1% 72,059 72,141
70% 70.6% 63,051 63,596
60% 59.5% 54,044 53,609
50% 50.0% 45,037 45,020
40% 40.5% 36,029 36,450
30% 29.8% 27,022 26,803
20% 19.9% 18,015 17,906
10% 10.0% 9,007 8,963
Active Idle   0 0
Graph of results
JVM 'R6-190.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,307
Calibration 2     93,266
Calibration 3     89,941
ssj_ops@calibrated=91,603
100% 98.2% 91,603 89,978
90% 90.0% 82,443 82,452
80% 80.2% 73,283 73,428
70% 70.4% 64,122 64,520
60% 59.8% 54,962 54,781
50% 50.1% 45,802 45,856
40% 40.5% 36,641 37,112
30% 30.3% 27,481 27,722
20% 20.2% 18,321 18,528
10% 9.6% 9,160 8,800
Active Idle   0 0
Graph of results
JVM 'R6-190.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,998
Calibration 2     89,315
Calibration 3     86,171
ssj_ops@calibrated=87,743
100% 98.4% 87,743 86,365
90% 90.3% 78,969 79,249
80% 79.4% 70,194 69,631
70% 69.8% 61,420 61,283
60% 60.0% 52,646 52,632
50% 49.7% 43,871 43,642
40% 39.8% 35,097 34,884
30% 30.9% 26,323 27,114
20% 19.8% 17,549 17,402
10% 10.3% 8,774 9,049
Active Idle   0 0
Graph of results

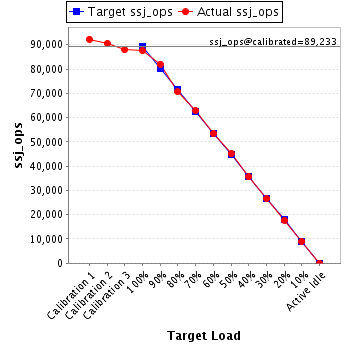

JVM 'R6-190.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,298
Calibration 2     90,573
Calibration 3     87,894
ssj_ops@calibrated=89,233
100% 98.0% 89,233 87,487
90% 91.9% 80,310 81,994
80% 79.2% 71,387 70,709
70% 70.5% 62,463 62,948
60% 59.8% 53,540 53,361
50% 50.5% 44,617 45,085
40% 39.8% 35,693 35,551
30% 29.9% 26,770 26,642
20% 19.8% 17,847 17,691
10% 10.1% 8,923 8,979
Active Idle   0 0
Graph of results
JVM 'R6-190.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,931
Calibration 2     90,382
Calibration 3     87,081
ssj_ops@calibrated=88,731
100% 98.3% 88,731 87,246
90% 91.1% 79,858 80,840
80% 81.0% 70,985 71,854
70% 69.0% 62,112 61,246
60% 59.7% 53,239 52,930
50% 50.8% 44,366 45,084
40% 40.0% 35,493 35,502
30% 29.9% 26,619 26,501
20% 20.2% 17,746 17,883
10% 9.7% 8,873 8,595
Active Idle   0 0
Graph of results
JVM 'R6-190.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,726
Calibration 2     90,791
Calibration 3     87,491
ssj_ops@calibrated=89,141
100% 98.1% 89,141 87,456
90% 91.3% 80,227 81,373
80% 80.1% 71,313 71,425
70% 70.5% 62,398 62,887
60% 59.1% 53,484 52,689
50% 49.6% 44,570 44,179
40% 41.2% 35,656 36,717
30% 31.1% 26,742 27,749
20% 20.0% 17,828 17,842
10% 10.2% 8,914 9,090
Active Idle   0 0
Graph of results
