Hewlett Packard Enterprise ProLiant DL360 Gen10 ssj_ops@100% = 2,989,485
ssj_ops@100% per JVM = 1,494,743
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 23, 2017
Hardware Availability: Oct-2017 Software Availability: Apr-2015 Publication: Nov 8, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,000,688
Calibration 2     3,000,282
Calibration 3     3,001,474
ssj_ops@calibrated=3,000,878
100% 99.6% 3,000,878 2,989,485
90% 89.9% 2,700,790 2,697,150
80% 79.9% 2,400,702 2,396,373
70% 70.1% 2,100,615 2,102,394
60% 60.2% 1,800,527 1,805,969
50% 50.1% 1,500,439 1,502,207
40% 40.0% 1,200,351 1,200,757
30% 29.9% 900,263 898,385
20% 20.0% 600,176 601,396
10% 10.0% 300,088 300,555
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 28 cores, 1 chip, 28 cores/chip
Hardware Threads: 56 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8182 MB
Memory Details: 6 x 8GB 2Rx8 PC4-2666V-RE1-12 Samsung; slots 1, 3, 5, 8, 10, and 12 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DPS-800AB (865438-B21) 96%
Disk Drive: 1 x HPE Dual 150GB SATA RI uFF M.2 SSSD (880875-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1] /AFFINITY [0xFFFFFFF]
JVM Instances: 2
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.22 (09/29/2017)
Management Firmware Version: 1.15 Aug 03 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-094J7GNS112.001 1,502,489
WIN-094J7GNS112.002 1,486,996
ssj_ops@100% 2,989,485
ssj_ops@100% per JVM 1,494,743

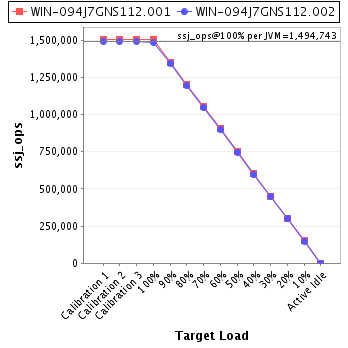

Graph of per-instance results
JVM 'WIN-094J7GNS112.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,507,642
Calibration 2     1,507,276
Calibration 3     1,507,394
ssj_ops@calibrated=1,507,335
100% 99.7% 1,507,335 1,502,489
90% 89.7% 1,356,601 1,352,658
80% 79.8% 1,205,868 1,202,469
70% 70.1% 1,055,134 1,056,538
60% 60.2% 904,401 906,874
50% 50.1% 753,667 754,680
40% 40.1% 602,934 604,578
30% 29.9% 452,200 450,865
20% 20.0% 301,467 302,018
10% 10.1% 150,733 151,689
Active Idle   0 0

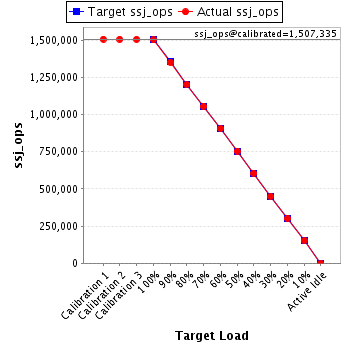

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-094J7GNS112.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,493,046
Calibration 2     1,493,006
Calibration 3     1,494,080
ssj_ops@calibrated=1,493,543
100% 99.6% 1,493,543 1,486,996
90% 90.0% 1,344,189 1,344,493
80% 79.9% 1,194,834 1,193,903
70% 70.0% 1,045,480 1,045,856
60% 60.2% 896,126 899,095
50% 50.1% 746,772 747,528
40% 39.9% 597,417 596,180
30% 30.0% 448,063 447,519
20% 20.0% 298,709 299,378
10% 10.0% 149,354 148,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
