Fujitsu FUJITSU Server PRIMERGY RX2540 M4 ssj_ops@100% = 5,079,736
ssj_ops@100% per JVM = 90,710
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Dec 15, 2017
Hardware Availability: Mar-2018 Software Availability: Jan-2015 Publication: Jan 10, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,112,815
Calibration 2     5,080,051
Calibration 3     5,094,955
ssj_ops@calibrated=5,087,503
100% 99.8% 5,087,503 5,079,736
90% 90.0% 4,578,753 4,580,629
80% 80.1% 4,070,003 4,076,351
70% 70.1% 3,561,252 3,564,103
60% 60.0% 3,052,502 3,049,979
50% 50.0% 2,543,752 2,543,083
40% 40.0% 2,035,001 2,035,379
30% 30.0% 1,526,251 1,526,277
20% 20.0% 1,017,501 1,019,110
10% 10.0% 508,750 506,845
Active Idle   0 0

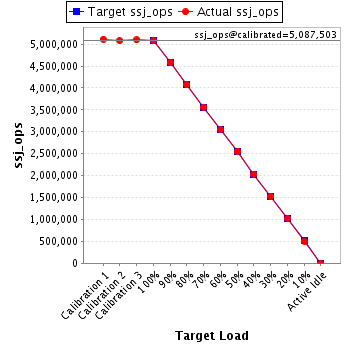

Graph of results
System Under Test
Set: 'RX2540 M4'
Set Identifier: RX2540 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2540 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16 GB DDR4, registered, ECC, 2666 MHz, PC4-2666V, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel(R) I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: R1.16.0
Management Firmware Version: 1.10P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-K92OLI2QI3N.001 90,515
WIN-K92OLI2QI3N.002 89,963
WIN-K92OLI2QI3N.003 91,405
WIN-K92OLI2QI3N.004 90,362
WIN-K92OLI2QI3N.005 90,235
WIN-K92OLI2QI3N.006 91,720
WIN-K92OLI2QI3N.007 88,397
WIN-K92OLI2QI3N.008 90,589
WIN-K92OLI2QI3N.009 91,682
WIN-K92OLI2QI3N.010 90,108
WIN-K92OLI2QI3N.011 90,121
WIN-K92OLI2QI3N.012 92,078
WIN-K92OLI2QI3N.013 92,785
WIN-K92OLI2QI3N.014 91,057
WIN-K92OLI2QI3N.015 90,585
WIN-K92OLI2QI3N.016 91,163
WIN-K92OLI2QI3N.017 90,420
WIN-K92OLI2QI3N.018 89,369
WIN-K92OLI2QI3N.019 91,013
WIN-K92OLI2QI3N.020 90,052
WIN-K92OLI2QI3N.021 90,648
WIN-K92OLI2QI3N.022 90,505
WIN-K92OLI2QI3N.023 90,754
WIN-K92OLI2QI3N.024 90,809
WIN-K92OLI2QI3N.025 90,628
WIN-K92OLI2QI3N.026 90,566
WIN-K92OLI2QI3N.027 91,628
WIN-K92OLI2QI3N.028 91,755
WIN-K92OLI2QI3N.029 90,143
WIN-K92OLI2QI3N.030 88,770
WIN-K92OLI2QI3N.031 89,974
WIN-K92OLI2QI3N.032 90,302
WIN-K92OLI2QI3N.033 90,333
WIN-K92OLI2QI3N.034 93,478
WIN-K92OLI2QI3N.035 90,067
WIN-K92OLI2QI3N.036 93,468
WIN-K92OLI2QI3N.037 91,624
WIN-K92OLI2QI3N.038 90,258
WIN-K92OLI2QI3N.039 89,696
WIN-K92OLI2QI3N.040 90,765
WIN-K92OLI2QI3N.041 91,941
WIN-K92OLI2QI3N.042 91,165
WIN-K92OLI2QI3N.043 90,300
WIN-K92OLI2QI3N.044 91,303
WIN-K92OLI2QI3N.045 90,323
WIN-K92OLI2QI3N.046 89,393
WIN-K92OLI2QI3N.047 90,696
WIN-K92OLI2QI3N.048 93,074
WIN-K92OLI2QI3N.049 90,806
WIN-K92OLI2QI3N.050 88,561
WIN-K92OLI2QI3N.051 90,839
WIN-K92OLI2QI3N.052 90,074
WIN-K92OLI2QI3N.053 91,494
WIN-K92OLI2QI3N.054 89,023
WIN-K92OLI2QI3N.055 89,570
WIN-K92OLI2QI3N.056 91,384
ssj_ops@100% 5,079,736
ssj_ops@100% per JVM 90,710
Graph of per-instance results
JVM 'WIN-K92OLI2QI3N.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,067
Calibration 2     89,861
Calibration 3     90,612
ssj_ops@calibrated=90,237
100% 100.3% 90,237 90,515
90% 89.9% 81,213 81,100
80% 79.8% 72,189 72,000
70% 70.4% 63,166 63,554
60% 60.8% 54,142 54,876
50% 50.0% 45,118 45,116
40% 40.1% 36,095 36,146
30% 29.5% 27,071 26,610
20% 20.2% 18,047 18,257
10% 10.0% 9,024 9,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,260
Calibration 2     89,856
Calibration 3     89,951
ssj_ops@calibrated=89,904
100% 100.1% 89,904 89,963
90% 91.1% 80,913 81,862
80% 79.7% 71,923 71,665
70% 70.5% 62,933 63,392
60% 60.4% 53,942 54,304
50% 50.5% 44,952 45,388
40% 40.3% 35,962 36,216
30% 29.9% 26,971 26,916
20% 20.0% 17,981 17,939
10% 9.8% 8,990 8,841
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,733
Calibration 2     90,885
Calibration 3     91,527
ssj_ops@calibrated=91,206
100% 100.2% 91,206 91,405
90% 90.3% 82,086 82,340
80% 80.2% 72,965 73,193
70% 69.7% 63,844 63,584
60% 59.3% 54,724 54,104
50% 49.9% 45,603 45,492
40% 40.3% 36,482 36,730
30% 30.4% 27,362 27,744
20% 20.1% 18,241 18,321
10% 10.1% 9,121 9,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,887
Calibration 2     90,071
Calibration 3     90,264
ssj_ops@calibrated=90,167
100% 100.2% 90,167 90,362
90% 91.2% 81,151 82,233
80% 80.4% 72,134 72,505
70% 71.2% 63,117 64,223
60% 60.4% 54,100 54,419
50% 50.3% 45,084 45,373
40% 40.5% 36,067 36,490
30% 30.0% 27,050 27,089
20% 20.1% 18,033 18,120
10% 9.8% 9,017 8,831
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,424
Calibration 2     89,982
Calibration 3     90,089
ssj_ops@calibrated=90,035
100% 100.2% 90,035 90,235
90% 89.6% 81,032 80,695
80% 79.5% 72,028 71,542
70% 69.9% 63,025 62,896
60% 60.3% 54,021 54,255
50% 49.7% 45,018 44,752
40% 40.0% 36,014 36,043
30% 29.8% 27,011 26,872
20% 20.1% 18,007 18,101
10% 10.1% 9,004 9,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,593
Calibration 2     92,172
Calibration 3     92,248
ssj_ops@calibrated=92,210
100% 99.5% 92,210 91,720
90% 89.0% 82,989 82,040
80% 79.6% 73,768 73,386
70% 69.9% 64,547 64,444
60% 60.0% 55,326 55,310
50% 49.9% 46,105 46,030
40% 39.8% 36,884 36,668
30% 30.0% 27,663 27,624
20% 19.9% 18,442 18,353
10% 9.9% 9,221 9,173
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,446
Calibration 2     88,186
Calibration 3     88,837
ssj_ops@calibrated=88,512
100% 99.9% 88,512 88,397
90% 90.0% 79,660 79,694
80% 80.5% 70,809 71,275
70% 68.8% 61,958 60,902
60% 59.3% 53,107 52,494
50% 50.3% 44,256 44,488
40% 39.6% 35,405 35,077
30% 30.0% 26,553 26,586
20% 20.3% 17,702 17,954
10% 9.9% 8,851 8,790
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,528
Calibration 2     90,777
Calibration 3     90,985
ssj_ops@calibrated=90,881
100% 99.7% 90,881 90,589
90% 89.9% 81,793 81,672
80% 80.3% 72,705 72,979
70% 70.6% 63,617 64,134
60% 59.2% 54,529 53,768
50% 50.3% 45,440 45,750
40% 39.6% 36,352 36,004
30% 29.9% 27,264 27,162
20% 20.3% 18,176 18,455
10% 10.2% 9,088 9,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,538
Calibration 2     92,038
Calibration 3     92,416
ssj_ops@calibrated=92,227
100% 99.4% 92,227 91,682
90% 91.1% 83,004 84,025
80% 80.2% 73,782 74,012
70% 70.5% 64,559 65,027
60% 59.3% 55,336 54,647
50% 49.6% 46,113 45,728
40% 39.8% 36,891 36,664
30% 29.7% 27,668 27,374
20% 20.2% 18,445 18,607
10% 10.0% 9,223 9,197
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,775
Calibration 2     90,131
Calibration 3     90,440
ssj_ops@calibrated=90,286
100% 99.8% 90,286 90,108
90% 90.6% 81,257 81,759
80% 80.1% 72,228 72,348
70% 70.4% 63,200 63,562
60% 59.6% 54,171 53,837
50% 49.8% 45,143 44,942
40% 41.4% 36,114 37,374
30% 30.1% 27,086 27,183
20% 19.9% 18,057 17,958
10% 9.8% 9,029 8,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,827
Calibration 2     90,226
Calibration 3     91,129
ssj_ops@calibrated=90,678
100% 99.4% 90,678 90,121
90% 90.5% 81,610 82,107
80% 79.3% 72,542 71,891
70% 70.4% 63,475 63,851
60% 59.5% 54,407 53,917
50% 50.3% 45,339 45,610
40% 40.1% 36,271 36,321
30% 30.0% 27,203 27,199
20% 20.2% 18,136 18,276
10% 9.8% 9,068 8,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,688
Calibration 2     92,111
Calibration 3     92,338
ssj_ops@calibrated=92,224
100% 99.8% 92,224 92,078
90% 90.8% 83,002 83,737
80% 80.3% 73,780 74,083
70% 71.0% 64,557 65,457
60% 60.9% 55,335 56,209
50% 50.0% 46,112 46,125
40% 40.0% 36,890 36,918
30% 29.6% 27,667 27,256
20% 20.4% 18,445 18,774
10% 9.6% 9,222 8,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,695
Calibration 2     93,000
Calibration 3     93,497
ssj_ops@calibrated=93,248
100% 99.5% 93,248 92,785
90% 89.7% 83,924 83,627
80% 80.5% 74,599 75,077
70% 71.4% 65,274 66,561
60% 59.1% 55,949 55,091
50% 50.7% 46,624 47,307
40% 39.7% 37,299 37,058
30% 29.5% 27,975 27,498
20% 20.4% 18,650 19,032
10% 10.2% 9,325 9,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,491
Calibration 2     90,763
Calibration 3     91,243
ssj_ops@calibrated=91,003
100% 100.1% 91,003 91,057
90% 90.7% 81,903 82,541
80% 80.5% 72,802 73,245
70% 69.4% 63,702 63,178
60% 59.4% 54,602 54,068
50% 49.7% 45,502 45,265
40% 40.4% 36,401 36,763
30% 29.8% 27,301 27,163
20% 20.0% 18,201 18,221
10% 10.3% 9,100 9,385
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,337
Calibration 2     91,022
Calibration 3     91,242
ssj_ops@calibrated=91,132
100% 99.4% 91,132 90,585
90% 90.7% 82,019 82,673
80% 80.2% 72,906 73,127
70% 70.3% 63,793 64,058
60% 60.1% 54,679 54,745
50% 49.7% 45,566 45,253
40% 40.1% 36,453 36,571
30% 30.2% 27,340 27,555
20% 19.9% 18,226 18,179
10% 10.3% 9,113 9,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,475
Calibration 2     91,874
Calibration 3     92,018
ssj_ops@calibrated=91,946
100% 99.1% 91,946 91,163
90% 90.8% 82,751 83,484
80% 80.2% 73,557 73,745
70% 69.3% 64,362 63,753
60% 60.1% 55,167 55,298
50% 49.9% 45,973 45,905
40% 40.4% 36,778 37,129
30% 30.6% 27,584 28,157
20% 20.0% 18,389 18,362
10% 9.7% 9,195 8,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,990
Calibration 2     90,149
Calibration 3     90,559
ssj_ops@calibrated=90,354
100% 100.1% 90,354 90,420
90% 90.0% 81,318 81,348
80% 79.0% 72,283 71,380
70% 70.2% 63,248 63,421
60% 60.6% 54,212 54,720
50% 50.1% 45,177 45,246
40% 40.1% 36,141 36,224
30% 30.2% 27,106 27,298
20% 20.4% 18,071 18,415
10% 10.1% 9,035 9,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,364
Calibration 2     89,522
Calibration 3     89,951
ssj_ops@calibrated=89,737
100% 99.6% 89,737 89,369
90% 90.4% 80,763 81,164
80% 81.1% 71,789 72,748
70% 69.5% 62,816 62,344
60% 59.4% 53,842 53,290
50% 51.3% 44,868 46,062
40% 40.3% 35,895 36,200
30% 29.9% 26,921 26,848
20% 19.8% 17,947 17,723
10% 9.8% 8,974 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,422
Calibration 2     90,920
Calibration 3     90,652
ssj_ops@calibrated=90,786
100% 100.2% 90,786 91,013
90% 89.6% 81,708 81,365
80% 79.6% 72,629 72,225
70% 69.0% 63,550 62,673
60% 60.0% 54,472 54,480
50% 49.8% 45,393 45,171
40% 40.0% 36,315 36,320
30% 29.8% 27,236 27,009
20% 19.8% 18,157 17,973
10% 9.8% 9,079 8,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,083
Calibration 2     90,189
Calibration 3     90,253
ssj_ops@calibrated=90,221
100% 99.8% 90,221 90,052
90% 88.5% 81,199 79,879
80% 79.9% 72,177 72,100
70% 70.7% 63,155 63,770
60% 60.3% 54,133 54,379
50% 50.3% 45,111 45,396
40% 39.5% 36,088 35,669
30% 29.9% 27,066 26,978
20% 20.5% 18,044 18,524
10% 9.9% 9,022 8,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,446
Calibration 2     90,123
Calibration 3     90,580
ssj_ops@calibrated=90,351
100% 100.3% 90,351 90,648
90% 90.5% 81,316 81,789
80% 79.8% 72,281 72,103
70% 70.8% 63,246 64,004
60% 60.1% 54,211 54,308
50% 50.3% 45,176 45,466
40% 39.3% 36,141 35,548
30% 29.6% 27,105 26,721
20% 20.2% 18,070 18,216
10% 9.9% 9,035 8,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,191
Calibration 2     90,882
Calibration 3     90,413
ssj_ops@calibrated=90,648
100% 99.8% 90,648 90,505
90% 89.5% 81,583 81,170
80% 80.7% 72,518 73,152
70% 69.6% 63,453 63,075
60% 60.7% 54,389 55,000
50% 50.3% 45,324 45,588
40% 39.9% 36,259 36,197
30% 30.4% 27,194 27,561
20% 20.1% 18,130 18,259
10% 10.0% 9,065 9,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,942
Calibration 2     90,940
Calibration 3     90,772
ssj_ops@calibrated=90,856
100% 99.9% 90,856 90,754
90% 89.8% 81,770 81,545
80% 80.8% 72,685 73,389
70% 71.8% 63,599 65,252
60% 59.8% 54,513 54,293
50% 49.4% 45,428 44,848
40% 40.1% 36,342 36,409
30% 29.5% 27,257 26,832
20% 19.6% 18,171 17,816
10% 10.0% 9,086 9,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,883
Calibration 2     90,561
Calibration 3     90,754
ssj_ops@calibrated=90,657
100% 100.2% 90,657 90,809
90% 89.8% 81,592 81,366
80% 79.2% 72,526 71,780
70% 69.7% 63,460 63,198
60% 60.0% 54,394 54,416
50% 49.6% 45,329 44,945
40% 40.5% 36,263 36,685
30% 30.1% 27,197 27,252
20% 20.2% 18,131 18,324
10% 10.2% 9,066 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,685
Calibration 2     91,228
Calibration 3     91,079
ssj_ops@calibrated=91,153
100% 99.4% 91,153 90,628
90% 89.2% 82,038 81,288
80% 79.8% 72,923 72,780
70% 69.7% 63,807 63,513
60% 60.9% 54,692 55,518
50% 49.8% 45,577 45,418
40% 39.9% 36,461 36,361
30% 29.9% 27,346 27,235
20% 19.7% 18,231 17,974
10% 10.0% 9,115 9,123
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,229
Calibration 2     91,800
Calibration 3     91,950
ssj_ops@calibrated=91,875
100% 98.6% 91,875 90,566
90% 89.2% 82,687 81,973
80% 79.4% 73,500 72,965
70% 70.5% 64,312 64,805
60% 60.7% 55,125 55,775
50% 49.8% 45,937 45,779
40% 39.6% 36,750 36,381
30% 29.7% 27,562 27,295
20% 19.9% 18,375 18,262
10% 9.7% 9,187 8,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,498
Calibration 2     91,535
Calibration 3     91,760
ssj_ops@calibrated=91,647
100% 100.0% 91,647 91,628
90% 89.7% 82,483 82,208
80% 79.6% 73,318 72,979
70% 71.4% 64,153 65,425
60% 60.3% 54,988 55,279
50% 49.9% 45,824 45,750
40% 40.7% 36,659 37,311
30% 29.9% 27,494 27,409
20% 20.1% 18,329 18,404
10% 10.0% 9,165 9,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,187
Calibration 2     91,736
Calibration 3     92,050
ssj_ops@calibrated=91,893
100% 99.9% 91,893 91,755
90% 89.7% 82,704 82,410
80% 79.7% 73,514 73,224
70% 69.1% 64,325 63,496
60% 59.3% 55,136 54,496
50% 49.9% 45,946 45,831
40% 40.2% 36,757 36,980
30% 29.4% 27,568 27,037
20% 20.3% 18,379 18,620
10% 9.7% 9,189 8,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

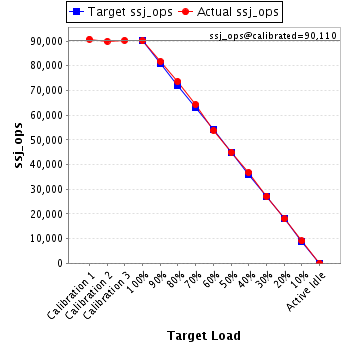

JVM 'WIN-K92OLI2QI3N.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,794
Calibration 2     89,891
Calibration 3     90,330
ssj_ops@calibrated=90,110
100% 100.0% 90,110 90,143
90% 90.7% 81,099 81,727
80% 81.7% 72,088 73,609
70% 71.4% 63,077 64,344
60% 59.7% 54,066 53,834
50% 49.9% 45,055 44,998
40% 40.8% 36,044 36,775
30% 30.2% 27,033 27,203
20% 19.9% 18,022 17,974
10% 10.0% 9,011 9,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,134
Calibration 2     88,233
Calibration 3     88,336
ssj_ops@calibrated=88,284
100% 100.6% 88,284 88,770
90% 90.5% 79,456 79,885
80% 80.6% 70,628 71,124
70% 69.6% 61,799 61,436
60% 59.2% 52,971 52,279
50% 49.5% 44,142 43,694
40% 39.5% 35,314 34,851
30% 30.4% 26,485 26,843
20% 19.8% 17,657 17,462
10% 10.0% 8,828 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,215
Calibration 2     89,877
Calibration 3     90,354
ssj_ops@calibrated=90,116
100% 99.8% 90,116 89,974
90% 90.3% 81,104 81,364
80% 80.6% 72,092 72,592
70% 70.2% 63,081 63,271
60% 60.2% 54,069 54,216
50% 50.0% 45,058 45,069
40% 40.0% 36,046 36,057
30% 30.4% 27,035 27,357
20% 20.2% 18,023 18,218
10% 9.9% 9,012 8,943
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,558
Calibration 2     90,111
Calibration 3     90,487
ssj_ops@calibrated=90,299
100% 100.0% 90,299 90,302
90% 89.1% 81,269 80,433
80% 79.4% 72,239 71,686
70% 70.6% 63,209 63,791
60% 60.5% 54,179 54,604
50% 49.3% 45,150 44,490
40% 40.6% 36,120 36,668
30% 30.5% 27,090 27,525
20% 19.5% 18,060 17,621
10% 9.9% 9,030 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,740
Calibration 2     90,462
Calibration 3     90,977
ssj_ops@calibrated=90,720
100% 99.6% 90,720 90,333
90% 88.7% 81,648 80,473
80% 81.1% 72,576 73,608
70% 70.8% 63,504 64,226
60% 59.9% 54,432 54,343
50% 49.8% 45,360 45,157
40% 40.2% 36,288 36,504
30% 29.9% 27,216 27,098
20% 19.7% 18,144 17,870
10% 9.9% 9,072 8,953
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,611
Calibration 2     93,175
Calibration 3     93,335
ssj_ops@calibrated=93,255
100% 100.2% 93,255 93,478
90% 90.1% 83,930 84,032
80% 79.6% 74,604 74,209
70% 69.7% 65,279 65,026
60% 60.1% 55,953 56,007
50% 50.0% 46,628 46,630
40% 40.4% 37,302 37,634
30% 30.8% 27,977 28,711
20% 20.3% 18,651 18,903
10% 9.9% 9,326 9,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,639
Calibration 2     89,642
Calibration 3     89,646
ssj_ops@calibrated=89,644
100% 100.5% 89,644 90,067
90% 90.9% 80,680 81,454
80% 79.7% 71,715 71,466
70% 69.2% 62,751 62,028
60% 60.1% 53,787 53,847
50% 50.1% 44,822 44,905
40% 40.1% 35,858 35,971
30% 29.8% 26,893 26,686
20% 19.8% 17,929 17,758
10% 9.7% 8,964 8,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,724
Calibration 2     93,356
Calibration 3     93,694
ssj_ops@calibrated=93,525
100% 99.9% 93,525 93,468
90% 90.7% 84,172 84,809
80% 81.1% 74,820 75,880
70% 69.9% 65,467 65,403
60% 60.0% 56,115 56,141
50% 50.8% 46,762 47,476
40% 39.8% 37,410 37,232
30% 30.3% 28,057 28,356
20% 20.3% 18,705 19,003
10% 10.3% 9,352 9,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,319
Calibration 2     92,388
Calibration 3     92,907
ssj_ops@calibrated=92,647
100% 98.9% 92,647 91,624
90% 89.8% 83,382 83,215
80% 80.6% 74,118 74,709
70% 69.4% 64,853 64,323
60% 60.3% 55,588 55,866
50% 50.7% 46,324 46,947
40% 40.0% 37,059 37,098
30% 29.2% 27,794 27,049
20% 20.3% 18,529 18,825
10% 10.1% 9,265 9,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,641
Calibration 2     89,783
Calibration 3     90,119
ssj_ops@calibrated=89,951
100% 100.3% 89,951 90,258
90% 89.4% 80,956 80,434
80% 80.1% 71,961 72,027
70% 68.9% 62,966 61,992
60% 59.8% 53,971 53,827
50% 49.6% 44,976 44,584
40% 40.6% 35,980 36,527
30% 30.5% 26,985 27,444
20% 19.9% 17,990 17,880
10% 10.3% 8,995 9,241
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,713
Calibration 2     89,699
Calibration 3     89,655
ssj_ops@calibrated=89,677
100% 100.0% 89,677 89,696
90% 90.1% 80,709 80,808
80% 80.9% 71,741 72,557
70% 70.3% 62,774 63,080
60% 60.1% 53,806 53,895
50% 50.5% 44,838 45,257
40% 40.1% 35,871 35,986
30% 29.6% 26,903 26,524
20% 20.0% 17,935 17,977
10% 10.0% 8,968 8,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,767
Calibration 2     91,070
Calibration 3     91,398
ssj_ops@calibrated=91,234
100% 99.5% 91,234 90,765
90% 89.6% 82,110 81,725
80% 79.0% 72,987 72,080
70% 70.2% 63,864 64,034
60% 59.9% 54,740 54,665
50% 49.8% 45,617 45,412
40% 40.1% 36,494 36,610
30% 29.8% 27,370 27,189
20% 20.6% 18,247 18,815
10% 10.1% 9,123 9,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,143
Calibration 2     91,972
Calibration 3     91,995
ssj_ops@calibrated=91,983
100% 100.0% 91,983 91,941
90% 89.5% 82,785 82,331
80% 79.8% 73,587 73,424
70% 70.6% 64,388 64,962
60% 59.7% 55,190 54,909
50% 49.4% 45,992 45,444
40% 39.5% 36,793 36,378
30% 29.8% 27,595 27,401
20% 19.8% 18,397 18,212
10% 9.7% 9,198 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,977
Calibration 2     90,252
Calibration 3     91,269
ssj_ops@calibrated=90,761
100% 100.4% 90,761 91,165
90% 90.3% 81,685 81,975
80% 80.0% 72,609 72,626
70% 71.1% 63,533 64,492
60% 60.3% 54,457 54,732
50% 49.8% 45,380 45,224
40% 39.4% 36,304 35,752
30% 29.6% 27,228 26,849
20% 20.2% 18,152 18,316
10% 10.4% 9,076 9,419
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,566
Calibration 2     89,937
Calibration 3     90,706
ssj_ops@calibrated=90,321
100% 100.0% 90,321 90,300
90% 90.8% 81,289 81,967
80% 80.0% 72,257 72,280
70% 70.0% 63,225 63,189
60% 59.4% 54,193 53,686
50% 50.0% 45,161 45,171
40% 39.1% 36,128 35,343
30% 30.0% 27,096 27,125
20% 19.6% 18,064 17,670
10% 9.7% 9,032 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,236
Calibration 2     91,695
Calibration 3     91,449
ssj_ops@calibrated=91,572
100% 99.7% 91,572 91,303
90% 90.2% 82,415 82,566
80% 80.0% 73,258 73,270
70% 68.6% 64,100 62,819
60% 60.1% 54,943 55,056
50% 50.5% 45,786 46,263
40% 40.0% 36,629 36,642
30% 30.5% 27,472 27,911
20% 20.3% 18,314 18,548
10% 10.0% 9,157 9,122
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,728
Calibration 2     90,687
Calibration 3     90,283
ssj_ops@calibrated=90,485
100% 99.8% 90,485 90,323
90% 90.5% 81,437 81,904
80% 80.9% 72,388 73,174
70% 70.6% 63,340 63,880
60% 59.7% 54,291 54,034
50% 50.4% 45,243 45,649
40% 39.8% 36,194 36,049
30% 30.0% 27,146 27,178
20% 19.4% 18,097 17,599
10% 10.1% 9,049 9,119
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,339
Calibration 2     88,963
Calibration 3     89,760
ssj_ops@calibrated=89,361
100% 100.0% 89,361 89,393
90% 88.9% 80,425 79,485
80% 80.9% 71,489 72,277
70% 69.8% 62,553 62,394
60% 60.1% 53,617 53,749
50% 49.5% 44,681 44,274
40% 39.5% 35,745 35,255
30% 30.1% 26,808 26,861
20% 19.6% 17,872 17,512
10% 9.7% 8,936 8,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,640
Calibration 2     90,318
Calibration 3     90,929
ssj_ops@calibrated=90,623
100% 100.1% 90,623 90,696
90% 89.5% 81,561 81,076
80% 80.7% 72,499 73,147
70% 70.2% 63,436 63,615
60% 59.4% 54,374 53,818
50% 50.0% 45,312 45,294
40% 39.5% 36,249 35,793
30% 29.9% 27,187 27,058
20% 20.1% 18,125 18,236
10% 10.0% 9,062 9,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,303
Calibration 2     93,092
Calibration 3     93,610
ssj_ops@calibrated=93,351
100% 99.7% 93,351 93,074
90% 89.7% 84,016 83,761
80% 79.3% 74,681 74,055
70% 70.4% 65,346 65,759
60% 59.3% 56,011 55,327
50% 49.2% 46,676 45,946
40% 40.0% 37,340 37,331
30% 30.6% 28,005 28,546
20% 20.5% 18,670 19,131
10% 9.8% 9,335 9,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,115
Calibration 2     91,304
Calibration 3     91,053
ssj_ops@calibrated=91,178
100% 99.6% 91,178 90,806
90% 91.4% 82,061 83,340
80% 81.6% 72,943 74,404
70% 69.7% 63,825 63,573
60% 60.1% 54,707 54,799
50% 50.9% 45,589 46,439
40% 39.5% 36,471 36,053
30% 30.0% 27,354 27,387
20% 19.7% 18,236 17,989
10% 10.2% 9,118 9,319
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,048
Calibration 2     88,367
Calibration 3     89,038
ssj_ops@calibrated=88,703
100% 99.8% 88,703 88,561
90% 89.3% 79,832 79,248
80% 80.0% 70,962 70,969
70% 69.9% 62,092 61,984
60% 60.2% 53,222 53,405
50% 50.0% 44,351 44,341
40% 39.6% 35,481 35,153
30% 30.7% 26,611 27,226
20% 20.1% 17,741 17,787
10% 10.2% 8,870 9,090
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,977
Calibration 2     90,687
Calibration 3     90,848
ssj_ops@calibrated=90,767
100% 100.1% 90,767 90,839
90% 89.8% 81,691 81,548
80% 80.3% 72,614 72,843
70% 70.2% 63,537 63,687
60% 59.7% 54,460 54,194
50% 49.4% 45,384 44,796
40% 39.9% 36,307 36,225
30% 30.3% 27,230 27,470
20% 19.9% 18,153 18,029
10% 9.7% 9,077 8,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,785
Calibration 2     90,363
Calibration 3     90,161
ssj_ops@calibrated=90,262
100% 99.8% 90,262 90,074
90% 89.9% 81,236 81,117
80% 80.4% 72,210 72,560
70% 69.8% 63,184 63,002
60% 60.3% 54,157 54,387
50% 50.1% 45,131 45,196
40% 39.8% 36,105 35,916
30% 29.8% 27,079 26,866
20% 19.4% 18,052 17,518
10% 9.9% 9,026 8,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,114
Calibration 2     91,196
Calibration 3     91,607
ssj_ops@calibrated=91,401
100% 100.1% 91,401 91,494
90% 91.0% 82,261 83,170
80% 79.6% 73,121 72,792
70% 69.1% 63,981 63,131
60% 59.2% 54,841 54,098
50% 49.3% 45,701 45,053
40% 40.5% 36,561 37,051
30% 29.7% 27,420 27,107
20% 19.8% 18,280 18,141
10% 10.0% 9,140 9,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,492
Calibration 2     89,075
Calibration 3     89,168
ssj_ops@calibrated=89,122
100% 99.9% 89,122 89,023
90% 90.6% 80,209 80,776
80% 79.2% 71,297 70,556
70% 69.2% 62,385 61,678
60% 60.2% 53,473 53,675
50% 50.1% 44,561 44,649
40% 39.7% 35,649 35,397
30% 30.2% 26,736 26,896
20% 20.1% 17,824 17,900
10% 10.0% 8,912 8,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,206
Calibration 2     90,241
Calibration 3     90,512
ssj_ops@calibrated=90,377
100% 99.1% 90,377 89,570
90% 89.5% 81,339 80,868
80% 80.2% 72,301 72,502
70% 68.7% 63,264 62,045
60% 59.9% 54,226 54,122
50% 49.9% 45,188 45,133
40% 39.9% 36,151 36,077
30% 30.5% 27,113 27,552
20% 19.9% 18,075 18,030
10% 9.6% 9,038 8,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K92OLI2QI3N.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,607
Calibration 2     91,673
Calibration 3     91,722
ssj_ops@calibrated=91,697
100% 99.7% 91,697 91,384
90% 89.5% 82,528 82,042
80% 79.6% 73,358 73,027
70% 69.1% 64,188 63,386
60% 60.2% 55,018 55,163
50% 49.7% 45,849 45,569
40% 39.9% 36,679 36,592
30% 29.9% 27,509 27,394
20% 20.5% 18,339 18,771
10% 10.0% 9,170 9,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
