SPECpower_ssj2008

Hewlett Packard Enterprise ProLiant DL385 Gen10			SPECpower_ssj2008 = 11,044 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 16, 2018
Hardware Availability:	Jan-2018	Software Availability:	Oct-2017	Publication:	May 1, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL385 Gen10
Form Factor:	2U
CPU Name:	AMD EPYC 7601 2.20 GHz
CPU Characteristics:	32-Core, 2.20GHz 64MB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	64 cores, 2 chips, 32 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per core
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	16 x 8192 MB
Memory Details:	8GB 1Rx8 PC4-2666V-R slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive:	1 x HPE 480GB SATA M.2 (880877-B21)
Disk Controller:	embedded SATA
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected:	4/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	1 x HPE High Performance Fan kit (867810-B21)

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmx6656m -Xms6656m -Xmn4500m -XX:SurvivorRatio=15 -XX:InlineSmallCode=8000 -XX:FreqInlineSize=8000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=8 -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:AllocatePrefetchLines=7 -XX:MaxInlineSize=80 -XX:LoopUnrollLimit=30 -XX:AllocatePrefetchDistance=192 -XX:InitialTenuringThreshold=10
JVM Affinity:	start /NODE[0,1,2,3,4,5,6,7] /AFFINITY [0xFF, 0xFF00]
JVM Instances:	16
JVM Initial Heap (MB):	6656
JVM Maximum Heap (MB):	6656
JVM Address Bits:	64
Boot Firmware Version:	A40 v1.20 (01/12/2018)
Management Firmware Version:	1.20 Dec 15 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) Version 2017.10.1, Microsoft kb4025334

See SUT Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

None

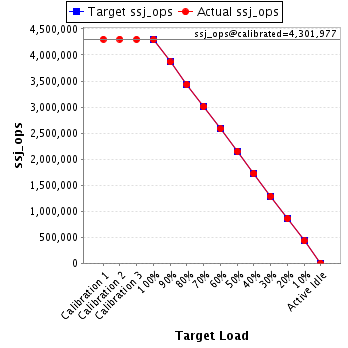

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	298	21.7
90%	271	21.8
80%	248	21.8
70%	220	21.7
60%	199	21.7
50%	193	21.6
40%	179	21.4
30%	165	21.4
20%	150	21.6
10%	136	21.6
Active Idle	81.1	21.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
210V / 60 Hz / 1 phase / 2 wires	21.4	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
