Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module | SPECpower_ssj2008 = 10,872 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Apr 6, 2018 |
Hardware Availability: | Jun-2018 | Software Availability: | Mar-2018 | Publication: | Apr 25, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 5,798 | 22.2 |
Calibration 2 | 5,811 | 22.3 |
Calibration 3 | 5,829 | 22.2 |
100% | 5,816 | 22.2 |
90% | 5,269 | 22.1 |
80% | 4,417 | 22.1 |
70% | 3,803 | 22.1 |
60% | 3,303 | 22.1 |
50% | 2,884 | 22.2 |
40% | 2,553 | 22.2 |
30% | 2,263 | 22.1 |
20% | 1,982 | 22.2 |
10% | 1,689 | 22.2 |
Active Idle | 901 | 22.2 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91K112851 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-D0562-20-1 |
Date of Calibration: | 18-Apr-2017 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 2, and 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91K208943 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-D0562-140-1 |
Date of Calibration: | 25-Apr-2017 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1, and 4 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-D38YR-220-1 |
Date of Calibration: | 21-Jun-2017 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 3, and 6 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 9.32 | 10.0 | 0.996 | 1,947 | 0.3% |
Calibration 2 | 210 | 300.0 | 9.36 | 10.0 | 0.996 | 1,956 | 0.3% |
Calibration 3 | 210 | 300.0 | 9.37 | 10.0 | 0.996 | 1,958 | 0.3% |
100% | 210 | 300.0 | 9.35 | 10.0 | 0.996 | 1,958 | 0.3% |
90% | 211 | 300.0 | 8.40 | 10.0 | 0.995 | 1,761 | 0.3% |
80% | 211 | 300.0 | 7.04 | 10.0 | 0.993 | 1,474 | 0.4% |
70% | 211 | 300.0 | 6.05 | 10.0 | 0.991 | 1,264 | 0.4% |
60% | 211 | 300.0 | 5.24 | 5.0 | 0.988 | 1,092 | 0.3% |
50% | 211 | 300.0 | 4.54 | 5.0 | 0.985 | 944 | 0.3% |
40% | 211 | 300.0 | 4.05 | 5.0 | 0.980 | 838 | 0.4% |
30% | 211 | 300.0 | 3.60 | 5.0 | 0.975 | 741 | 0.4% |
20% | 211 | 300.0 | 3.17 | 5.0 | 0.969 | 649 | 0.4% |
10% | 211 | 300.0 | 2.72 | 5.0 | 0.957 | 549 | 0.5% |
Active Idle | 211 | 300.0 | 1.57 | 2.0 | 0.862 | 286 | 0.5% |

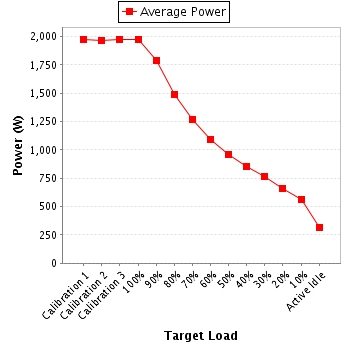

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 9.32 | 10.0 | 0.995 | 1,973 | 0.3% |
Calibration 2 | 213 | 300.0 | 9.30 | 10.0 | 0.995 | 1,970 | 0.3% |
Calibration 3 | 213 | 300.0 | 9.33 | 10.0 | 0.995 | 1,977 | 0.3% |
100% | 213 | 300.0 | 9.30 | 10.0 | 0.995 | 1,973 | 0.3% |
90% | 214 | 300.0 | 8.44 | 10.0 | 0.995 | 1,791 | 0.3% |
80% | 214 | 300.0 | 7.01 | 10.0 | 0.992 | 1,486 | 0.4% |
70% | 214 | 300.0 | 5.98 | 10.0 | 0.989 | 1,265 | 0.4% |
60% | 214 | 300.0 | 5.20 | 5.0 | 0.986 | 1,096 | 0.3% |
50% | 214 | 300.0 | 4.58 | 5.0 | 0.982 | 962 | 0.3% |
40% | 214 | 300.0 | 4.09 | 5.0 | 0.977 | 856 | 0.4% |
30% | 214 | 300.0 | 3.67 | 5.0 | 0.972 | 763 | 0.4% |
20% | 214 | 300.0 | 3.21 | 5.0 | 0.964 | 662 | 0.4% |
10% | 214 | 300.0 | 2.77 | 5.0 | 0.951 | 564 | 0.5% |
Active Idle | 214 | 300.0 | 1.70 | 2.0 | 0.856 | 311 | 0.5% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 212 | 300.0 | 8.90 | 10.0 | 0.996 | 1,879 | 0.3% |
Calibration 2 | 212 | 300.0 | 8.92 | 10.0 | 0.996 | 1,885 | 0.3% |
Calibration 3 | 213 | 300.0 | 8.95 | 10.0 | 0.996 | 1,894 | 0.3% |
100% | 213 | 300.0 | 8.90 | 10.0 | 0.996 | 1,886 | 0.3% |
90% | 213 | 300.0 | 8.09 | 10.0 | 0.995 | 1,717 | 0.3% |
80% | 213 | 300.0 | 6.87 | 10.0 | 0.993 | 1,457 | 0.4% |
70% | 214 | 300.0 | 6.02 | 10.0 | 0.991 | 1,274 | 0.4% |
60% | 214 | 300.0 | 5.28 | 5.0 | 0.988 | 1,115 | 0.3% |
50% | 214 | 300.0 | 4.65 | 5.0 | 0.985 | 978 | 0.3% |
40% | 214 | 300.0 | 4.09 | 5.0 | 0.980 | 859 | 0.4% |
30% | 214 | 300.0 | 3.64 | 5.0 | 0.975 | 759 | 0.4% |
20% | 214 | 300.0 | 3.23 | 5.0 | 0.968 | 670 | 0.4% |
10% | 214 | 300.0 | 2.81 | 5.0 | 0.958 | 576 | 0.5% |
Active Idle | 214 | 300.0 | 1.65 | 2.0 | 0.857 | 303 | 0.5% |
