Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,749,648
ssj_ops@100% per JVM = 1,437,412
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 6, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Apr 25, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,764,906
Calibration 2     5,767,247
Calibration 3     5,772,570
ssj_ops@calibrated=5,769,909
100% 99.6% 5,769,909 5,749,648
90% 90.0% 5,192,918 5,192,683
80% 79.8% 4,615,927 4,606,072
70% 70.0% 4,038,936 4,040,386
60% 60.0% 3,461,945 3,461,572
50% 50.0% 2,884,954 2,884,743
40% 40.0% 2,307,963 2,305,969
30% 30.0% 1,730,973 1,729,043
20% 20.0% 1,153,982 1,154,260
10% 10.0% 576,991 576,995
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE04.001 1,426,781
NODE04.002 1,424,751
NODE04.003 1,451,453
NODE04.004 1,446,663
ssj_ops@100% 5,749,648
ssj_ops@100% per JVM 1,437,412

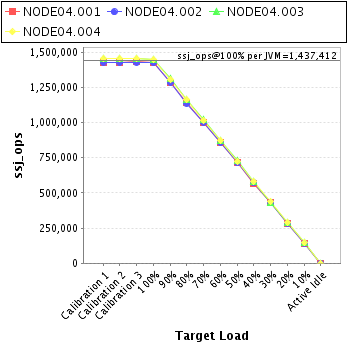

Graph of per-instance results
JVM 'NODE04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,427,034
Calibration 2     1,429,393
Calibration 3     1,433,042
ssj_ops@calibrated=1,431,217
100% 99.7% 1,431,217 1,426,781
90% 89.9% 1,288,096 1,286,593
80% 80.0% 1,144,974 1,145,229
70% 70.0% 1,001,852 1,002,164
60% 59.9% 858,730 857,641
50% 50.0% 715,609 715,519
40% 39.8% 572,487 570,019
30% 30.1% 429,365 430,274
20% 20.0% 286,243 285,900
10% 9.9% 143,122 141,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,479
Calibration 2     1,428,379
Calibration 3     1,429,181
ssj_ops@calibrated=1,428,780
100% 99.7% 1,428,780 1,424,751
90% 90.0% 1,285,902 1,285,747
80% 79.6% 1,143,024 1,137,224
70% 70.2% 1,000,146 1,003,245
60% 60.0% 857,268 857,505
50% 50.0% 714,390 714,353
40% 40.0% 571,512 571,431
30% 30.0% 428,634 429,114
20% 19.9% 285,756 284,579
10% 10.0% 142,878 142,856
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,455,040
Calibration 2     1,457,016
Calibration 3     1,457,313
ssj_ops@calibrated=1,457,164
100% 99.6% 1,457,164 1,451,453
90% 90.2% 1,311,448 1,313,813
80% 79.8% 1,165,732 1,162,098
70% 69.9% 1,020,015 1,019,002
60% 60.0% 874,299 874,604
50% 50.1% 728,582 730,355
40% 40.0% 582,866 582,649
30% 29.7% 437,149 432,694
20% 20.0% 291,433 291,730
10% 10.0% 145,716 146,419
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,453,353
Calibration 2     1,452,460
Calibration 3     1,453,035
ssj_ops@calibrated=1,452,747
100% 99.6% 1,452,747 1,446,663
90% 89.9% 1,307,473 1,306,530
80% 80.0% 1,162,198 1,161,521
70% 69.9% 1,016,923 1,015,976
60% 60.0% 871,648 871,821
50% 49.9% 726,374 724,515
40% 40.1% 581,099 581,870
30% 30.1% 435,824 436,961
20% 20.1% 290,549 292,051
10% 10.0% 145,275 145,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
