Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,718,513
ssj_ops@100% per JVM = 1,429,628
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 6, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Apr 25, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,752,307
Calibration 2     5,738,986
Calibration 3     5,747,648
ssj_ops@calibrated=5,743,317
100% 99.6% 5,743,317 5,718,513
90% 90.0% 5,168,986 5,168,014
80% 79.9% 4,594,654 4,591,493
70% 69.9% 4,020,322 4,014,878
60% 60.0% 3,445,990 3,444,515
50% 50.0% 2,871,659 2,873,930
40% 40.1% 2,297,327 2,301,296
30% 30.0% 1,722,995 1,725,095
20% 19.9% 1,148,663 1,143,972
10% 10.0% 574,332 573,833
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE08.001 1,439,539
NODE08.002 1,429,104
NODE08.003 1,416,369
NODE08.004 1,433,502
ssj_ops@100% 5,718,513
ssj_ops@100% per JVM 1,429,628

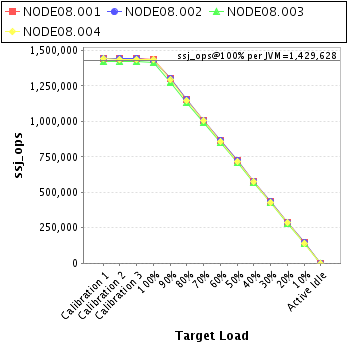

Graph of per-instance results
JVM 'NODE08.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,024
Calibration 2     1,441,491
Calibration 3     1,443,851
ssj_ops@calibrated=1,442,671
100% 99.8% 1,442,671 1,439,539
90% 90.0% 1,298,404 1,299,011
80% 80.1% 1,154,137 1,155,752
70% 69.8% 1,009,870 1,007,046
60% 60.0% 865,603 865,777
50% 50.0% 721,335 720,932
40% 40.1% 577,068 578,068
30% 30.1% 432,801 434,218
20% 19.9% 288,534 286,837
10% 10.0% 144,267 144,127
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,597
Calibration 2     1,442,094
Calibration 3     1,444,363
ssj_ops@calibrated=1,443,228
100% 99.0% 1,443,228 1,429,104
90% 90.1% 1,298,905 1,299,722
80% 79.9% 1,154,583 1,153,545
70% 69.9% 1,010,260 1,008,169
60% 60.1% 865,937 867,184
50% 50.1% 721,614 722,749
40% 40.1% 577,291 578,713
30% 30.0% 432,968 433,133
20% 20.0% 288,646 287,933
10% 10.0% 144,323 144,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,424,050
Calibration 2     1,419,112
Calibration 3     1,421,457
ssj_ops@calibrated=1,420,285
100% 99.7% 1,420,285 1,416,369
90% 89.9% 1,278,256 1,277,401
80% 80.0% 1,136,228 1,135,886
70% 70.1% 994,199 995,118
60% 60.0% 852,171 852,052
50% 50.1% 710,142 711,633
40% 40.2% 568,114 570,804
30% 30.0% 426,085 426,792
20% 19.9% 284,057 283,147
10% 10.0% 142,028 142,684
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,636
Calibration 2     1,436,290
Calibration 3     1,437,977
ssj_ops@calibrated=1,437,134
100% 99.7% 1,437,134 1,433,502
90% 89.9% 1,293,420 1,291,880
80% 79.8% 1,149,707 1,146,310
70% 69.9% 1,005,994 1,004,544
60% 59.8% 862,280 859,503
50% 50.0% 718,567 718,616
40% 39.9% 574,853 573,710
30% 30.0% 431,140 430,952
20% 19.9% 287,427 286,055
10% 9.9% 143,713 142,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
