Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,742,014
ssj_ops@100% per JVM = 1,435,504
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 6, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Apr 25, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,754,118
Calibration 2     5,751,949
Calibration 3     5,762,569
ssj_ops@calibrated=5,757,259
100% 99.7% 5,757,259 5,742,014
90% 90.0% 5,181,533 5,182,933
80% 79.7% 4,605,807 4,586,965
70% 69.9% 4,030,081 4,026,009
60% 60.0% 3,454,356 3,453,730
50% 50.0% 2,878,630 2,879,005
40% 39.9% 2,302,904 2,294,643
30% 30.0% 1,727,178 1,726,683
20% 19.9% 1,151,452 1,147,537
10% 10.0% 575,726 575,163
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE11.001 1,436,980
NODE11.002 1,431,595
NODE11.003 1,432,416
NODE11.004 1,441,023
ssj_ops@100% 5,742,014
ssj_ops@100% per JVM 1,435,504
Graph of per-instance results
JVM 'NODE11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,087
Calibration 2     1,441,192
Calibration 3     1,443,387
ssj_ops@calibrated=1,442,290
100% 99.6% 1,442,290 1,436,980
90% 90.0% 1,298,061 1,298,021
80% 79.2% 1,153,832 1,142,924
70% 69.9% 1,009,603 1,008,714
60% 60.2% 865,374 868,302
50% 49.8% 721,145 718,290
40% 40.0% 576,916 577,168
30% 30.1% 432,687 433,763
20% 20.0% 288,458 287,754
10% 10.0% 144,229 143,957
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,857
Calibration 2     1,434,721
Calibration 3     1,438,252
ssj_ops@calibrated=1,436,486
100% 99.7% 1,436,486 1,431,595
90% 90.1% 1,292,838 1,294,035
80% 79.8% 1,149,189 1,146,825
70% 70.0% 1,005,541 1,005,431
60% 59.9% 861,892 860,442
50% 50.0% 718,243 718,266
40% 39.9% 574,595 572,737
30% 30.0% 430,946 430,272
20% 20.0% 287,297 286,729
10% 10.0% 143,649 142,959
Active Idle   0 0

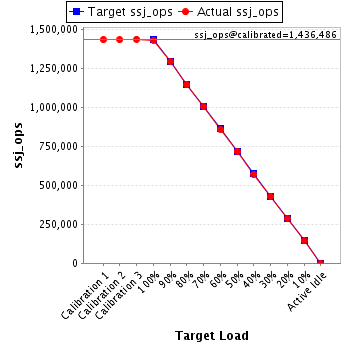

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,435,740
Calibration 2     1,432,442
Calibration 3     1,436,971
ssj_ops@calibrated=1,434,707
100% 99.8% 1,434,707 1,432,416
90% 90.0% 1,291,236 1,291,821
80% 79.6% 1,147,765 1,142,587
70% 69.9% 1,004,295 1,002,707
60% 59.7% 860,824 856,685
50% 50.1% 717,353 719,421
40% 39.6% 573,883 567,493
30% 30.1% 430,412 431,562
20% 19.9% 286,941 285,271
10% 10.0% 143,471 143,767
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,434
Calibration 2     1,443,594
Calibration 3     1,443,959
ssj_ops@calibrated=1,443,776
100% 99.8% 1,443,776 1,441,023
90% 90.0% 1,299,399 1,299,056
80% 80.0% 1,155,021 1,154,629
70% 69.9% 1,010,643 1,009,156
60% 60.1% 866,266 868,301
50% 50.1% 721,888 723,028
40% 40.0% 577,511 577,244
30% 29.9% 433,133 431,085
20% 19.9% 288,755 287,783
10% 10.0% 144,378 144,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
