Inspur Corporation Inspur NF5280M5 ssj_ops@100% = 5,821,446
ssj_ops@100% per JVM = 103,954
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Apr 9, 2018
Hardware Availability: Sep-2017 Software Availability: Jan-2015 Publication: May 23, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,850,839
Calibration 2     5,831,324
Calibration 3     5,835,108
ssj_ops@calibrated=5,833,216
100% 99.8% 5,833,216 5,821,446
90% 90.0% 5,249,895 5,251,079
80% 80.0% 4,666,573 4,665,047
70% 70.1% 4,083,251 4,086,790
60% 60.1% 3,499,930 3,502,859
50% 49.9% 2,916,608 2,911,453
40% 40.0% 2,333,286 2,330,996
30% 30.0% 1,749,965 1,750,804
20% 19.9% 1,166,643 1,162,711
10% 10.0% 583,322 583,592
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node.
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5280M5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.1GHz, 38.5MB L3 Cache (Intel Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Delta DPS-800AB-9X P/N:V07LP0400000000F
Disk Drive: Intel SSD DC S3500 Series 6Gb/s 80G PN:ZMHD1000018
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 OnBoard LAN
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced Power" power plan)
Operating System (OS): Microsoft Windows Servers 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3.0.4
Management Firmware Version: 3.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-6MS7P2M15GR.001 104,205
WIN-6MS7P2M15GR.002 103,820
WIN-6MS7P2M15GR.003 105,081
WIN-6MS7P2M15GR.004 88,454
WIN-6MS7P2M15GR.005 103,903
WIN-6MS7P2M15GR.006 108,620
WIN-6MS7P2M15GR.007 104,090
WIN-6MS7P2M15GR.008 107,145
WIN-6MS7P2M15GR.009 106,652
WIN-6MS7P2M15GR.010 104,720
WIN-6MS7P2M15GR.011 88,955
WIN-6MS7P2M15GR.012 104,614
WIN-6MS7P2M15GR.013 107,049
WIN-6MS7P2M15GR.014 104,384
WIN-6MS7P2M15GR.015 103,235
WIN-6MS7P2M15GR.016 105,552
WIN-6MS7P2M15GR.017 104,005
WIN-6MS7P2M15GR.018 93,049
WIN-6MS7P2M15GR.019 103,393
WIN-6MS7P2M15GR.020 104,595
WIN-6MS7P2M15GR.021 105,546
WIN-6MS7P2M15GR.022 104,773
WIN-6MS7P2M15GR.023 106,594
WIN-6MS7P2M15GR.024 104,983
WIN-6MS7P2M15GR.025 95,136
WIN-6MS7P2M15GR.026 105,543
WIN-6MS7P2M15GR.027 103,630
WIN-6MS7P2M15GR.028 104,379
WIN-6MS7P2M15GR.029 103,865
WIN-6MS7P2M15GR.030 104,645
WIN-6MS7P2M15GR.031 106,534
WIN-6MS7P2M15GR.032 95,288
WIN-6MS7P2M15GR.033 106,528
WIN-6MS7P2M15GR.034 106,822
WIN-6MS7P2M15GR.035 107,396
WIN-6MS7P2M15GR.036 108,176
WIN-6MS7P2M15GR.037 108,462
WIN-6MS7P2M15GR.038 105,573
WIN-6MS7P2M15GR.039 92,886
WIN-6MS7P2M15GR.040 105,575
WIN-6MS7P2M15GR.041 108,060
WIN-6MS7P2M15GR.042 109,632
WIN-6MS7P2M15GR.043 105,729
WIN-6MS7P2M15GR.044 107,337
WIN-6MS7P2M15GR.045 106,688
WIN-6MS7P2M15GR.046 96,515
WIN-6MS7P2M15GR.047 105,623
WIN-6MS7P2M15GR.048 106,744
WIN-6MS7P2M15GR.049 105,309
WIN-6MS7P2M15GR.050 104,539
WIN-6MS7P2M15GR.051 106,666
WIN-6MS7P2M15GR.052 107,242
WIN-6MS7P2M15GR.053 95,797
WIN-6MS7P2M15GR.054 105,365
WIN-6MS7P2M15GR.055 107,983
WIN-6MS7P2M15GR.056 104,363
ssj_ops@100% 5,821,446
ssj_ops@100% per JVM 103,954

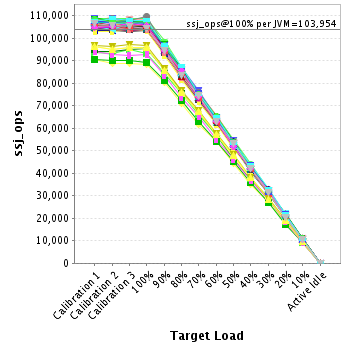

Graph of per-instance results
JVM 'WIN-6MS7P2M15GR.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,306
Calibration 2     105,406
Calibration 3     105,428
ssj_ops@calibrated=105,417
100% 98.9% 105,417 104,205
90% 89.7% 94,875 94,572
80% 80.5% 84,334 84,855
70% 69.4% 73,792 73,110
60% 60.2% 63,250 63,490
50% 49.5% 52,708 52,142
40% 40.2% 42,167 42,409
30% 29.7% 31,625 31,309
20% 20.8% 21,083 21,932
10% 10.0% 10,542 10,538
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,817
Calibration 2     104,870
Calibration 3     104,388
ssj_ops@calibrated=104,629
100% 99.2% 104,629 103,820
90% 90.5% 94,166 94,712
80% 80.4% 83,703 84,163
70% 69.4% 73,240 72,603
60% 60.0% 62,777 62,797
50% 50.5% 52,315 52,815
40% 40.0% 41,852 41,806
30% 30.5% 31,389 31,904
20% 19.5% 20,926 20,394
10% 10.0% 10,463 10,479
Active Idle   0 0
Graph of results

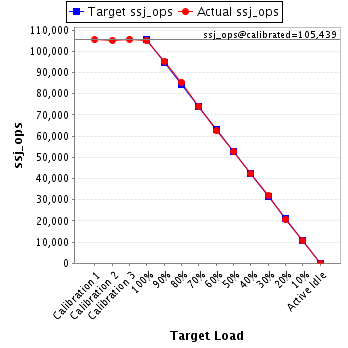

JVM 'WIN-6MS7P2M15GR.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,464
Calibration 2     105,136
Calibration 3     105,742
ssj_ops@calibrated=105,439
100% 99.7% 105,439 105,081
90% 90.3% 94,895 95,234
80% 80.9% 84,351 85,346
70% 70.2% 73,807 73,997
60% 59.3% 63,263 62,482
50% 50.0% 52,719 52,760
40% 40.1% 42,176 42,312
30% 30.2% 31,632 31,883
20% 19.6% 21,088 20,705
10% 10.1% 10,544 10,624
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,363
Calibration 2     88,780
Calibration 3     88,788
ssj_ops@calibrated=88,784
100% 99.6% 88,784 88,454
90% 90.4% 79,905 80,223
80% 79.9% 71,027 70,950
70% 69.6% 62,149 61,764
60% 60.9% 53,270 54,038
50% 49.9% 44,392 44,301
40% 39.3% 35,514 34,913
30% 30.2% 26,635 26,803
20% 20.3% 17,757 18,017
10% 10.3% 8,878 9,137
Active Idle   0 0
Graph of results

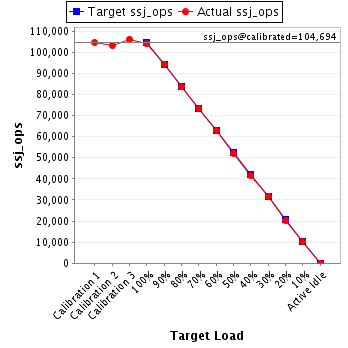

JVM 'WIN-6MS7P2M15GR.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,637
Calibration 2     103,236
Calibration 3     106,152
ssj_ops@calibrated=104,694
100% 99.2% 104,694 103,903
90% 90.0% 94,225 94,247
80% 79.8% 83,755 83,530
70% 70.2% 73,286 73,534
60% 60.1% 62,817 62,936
50% 49.8% 52,347 52,127
40% 39.6% 41,878 41,505
30% 30.3% 31,408 31,711
20% 19.3% 20,939 20,173
10% 9.7% 10,469 10,158
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,236
Calibration 2     108,055
Calibration 3     107,741
ssj_ops@calibrated=107,898
100% 100.7% 107,898 108,620
90% 89.7% 97,108 96,835
80% 79.9% 86,319 86,179
70% 69.5% 75,529 75,008
60% 60.0% 64,739 64,769
50% 49.7% 53,949 53,657
40% 39.6% 43,159 42,740
30% 30.0% 32,369 32,422
20% 20.4% 21,580 21,994
10% 10.1% 10,790 10,875
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,298
Calibration 2     104,220
Calibration 3     102,966
ssj_ops@calibrated=103,593
100% 100.5% 103,593 104,090
90% 90.2% 93,234 93,424
80% 79.5% 82,874 82,378
70% 70.2% 72,515 72,767
60% 60.0% 62,156 62,160
50% 50.1% 51,796 51,869
40% 40.0% 41,437 41,477
30% 30.0% 31,078 31,058
20% 20.0% 20,719 20,747
10% 9.9% 10,359 10,216
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,696
Calibration 2     107,301
Calibration 3     107,703
ssj_ops@calibrated=107,502
100% 99.7% 107,502 107,145
90% 89.8% 96,752 96,500
80% 79.4% 86,002 85,333
70% 69.2% 75,252 74,406
60% 59.5% 64,501 63,964
50% 50.6% 53,751 54,352
40% 40.1% 43,001 43,087
30% 29.9% 32,251 32,112
20% 20.2% 21,500 21,706
10% 10.1% 10,750 10,808
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,182
Calibration 2     106,462
Calibration 3     106,614
ssj_ops@calibrated=106,538
100% 100.1% 106,538 106,652
90% 89.9% 95,884 95,791
80% 79.8% 85,230 85,026
70% 70.3% 74,577 74,934
60% 61.3% 63,923 65,267
50% 49.6% 53,269 52,873
40% 39.8% 42,615 42,365
30% 30.6% 31,961 32,641
20% 20.0% 21,308 21,339
10% 10.1% 10,654 10,795
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,544
Calibration 2     103,452
Calibration 3     103,972
ssj_ops@calibrated=103,712
100% 101.0% 103,712 104,720
90% 89.9% 93,341 93,187
80% 80.3% 82,970 83,250
70% 69.7% 72,598 72,324
60% 60.5% 62,227 62,713
50% 50.1% 51,856 51,958
40% 39.1% 41,485 40,601
30% 29.8% 31,114 30,955
20% 19.8% 20,742 20,554
10% 10.1% 10,371 10,454
Active Idle   0 0
Graph of results

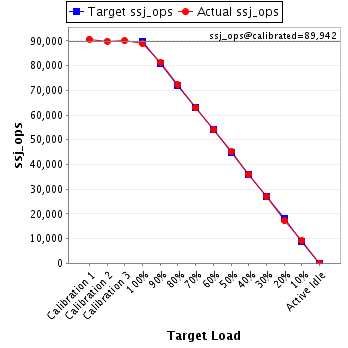

JVM 'WIN-6MS7P2M15GR.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,693
Calibration 2     89,831
Calibration 3     90,052
ssj_ops@calibrated=89,942
100% 98.9% 89,942 88,955
90% 90.3% 80,948 81,226
80% 80.2% 71,953 72,171
70% 69.9% 62,959 62,861
60% 60.1% 53,965 54,043
50% 50.2% 44,971 45,141
40% 40.0% 35,977 35,992
30% 29.9% 26,983 26,887
20% 19.1% 17,988 17,204
10% 10.1% 8,994 9,124
Active Idle   0 0
Graph of results

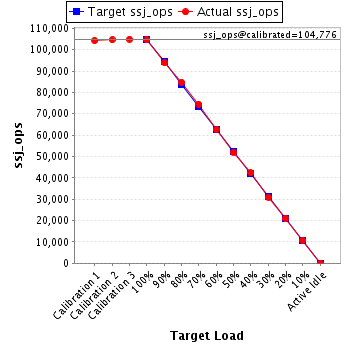

JVM 'WIN-6MS7P2M15GR.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,239
Calibration 2     104,621
Calibration 3     104,932
ssj_ops@calibrated=104,776
100% 99.8% 104,776 104,614
90% 89.7% 94,298 93,938
80% 81.0% 83,821 84,844
70% 71.1% 73,343 74,452
60% 59.9% 62,866 62,782
50% 49.6% 52,388 52,004
40% 40.4% 41,910 42,319
30% 29.6% 31,433 30,992
20% 20.0% 20,955 20,915
10% 10.2% 10,478 10,729
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,754
Calibration 2     107,814
Calibration 3     106,174
ssj_ops@calibrated=106,994
100% 100.1% 106,994 107,049
90% 90.5% 96,295 96,813
80% 80.7% 85,595 86,343
70% 70.4% 74,896 75,274
60% 58.9% 64,197 63,010
50% 49.7% 53,497 53,170
40% 40.0% 42,798 42,765
30% 29.8% 32,098 31,885
20% 20.3% 21,399 21,707
10% 9.8% 10,699 10,454
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,919
Calibration 2     105,182
Calibration 3     103,968
ssj_ops@calibrated=104,575
100% 99.8% 104,575 104,384
90% 88.7% 94,117 92,759
80% 81.4% 83,660 85,118
70% 70.7% 73,202 73,970
60% 60.0% 62,745 62,736
50% 50.3% 52,287 52,579
40% 40.1% 41,830 41,975
30% 30.6% 31,372 32,021
20% 20.1% 20,915 21,053
10% 9.5% 10,457 9,966
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,859
Calibration 2     103,136
Calibration 3     102,970
ssj_ops@calibrated=103,053
100% 100.2% 103,053 103,235
90% 90.2% 92,748 92,963
80% 80.2% 82,442 82,674
70% 69.9% 72,137 72,015
60% 60.3% 61,832 62,146
50% 50.4% 51,527 51,969
40% 40.3% 41,221 41,484
30% 30.2% 30,916 31,078
20% 20.5% 20,611 21,090
10% 10.1% 10,305 10,379
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,864
Calibration 2     106,629
Calibration 3     106,808
ssj_ops@calibrated=106,718
100% 98.9% 106,718 105,552
90% 91.1% 96,047 97,168
80% 80.3% 85,375 85,668
70% 69.8% 74,703 74,503
60% 59.8% 64,031 63,837
50% 50.3% 53,359 53,675
40% 39.4% 42,687 42,003
30% 30.1% 32,016 32,076
20% 20.4% 21,344 21,799
10% 10.0% 10,672 10,638
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,734
Calibration 2     104,018
Calibration 3     104,443
ssj_ops@calibrated=104,231
100% 99.8% 104,231 104,005
90% 89.6% 93,808 93,423
80% 81.4% 83,385 84,832
70% 70.1% 72,961 73,090
60% 60.1% 62,538 62,621
50% 49.4% 52,115 51,496
40% 40.5% 41,692 42,205
30% 29.8% 31,269 31,112
20% 19.5% 20,846 20,281
10% 10.0% 10,423 10,423
Active Idle   0 0
Graph of results

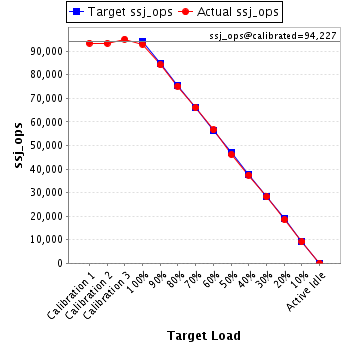

JVM 'WIN-6MS7P2M15GR.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,443
Calibration 2     93,326
Calibration 3     95,129
ssj_ops@calibrated=94,227
100% 98.7% 94,227 93,049
90% 89.4% 84,805 84,225
80% 79.8% 75,382 75,209
70% 70.1% 65,959 66,058
60% 60.1% 56,536 56,603
50% 49.0% 47,114 46,174
40% 39.7% 37,691 37,443
30% 29.9% 28,268 28,189
20% 19.6% 18,845 18,510
10% 9.7% 9,423 9,112
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,996
Calibration 2     102,711
Calibration 3     103,705
ssj_ops@calibrated=103,208
100% 100.2% 103,208 103,393
90% 89.2% 92,887 92,069
80% 79.1% 82,566 81,646
70% 69.7% 72,245 71,953
60% 59.6% 61,925 61,509
50% 49.5% 51,604 51,087
40% 39.8% 41,283 41,126
30% 30.0% 30,962 30,913
20% 19.9% 20,642 20,543
10% 9.9% 10,321 10,237
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,387
Calibration 2     105,871
Calibration 3     105,153
ssj_ops@calibrated=105,512
100% 99.1% 105,512 104,595
90% 89.8% 94,961 94,740
80% 80.5% 84,409 84,906
70% 70.5% 73,858 74,428
60% 59.8% 63,307 63,102
50% 50.0% 52,756 52,711
40% 39.8% 42,205 42,002
30% 30.0% 31,654 31,656
20% 20.2% 21,102 21,311
10% 10.3% 10,551 10,862
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,887
Calibration 2     106,610
Calibration 3     104,887
ssj_ops@calibrated=105,748
100% 99.8% 105,748 105,546
90% 90.1% 95,173 95,247
80% 80.1% 84,598 84,718
70% 71.2% 74,024 75,264
60% 59.7% 63,449 63,156
50% 49.9% 52,874 52,790
40% 40.1% 42,299 42,456
30% 30.3% 31,724 32,052
20% 20.0% 21,150 21,145
10% 9.9% 10,575 10,487
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,937
Calibration 2     105,469
Calibration 3     105,623
ssj_ops@calibrated=105,546
100% 99.3% 105,546 104,773
90% 89.8% 94,992 94,823
80% 80.1% 84,437 84,535
70% 69.2% 73,882 73,063
60% 60.1% 63,328 63,453
50% 49.7% 52,773 52,447
40% 40.3% 42,219 42,557
30% 30.1% 31,664 31,801
20% 20.1% 21,109 21,232
10% 10.0% 10,555 10,524
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,684
Calibration 2     106,828
Calibration 3     106,511
ssj_ops@calibrated=106,670
100% 99.9% 106,670 106,594
90% 90.4% 96,003 96,408
80% 80.0% 85,336 85,305
70% 69.0% 74,669 73,556
60% 60.3% 64,002 64,350
50% 50.0% 53,335 53,308
40% 39.9% 42,668 42,590
30% 29.7% 32,001 31,703
20% 19.6% 21,334 20,884
10% 10.0% 10,667 10,679
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,055
Calibration 2     105,836
Calibration 3     104,870
ssj_ops@calibrated=105,353
100% 99.6% 105,353 104,983
90% 90.3% 94,818 95,166
80% 78.8% 84,282 82,974
70% 69.9% 73,747 73,625
60% 60.4% 63,212 63,597
50% 50.5% 52,677 53,229
40% 39.8% 42,141 41,889
30% 29.7% 31,606 31,307
20% 20.4% 21,071 21,450
10% 10.1% 10,535 10,591
Active Idle   0 0
Graph of results

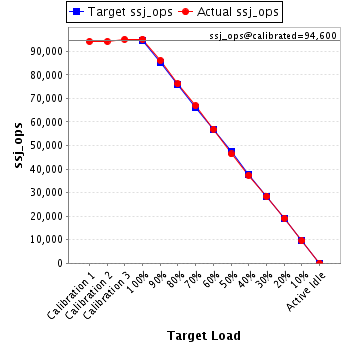

JVM 'WIN-6MS7P2M15GR.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,171
Calibration 2     94,141
Calibration 3     95,059
ssj_ops@calibrated=94,600
100% 100.6% 94,600 95,136
90% 91.0% 85,140 86,091
80% 80.5% 75,680 76,137
70% 70.7% 66,220 66,877
60% 60.2% 56,760 56,951
50% 49.0% 47,300 46,400
40% 39.5% 37,840 37,377
30% 30.0% 28,380 28,423
20% 20.2% 18,920 19,114
10% 10.1% 9,460 9,541
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,249
Calibration 2     105,826
Calibration 3     106,492
ssj_ops@calibrated=106,159
100% 99.4% 106,159 105,543
90% 91.6% 95,543 97,223
80% 80.9% 84,927 85,850
70% 70.4% 74,311 74,709
60% 60.5% 63,695 64,251
50% 50.0% 53,080 53,123
40% 39.8% 42,464 42,251
30% 30.4% 31,848 32,274
20% 19.8% 21,232 20,986
10% 9.9% 10,616 10,519
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,577
Calibration 2     103,960
Calibration 3     103,535
ssj_ops@calibrated=103,747
100% 99.9% 103,747 103,630
90% 90.1% 93,373 93,462
80% 79.9% 82,998 82,851
70% 70.3% 72,623 72,979
60% 60.1% 62,248 62,342
50% 49.8% 51,874 51,668
40% 40.2% 41,499 41,725
30% 30.2% 31,124 31,320
20% 20.0% 20,749 20,768
10% 10.1% 10,375 10,438
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,662
Calibration 2     105,035
Calibration 3     104,312
ssj_ops@calibrated=104,674
100% 99.7% 104,674 104,379
90% 91.3% 94,206 95,556
80% 79.9% 83,739 83,655
70% 70.9% 73,272 74,204
60% 60.8% 62,804 63,602
50% 49.7% 52,337 52,063
40% 39.7% 41,869 41,560
30% 29.8% 31,402 31,209
20% 20.0% 20,935 20,907
10% 9.9% 10,467 10,387
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,306
Calibration 2     104,695
Calibration 3     103,893
ssj_ops@calibrated=104,294
100% 99.6% 104,294 103,865
90% 89.6% 93,865 93,454
80% 79.0% 83,435 82,385
70% 70.0% 73,006 72,974
60% 60.0% 62,577 62,624
50% 49.8% 52,147 51,901
40% 40.2% 41,718 41,941
30% 30.2% 31,288 31,454
20% 20.2% 20,859 21,058
10% 9.9% 10,429 10,312
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,471
Calibration 2     105,779
Calibration 3     105,911
ssj_ops@calibrated=105,845
100% 98.9% 105,845 104,645
90% 89.6% 95,260 94,853
80% 79.0% 84,676 83,577
70% 70.5% 74,091 74,667
60% 59.9% 63,507 63,411
50% 49.8% 52,922 52,709
40% 39.4% 42,338 41,682
30% 29.6% 31,753 31,328
20% 20.3% 21,169 21,453
10% 9.6% 10,584 10,208
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,041
Calibration 2     106,485
Calibration 3     106,431
ssj_ops@calibrated=106,458
100% 100.1% 106,458 106,534
90% 90.4% 95,812 96,256
80% 80.3% 85,166 85,457
70% 69.4% 74,521 73,910
60% 60.3% 63,875 64,177
50% 49.6% 53,229 52,812
40% 39.8% 42,583 42,334
30% 29.7% 31,937 31,651
20% 19.2% 21,292 20,436
10% 10.1% 10,646 10,724
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,232
Calibration 2     94,818
Calibration 3     95,841
ssj_ops@calibrated=95,329
100% 100.0% 95,329 95,288
90% 90.6% 85,796 86,365
80% 79.0% 76,263 75,317
70% 70.1% 66,730 66,845
60% 60.1% 57,198 57,260
50% 49.1% 47,665 46,782
40% 39.4% 38,132 37,561
30% 30.4% 28,599 29,003
20% 19.4% 19,066 18,524
10% 9.7% 9,533 9,291
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,564
Calibration 2     106,307
Calibration 3     107,553
ssj_ops@calibrated=106,930
100% 99.6% 106,930 106,528
90% 90.8% 96,237 97,087
80% 79.4% 85,544 84,901
70% 70.4% 74,851 75,264
60% 60.2% 64,158 64,324
50% 50.3% 53,465 53,767
40% 40.6% 42,772 43,435
30% 30.2% 32,079 32,309
20% 20.0% 21,386 21,414
10% 10.0% 10,693 10,741
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,620
Calibration 2     107,061
Calibration 3     106,651
ssj_ops@calibrated=106,856
100% 100.0% 106,856 106,822
90% 89.8% 96,171 95,943
80% 80.4% 85,485 85,951
70% 70.3% 74,799 75,121
60% 60.4% 64,114 64,502
50% 50.0% 53,428 53,435
40% 39.9% 42,742 42,661
30% 29.8% 32,057 31,873
20% 20.1% 21,371 21,469
10% 10.0% 10,686 10,633
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,594
Calibration 2     108,915
Calibration 3     107,362
ssj_ops@calibrated=108,138
100% 99.3% 108,138 107,396
90% 88.9% 97,325 96,136
80% 80.3% 86,511 86,866
70% 70.2% 75,697 75,954
60% 60.6% 64,883 65,585
50% 50.3% 54,069 54,362
40% 39.9% 43,255 43,157
30% 30.0% 32,442 32,456
20% 20.0% 21,628 21,661
10% 10.1% 10,814 10,901
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,637
Calibration 2     108,486
Calibration 3     108,270
ssj_ops@calibrated=108,378
100% 99.8% 108,378 108,176
90% 89.8% 97,540 97,342
80% 80.2% 86,702 86,927
70% 70.6% 75,865 76,544
60% 59.6% 65,027 64,645
50% 50.2% 54,189 54,458
40% 39.6% 43,351 42,948
30% 29.9% 32,513 32,425
20% 19.6% 21,676 21,213
10% 10.0% 10,838 10,824
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,862
Calibration 2     108,610
Calibration 3     108,703
ssj_ops@calibrated=108,657
100% 99.8% 108,657 108,462
90% 90.8% 97,791 98,700
80% 80.0% 86,925 86,900
70% 69.7% 76,060 75,766
60% 59.9% 65,194 65,106
50% 50.4% 54,328 54,744
40% 40.9% 43,463 44,404
30% 30.1% 32,597 32,754
20% 19.9% 21,731 21,674
10% 10.0% 10,866 10,916
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,181
Calibration 2     105,814
Calibration 3     105,794
ssj_ops@calibrated=105,804
100% 99.8% 105,804 105,573
90% 90.1% 95,224 95,369
80% 80.0% 84,643 84,679
70% 70.2% 74,063 74,257
60% 60.0% 63,483 63,504
50% 49.4% 52,902 52,293
40% 40.6% 42,322 42,956
30% 29.3% 31,741 30,960
20% 20.1% 21,161 21,320
10% 9.9% 10,580 10,491
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,893
Calibration 2     92,841
Calibration 3     92,346
ssj_ops@calibrated=92,594
100% 100.3% 92,594 92,886
90% 89.9% 83,334 83,256
80% 79.3% 74,075 73,423
70% 70.2% 64,815 65,034
60% 59.3% 55,556 54,871
50% 50.0% 46,297 46,288
40% 39.6% 37,037 36,677
30% 30.4% 27,778 28,163
20% 19.8% 18,519 18,341
10% 9.8% 9,259 9,042
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,138
Calibration 2     103,916
Calibration 3     106,422
ssj_ops@calibrated=105,169
100% 100.4% 105,169 105,575
90% 90.0% 94,652 94,613
80% 79.2% 84,135 83,242
70% 69.9% 73,618 73,518
60% 60.0% 63,101 63,141
50% 49.8% 52,584 52,337
40% 40.0% 42,068 42,083
30% 30.1% 31,551 31,680
20% 19.2% 21,034 20,179
10% 10.1% 10,517 10,587
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,327
Calibration 2     106,794
Calibration 3     108,060
ssj_ops@calibrated=107,427
100% 100.6% 107,427 108,060
90% 89.8% 96,684 96,490
80% 79.1% 85,941 84,941
70% 69.4% 75,199 74,537
60% 60.4% 64,456 64,863
50% 49.9% 53,713 53,566
40% 40.3% 42,971 43,267
30% 30.2% 32,228 32,493
20% 20.0% 21,485 21,451
10% 10.1% 10,743 10,824
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,571
Calibration 2     108,804
Calibration 3     107,900
ssj_ops@calibrated=108,352
100% 101.2% 108,352 109,632
90% 89.1% 97,517 96,573
80% 79.8% 86,682 86,503
70% 70.0% 75,846 75,833
60% 59.4% 65,011 64,310
50% 50.0% 54,176 54,204
40% 39.8% 43,341 43,074
30% 30.0% 32,506 32,556
20% 19.5% 21,670 21,099
10% 9.9% 10,835 10,733
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,009
Calibration 2     105,757
Calibration 3     105,995
ssj_ops@calibrated=105,876
100% 99.9% 105,876 105,729
90% 89.9% 95,288 95,214
80% 78.4% 84,701 83,047
70% 70.5% 74,113 74,650
60% 59.9% 63,526 63,369
50% 49.8% 52,938 52,753
40% 40.6% 42,350 42,981
30% 29.9% 31,763 31,633
20% 20.3% 21,175 21,513
10% 10.2% 10,588 10,779
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,538
Calibration 2     107,101
Calibration 3     107,453
ssj_ops@calibrated=107,277
100% 100.1% 107,277 107,337
90% 89.1% 96,549 95,586
80% 79.8% 85,822 85,604
70% 69.7% 75,094 74,723
60% 60.2% 64,366 64,609
50% 50.5% 53,639 54,179
40% 40.0% 42,911 42,939
30% 30.4% 32,183 32,595
20% 19.7% 21,455 21,161
10% 10.3% 10,728 11,091
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,919
Calibration 2     107,374
Calibration 3     107,839
ssj_ops@calibrated=107,606
100% 99.1% 107,606 106,688
90% 90.8% 96,846 97,704
80% 80.5% 86,085 86,587
70% 69.8% 75,325 75,158
60% 60.3% 64,564 64,897
50% 50.2% 53,803 53,968
40% 40.0% 43,043 43,094
30% 29.4% 32,282 31,621
20% 20.4% 21,521 21,989
10% 10.3% 10,761 11,081
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,701
Calibration 2     96,080
Calibration 3     96,913
ssj_ops@calibrated=96,496
100% 100.0% 96,496 96,515
90% 89.6% 86,847 86,443
80% 79.4% 77,197 76,639
70% 70.5% 67,548 68,037
60% 59.6% 57,898 57,533
50% 49.9% 48,248 48,157
40% 39.6% 38,599 38,222
30% 29.8% 28,949 28,779
20% 20.1% 19,299 19,435
10% 10.1% 9,650 9,787
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,752
Calibration 2     104,806
Calibration 3     106,698
ssj_ops@calibrated=105,752
100% 99.9% 105,752 105,623
90% 89.5% 95,177 94,604
80% 80.0% 84,601 84,571
70% 69.2% 74,026 73,133
60% 60.5% 63,451 64,025
50% 50.2% 52,876 53,087
40% 39.9% 42,301 42,161
30% 29.9% 31,726 31,661
20% 19.9% 21,150 21,032
10% 10.0% 10,575 10,574
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,044
Calibration 2     107,032
Calibration 3     106,303
ssj_ops@calibrated=106,668
100% 100.1% 106,668 106,744
90% 90.7% 96,001 96,759
80% 80.0% 85,334 85,313
70% 69.5% 74,667 74,155
60% 60.4% 64,001 64,449
50% 50.4% 53,334 53,724
40% 40.1% 42,667 42,810
30% 29.7% 32,000 31,645
20% 19.8% 21,334 21,132
10% 10.3% 10,667 11,012
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,506
Calibration 2     105,779
Calibration 3     104,914
ssj_ops@calibrated=105,347
100% 100.0% 105,347 105,309
90% 90.3% 94,812 95,089
80% 79.7% 84,277 83,994
70% 70.9% 73,743 74,695
60% 59.5% 63,208 62,704
50% 49.9% 52,673 52,578
40% 39.7% 42,139 41,843
30% 30.1% 31,604 31,667
20% 19.8% 21,069 20,907
10% 10.2% 10,535 10,779
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,815
Calibration 2     105,500
Calibration 3     104,370
ssj_ops@calibrated=104,935
100% 99.6% 104,935 104,539
90% 89.9% 94,442 94,373
80% 80.6% 83,948 84,583
70% 70.0% 73,455 73,409
60% 59.5% 62,961 62,467
50% 50.1% 52,468 52,623
40% 40.0% 41,974 41,927
30% 29.6% 31,481 31,037
20% 20.0% 20,987 21,020
10% 10.1% 10,494 10,547
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,855
Calibration 2     107,041
Calibration 3     107,209
ssj_ops@calibrated=107,125
100% 99.6% 107,125 106,666
90% 90.4% 96,412 96,792
80% 79.7% 85,700 85,395
70% 70.2% 74,987 75,174
60% 60.3% 64,275 64,565
50% 49.1% 53,562 52,642
40% 40.6% 42,850 43,488
30% 29.8% 32,137 31,916
20% 20.0% 21,425 21,446
10% 9.9% 10,712 10,604
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,011
Calibration 2     107,375
Calibration 3     107,021
ssj_ops@calibrated=107,198
100% 100.0% 107,198 107,242
90% 90.2% 96,478 96,657
80% 79.5% 85,758 85,269
70% 69.8% 75,038 74,821
60% 60.8% 64,319 65,203
50% 49.8% 53,599 53,433
40% 39.7% 42,879 42,525
30% 30.1% 32,159 32,277
20% 19.6% 21,440 21,058
10% 10.2% 10,720 10,966
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,033
Calibration 2     94,986
Calibration 3     95,789
ssj_ops@calibrated=95,388
100% 100.4% 95,388 95,797
90% 89.7% 85,849 85,583
80% 79.4% 76,310 75,718
70% 70.7% 66,771 67,474
60% 60.1% 57,233 57,361
50% 50.2% 47,694 47,921
40% 39.9% 38,155 38,030
30% 29.7% 28,616 28,331
20% 20.0% 19,078 19,049
10% 10.1% 9,539 9,587
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,684
Calibration 2     105,106
Calibration 3     106,427
ssj_ops@calibrated=105,767
100% 99.6% 105,767 105,365
90% 89.1% 95,190 94,272
80% 81.1% 84,613 85,780
70% 70.2% 74,037 74,248
60% 59.6% 63,460 63,044
50% 49.2% 52,883 52,008
40% 39.8% 42,307 42,077
30% 30.7% 31,730 32,448
20% 20.0% 21,153 21,103
10% 9.8% 10,577 10,387
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,478
Calibration 2     108,843
Calibration 3     107,927
ssj_ops@calibrated=108,385
100% 99.6% 108,385 107,983
90% 89.6% 97,546 97,119
80% 80.7% 86,708 87,461
70% 69.4% 75,869 75,236
60% 59.7% 65,031 64,756
50% 49.5% 54,192 53,604
40% 40.4% 43,354 43,800
30% 30.4% 32,515 32,997
20% 20.0% 21,677 21,657
10% 9.8% 10,838 10,667
Active Idle   0 0
Graph of results
JVM 'WIN-6MS7P2M15GR.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,405
Calibration 2     105,455
Calibration 3     104,998
ssj_ops@calibrated=105,227
100% 99.2% 105,227 104,363
90% 89.7% 94,704 94,423
80% 79.4% 84,181 83,575
70% 70.6% 73,659 74,323
60% 59.7% 63,136 62,846
50% 50.6% 52,613 53,230
40% 39.9% 42,091 41,988
30% 29.8% 31,568 31,397
20% 19.4% 21,045 20,457
10% 9.8% 10,523 10,333
Active Idle   0 0
Graph of results
