Sugon I620-G30 (Intel Xeon Gold 6152) ssj_ops@100% = 3,976,866
ssj_ops@100% per JVM = 90,383
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 27, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,056,957
Calibration 2     4,019,810
Calibration 3     4,024,097
ssj_ops@calibrated=4,021,954
100% 98.9% 4,021,954 3,976,866
90% 90.1% 3,619,758 3,624,390
80% 80.2% 3,217,563 3,226,177
70% 69.9% 2,815,367 2,812,708
60% 60.0% 2,413,172 2,413,115
50% 50.0% 2,010,977 2,010,621
40% 40.0% 1,608,781 1,608,665
30% 30.0% 1,206,586 1,205,988
20% 19.9% 804,391 800,690
10% 10.0% 402,195 402,209
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node.
Hardware
Hardware Vendor: Sugon
Model: I620-G30 (Intel Xeon Gold 6152)
Form Factor: 2U
CPU Name: Intel Xeon Gold 6152
CPU Characteristics: 44-Core, 2.1GHz, 30.25MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 30976 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-R(P/N:M393A2K43CB2-CTD6Q); slots DIMM_CPU[0-1]_[A-F]0 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: ARTESYN 550W PSU(P/N:CSU550AP-3-200)
Disk Drive: 1 x 120GB M.2 SATA SSD(P/N:SU120GBSS3M55M28NE)
Disk Controller: Integrated onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated onboard Ethernet 1Gb with 2-port RJ45 Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000]
JVM Instances: 44
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: JGS012
Management Firmware Version: Ver 0.70
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-TNLGK16A38D.001 95,370
WIN-TNLGK16A38D.002 95,600
WIN-TNLGK16A38D.003 92,831
WIN-TNLGK16A38D.004 85,483
WIN-TNLGK16A38D.005 94,498
WIN-TNLGK16A38D.006 94,793
WIN-TNLGK16A38D.007 84,818
WIN-TNLGK16A38D.008 85,961
WIN-TNLGK16A38D.009 85,770
WIN-TNLGK16A38D.010 86,503
WIN-TNLGK16A38D.011 94,304
WIN-TNLGK16A38D.012 85,031
WIN-TNLGK16A38D.013 95,230
WIN-TNLGK16A38D.014 84,344
WIN-TNLGK16A38D.015 94,782
WIN-TNLGK16A38D.016 96,334
WIN-TNLGK16A38D.017 92,175
WIN-TNLGK16A38D.018 96,011
WIN-TNLGK16A38D.019 95,039
WIN-TNLGK16A38D.020 85,923
WIN-TNLGK16A38D.021 85,058
WIN-TNLGK16A38D.022 85,273
WIN-TNLGK16A38D.023 85,640
WIN-TNLGK16A38D.024 93,807
WIN-TNLGK16A38D.025 84,944
WIN-TNLGK16A38D.026 84,751
WIN-TNLGK16A38D.027 85,855
WIN-TNLGK16A38D.028 85,312
WIN-TNLGK16A38D.029 95,164
WIN-TNLGK16A38D.030 96,674
WIN-TNLGK16A38D.031 94,164
WIN-TNLGK16A38D.032 85,775
WIN-TNLGK16A38D.033 94,349
WIN-TNLGK16A38D.034 93,787
WIN-TNLGK16A38D.035 84,906
WIN-TNLGK16A38D.036 84,568
WIN-TNLGK16A38D.037 85,048
WIN-TNLGK16A38D.038 85,878
WIN-TNLGK16A38D.039 94,913
WIN-TNLGK16A38D.040 93,790
WIN-TNLGK16A38D.041 93,916
WIN-TNLGK16A38D.042 95,023
WIN-TNLGK16A38D.043 93,809
WIN-TNLGK16A38D.044 93,665
ssj_ops@100% 3,976,866
ssj_ops@100% per JVM 90,383
Graph of per-instance results
JVM 'WIN-TNLGK16A38D.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,759
Calibration 2     95,045
Calibration 3     96,788
ssj_ops@calibrated=95,917
100% 99.4% 95,917 95,370
90% 91.0% 86,325 87,311
80% 79.6% 76,733 76,358
70% 70.8% 67,142 67,872
60% 60.0% 57,550 57,525
50% 50.1% 47,958 48,047
40% 39.5% 38,367 37,924
30% 30.2% 28,775 28,974
20% 19.8% 19,183 18,948
10% 10.0% 9,592 9,550
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,534
Calibration 2     96,467
Calibration 3     97,187
ssj_ops@calibrated=96,827
100% 98.7% 96,827 95,600
90% 89.7% 87,144 86,880
80% 80.1% 77,462 77,572
70% 69.1% 67,779 66,893
60% 60.0% 58,096 58,093
50% 49.6% 48,414 48,002
40% 40.1% 38,731 38,848
30% 29.4% 29,048 28,511
20% 20.0% 19,365 19,327
10% 9.8% 9,683 9,495
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,241
Calibration 2     94,151
Calibration 3     93,150
ssj_ops@calibrated=93,650
100% 99.1% 93,650 92,831
90% 89.8% 84,285 84,112
80% 79.7% 74,920 74,620
70% 70.9% 65,555 66,377
60% 60.4% 56,190 56,565
50% 50.6% 46,825 47,372
40% 39.4% 37,460 36,889
30% 30.7% 28,095 28,704
20% 20.2% 18,730 18,907
10% 10.0% 9,365 9,386
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,581
Calibration 2     85,474
Calibration 3     85,948
ssj_ops@calibrated=85,711
100% 99.7% 85,711 85,483
90% 89.2% 77,140 76,495
80% 80.2% 68,569 68,750
70% 70.3% 59,998 60,292
60% 59.9% 51,427 51,333
50% 49.4% 42,855 42,360
40% 39.9% 34,284 34,175
30% 30.0% 25,713 25,706
20% 19.3% 17,142 16,541
10% 10.1% 8,571 8,695
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,824
Calibration 2     96,742
Calibration 3     97,275
ssj_ops@calibrated=97,008
100% 97.4% 97,008 94,498
90% 89.6% 87,307 86,942
80% 79.7% 77,607 77,314
70% 70.0% 67,906 67,873
60% 60.1% 58,205 58,255
50% 50.3% 48,504 48,760
40% 40.8% 38,803 39,550
30% 29.8% 29,102 28,913
20% 19.1% 19,402 18,495
10% 10.1% 9,701 9,829
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,270
Calibration 2     96,129
Calibration 3     95,632
ssj_ops@calibrated=95,880
100% 98.9% 95,880 94,793
90% 90.7% 86,292 87,010
80% 80.9% 76,704 77,577
70% 69.7% 67,116 66,858
60% 60.3% 57,528 57,790
50% 49.2% 47,940 47,183
40% 40.3% 38,352 38,682
30% 30.0% 28,764 28,797
20% 19.8% 19,176 19,024
10% 10.1% 9,588 9,650
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,337
Calibration 2     85,269
Calibration 3     85,489
ssj_ops@calibrated=85,379
100% 99.3% 85,379 84,818
90% 90.4% 76,841 77,222
80% 79.6% 68,303 67,981
70% 69.4% 59,765 59,283
60% 60.4% 51,227 51,581
50% 49.8% 42,689 42,488
40% 40.3% 34,152 34,418
30% 30.6% 25,614 26,148
20% 20.1% 17,076 17,203
10% 10.0% 8,538 8,554
Active Idle   0 0
Graph of results

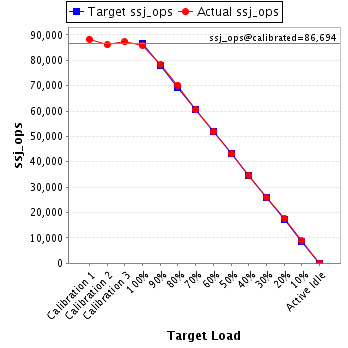

JVM 'WIN-TNLGK16A38D.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,327
Calibration 2     86,150
Calibration 3     87,238
ssj_ops@calibrated=86,694
100% 99.2% 86,694 85,961
90% 90.2% 78,025 78,197
80% 81.0% 69,355 70,222
70% 69.9% 60,686 60,616
60% 59.8% 52,016 51,834
50% 49.8% 43,347 43,161
40% 40.1% 34,678 34,766
30% 29.9% 26,008 25,903
20% 20.3% 17,339 17,566
10% 10.2% 8,669 8,852
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,582
Calibration 2     86,156
Calibration 3     86,563
ssj_ops@calibrated=86,359
100% 99.3% 86,359 85,770
90% 89.4% 77,724 77,188
80% 80.5% 69,088 69,531
70% 69.0% 60,452 59,626
60% 59.7% 51,816 51,564
50% 50.7% 43,180 43,782
40% 41.0% 34,544 35,366
30% 29.3% 25,908 25,335
20% 19.7% 17,272 16,987
10% 10.1% 8,636 8,745
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,467
Calibration 2     85,960
Calibration 3     87,229
ssj_ops@calibrated=86,595
100% 99.9% 86,595 86,503
90% 89.9% 77,935 77,813
80% 80.0% 69,276 69,250
70% 70.6% 60,616 61,168
60% 60.8% 51,957 52,676
50% 50.0% 43,297 43,299
40% 39.5% 34,638 34,202
30% 30.2% 25,978 26,187
20% 19.8% 17,319 17,182
10% 10.0% 8,659 8,654
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,682
Calibration 2     96,312
Calibration 3     94,354
ssj_ops@calibrated=95,333
100% 98.9% 95,333 94,304
90% 89.4% 85,800 85,200
80% 79.9% 76,266 76,207
70% 70.6% 66,733 67,293
60% 60.5% 57,200 57,668
50% 49.8% 47,666 47,435
40% 39.9% 38,133 38,081
30% 29.1% 28,600 27,741
20% 20.6% 19,067 19,599
10% 9.9% 9,533 9,406
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,680
Calibration 2     85,788
Calibration 3     86,113
ssj_ops@calibrated=85,950
100% 98.9% 85,950 85,031
90% 90.5% 77,355 77,814
80% 79.9% 68,760 68,659
70% 69.8% 60,165 60,027
60% 60.5% 51,570 51,991
50% 49.7% 42,975 42,704
40% 40.0% 34,380 34,401
30% 30.0% 25,785 25,789
20% 19.5% 17,190 16,787
10% 10.1% 8,595 8,666
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,288
Calibration 2     96,861
Calibration 3     96,576
ssj_ops@calibrated=96,718
100% 98.5% 96,718 95,230
90% 90.1% 87,047 87,177
80% 80.4% 77,375 77,720
70% 70.1% 67,703 67,844
60% 60.2% 58,031 58,249
50% 51.0% 48,359 49,299
40% 40.0% 38,687 38,662
30% 30.0% 29,016 29,049
20% 19.4% 19,344 18,791
10% 9.9% 9,672 9,571
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,364
Calibration 2     86,037
Calibration 3     84,861
ssj_ops@calibrated=85,449
100% 98.7% 85,449 84,344
90% 89.7% 76,904 76,684
80% 80.0% 68,359 68,377
70% 69.6% 59,814 59,461
60% 59.1% 51,269 50,464
50% 50.1% 42,725 42,831
40% 39.6% 34,180 33,836
30% 30.2% 25,635 25,833
20% 20.0% 17,090 17,061
10% 10.3% 8,545 8,844
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,796
Calibration 2     94,591
Calibration 3     95,741
ssj_ops@calibrated=95,166
100% 99.6% 95,166 94,782
90% 89.3% 85,649 84,977
80% 80.8% 76,133 76,854
70% 70.1% 66,616 66,721
60% 60.0% 57,100 57,104
50% 50.3% 47,583 47,906
40% 39.5% 38,066 37,638
30% 30.0% 28,550 28,515
20% 19.6% 19,033 18,696
10% 10.0% 9,517 9,529
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,470
Calibration 2     98,638
Calibration 3     96,139
ssj_ops@calibrated=97,389
100% 98.9% 97,389 96,334
90% 90.7% 87,650 88,321
80% 80.2% 77,911 78,139
70% 70.4% 68,172 68,557
60% 60.9% 58,433 59,264
50% 50.1% 48,694 48,791
40% 40.5% 38,956 39,445
30% 29.6% 29,217 28,841
20% 19.9% 19,478 19,344
10% 9.9% 9,739 9,604
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,418
Calibration 2     92,430
Calibration 3     94,286
ssj_ops@calibrated=93,358
100% 98.7% 93,358 92,175
90% 90.2% 84,022 84,178
80% 80.7% 74,686 75,317
70% 70.5% 65,350 65,845
60% 60.9% 56,015 56,893
50% 50.8% 46,679 47,464
40% 40.4% 37,343 37,680
30% 30.4% 28,007 28,356
20% 20.4% 18,672 19,047
10% 10.3% 9,336 9,633
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,116
Calibration 2     95,355
Calibration 3     97,354
ssj_ops@calibrated=96,355
100% 99.6% 96,355 96,011
90% 91.6% 86,719 88,246
80% 80.6% 77,084 77,660
70% 70.9% 67,448 68,304
60% 59.8% 57,813 57,622
50% 50.1% 48,177 48,228
40% 39.2% 38,542 37,762
30% 29.7% 28,906 28,626
20% 19.9% 19,271 19,207
10% 9.9% 9,635 9,533
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,445
Calibration 2     96,662
Calibration 3     94,175
ssj_ops@calibrated=95,418
100% 99.6% 95,418 95,039
90% 90.5% 85,876 86,365
80% 79.1% 76,335 75,483
70% 70.8% 66,793 67,562
60% 59.2% 57,251 56,515
50% 49.6% 47,709 47,365
40% 39.8% 38,167 38,016
30% 29.8% 28,625 28,479
20% 20.0% 19,084 19,046
10% 10.0% 9,542 9,533
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,793
Calibration 2     86,337
Calibration 3     87,916
ssj_ops@calibrated=87,126
100% 98.6% 87,126 85,923
90% 90.9% 78,413 79,190
80% 80.5% 69,701 70,126
70% 69.7% 60,988 60,736
60% 59.7% 52,276 51,993
50% 49.8% 43,563 43,374
40% 40.2% 34,850 35,033
30% 30.3% 26,138 26,419
20% 19.7% 17,425 17,168
10% 9.9% 8,713 8,666
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,062
Calibration 2     85,769
Calibration 3     86,536
ssj_ops@calibrated=86,152
100% 98.7% 86,152 85,058
90% 89.8% 77,537 77,359
80% 80.5% 68,922 69,366
70% 69.2% 60,307 59,580
60% 58.9% 51,691 50,764
50% 50.0% 43,076 43,093
40% 40.6% 34,461 35,004
30% 29.8% 25,846 25,716
20% 20.0% 17,230 17,189
10% 9.5% 8,615 8,212
Active Idle   0 0

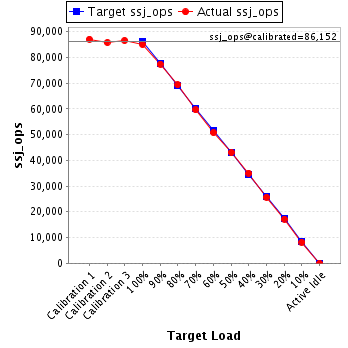

Graph of results
JVM 'WIN-TNLGK16A38D.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,338
Calibration 2     86,709
Calibration 3     85,644
ssj_ops@calibrated=86,177
100% 99.0% 86,177 85,273
90% 89.8% 77,559 77,384
80% 80.0% 68,941 68,953
70% 70.2% 60,324 60,469
60% 60.4% 51,706 52,070
50% 49.8% 43,088 42,925
40% 40.7% 34,471 35,037
30% 30.3% 25,853 26,143
20% 19.8% 17,235 17,104
10% 10.1% 8,618 8,725
Active Idle   0 0

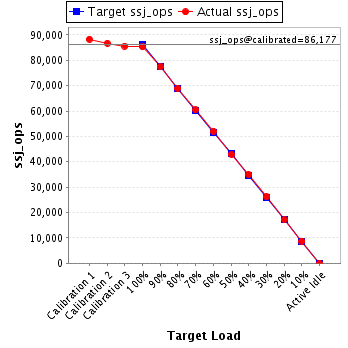

Graph of results
JVM 'WIN-TNLGK16A38D.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,968
Calibration 2     85,939
Calibration 3     86,889
ssj_ops@calibrated=86,414
100% 99.1% 86,414 85,640
90% 90.4% 77,772 78,079
80% 80.0% 69,131 69,171
70% 70.4% 60,490 60,855
60% 60.0% 51,848 51,833
50% 49.4% 43,207 42,661
40% 40.0% 34,565 34,569
30% 31.0% 25,924 26,831
20% 20.2% 17,283 17,449
10% 9.9% 8,641 8,591
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,025
Calibration 2     94,818
Calibration 3     94,182
ssj_ops@calibrated=94,500
100% 99.3% 94,500 93,807
90% 91.0% 85,050 85,998
80% 80.5% 75,600 76,051
70% 71.6% 66,150 67,642
60% 60.5% 56,700 57,157
50% 49.0% 47,250 46,333
40% 39.6% 37,800 37,411
30% 29.4% 28,350 27,737
20% 20.1% 18,900 18,955
10% 10.0% 9,450 9,462
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,776
Calibration 2     86,190
Calibration 3     86,719
ssj_ops@calibrated=86,455
100% 98.3% 86,455 84,944
90% 89.8% 77,809 77,635
80% 80.6% 69,164 69,668
70% 69.2% 60,518 59,825
60% 60.0% 51,873 51,864
50% 50.6% 43,227 43,787
40% 40.1% 34,582 34,704
30% 30.2% 25,936 26,145
20% 19.7% 17,291 17,017
10% 9.9% 8,645 8,520
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,144
Calibration 2     86,628
Calibration 3     85,659
ssj_ops@calibrated=86,144
100% 98.4% 86,144 84,751
90% 90.1% 77,529 77,585
80% 80.1% 68,915 69,025
70% 70.2% 60,301 60,495
60% 59.1% 51,686 50,921
50% 49.3% 43,072 42,484
40% 40.4% 34,457 34,761
30% 30.6% 25,843 26,329
20% 19.8% 17,229 17,059
10% 10.2% 8,614 8,796
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,473
Calibration 2     87,794
Calibration 3     88,183
ssj_ops@calibrated=87,988
100% 97.6% 87,988 85,855
90% 91.0% 79,190 80,101
80% 80.3% 70,391 70,641
70% 69.7% 61,592 61,334
60% 60.2% 52,793 52,937
50% 50.7% 43,994 44,627
40% 40.3% 35,195 35,452
30% 30.3% 26,397 26,682
20% 20.0% 17,598 17,641
10% 10.0% 8,799 8,771
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,406
Calibration 2     86,528
Calibration 3     86,845
ssj_ops@calibrated=86,686
100% 98.4% 86,686 85,312
90% 90.8% 78,018 78,695
80% 80.0% 69,349 69,310
70% 69.1% 60,681 59,920
60% 59.2% 52,012 51,349
50% 49.7% 43,343 43,123
40% 40.1% 34,675 34,747
30% 29.5% 26,006 25,615
20% 20.0% 17,337 17,307
10% 9.8% 8,669 8,466
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,927
Calibration 2     94,571
Calibration 3     96,361
ssj_ops@calibrated=95,466
100% 99.7% 95,466 95,164
90% 90.1% 85,919 86,030
80% 79.3% 76,373 75,730
70% 70.2% 66,826 66,984
60% 59.3% 57,280 56,598
50% 50.7% 47,733 48,398
40% 39.7% 38,186 37,864
30% 29.6% 28,640 28,300
20% 20.3% 19,093 19,383
10% 10.2% 9,547 9,717
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,602
Calibration 2     97,117
Calibration 3     97,120
ssj_ops@calibrated=97,118
100% 99.5% 97,118 96,674
90% 89.4% 87,407 86,851
80% 79.7% 77,695 77,409
70% 69.6% 67,983 67,630
60% 59.8% 58,271 58,074
50% 50.0% 48,559 48,553
40% 40.0% 38,847 38,801
30% 29.5% 29,136 28,693
20% 20.1% 19,424 19,473
10% 9.8% 9,712 9,537
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,134
Calibration 2     96,346
Calibration 3     94,652
ssj_ops@calibrated=95,499
100% 98.6% 95,499 94,164
90% 90.3% 85,949 86,274
80% 80.4% 76,399 76,796
70% 69.6% 66,849 66,464
60% 59.6% 57,300 56,885
50% 50.1% 47,750 47,869
40% 39.7% 38,200 37,915
30% 30.0% 28,650 28,646
20% 19.6% 19,100 18,679
10% 10.2% 9,550 9,752
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,284
Calibration 2     86,972
Calibration 3     87,056
ssj_ops@calibrated=87,014
100% 98.6% 87,014 85,775
90% 90.4% 78,313 78,677
80% 80.6% 69,611 70,102
70% 70.0% 60,910 60,929
60% 59.7% 52,208 51,938
50% 50.1% 43,507 43,614
40% 38.9% 34,806 33,846
30% 30.7% 26,104 26,678
20% 19.9% 17,403 17,314
10% 10.0% 8,701 8,695
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,094
Calibration 2     94,837
Calibration 3     96,069
ssj_ops@calibrated=95,453
100% 98.8% 95,453 94,349
90% 89.9% 85,908 85,827
80% 81.5% 76,362 77,755
70% 70.7% 66,817 67,470
60% 59.2% 57,272 56,553
50% 48.9% 47,726 46,676
40% 40.2% 38,181 38,355
30% 29.6% 28,636 28,288
20% 20.3% 19,091 19,348
10% 9.8% 9,545 9,316
Active Idle   0 0

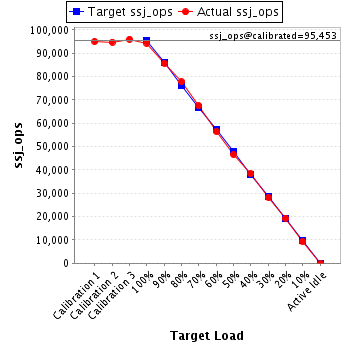

Graph of results
JVM 'WIN-TNLGK16A38D.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,847
Calibration 2     94,435
Calibration 3     94,342
ssj_ops@calibrated=94,388
100% 99.4% 94,388 93,787
90% 89.7% 84,950 84,712
80% 79.8% 75,511 75,293
70% 69.5% 66,072 65,597
60% 60.4% 56,633 56,996
50% 49.9% 47,194 47,076
40% 39.5% 37,755 37,285
30% 30.0% 28,317 28,355
20% 19.6% 18,878 18,528
10% 9.8% 9,439 9,254
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,368
Calibration 2     86,705
Calibration 3     86,740
ssj_ops@calibrated=86,722
100% 97.9% 86,722 84,906
90% 90.3% 78,050 78,311
80% 80.8% 69,378 70,091
70% 69.1% 60,706 59,888
60% 61.4% 52,033 53,211
50% 50.7% 43,361 44,004
40% 40.5% 34,689 35,098
30% 30.2% 26,017 26,227
20% 19.6% 17,344 17,025
10% 10.5% 8,672 9,107
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,926
Calibration 2     87,327
Calibration 3     87,025
ssj_ops@calibrated=87,176
100% 97.0% 87,176 84,568
90% 90.4% 78,459 78,776
80% 80.2% 69,741 69,951
70% 70.5% 61,023 61,435
60% 59.5% 52,306 51,830
50% 50.7% 43,588 44,208
40% 40.3% 34,870 35,164
30% 29.5% 26,153 25,687
20% 19.9% 17,435 17,362
10% 10.4% 8,718 9,058
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,185
Calibration 2     85,897
Calibration 3     85,398
ssj_ops@calibrated=85,647
100% 99.3% 85,647 85,048
90% 90.5% 77,082 77,537
80% 80.7% 68,518 69,145
70% 69.6% 59,953 59,579
60% 59.7% 51,388 51,113
50% 50.2% 42,824 42,958
40% 39.6% 34,259 33,945
30% 30.5% 25,694 26,084
20% 19.8% 17,129 16,983
10% 9.6% 8,565 8,204
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,712
Calibration 2     86,998
Calibration 3     87,351
ssj_ops@calibrated=87,174
100% 98.5% 87,174 85,878
90% 90.1% 78,457 78,527
80% 80.6% 69,740 70,252
70% 69.7% 61,022 60,775
60% 59.6% 52,305 51,966
50% 50.5% 43,587 44,000
40% 39.7% 34,870 34,636
30% 29.9% 26,152 26,073
20% 20.1% 17,435 17,523
10% 9.9% 8,717 8,591
Active Idle   0 0
Graph of results

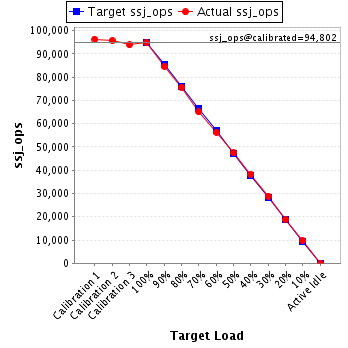

JVM 'WIN-TNLGK16A38D.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,363
Calibration 2     95,744
Calibration 3     93,859
ssj_ops@calibrated=94,802
100% 100.1% 94,802 94,913
90% 89.3% 85,321 84,669
80% 79.9% 75,841 75,747
70% 68.6% 66,361 65,081
60% 59.5% 56,881 56,375
50% 50.0% 47,401 47,442
40% 40.4% 37,921 38,266
30% 30.4% 28,440 28,850
20% 19.9% 18,960 18,854
10% 10.1% 9,480 9,621
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,112
Calibration 2     95,201
Calibration 3     93,709
ssj_ops@calibrated=94,455
100% 99.3% 94,455 93,790
90% 90.1% 85,009 85,104
80% 80.1% 75,564 75,646
70% 69.5% 66,118 65,612
60% 59.8% 56,673 56,472
50% 49.5% 47,227 46,781
40% 39.6% 37,782 37,366
30% 29.9% 28,336 28,269
20% 20.1% 18,891 19,019
10% 10.1% 9,445 9,512
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,832
Calibration 2     95,300
Calibration 3     95,507
ssj_ops@calibrated=95,403
100% 98.4% 95,403 93,916
90% 89.1% 85,863 84,969
80% 80.7% 76,323 76,981
70% 68.9% 66,782 65,735
60% 60.5% 57,242 57,693
50% 49.6% 47,702 47,339
40% 40.3% 38,161 38,408
30% 29.6% 28,621 28,277
20% 19.9% 19,081 18,994
10% 9.8% 9,540 9,329
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,938
Calibration 2     96,259
Calibration 3     97,661
ssj_ops@calibrated=96,960
100% 98.0% 96,960 95,023
90% 90.1% 87,264 87,354
80% 79.6% 77,568 77,195
70% 70.2% 67,872 68,084
60% 60.9% 58,176 59,037
50% 50.0% 48,480 48,500
40% 39.9% 38,784 38,707
30% 29.8% 29,088 28,892
20% 20.1% 19,392 19,537
10% 9.5% 9,696 9,241
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,587
Calibration 2     94,690
Calibration 3     95,367
ssj_ops@calibrated=95,028
100% 98.7% 95,028 93,809
90% 90.2% 85,525 85,689
80% 80.4% 76,023 76,372
70% 70.0% 66,520 66,552
60% 60.4% 57,017 57,412
50% 49.7% 47,514 47,252
40% 40.0% 38,011 37,966
30% 30.1% 28,508 28,607
20% 20.0% 19,006 18,981
10% 10.1% 9,503 9,637
Active Idle   0 0
Graph of results
JVM 'WIN-TNLGK16A38D.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,880
Calibration 2     94,486
Calibration 3     95,209
ssj_ops@calibrated=94,847
100% 98.8% 94,847 93,665
90% 89.5% 85,362 84,923
80% 79.9% 75,878 75,811
70% 69.1% 66,393 65,569
60% 60.2% 56,908 57,089
50% 49.6% 47,424 47,068
40% 40.0% 37,939 37,982
30% 29.6% 28,454 28,039
20% 20.1% 18,969 19,041
10% 10.2% 9,485 9,700
Active Idle   0 0
Graph of results
