Sugon I620-G30 (Intel Xeon Gold 5117) SPECpower_ssj2008 = 8,079 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 27, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 245 28.4
Calibration 2 245 28.4
Calibration 3 245 28.3
100% 245 28.2
90% 227 28.1
80% 200 28.0
70% 172 27.9
60% 157 27.9
50% 146 27.9
40% 137 27.9
30% 127 27.9
20% 117 27.9
10% 107 27.9
Active Idle 51.9 27.9

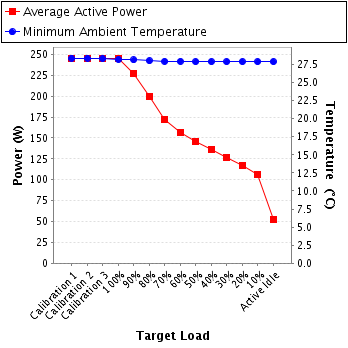

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Meters and Instruments Corporation
Model: WT310E
Serial Number: C3UB14026E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: National Institute of Metrology
Calibration Label: CSG06300180301-1145
Date of Calibration: 01-Mar-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connect to PSU1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 226 300.0 1.10 2.0 0.981 245 0.3%
Calibration 2 226 300.0 1.11 2.0 0.981 245 0.3%
Calibration 3 226 300.0 1.11 2.0 0.981 245 0.3%
100% 226 300.0 1.11 2.0 0.981 245 0.3%
90% 226 300.0 1.03 2.0 0.977 227 0.3%
80% 227 300.0 0.910 1.0 0.969 200 0.2%
70% 226 300.0 0.790 1.0 0.962 172 0.2%
60% 226 300.0 0.723 1.0 0.957 157 0.3%
50% 228 300.0 0.674 1.0 0.950 146 0.3%
40% 229 300.0 0.632 1.0 0.944 137 0.3%
30% 228 300.0 0.593 1.0 0.937 127 0.3%
20% 229 300.0 0.551 1.0 0.928 117 0.3%
10% 229 300.0 0.508 1.0 0.918 107 0.3%
Active Idle 229 300.0 0.302 0.5 0.751 51.9 0.4%

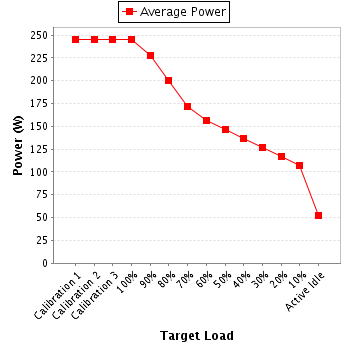

Power details for pwr1
