Hewlett Packard Enterprise ProLiant DL325 Gen10 SPECpower_ssj2008 = 8,083 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 19, 2018
Hardware Availability: May-2018 Software Availability: Jun-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 170 30.2
Calibration 2 181 30.9
Calibration 3 181 32.1
100% 181 32.9
90% 170 33.5
80% 161 33.9
70% 153 34.1
60% 145 34.4
50% 136 34.6
40% 127 34.6
30% 116 34.6
20% 105 34.4
10% 92.3 34.1
Active Idle 61.7 33.7

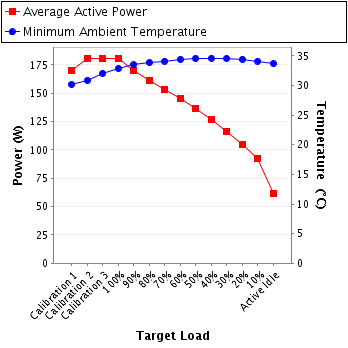

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K218964
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EJ4KB-80-1
Date of Calibration: 20-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 0.844 1.0 0.932 170 0.4%
Calibration 2 216 300.0 0.892 1.0 0.939 181 0.4%
Calibration 3 216 300.0 0.892 1.0 0.939 181 0.4%
100% 215 300.0 0.894 1.0 0.939 181 0.4%
90% 216 300.0 0.845 1.0 0.933 170 0.4%
80% 216 300.0 0.807 1.0 0.926 161 0.4%
70% 216 300.0 0.772 1.0 0.920 153 0.4%
60% 216 300.0 0.738 1.0 0.912 145 0.4%
50% 216 300.0 0.700 1.0 0.903 136 0.5%
40% 216 300.0 0.658 1.0 0.890 127 0.5%
30% 217 300.0 0.613 1.0 0.873 116 0.5%
20% 216 300.0 0.569 1.0 0.852 105 0.6%
10% 217 300.0 0.518 1.0 0.821 92.3 0.6%
Active Idle 217 300.0 0.409 1.0 0.694 61.7 0.8%
Power details for pwr1
