Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,718,172
ssj_ops@100% per JVM = 1,429,543
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,737,243
Calibration 2     5,730,957
Calibration 3     5,737,887
ssj_ops@calibrated=5,734,422
100% 99.7% 5,734,422 5,718,172
90% 90.1% 5,160,980 5,164,587
80% 80.0% 4,587,538 4,588,878
70% 70.1% 4,014,095 4,021,668
60% 59.9% 3,440,653 3,435,020
50% 50.0% 2,867,211 2,869,630
40% 40.1% 2,293,769 2,296,721
30% 30.0% 1,720,327 1,720,233
20% 20.1% 1,146,884 1,152,238
10% 10.0% 573,442 573,193
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE08.001 1,420,636
NODE08.002 1,426,686
NODE08.003 1,444,248
NODE08.004 1,426,602
ssj_ops@100% 5,718,172
ssj_ops@100% per JVM 1,429,543

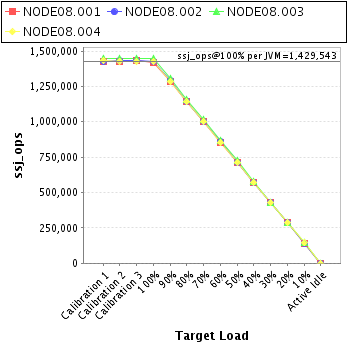

Graph of per-instance results
JVM 'NODE08.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,073
Calibration 2     1,427,612
Calibration 3     1,430,145
ssj_ops@calibrated=1,428,878
100% 99.4% 1,428,878 1,420,636
90% 90.0% 1,285,990 1,286,116
80% 80.1% 1,143,103 1,144,906
70% 70.2% 1,000,215 1,002,747
60% 59.7% 857,327 853,470
50% 49.9% 714,439 713,446
40% 40.1% 571,551 572,304
30% 30.0% 428,663 428,683
20% 20.1% 285,776 286,494
10% 10.0% 142,888 142,345
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,427,631
Calibration 2     1,430,076
Calibration 3     1,431,483
ssj_ops@calibrated=1,430,779
100% 99.7% 1,430,779 1,426,686
90% 90.3% 1,287,702 1,292,526
80% 80.1% 1,144,624 1,146,695
70% 70.1% 1,001,546 1,003,518
60% 59.9% 858,468 857,611
50% 50.0% 715,390 715,760
40% 40.0% 572,312 572,949
30% 30.1% 429,234 430,488
20% 20.1% 286,156 287,397
10% 10.0% 143,078 142,553
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,449,606
Calibration 2     1,444,236
Calibration 3     1,448,290
ssj_ops@calibrated=1,446,263
100% 99.9% 1,446,263 1,444,248
90% 90.1% 1,301,637 1,303,160
80% 80.0% 1,157,010 1,156,779
70% 70.0% 1,012,384 1,013,075
60% 60.2% 867,758 870,312
50% 50.2% 723,131 725,877
40% 40.0% 578,505 578,780
30% 29.9% 433,879 432,451
20% 20.1% 289,253 290,539
10% 10.0% 144,626 145,002
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,933
Calibration 2     1,429,034
Calibration 3     1,427,969
ssj_ops@calibrated=1,428,501
100% 99.9% 1,428,501 1,426,602
90% 89.8% 1,285,651 1,282,785
80% 79.8% 1,142,801 1,140,498
70% 70.2% 999,951 1,002,327
60% 59.8% 857,101 853,628
50% 50.0% 714,251 714,546
40% 40.1% 571,401 572,687
30% 30.0% 428,550 428,611
20% 20.1% 285,700 287,808
10% 10.0% 142,850 143,293
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
