Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,720,166
ssj_ops@100% per JVM = 1,430,042
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,723,248
Calibration 2     5,730,867
Calibration 3     5,737,251
ssj_ops@calibrated=5,734,059
100% 99.8% 5,734,059 5,720,166
90% 89.9% 5,160,653 5,157,145
80% 80.1% 4,587,247 4,591,348
70% 69.9% 4,013,841 4,008,800
60% 60.0% 3,440,435 3,440,022
50% 50.0% 2,867,029 2,867,134
40% 40.0% 2,293,623 2,293,650
30% 30.0% 1,720,218 1,718,612
20% 20.1% 1,146,812 1,150,322
10% 10.0% 573,406 575,486
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE08.001 1,430,656
NODE08.002 1,428,832
NODE08.003 1,432,585
NODE08.004 1,428,094
ssj_ops@100% 5,720,166
ssj_ops@100% per JVM 1,430,042

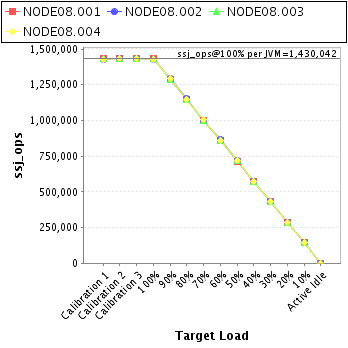

Graph of per-instance results
JVM 'NODE08.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,476
Calibration 2     1,433,141
Calibration 3     1,434,312
ssj_ops@calibrated=1,433,726
100% 99.8% 1,433,726 1,430,656
90% 89.8% 1,290,354 1,287,861
80% 80.0% 1,146,981 1,147,405
70% 69.9% 1,003,608 1,002,707
60% 59.8% 860,236 857,460
50% 49.8% 716,863 713,609
40% 40.0% 573,490 573,962
30% 30.1% 430,118 430,891
20% 20.0% 286,745 286,789
10% 10.0% 143,373 143,948
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

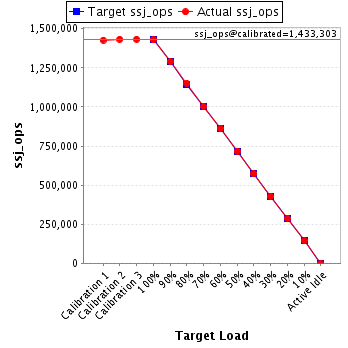

JVM 'NODE08.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,105
Calibration 2     1,432,847
Calibration 3     1,433,759
ssj_ops@calibrated=1,433,303
100% 99.7% 1,433,303 1,428,832
90% 90.1% 1,289,973 1,291,458
80% 80.4% 1,146,643 1,152,664
70% 69.9% 1,003,312 1,002,353
60% 60.2% 859,982 862,980
50% 50.1% 716,652 717,946
40% 39.9% 573,321 572,068
30% 30.0% 429,991 429,332
20% 20.1% 286,661 287,503
10% 10.0% 143,330 143,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,766
Calibration 2     1,432,040
Calibration 3     1,433,448
ssj_ops@calibrated=1,432,744
100% 100.0% 1,432,744 1,432,585
90% 89.8% 1,289,469 1,286,334
80% 79.8% 1,146,195 1,143,257
70% 69.8% 1,002,921 999,355
60% 60.0% 859,646 859,385
50% 50.2% 716,372 719,224
40% 40.1% 573,098 574,291
30% 29.9% 429,823 428,927
20% 20.1% 286,549 288,059
10% 10.1% 143,274 144,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

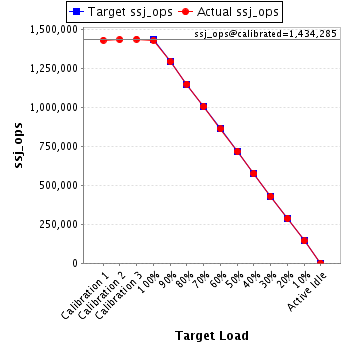

JVM 'NODE08.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,901
Calibration 2     1,432,839
Calibration 3     1,435,731
ssj_ops@calibrated=1,434,285
100% 99.6% 1,434,285 1,428,094
90% 90.0% 1,290,857 1,291,492
80% 80.0% 1,147,428 1,148,022
70% 70.0% 1,004,000 1,004,385
60% 60.0% 860,571 860,197
50% 49.9% 717,143 716,355
40% 40.0% 573,714 573,330
30% 29.9% 430,286 429,462
20% 20.1% 286,857 287,970
10% 10.0% 143,429 143,614
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
